Įtampos keitiklis FCHAO 12–230V, 2500W/5000W, pilnos sinusinės bangos

Trumpai apie prekę

Prekė: Įtampos keitiklis FCHAO 12–230V, 2500W/5000W, pilnos sinusinės bangos. Kategorija: Įtampos keitikliai.

• Gamintojas: FCHAO

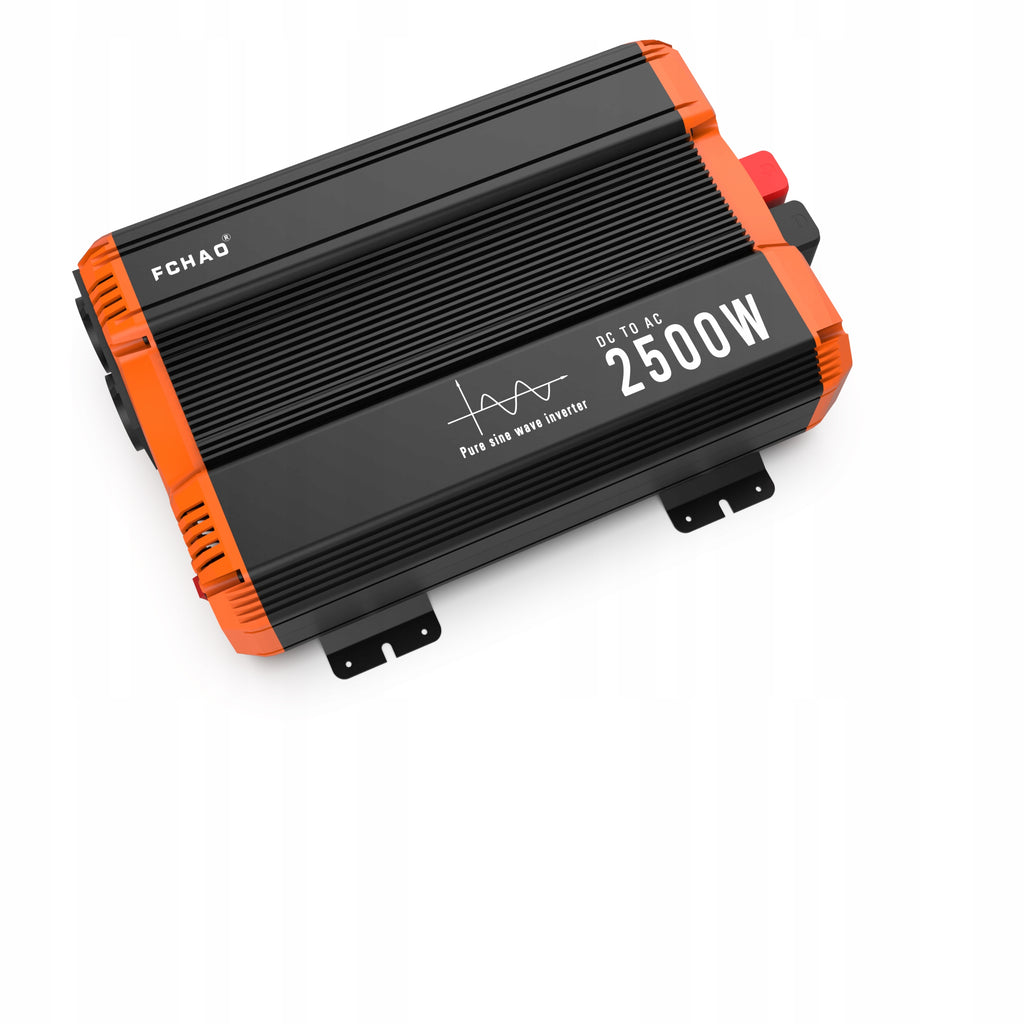

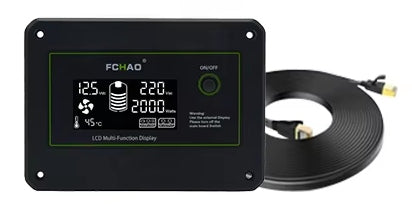

Introducing the FCHAO 2500W inverter, perfect for both motorhome and home use. The product we offer is characterized by high efficiency and extremely simple operation. The FCHAO inverter is the perfect device for powering a variety of electrical devices. Thanks to the fact that at the output we have a purely sinusoidal current, it allows you to connect any device to 203V and guarantees reliability and convenience of use. The product is available in a compact size, making it easy to install. Each device is accompanied by a remote control panel, allowing you to turn off the device and view the current operating parameters. Take advantage of this unique opportunity and provide yourself with a reliable power source.

Model

• KST-2500W-12V □220V

Output

• Rated power (Wt)

  2500W

• Peak power (Wt)

  5000W

• Output voltage (AC)

  AC 220V 230V 240V (Default: 230V)

• Output frequency (Hz)

  50Hz/60Hz±1Hz (Default: 50Hz)

• Output voltage course

  Pure sine wave

• Panel display

  LCD (liquid crystal)

Input (Input)

• Battery voltage (V)

  12V

• Voltage range (V)

  DC10-15V

• Permanent current (I)

  250A

• No-load losses (W)

  ≤10W

• Work efficiency

  88%~92%

• Battery type

  Lead-acid or lithium battery

Battery input protection

• Built-in fuse

  40A × 8

• Off at low battery voltage

  10V ±4%

• Reverse battery connection

  Burned internal fuse

Security (Protection)

• Overheating protection

  When the temperature exceeds 85°C, the AC output will be turned off and the alarm will start for 5 seconds in continuous mode.

  The system will automatically resume operation when the temperature drops below 75°C.

• Overload protection

  Load > 110%: alarm for 15 seconds, after which the AC output will be turned off (switch reset required for resume).

  Load > 150%: disable AC output within 2 seconds (switch reset required for resume).

• High voltage protection AC

  If output voltage > 255V, immediately turn off the AC output (switch reset required for resumption).

• Output short circuit protection

  Off within 10 seconds (switch reset required for resume).

Working environment

• Working temperature

  -25°C ~ +80°C

• Ambient temperature

  -25°C ~ +45°C

• Working humidity

  30% ~ 90% RH, non-condensing

• Storage temperature

  -25°C ~ +70°C (dry)

• Vibration resistance

  10 ~ 500Hz, 2G, 10 minutes/cycle, X, Y, Z axes 60 minutes each

• Type of cooling

  Air cooling

Electromagnetic compatibility

• Safety standard

  CE

• Voltage resistance

  Bat-PG: 500VAC

  AC-FG: 1.5KVAC

• Isolation resistance

  Bat-PG, AC-FG: 100M Ohms / 500VDC / 25°C / 70% RH

Packaging (PACK)

• Product dimensions

  374mm × 268mm × 105mm

• Net weight of product

  4,50 kg

• Package dimensions

  430mm × 340mm × 198mm

AC output socket

• European

Warning

This product is an off-grid inverter. It is forbidden to connect another AC power supply to the inverter, as well as to use the AC socket to connect external mains power sources.

Statement

The Company reserves the right to change the product and update the specifications without prior notice.
