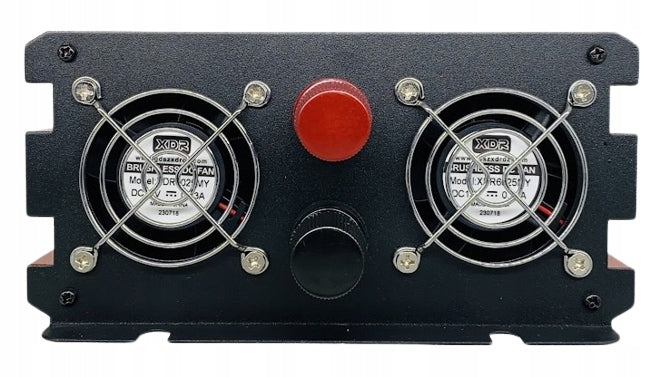

Įtampos keitiklis MAXIMUS 12V į 230V, 2000VA, 1000W, modifikuota sinusinė, LCD

Trumpai apie prekę

Prekė: Įtampos keitiklis MAXIMUS 12V į 230V, 2000VA, 1000W, modifikuota sinusinė, LCD. Kategorija: Įtampos keitikliai.

• Gamintojas: Maximus

INERGE MAXIMUS converts 12V DC voltage to ~230V AC current.

Thanks to the built-in USB port, QuickCharge 3.0 18W allows you to charge your smartphone, tablet or laptop. The device has excellent protection, high-quality components, sufficient power and safe design.

Properties:

• Output of modified sine wave
• Advanced CPU control system for optimal power output
• Robust construction with full protection
• Integrated fan that keeps the temperature of the device at the right level.
• Aluminum housing
• High efficiency of the device
• Low power consumption without load
• Possibility of grounding
• Intuitive and simple operation
• USB port with QC3.0 18W fast charging
• Possibility to connect to the cigarette lighter socket in the car

Technical data:

• Model: PMI-2000
• Total power (instantaneous): 2000VA
• Constant power: 1000W
• Display: LCD
• Number of sockets (type E): 1
• Number of sockets (type F): 1
• DC input voltage range: 12V
• Input frequency: 50Hz±0.5Hz
• Rated AC Output Voltage: 230V ± 10%
• Output waveform: Modified sine wave
• USB Output: QC3.0 Fast charge
• Efficiency: 88-92%
• Operating temperature: -20°C- +50°C
• Protection: against overload, against short circuit, against overheating, against low voltage, against overvoltage, against reverse connection
• Buzzer alarm: overload, overheating, low voltage, overvoltage

Dimensions:

• Length: 25cm
• Width: 9,8cm
• Height: 18cm
• Weight: 2,30kg

Output waveform - Modified sine wave

Modified sine wave inverters are a more cost-effective solution and are used in a limited range of devices such as lighting, laptop chargers and some electrical tools.

When choosing a converter, you should check whether it is suitable for your device. Make sure that the total continuous power consumption of all devices is within the maximum power limit of the converter.

Protective Functions:

• OVERLOAD PROTECTION: In case of overload by 125%, the converter will send an alarm sound, the LED will flash RED and stop working after 20 seconds. When the load is reduced to an acceptable level, the device will resume operation.
• SHORT CIRCUIT PROTECTION: The inverter is equipped with short-circuit protection and will not damage the circuit.
• OVERHEATING PROTECTION: When the internal temperature of the converter is 80 degrees C, an audible alarm is activated first. If the temperature continues to rise, the LED begins to flash RED and the device turns off. When the temperature drops to an acceptable level, the device will automatically resume operation.
• LOW VOLTAGE PROTECTION: When the battery voltage drops below the set level, the converter will emit an alarm sound and the RED LED will light up. When the battery voltage drops to the off level, the device will stop working, and when the battery voltage rises to the restart level, the device will automatically resume operation.
• OVERVOLTAGE PROTECTION: When the input voltage rises above the set level, the converter will emit an alarm sound, and the RED LED will light up, the voltage will continue to rise, and the device will stop working when the voltage is normal, the device will automatically resume operation.
• REVERSE CONNECTION PROTECTION: When reverse connected, the built-in converter fuse will be blown. In this case, turn off the device, disconnect the power source, and then replace the fuse with a new one.

Below table with indicative working time using AGM, GEL batteries by INERGE

By buying you will receive:

• MAXIMUS PMI-2000 LCD converter modified sine
• Cables for connecting the battery
• Cable for connection to grounding
• Spare fuses
• Operating instructions

Specifications
