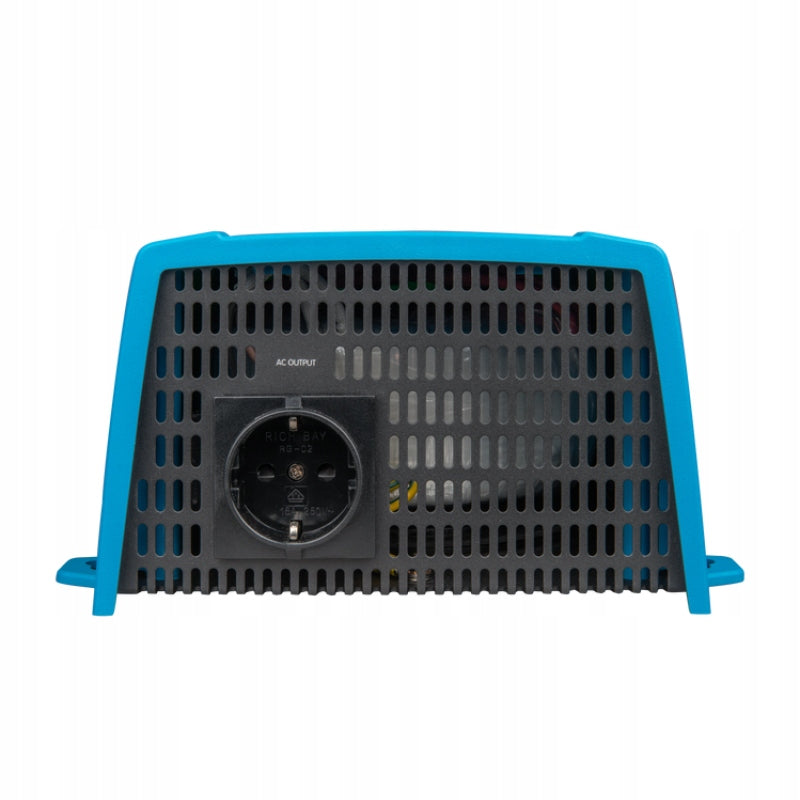

Įtampos keitiklis Victron Energy 12V 1000W 1200VA

Trumpai apie prekę

Prekė: Įtampos keitiklis Victron Energy 12V 1000W 1200VA. Kategorija: Įtampos keitikliai.

• Gamintojas: Victron energy

Victron 12/1200 Inverter VOLTAGE CONVERTER

VICTRON ENERGY

✅ INVERTER VICTRON PHEONIX 12/1200 VE DIRECT SCHUKO

Inverters allow you to power household appliances that require an alternating current of 230/120 V, from batteries for recreational vehicles or car batteries with a rated voltage of 12, 24 or 48 V DC.

✔ Advantages

• Communication port VE.Direct
• The VE.Direct port can be connected to: Computer (VE.Direct to USB interface cable required), Smartphones, tablets, MacBooks and other Apple and Android devices (VE.Direct Bluetooth Smart dongle required)

✔ Fully customizable:

• Battery Low Voltage Alarm and Reset Levels
• Cut-off and restart levels at low battery voltage
• Dynamic cut-off: load-dependent cut-off level
• Output voltage 210 – 245V
• Frequency 50 Hz or 60 Hz
• Enabling/disabling ECO mode and ECO mode sensing level

Basic technical data

• Average power [W]: 1000
• Average power [VA]: 1200
• Maximum instantaneous power [W]: 2400
• Maximum efficiency [%]: 92
• Input voltage range DC [V]: 9.2 - 17
• Supply voltage DC [V]: 12
• No-load current consumption: 8W in ECO mode 1W
• Sinus: full ✔
• No-load power consumption: 8W in ECO mode 1W
• Output voltage AC [V]: 230/120VAC +/- 3% 50/60Hz +/- 1%
• Automatic load disconnection voltage [V]: 9.3
• Automatic load switching voltage [V]: 10.9
• Operating temperature: -40 to +65°C (cooling by fan)
• Dimensions [mm]: 362 x 232 x 117
• Weight [Kg]: 7.7
• Protection class: IP21
• Number of phases: 1
• Type of communication: VE.Direct

Security standards

• EN-IEC 60335-1 / EN-IEC 62109-1

EMC standards

• EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3

Automotive directive

• ECE R10-4, EN50498

✔ Communication port VE.Direct

Porthe VE.Direct can be connected to:

• Computer (via VE.Direct cable - USB - not included)
• Apple and Android smartphones, tablets, macbooks and other devices ( via VE.Direct Bluetooth Smart dongle - not included )

Completely programmable:

• Low and high voltage alarm - alarm on and reset levels
• Low and high voltage - levels of disconnection and resumption of work
• Output voltage 220/230/240V
• Frequency 50 Hz or 60 Hz
• ECO mode on. /off and ECO mode levels

Monitoring :

• Input/output voltage and current, temperature, alarms

✔ Confirmed reliability

Bridging plus toroidal transformer topology have proven their reliability for many years. Inverters have short-circuit protection, against overheating, both due to overload and high ambient temperature.

✔ High starting power

Essential for loads such as converter for LED lamps, halogen lamps or electrical appliances.

✔ ECO mode

In ECO mode, the inverter will switch to standby mode when the load falls below the set value. In standby mode, the inverter turns on for a while (programmable, by default every 2,5 seconds. ). If the load exceeds the set level, the inverter will remain on.

✔ Remote on/off

The remote switch can be connected to a two-pole connector, or between the positive pole of the battery and the connector on the right side of the two-pole connector.

✔ LED diagnostics

Details in the user manual.

✔ Load transfer to another AC source: automatic transfer switching

For our low power inverters, we suggest our Filax Automatic Transfer Switch. Filax has an ultra-fast switch (less than 20ms), so your computer or other electronic device will work continuously while switching.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Effective power	2200 W
Parametry	Brand	Victron energy
Parametry	EAN (GTIN)	8719076041535
