Įtampos stabilizatorius AVR 1000 PRO, 1000 W, 3 %, AZO Digital, generatoriams

Trumpai apie prekę

Prekė: Įtampos stabilizatorius AVR 1000 PRO, 1000 W, 3 %, AZO Digital, generatoriams. Kategorija: Elektros generatoriai.

• Gamintojas: AZO
• Modelis: AZO AVR-1000 PRO
• Įtampa: 230 V

PURE SINE OF 1000W/600W

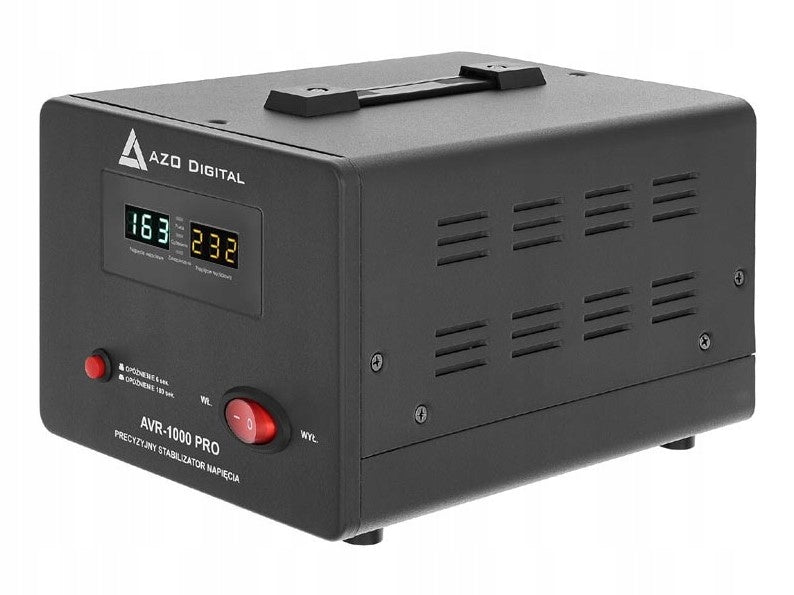

AZO AVR-1000 PRO:

• AVR voltage stabilizer
• CLEAN SINUS - allows you to power induction motors, e.g. CO pumps, stoves, refrigerators, etc.
• high efficiency
• Maximum power 1000W
• guaranteed quality and reliability
• Polish instruction manual

A typical application of AVR is to stabilize the supply voltage between a generator set or other unstable power source (e.g. network loaded with photovoltaic installations) and a receiver powered by a standard voltage of 230VAC.

The AZO AVR-1000 PRO stabilizer is ideal for devices such as:

• servers
• computer sets, routers, modems, network components
• RTV equipment, e.g.

Some devices with too large voltage fluctuations stop working or it threatens to damage them - then AVR should be used.

The main function of the AZO AVR-1000 PRO voltage stabilizer is to automatically adjust the voltage fed at the stabilizer input.

The device improves the parameters of the voltage fed to m.in. from a local network or generator.

A typical application is to maintain a constant supply voltage, regardless of the load and fluctuations in the supply voltage, between the generator and the receiver.

The stabilizer automatically lowers too high and raises too low voltage to the correct level of 230 AVC.

High precision 3% (tolerance) deserves attention - for most devices it is 8-10%.

AZO AVR-1000 PRO will protect connected devices from damage due to an increase or decrease in power supply voltage.

Important information about the use of voltage stabilizer:

• avoid overloading the stabilizer above its maximum power
• Some devices equipped with motors or compressors need very high starting power. Make sure that the total nominal and overload (start-up) power of the devices connected to the stabilizer does not exceed its maximum power
• check that the receiver voltage is the same as the stabilizer
• make sure that the input voltage (e.g. mains) is within the input voltage range of the stabilizer and the output voltage is appropriate for the voltage range of the connected receiver
• store the stabilizer in appropriate conditions (m.in.: well ventilated room, device not exposed to direct sunlight, protected from contact with children, away from water, moisture, oils or other wet substances, away from flammable substances)
• first connect the load to the stabilizer, start the AVR, and then start the device connected to it
• connection of the device should be made after reading the instructions or by a person with appropriate permissions, e.g. electrics.

Specification:

• Output power: 1000VA, 600W (max. )
• AC input range: 150-260 V
• Lower voltage protection: Power cut-off below 150 VAC
• Upper voltage protection: Power cut-off above 260 VAC
• Input frequency: 50 Hz
• AC output voltage: 230 V

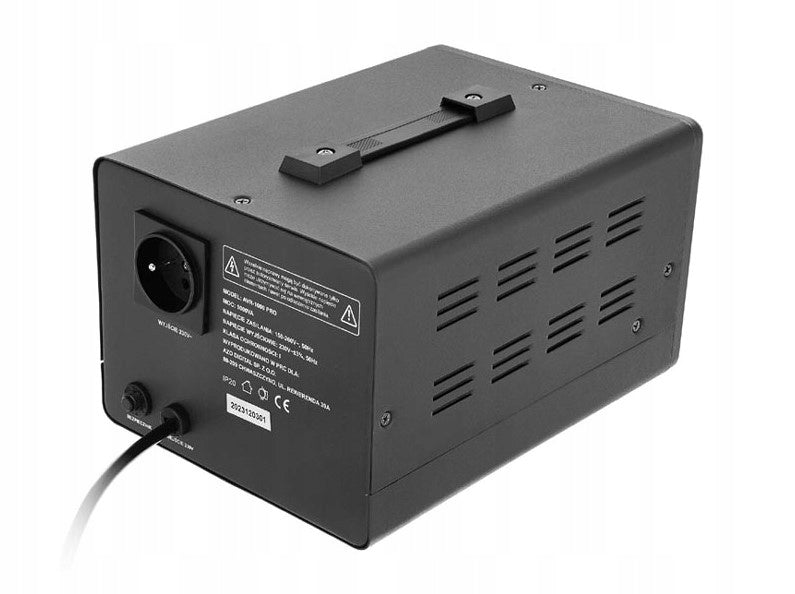

• 230V output socket: 1 x E (with pin)
• Power connector: Cable with 230 VAC plug
• Output frequency: synchronized with input frequency
• Output precision: +/- 3%
• Distortion: < 3%
• Efficiency: >90%
• Delay time: 6/180 seconds to choose
• protection: too low voltage, overvoltage, overload, too high temperature
• Noise: < 65dB (at a distance of 1m)
• IP rating: IP20
• housing: Aluminium
• Dimensions: 270 x 190 x 170mm
• Weight: approx. 6kg
• cooling: Passive
• Operating temperature: -10 St.C / +40 St.C
• Operating humidity: Max. 95%, non-condensing
• Storage temperature: -20 St.C / +45 St.C

• Voltage stabilizer AZO AVR-1000 PRO
• instruction manual in Polish
