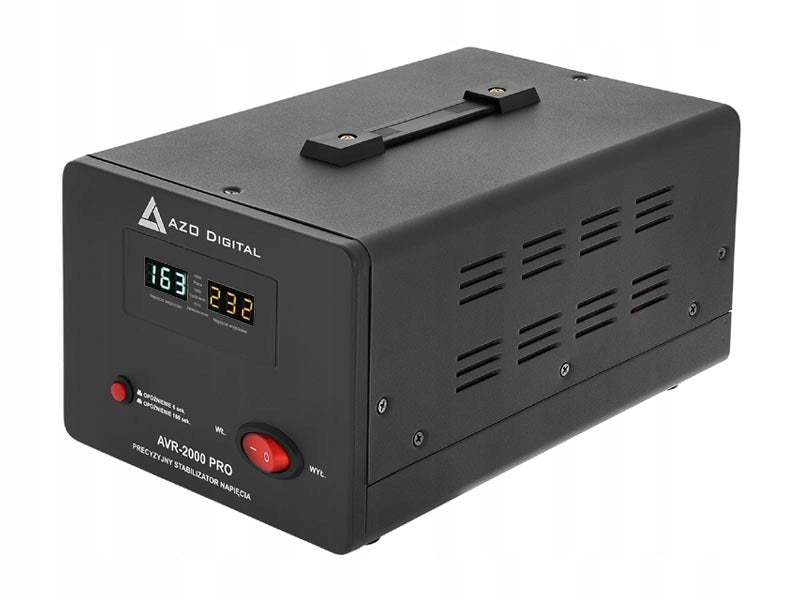

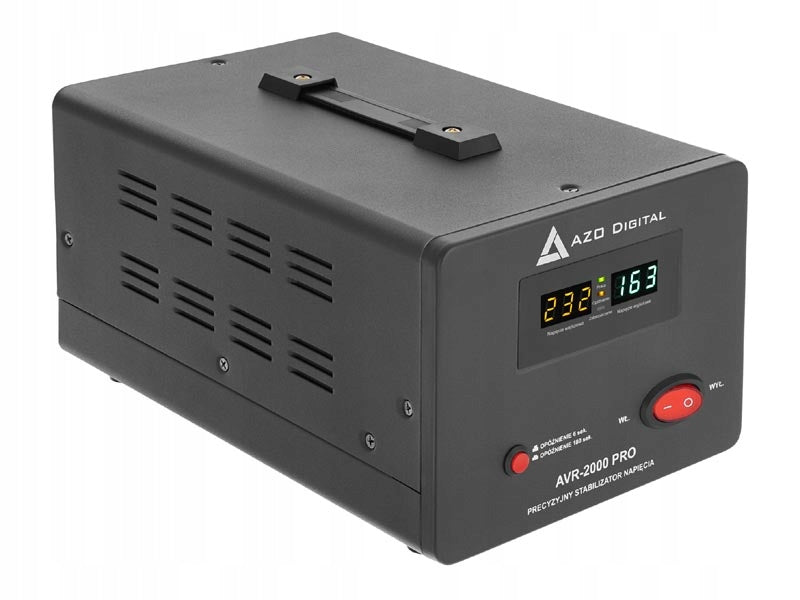

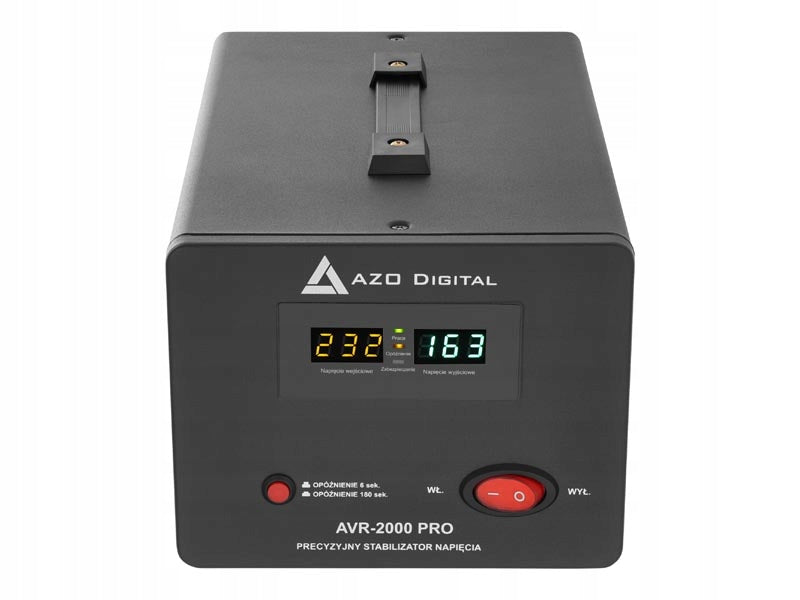

Įtampos stabilizatorius AZO AVR-2000 PRO, 2000W/1200W

Trumpai apie prekę

Prekė: Įtampos stabilizatorius AZO AVR-2000 PRO, 2000W/1200W. Kategorija: Elektros generatoriai.

• Gamintojas: AZO Digital
• Modelis: VR-2000 PRO 2000VA / 1200W

AZO Digital AZO00D1156

✅ The Automatic Voltage Regulator (AVR) is used for maintenance-free regulation of 230 VAC voltage. Its typical application is to stabilize the power supply voltage between a generator or other unstable power source and a 230VAC receiver.

✔️ The stabilizer automatically lowers excessively high voltage and raises excessively low voltage to the correct level. If the voltage continuously rises and exceeds a safe value, the stabilizer will automatically disconnect the device from the mains, thus protecting the receiver from damage.

➡️ The PRO version is characterized by high accuracy of the corrected voltage.

➡️ Technical Data:

• Output Power: 2000VA, 1200W (max.)
• AC Input Range: 150-260 V
• Low Voltage Protection: Power cutoff below 150 VAC
• High Voltage Protection: Power cutoff above 260 VAC
• Input Frequency: 50 Hz
• AC Output Voltage: 230 V
• 230V Output Socket: 1 x E (with ground pin)
• Power Connector: Cable with 230 VAC plug
• Output Frequency: Synchronized with input frequency
• Output Precision: +/- 3%
• Distortion: < 3%
• Efficiency: >90%
• Delay Time: 6/180 seconds selectable
• Protection: Under-voltage, over-voltage, overload, over-temperature
• Noise: < 65dB (at 1m distance)
• IP Rating: IP20
• Housing: Aluminum
• Dimensions: 300 x 190 x 170 mm
• Weight: 7 kg
• Cooling: Passive
• Operating Temperature: -10°C / +40°C
• Operating Humidity: Max. 95%, non-condensing
• Storage Temperature: -20°C / +45°C

AZO Digital is a Polish company operating dynamically in many fields, but their strength lies in devices used to change the voltage of electrical installations in rail vehicles, tractors and delivery vehicles, as well as yachts and motor boats.

AZO Digital experienced engineering staff is characterized by the best proprietary technical solutions. Applying the highest quality standards resulting from the ISO9001:2008 certification, it designs devices that meet current market needs.

All manufactured products have the necessary approvals and safety certificates.
