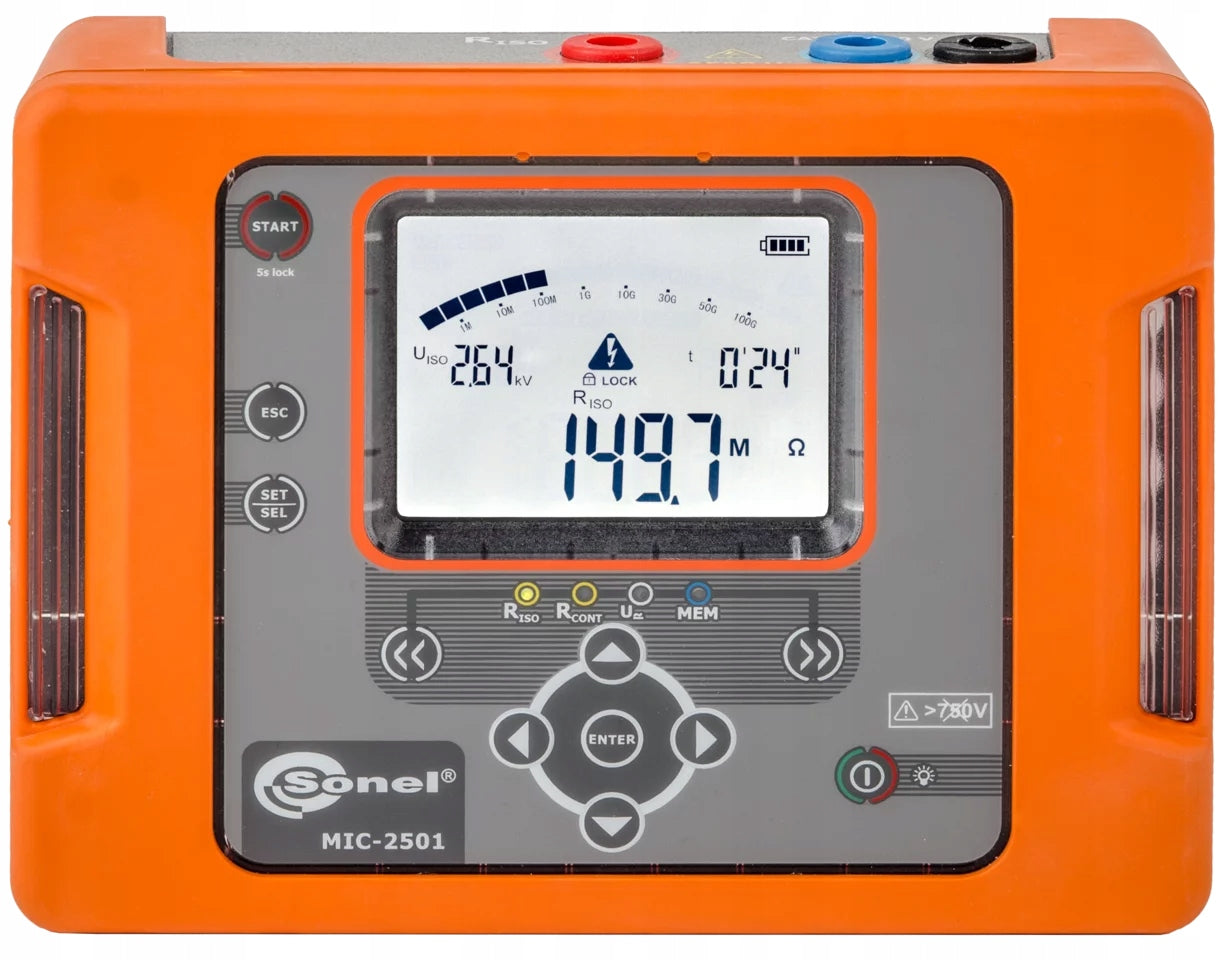

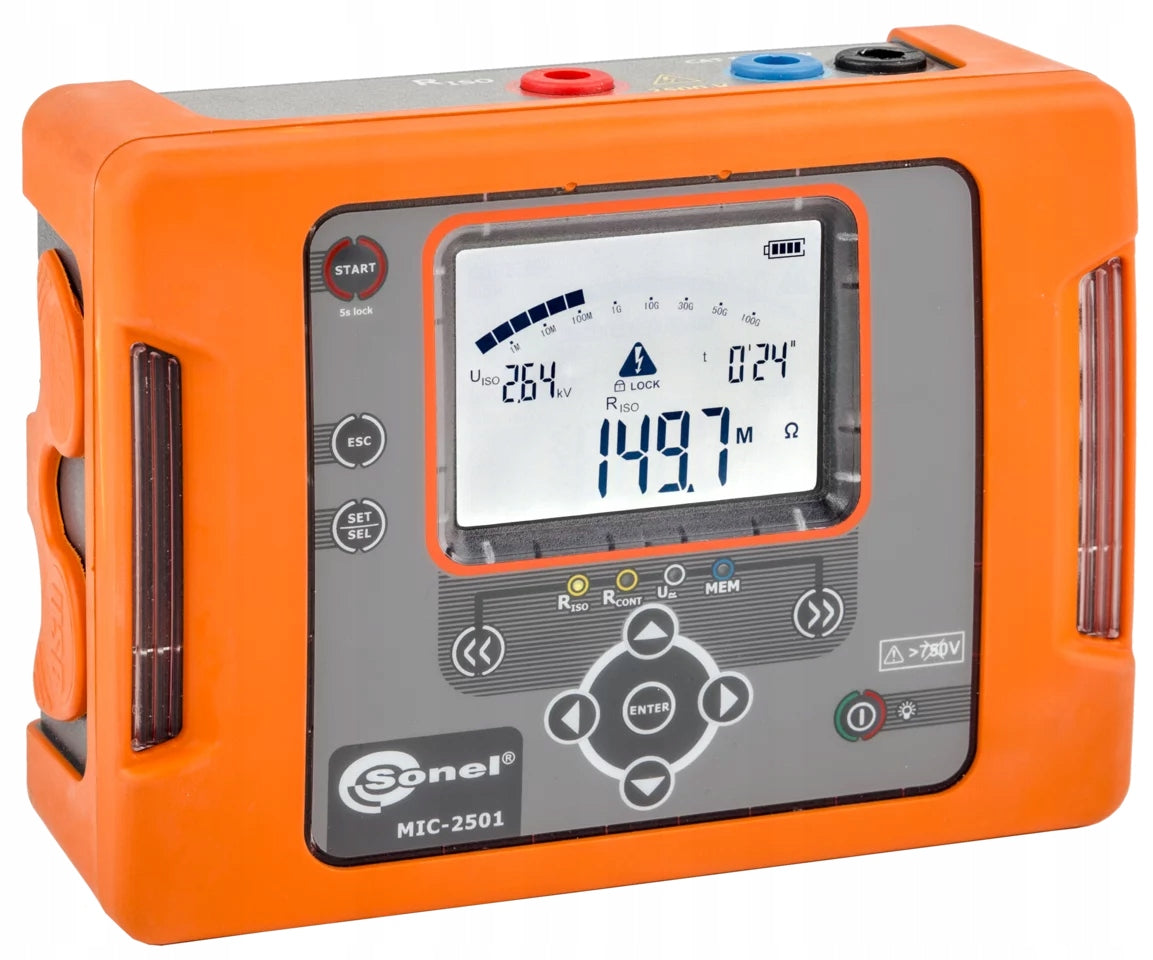

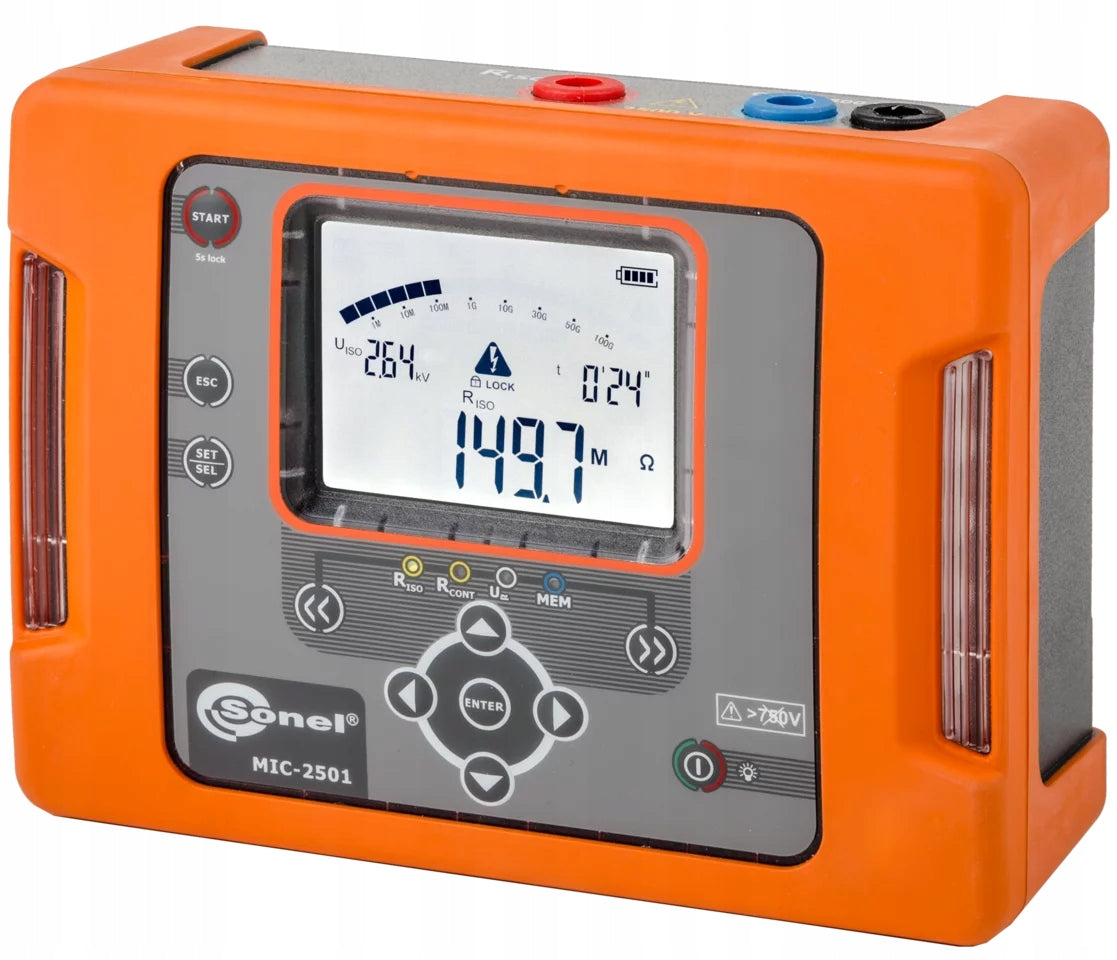

Izoliacijos varžos matuoklis Sonel MIC-2501 2,5 kV WMPLMIC2501

Trumpai apie prekę

Prekė: Izoliacijos varžos matuoklis Sonel MIC-2501 2,5 kV WMPLMIC2501. Kategorija: Detektoriai.

• Gamintojas: Sonel
• Modelis: WMPLMIC2501

INDEX CAT. WMPLMIC2501

EAN 5907624023512

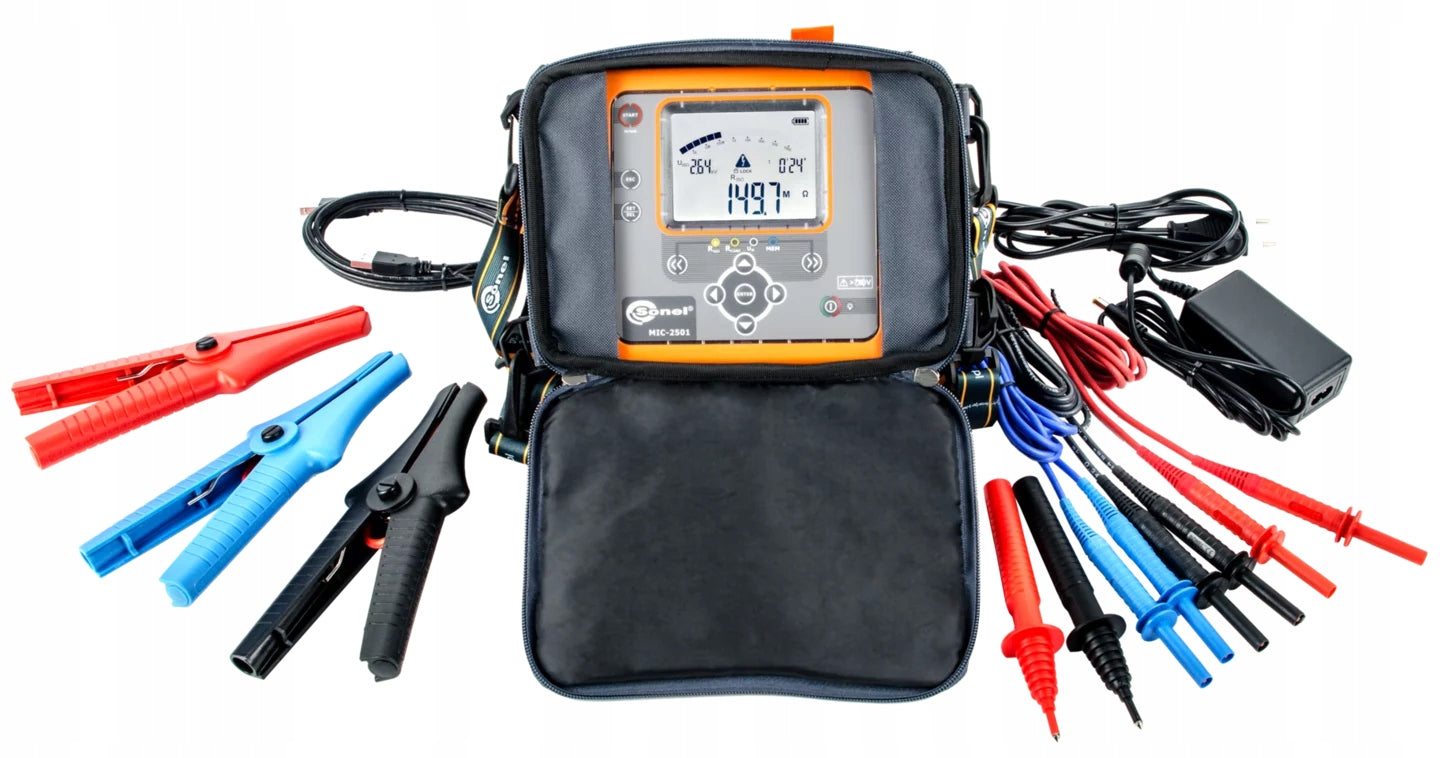

Calibration certificate and standard accessories included.

The functional insulation resistance meter Sonel MIC-2501 surprises with numerous functions hidden in a neat and handy form. Due to its parameters, robust housing with IP 65 protection level, low energy consumption from batteries and the ability to recharge during measurements, the meter is a reliable tool that can be used in many areas. It is perfect for controlling industrial installations and traction networks, and is also successfully used in residential construction. The advantages of this device are especially appreciated by electricians working in maintenance, testing motors, cables and street lighting. The Sonel MIC-2501 meter is also useful for measurements in the construction and maintenance of photovoltaic installations. It provides a reliable solution for telecommunications network installers and district heating network operators, making it easier to control the alarm system of pre-insulated pipes.

Characteristics:

• Measuring voltage selected in the range of 100...2500 V, selected increments of 100 V
• continuous indication of the measured insulation resistance or leakage current
• automatic discharge of the capacitance of the measured object after the measurement of insulation resistance
• acoustic determination of five-second time intervals, facilitating the removal of time characteristics
• measured measurement times T1, T2 and T3 for the measurement of absorption coefficients (Ab/PI/DAR) for 15, 60 and 600 s
• indication of the actual measuring voltage during measurement
• protection against measurement of live objects

Specifications
