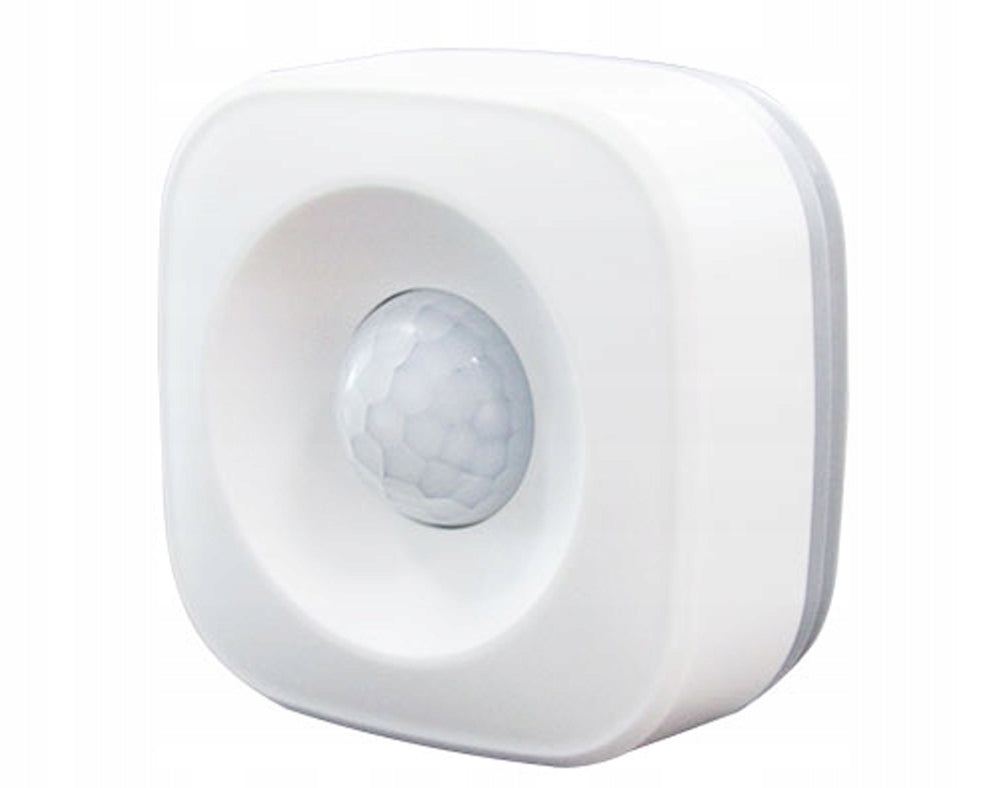

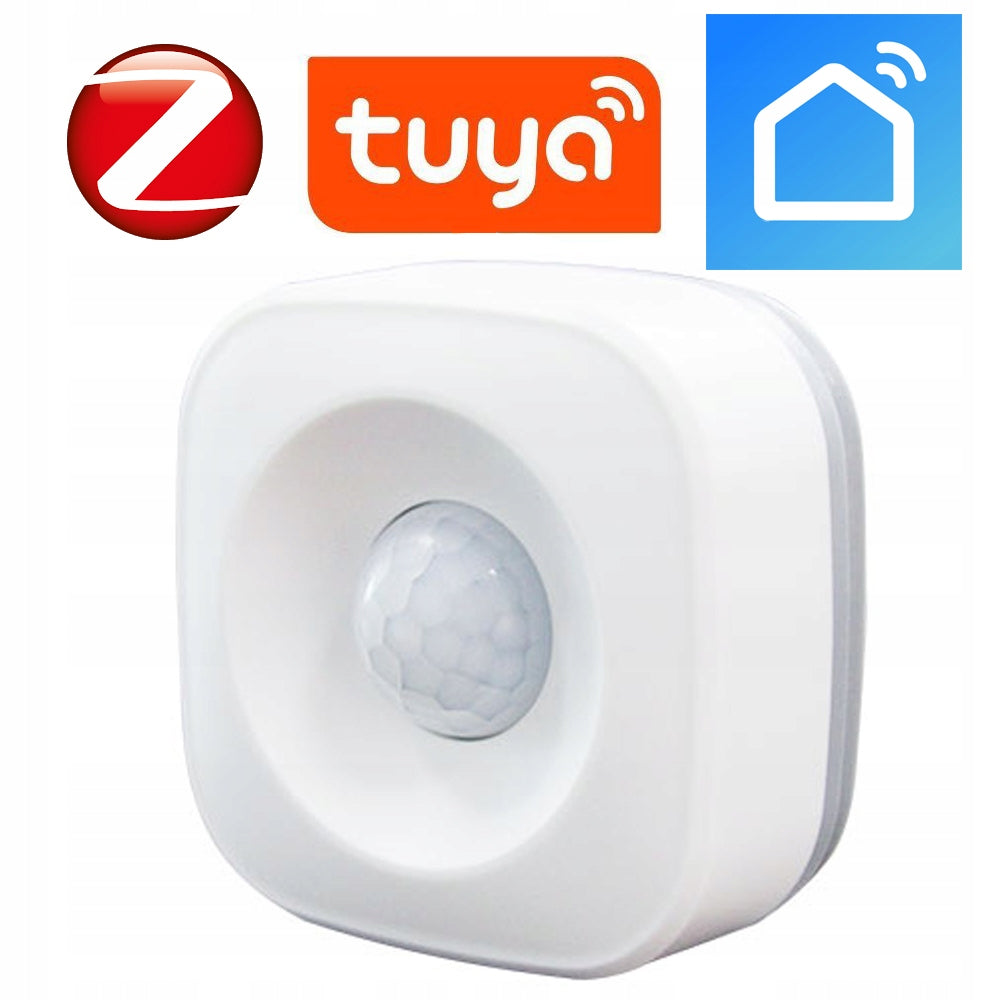

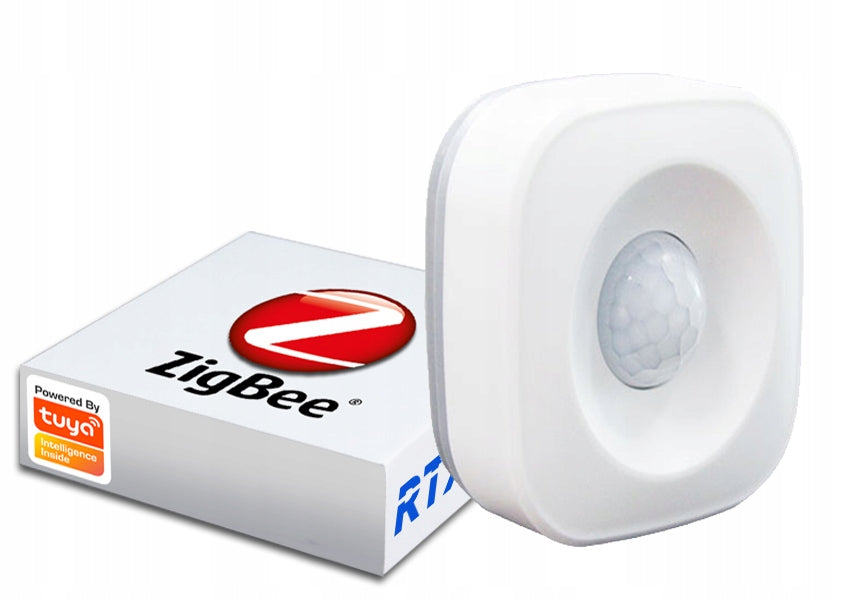

Judesio jutiklis PIR ZigBee TUYA

Trumpai apie prekę

Prekė: Judesio jutiklis PIR ZigBee TUYA. Kategorija: Jutikliai.

• Gamintojas: RTX
• Modelis: ZMS1

Device for wireless control of indoor traffic

Compact sensor that works with the ZigBee control panel as part of the Tuya Smart Life application, with a runtime of up to 12 months on 3 popular AAA batteries!

You can easily set up process automation, e.g. switching on alarm signals or lighting based on motion detection

• The sensor allows you to detect the movement and movement of people and larger animals.
• The sensor operates in the passive infrared PIR range
• Detection range: up to 7 meters
• Motion Detection Cat: 120 Degree
• Detection with interval every 2 or 4 minutes for greater efficiency and minimization of energy consumption

Depending on the need, the sensor can be placed on furniture, fixed to the wall or hung from the ceiling.

No wires, instant assembly!

Due to its advantages ZigBee gains new users at a very fast pace

There are more and more compatible elements of the system, whose common feature is reliability and small dimensions, which is possible thanks to negligible power consumption, and thus - no need for large battery sets.

ZigBee devices should be used where certainty of operation of automated processes is essential.

Since automation management is carried out by the control panel (gateway), the programmed rules will be implemented regardless of access to the WiFi network or in the absence of Internet connectivity.

Adding a new device only requires pressing a button on it and confirming the addition in the app.

Speed of operation, stable and safe communication and low power consumption are the main advantages of ZigBee

ZigBee is an open standard of radio communication supported by leading manufacturers of consumer electronics associated within the Zigbee Alliance.

The current version – ZigBee 3.0 – was developed for Internet of Things systems and smart home systems.

Process automation between system elements is carried out in the control panel, not in the cloud, thanks to which individual actions are performed much faster.

The lattice topology (mesh) provides stable communication between the gate and individual elements of the system, because each receiver is a transmitter. Damage to a single device does not stop the entire network.

Low power consumption needed for the system components to operate, so ZigBee devices (nodes) can usually run for many years on a single battery.

Tuya Smart Life joined ZigBee Alliance thanks to which huge opportunities for expanding the system with new elements were opened.

• integration of more than 11000 different devices
• 30 categories (control, air conditioning, monitoring, etc.)
• 10000 manufacturers of smart devices
• develops new features and supported devices every day
• available for free for Android and iOS

Dedicated Tuya Smart Life app - easy installation and hassle-free operation.

Wherever you are, you can control the safety of your property!

Technical specification:

• ZigBee protocol: version 3.0 according to the standard: 802.15.4
• Antenna type: built-in
• Net weight: 50g
• Status indicator: LED
• Power Supply: 3x AAA battery (available separately)
• Temperature measurement range: 0 to +60 ?
• Detection range: 7 meters
• Detection field: 120degrees
• Dimensions: 6,5 x 6,5 x 2,5cm
• Application: Tuya or Smart Life ( ZigBee control panel is required to work - also available in our offer)

• Sensor PIR ZigBee motion v3.0
• Instruction for use
