Judesių jutiklis RTX, ZigBee, TUYA Smart, 230V, montuojamas sienoje

Trumpai apie prekę

Prekė: Judesių jutiklis RTX, ZigBee, TUYA Smart, 230V, montuojamas sienoje. Kategorija: Jutikliai.

• Gamintojas: RTX
• Modelis: ZPS4

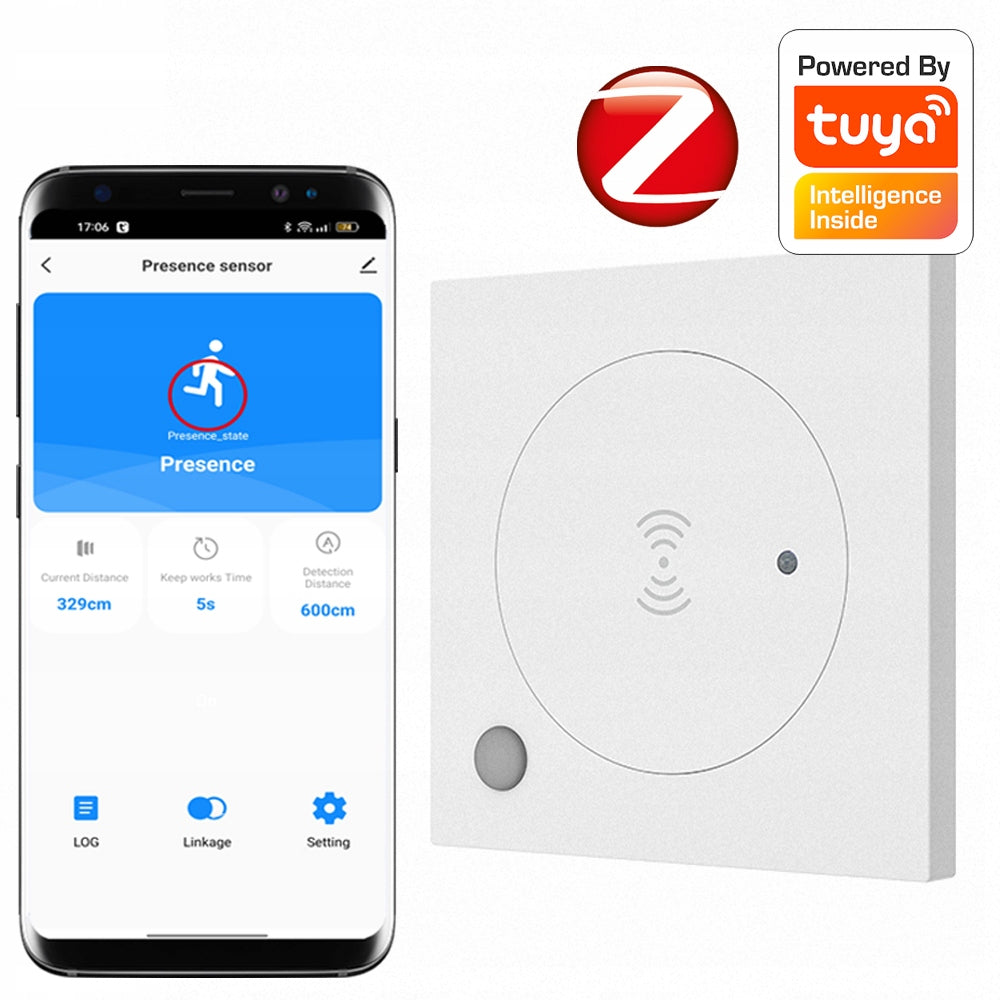

RTX ZPS4

Zigbee Microwave Presence Sensor, Compatible with Tuya - The Most Popular Smart Home App

Presence sensor detects presence even when people staying in the room do not move.

It is an ideal element of the smart home system wherever information about people’s presence is necessary, such as: maintenance of lighting.

• Discrete appearance
• Wall mount
• Power supply 230V AC
• Detection angle: 120degrees
• Adjustable presence detection range - max.6m
• Voltage output 230V/2A- can be directly connected to the lighting source
• Works with the control panel - ZigBee gateway as part of the Tuya or Smart Life application

To operate ZigBee devices, it is necessary to have a central-gate ZigBee, which is a "node" between the system elements and the Tuya Smart cloud server.

Gates are offered in separate offers:

• Zigbee WiFi gateway model ZGW1
• Zigbee LAN gateway model ZGL1+

Possibility of direct connection of the lighting source

The sensor has an output on which the voltage of 230V is switched on when presence is detected - each presence can directly switch on, e.g. lighting or fan.

In parallel, other processes can be performed by devices configured as part of the scenario, and each detection can be displayed as a notification on the user's phone regardless of where it is located.

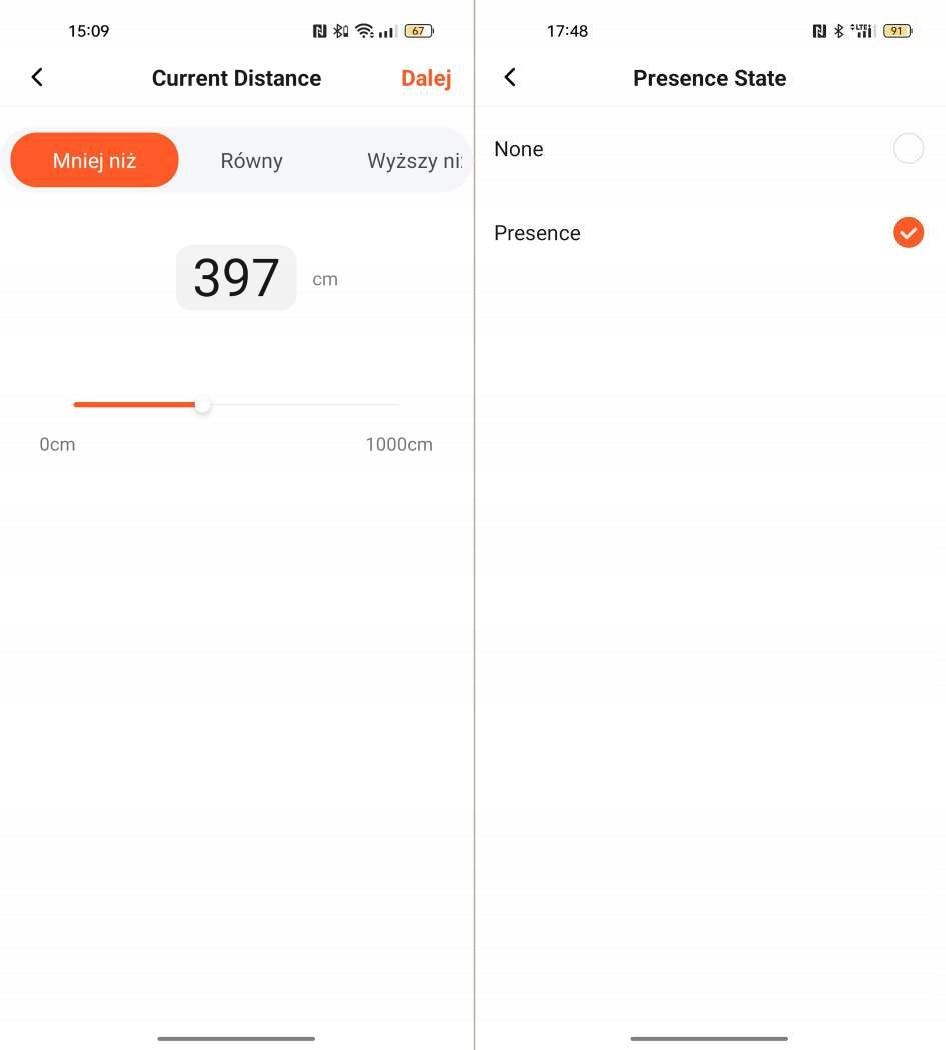

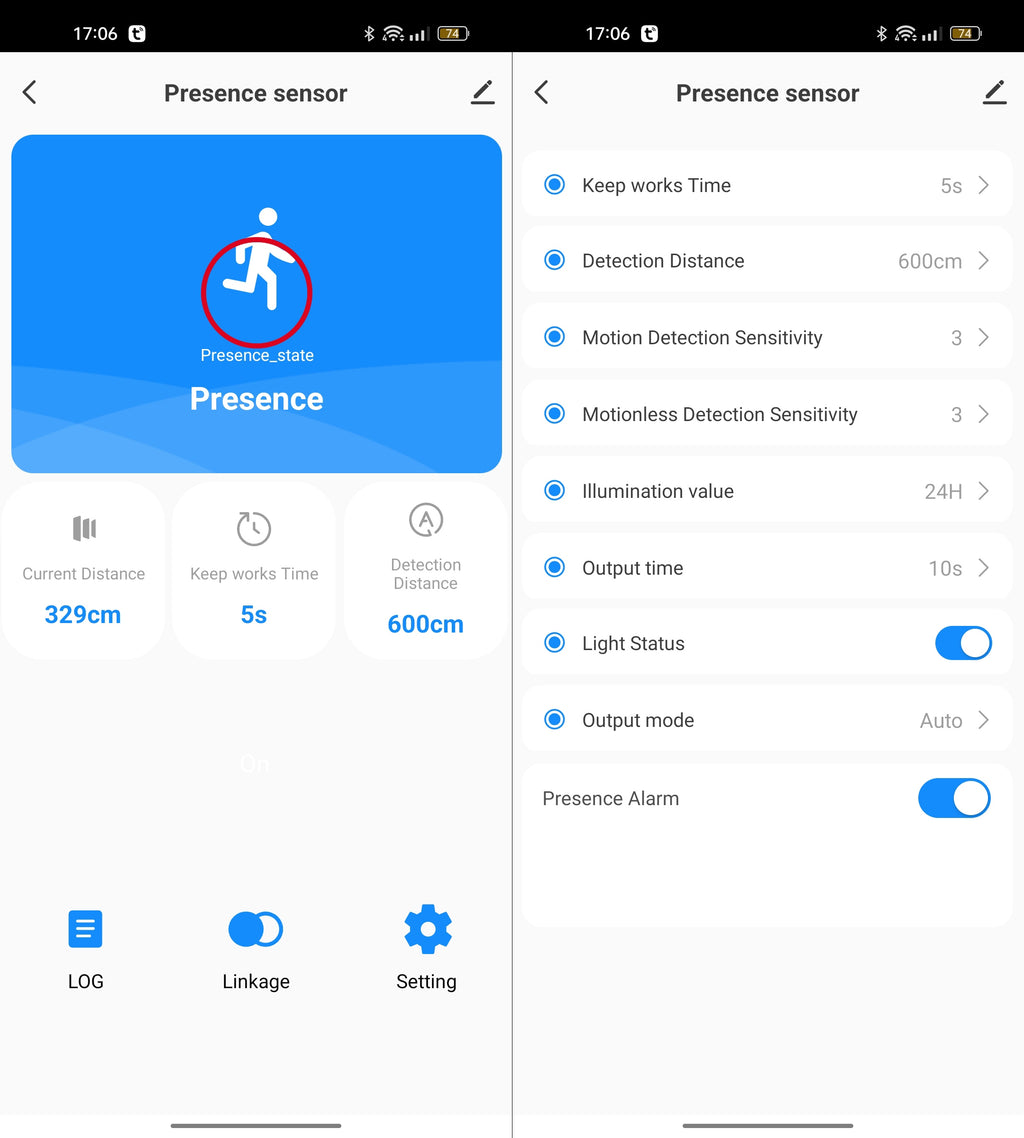

Configuration of operating parameters

• Configured attendance time required for triggering
• Detection range adjustment up to 600cm
• Setting detection level
• Setting no detection level
• Configurable maximum exposure level -rear-the-clock operation possible or only in low light
• Configurable time to switch on the voltage output
• LED indicator -on or off
• Configurable output mode
• Notifications in the app -enabled or disabled

Ability to control other devices depending on the distance of detection of presence within the set scenario

• Detection range can be set by the user up to 600cm
• The sensor can also be configured to adjust only in low light conditions (10/20/50Lux) or regardless of lighting

• It is possible to maintain the detection time so that, for example, lighting was extinguished with some delay
• The sensor provides detection in a wide range of field of view -up to 120 degrees

Speed of operation, stable and safe communication and low power consumption are the main advantages of ZigBee

ZigBee is an open standard of radio communication supported by leading manufacturers of consumer electronics associated within the Zigbee Alliance.

The current version – ZigBee 3.0 – was developed for Internet of Things systems and smart home systems.

Process automation between system elements is carried out in the control panel, not in the cloud, thanks to which individual actions are performed much faster.

The lattice topology (mesh) provides stable communication between the gate and individual elements of the system, because each receiver is a transmitter. Damage to a single device does not stop the entire network.

ZigBee devices should be used where certainty of operation of automated processes is essential.

Since automation management is carried out by the control panel (gateway), the programmed rules will be implemented regardless of access to the WiFi network or in the absence of Internet connectivity.

Tuya Smart Life joined ZigBee Alliance thanks to which huge opportunities for expanding the system with new elements were opened.

• integration of more than 11000 different devices
• 30 categories (control, air conditioning, monitoring, etc.)
• 10000 manufacturers of smart devices
• develops new features and supported devices every day
• available for free for Android and iOS

Dedicated Tuya Smart Life app - easy installation and hassle-free operation.

• Sensor presence ZigBee v3.0
• Instruction for use

Specifications
