Aprašymas
Trumpai apie prekę
Prekė: Jungčių rinkinys AHD, HD-CVI, HD-TVI kameroms. Kategorija: Dalys ir komponentai.
- Gamintojas: no brand
- Modelis: KOMPLET ZŁĄCZEK DO KAMERY REJESTRATORA
SET OF CONNECTORS FOR CAMERA, RECORDER ,BNC + DC, VIDEO + POWER SUPPLY, BNC-W/SKR-PLAST/S-55/G/55
Product Number: 41053
SET OF CONNECTORS FOR CAMERA, RECORDER ,BNC + DC, VIDEO + POWER SUPPLY, BNC-W/SKR-PLAST/S-55/G/55

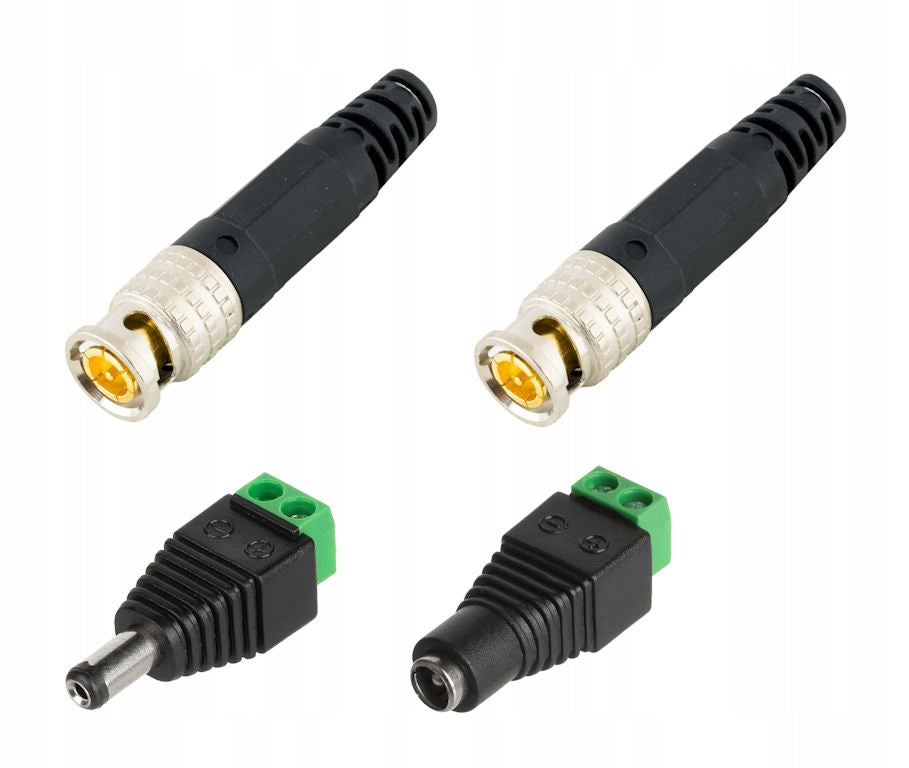

The set consists of:
BNC plug - 2 pcs
DC plug - 1 pc
DC socket - 1 pc
DESCRIPTION:

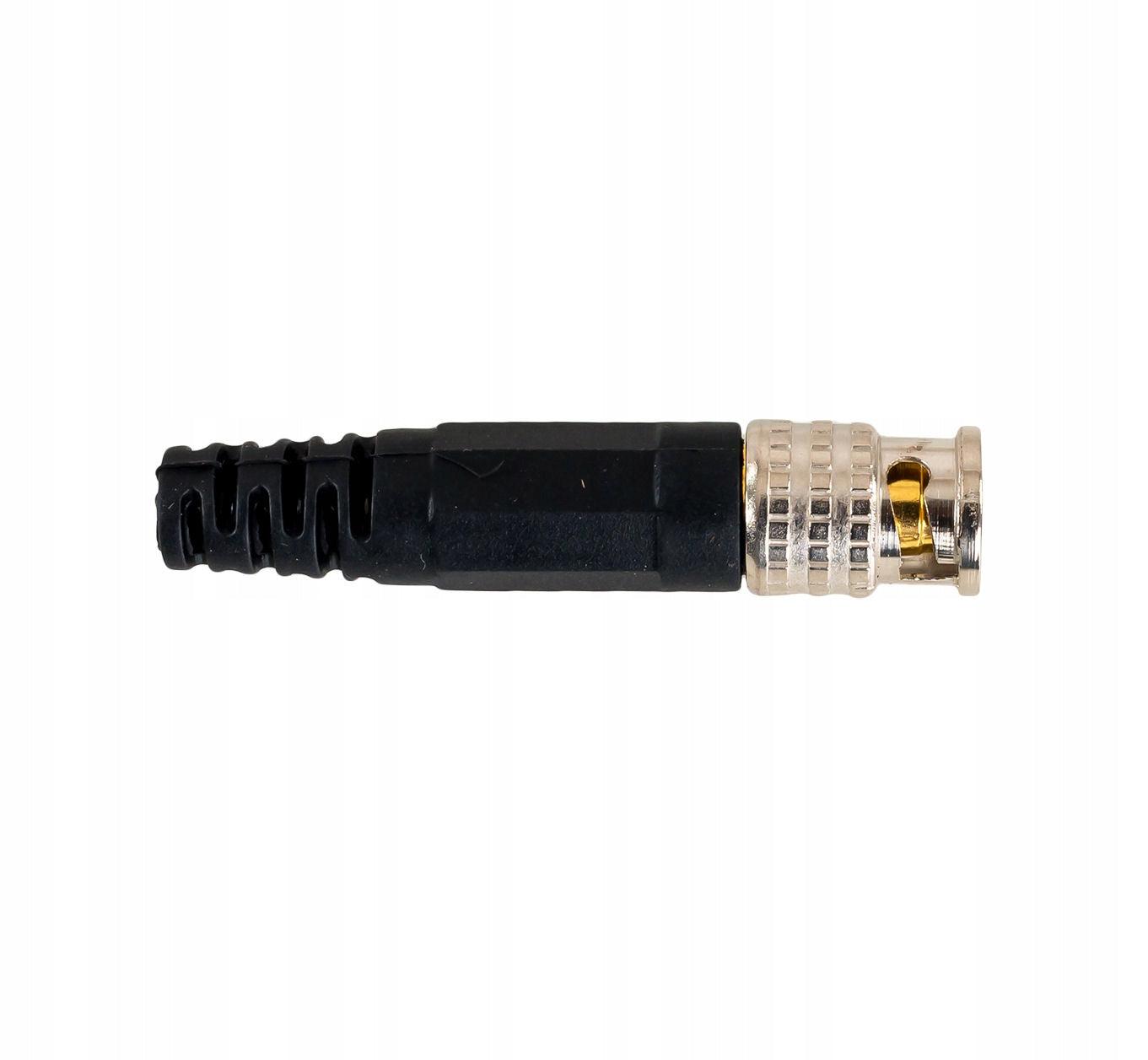

BNC plug
Connector Type: BNC Straight Plug
Fastening of connector elements: Twisting
Screen Mount: Crimping
Wire Fastening: Twisting
Purpose: Coaxial cable
Cable diameter: max. 7.2 mm
Impedance: 75 Ω
Material: Metal / PET
Selected features:
Wide working band Corrosion resistance
Weight: 0.012 kg
Dimensions: Ø 14 mm x 56 mm

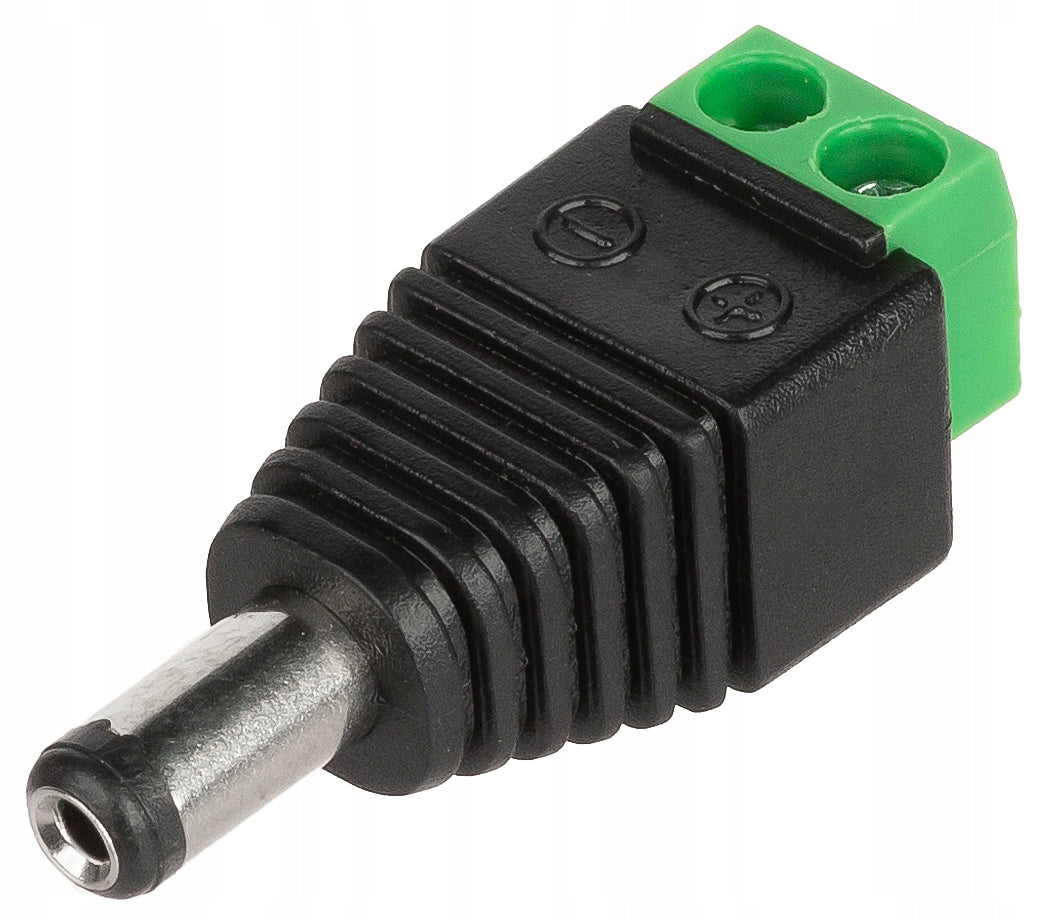

POWER PLUG DC 2.1 x 5.5 mm, POWER ADAPTER, QUICK COUPLER DC, S-55
Quick coupler for standard socket to power the camera.
To mount the plug, all you need to do is isolate the wires, push into the cable clamps, and finally tighten the two screws with a Phillips or flat screwdriver.
Connector Type: Ø 2.1 / 5.5 mm Straight Plug
Wire Fastening: Cable Clamps
Purpose: Electrical cable
Material: PET
Selected features:
Very simple and quick installation
Weight: 0.006 kg
Dimensions: 37 x 14 x 13 mm
POWER SOCKET DC 2.1 x 5.5 mm POWER ADAPTER QUICK COUPLER DC G-55
Quick coupler for standard power supply plug Allows you to extend the power supply cable running to the camera, without having to cut the plug and solder wires.
Depending on the delivery, there may be slight differences in the appearance of the connector.
Connector Type: Ø 2.1 / 5.5 mm Straight Socket
Wire Fastening: Cable Clamps
Purpose: Electrical cable
Material: PET
Selected features:
Very simple and quick installation
Weight: 0.008 kg
Dimensions: 38 x 14 x 13 mm
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer | no brand |
| Parametry | Manufacturer code | KOMPLET ZŁĄCZEK DO KAMERY REJESTRATORA |
