Jungiklis valdiklis 8 kanalų 8x10A ZigBee TUYA Smart Life

Trumpai apie prekę

Prekė: Jungiklis valdiklis 8 kanalų 8x10A ZigBee TUYA Smart Life. Kategorija: Automatizavimo moduliai.

• Gamintojas: Tuya
• Modelis: T758

⭐Potential-free 8 channel controller

This single device will allow you to connect up to 8 devices powered from 0 to 230 V (e.g. 8 thermoelectric actuators) and control each of them separately. Additionally, each channel can be connected to other devices in the TUYA application using automation.

The switch is perfect for controlling lighting, gates, actuators, door control, button signaling, computer control, access control, voltage-free control - heating furnaces and control of devices powered by 230V

Attention! For this device you need a ZigBee 3.0 TUYA gateway! Available in our offer.

⭐Main advantages

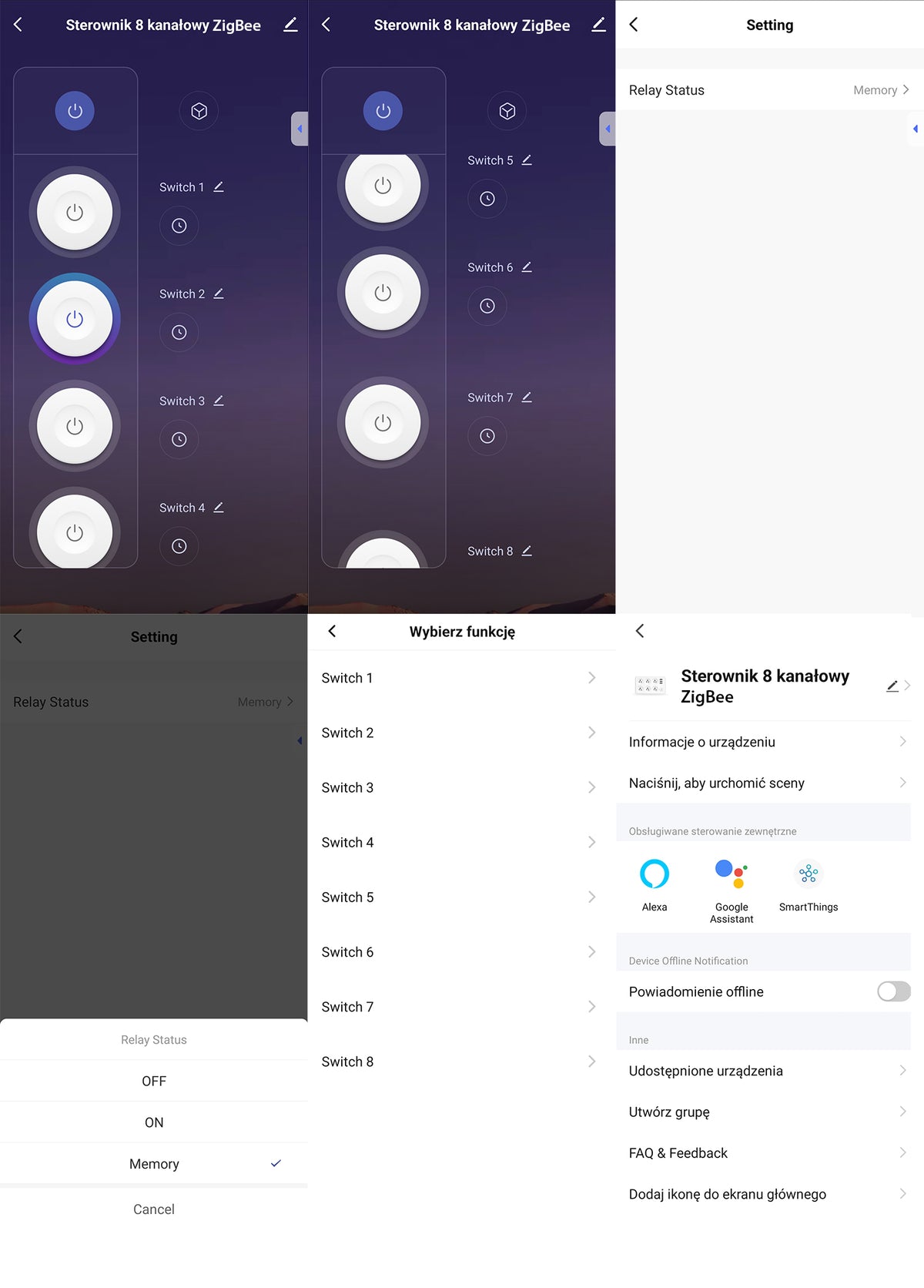

• Easy and quick lighting control with the TUYA app
• Free Tuya/Smart Life app to download from Google Play or the App Store
• Voice control via Amazon Alexa or Google Assistant, only for devices compatible with these systems
• Ability to create advanced schedules for each channel separately
• Advanced Automation Settings
• Possibility to open a group of devices
• The device has the ability to set the memory when the power returns
• ZigBee router function
• Possibility to set the state of the relay after power return

⭐Working Modes

• Countdown - Countdown to join the selected channel
• Schedule for 7 days a week
• Circulation - on/off for a specified period of time
• Random - Setting random channel operation within a specified time period
• Inching - instantaneous mode, turning on the channel for a specified period of time from 1s to 60m

⭐ ZigBee protocol

What distinguishes ZigBee from classic WiFi is a sufficiently long working time of battery-powered devices (unattainable with the classic WiFi protocol) and signal transmission through accessories powered by 230V.

In addition, selected ZigBee devices (230V mains powered) become part of the Mesh network. This means that if a module is unable to connect directly to the ZigBee gateway, it communicates with it through another closest accessory of this system. The repater in the ZigBee ecosystem are devices powered by 230V, such as PSMART, Aqara T1, OXT Zigbee relay, Sonoff ZBMINI, 230V sockets or bulbs.

Thanks to this, you can create an extensive network that can operate over much longer distances than classic WiFi.

⭐ Specification

• Communication: ZigBee 3.0
• Power supply: 90 - 240 V AC (50/60 Hz)
• Maximum load per 1 channel: 10 A
• Maximum load capacity per 1 channel: 2300 W
• Total maximum load: 3650 W
• Attachment to DIN rail
• Dimensions: 145 × 90 × 40 mm
• Number of relays: 8
• Maximum humidity: 5% - 95%

⭐The set includes

• ZigBee relay controller 8 channels
• Instruction
• Packaging

Product code: T758

Specifications
