Jutiklinis klaviatūros ekranas INT-TSH2R-W, 7", skirtas Integra Perfecta 64 M

Trumpai apie prekę

Prekė: Jutiklinis klaviatūros ekranas INT-TSH2R-W, 7", skirtas Integra Perfecta 64 M. Kategorija: Išoriniai moduliai.

• Gamintojas: Satel
• Modelis: INT-TSH2R-W

The auction concerns:

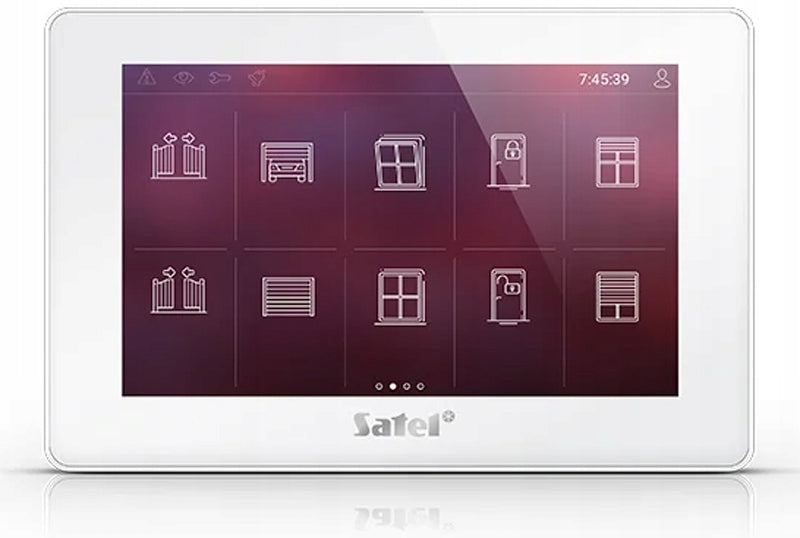

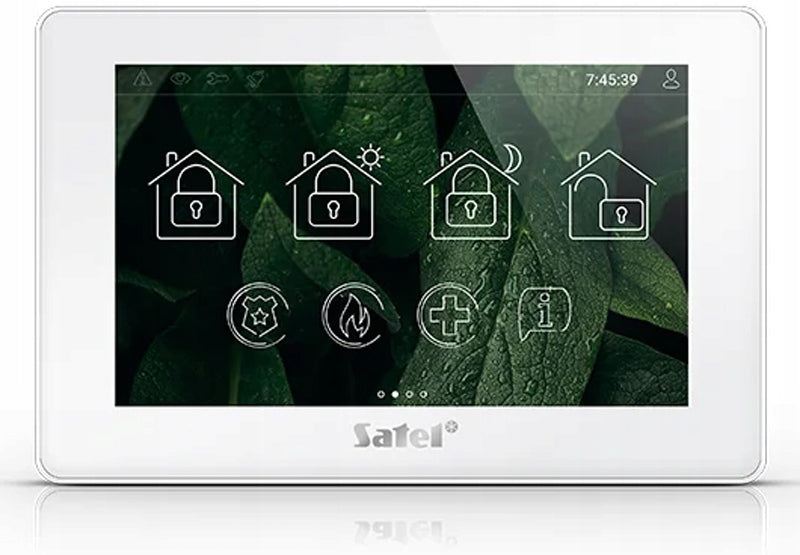

INT-TSH2R-W (white) keypad with TFT touch screen 7"

with built-in proximity card reader MIFARE® 13,56 MHz

The INT-TSH2R manipulator is used to operate and program INTEGRA, INTEGRA Plus, VERSA, PERFECTA 64 M and PERFECTA-IP 64 M control panels. It is an ideal solution for people who expect convenience during everyday control of the alarm system and building automation elements - also the KNX system. The combination of a large display and universal design makes this device perfectly fit into both modern and traditionally decorated interiors.

Features:

• 7” capacitive glass touch screen with gesture support
• 1024x600 resolution, 16,7 million colors display (true color)
• multi-level graphical interface adapted to the needs of the user
• up to 24 user screens
• ability to configure and customize interface screens to the needs of the user
• more than 20 ready-made graphic motifs with the possibility of creating your own composition
• widgets enabling manipulator operation, control of alarm system and automation devices connected to the control panel
• controlling the system with MAKRO commands running a number of different functions in the control panel (including building automation)
• ability to quickly trigger alarms ATTACK, FIRE, HELP
• cooperation with INTEGRA and INTEGRA Plus control panels (INTEGRA Firmware 1.20 or later), VERSA (VERSA Firmware 1.10 or later), PERFECTA 64 M and PERFECTA-IP 64 M
• screensaver with the ability to display the clock, date, states of system elements (zones, inputs, outputs), temperatures (INTEGRA, INTEGRA Plus, PERFECTA 64 M, PERFECTA-IP 64 M)
• possibility of displaying a slideshow (photo frame function)
• indicators of the current state of the system placed in the status bar
• MIFARE® 13,56 MHz built-in proximity card reader (supported only by INTEGRA and INTEGRA Plus control panels, PERFECTA 64 M, PERFECTA-IP 64 M):

  Ultralight CSN/SSN

  Classic CSN/SSN/MSN

  DESFire (EV1/EV2/EV3) CSN/MSN

• 2 programmable wired inputs (supported only by INTEGRA and INTEGRA Plus control panels)

  - support for NO and NC detectors and roller shutter and vibration detectors;

  - support for EOL, 2EOL and 3EOL configurations (3EOL in case of cooperation with INTEGRA Plus control panel);

  - programming of parametric resistors

• Built-in speaker for sound signaling
• ability to adjust the volume of signaling
• possibility of adjusting the backlight with the “day/night” division
• built-in microSD memory card reader (storage of photos to the photo frame, background of additional screens, sounds for violations of inputs - gongs)
• Tamper contact reacting to the opening of the housing and detachment from the wall
• available in white (INT-TSH2R-W) and black (INT-TSH2R-B)

Technical data:

• Power supply voltage (±15%): 12 V DC ±15% V DC
• Working temperature range: -10°C...+55°C
• Power consumption on standby: 350 mA
• Maximum current consumption: 475 mA
• Mass: 386 g
• Maximum humidity: 93±3%
• Environmental class according to EN50130-5: II
• Protection grade according to EN 50131: Grade 3
• Supported memory cards: microSD, micro SDHC
• Housing dimensions (width x height x thickness): 196 x 129 x 22 mm
• Reader operating frequency: 13,553...13,567 MHz
• Reading range of MC-DF3-2 encrypted card: up to 40 mm

OTHER manipulators and keyboards and other products of the SATEL brand are in adjacent auctions.
