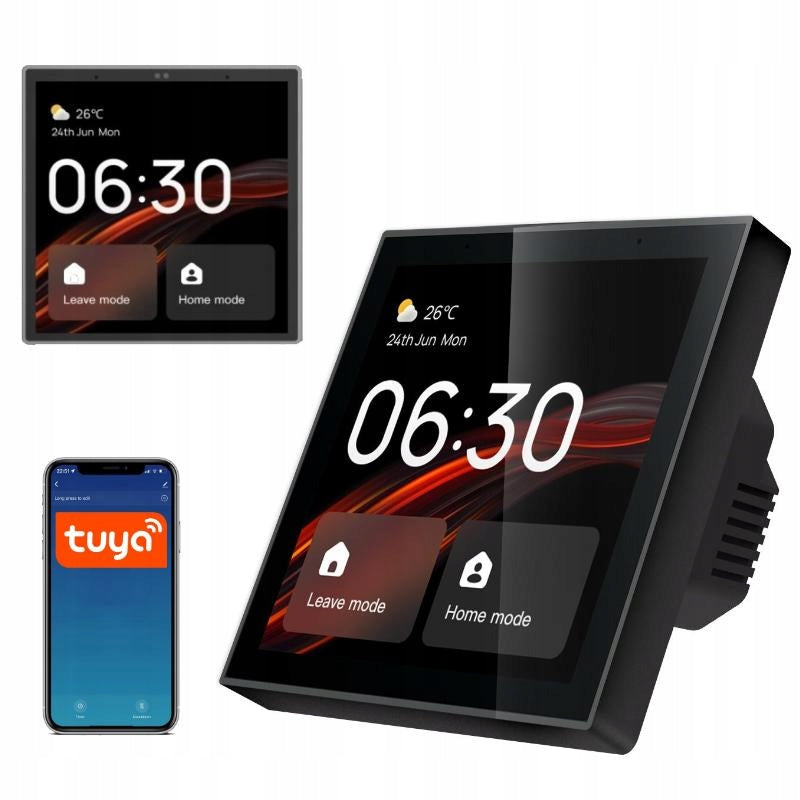

Jutiklinis valdymo pultas su LCD ekranu, Zigbee, Tuya Smart Life, Alexa integracija

Trumpai apie prekę

Prekė: Jutiklinis valdymo pultas su LCD ekranu, Zigbee, Tuya Smart Life, Alexa integracija. Kategorija: Automatizavimo moduliai.

• Gamintojas: no brand
• Modelis: DY-92TYZKP

Home Automation and Voice Control

• With TUYA Smart Life Control Panel  you can create scenes and automations that are executed by the panel based on conditions or schedules.  The panel also allows you to communicate with Alexa voice assistant , giving you the ability to ask questions, request information, play music or control other Alexa devices.

Modern design and efficient parameters

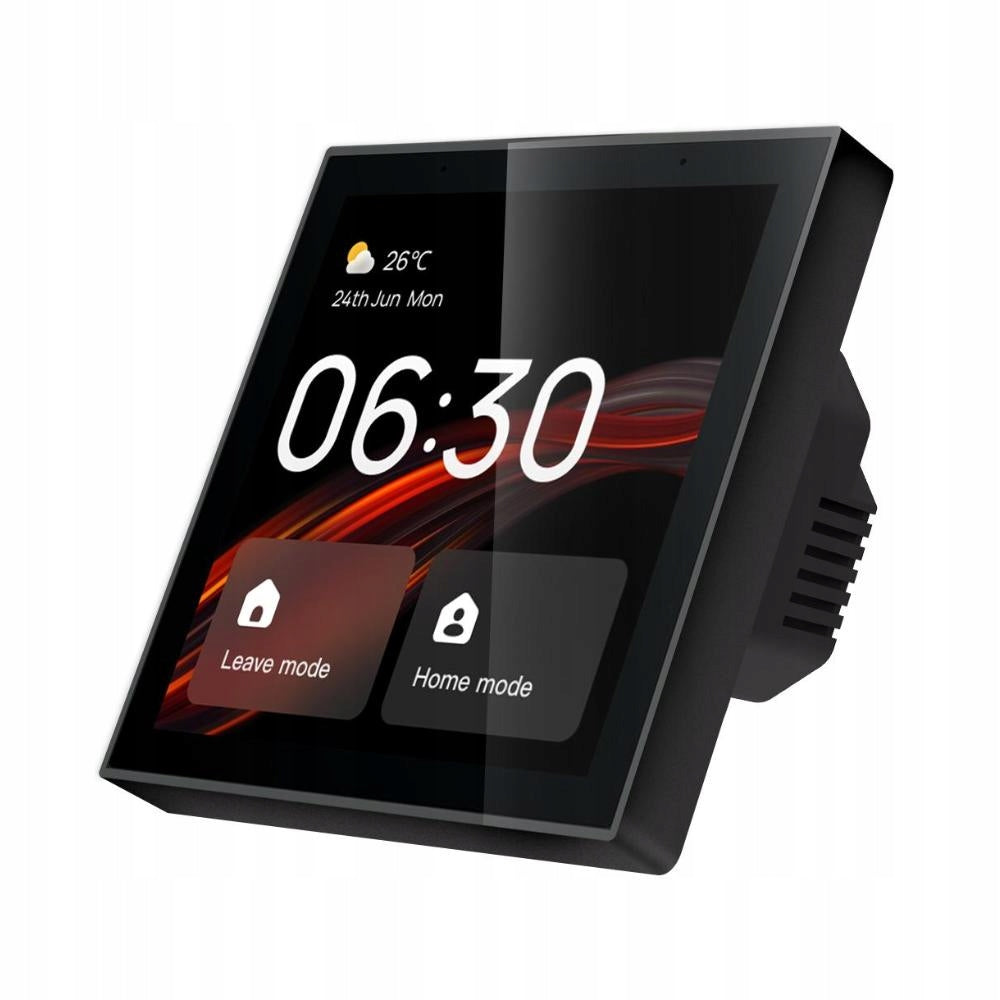

• TUYA Smart Life Control Panel  combines elegance and modernity that perfectly fit into any interior. Bright and responsive touch screen with a resolution of  480 x 480 pixels.

Your information display assistant

• With  a 4-inch LCD screen , the device dynamically displays the date and time to keep you updated with daily weather on the home page. You can also add popular scenarios and devices to the home page for one-touch operation.

Possibility to connect various devices

• The panel is compatible with over 410,000 Tuya eco products, can control up to 20 kinds of products and add over 100 devices to meet your smart home needs.

1. temperature
2. weather station
3. data
4. scene mode
5. scene mode
6. time

• Input:  100 - 240 VAC 50/60 Hz
• Nominal current:  74 mA
• Wireless Connectivity:  Wi-Fi、Zigbee
• Display:  4 inches / 480 x 480 pixels Touchscreen
• System:  Dedicated Linux-based IoT system
• Microphone:  Yes
• Speaker:  Yes
• Voice Control:  Yes / Amazon Alexa
• Processor:  4-core ARM Cortex™-A35 1.5 GHz
• RAM:  256MB
• Internal memory:  256 MB
• Weight:  198 g
• Operating temperature:  0°C ~ 40°C
• Operating Humidity:  5% ~ 90% RH, non-condensing
• Dimensions:  86 x 86 x 10.5 mm (without base) / 86 x 86 x 36.2 mm (with base)
• Package Contents:  Control Panel x1 / Manual x1 / Screws x2

Speed ​​of operation, stable and secure communication and low power consumption are the main advantages of ZigBee

ZigBee  is  an open  radio communications standard supported by major application software vendors from the  Zigbee Alliance.

The current version –  ZigBee 3.0  – was created with practical things in mind: the Internet and  smart home  .

Automation  between system elements takes place centrally, not in the cloud, so individual  actions are delivered on an ongoing basis  .

The mesh topology  provides  stable transmission  between the gateway and the system elements, because  each connection is required at the same time  . The release does not terminate the network.

Low power supply  to operate the system element, allowing ZigBee devices (nodes) to typically operate  for many years, which can be found on battery power.
