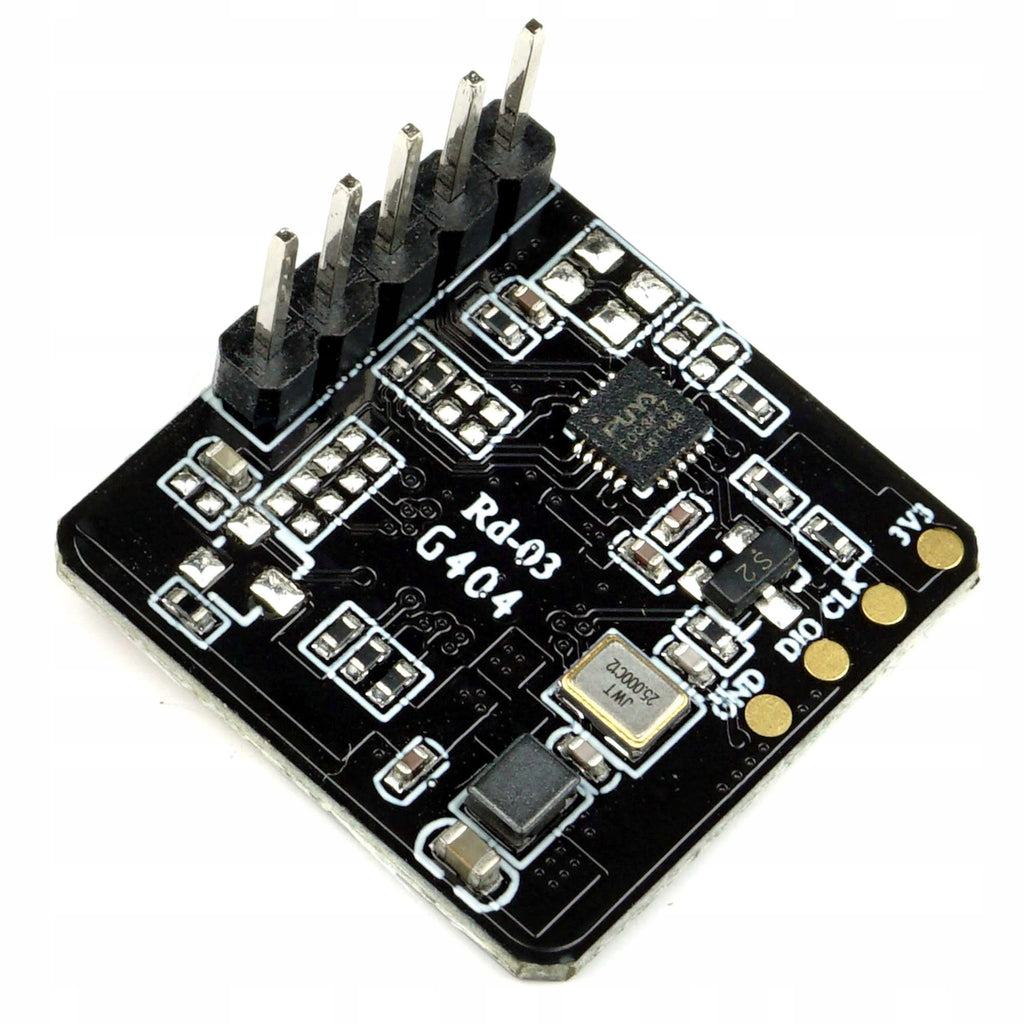

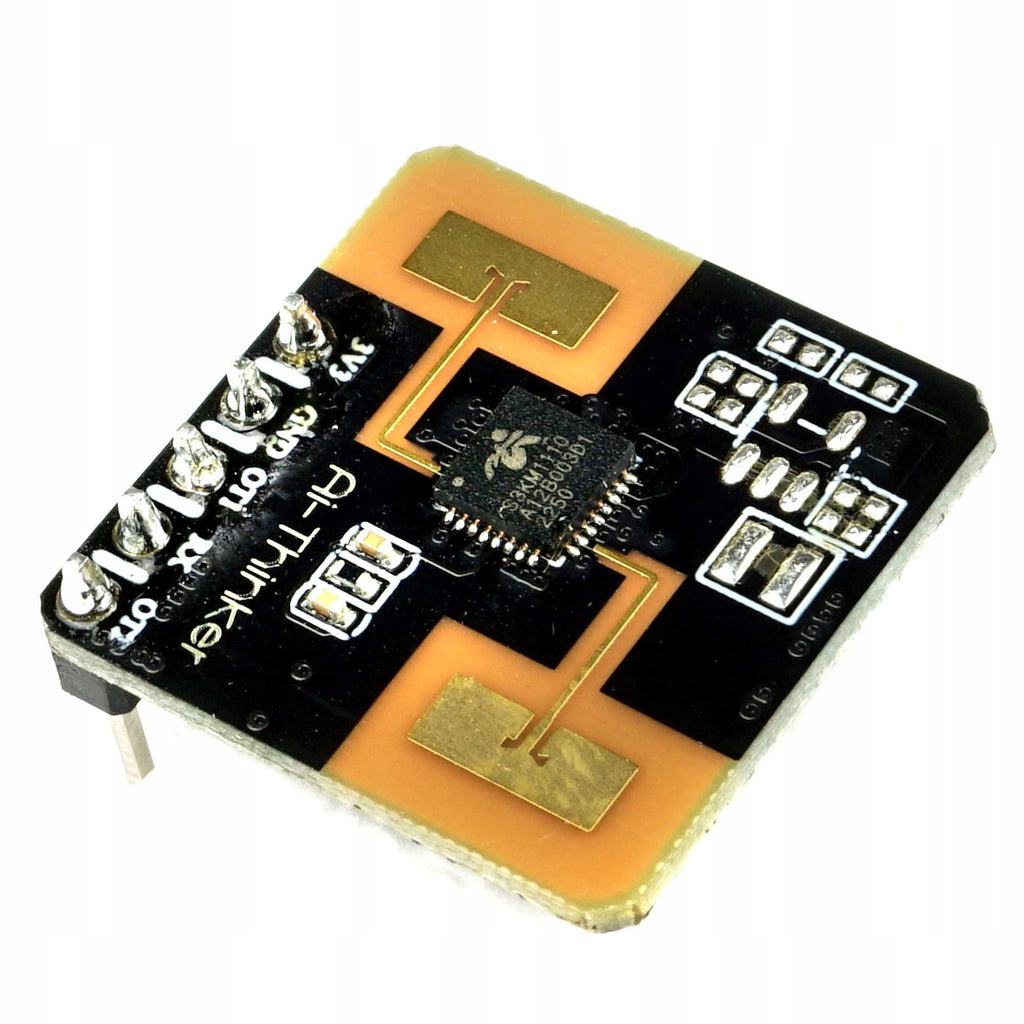

Jutiklis su radaro technologija 24GHz FMCW AI-Thinker S3KM1110, UART, 3.3V

Trumpai apie prekę

Prekė: Jutiklis su radaro technologija 24GHz FMCW AI-Thinker S3KM1110, UART, 3.3V. Kategorija: Jutikliai.

• Gamintojas: Elektroweb
• Modelis: 5905523321876

The radar motion and human presence sensor, based on 24 GHz mmWave technology from AI-Thinker, precisely detects even subtle movements, regardless of lighting. Thanks to FMCW technology, it copes with obstacles such as smoke, dust or small precipitation. It also allows you to measure distance, speed, and direction of movement, making it ideal for monitoring systems, alarms, and automation in smart homes. It can be integrated with microcontrollers and microcomputers (Raspberry Pi, ESP32, Arduino), which allows you to create advanced control systems, e.g. lighting.

Specification:

• Sensor based on the S3KM1110 SoC system
• FMCW technology
• High sensitivity thanks to integrated 24GHz 1T1R antennas
• Resolution range: 24 to 24,25 GHz
• Power supply 3,3 V
• Power Consumption: 50 mA
• Ability to detect minor movements and the presence of people, as well as people standing still
• Motion detection range: 10m/6m (wall/ceiling mount)
• Detection range of small movements: 5 m / 4 m (wall / ceiling mounting)
• Detection angle: ±60°
• Detection sensitivity: 15 cm
• Refresh Time: 100 ms
• Communication via UART protocol
• 1 GPIO output
• Can be mounted on walls and ceilings
• Possibility of operating at temperatures from -40 to +85°C

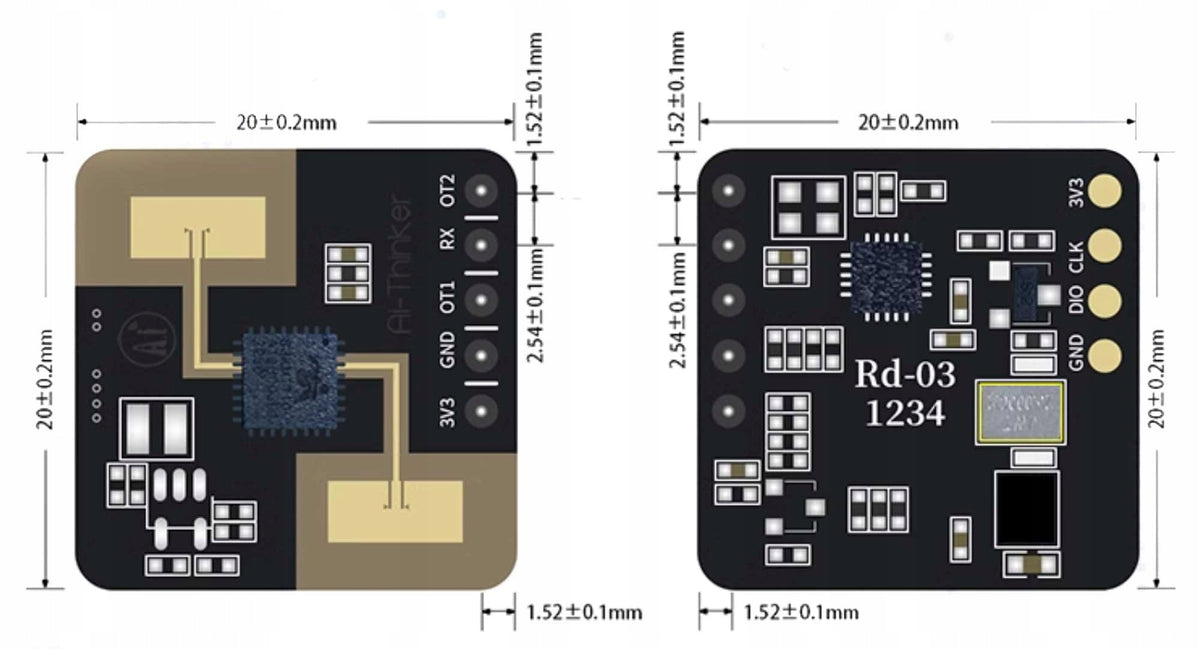

• Dimensions: 20 x 20 mm

24GHz FMCW HMMD presence sensor AI-Thinker S3KM1110 UART 3.3V
