Kabelių ieškiklio rinkinys SONEL LKZ-720

Trumpai apie prekę

Prekė: Kabelių ieškiklio rinkinys SONEL LKZ-720. Kategorija: Detektoriai.

• Gamintojas: Sonel
• Modelis: WMPLLKZ720

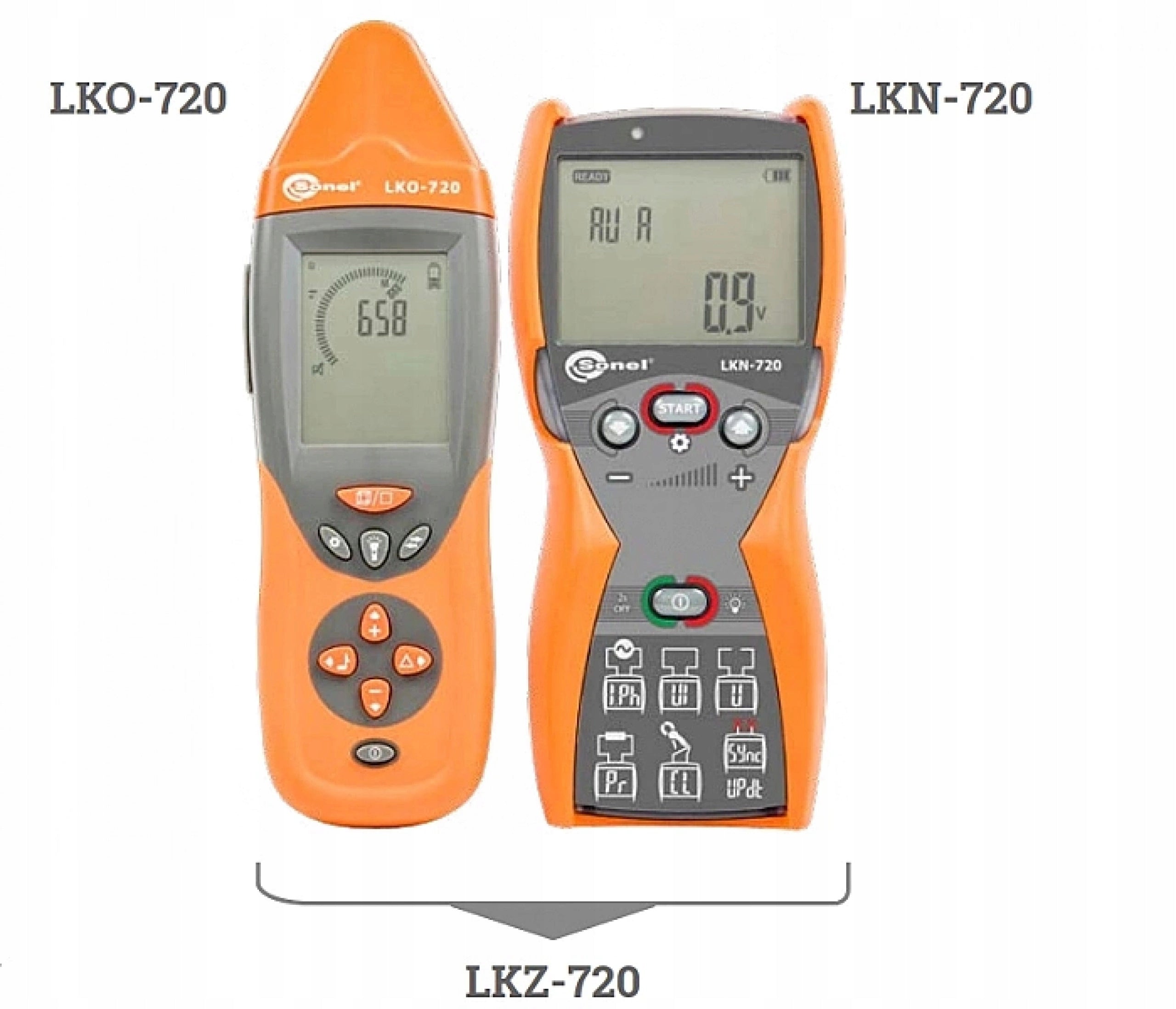

Wire and Cable Locator

Sonel LKZ-720

✔ Location of wires and cables under voltage and without voltage

✔ Power supply: 4 x AA alkaline battery or 4 x Ni-MH rechargeable battery

✔ Five operating modes of the locator - voltage, current, current-voltage, power and clamp

✔ 3D function in the receiver - detection of current flow direction

✔ Bright LED flashlight

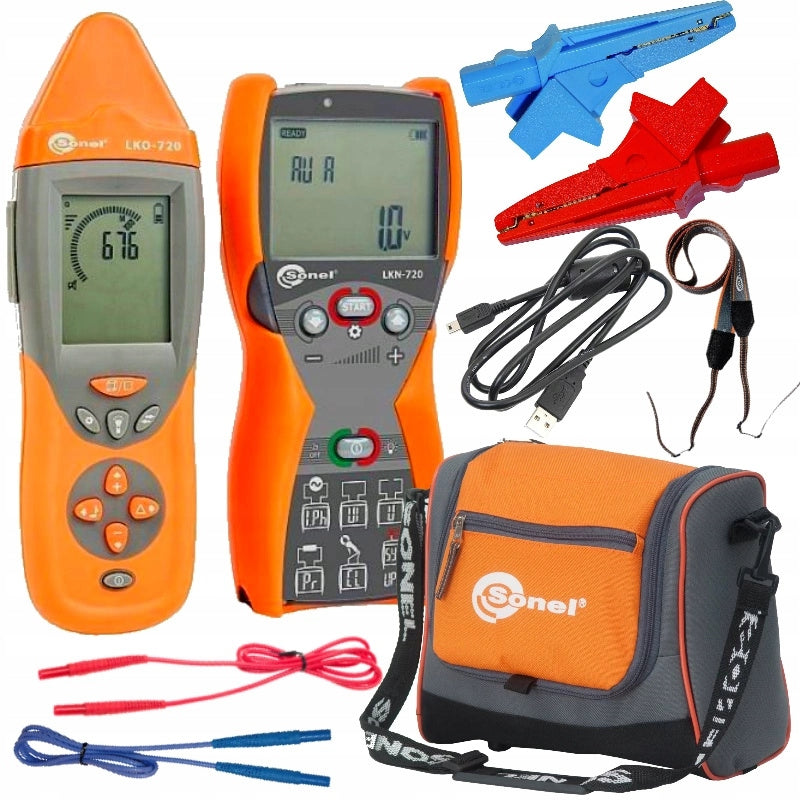

The set includes:

• 1 pc. Transmitter LKN-720
• 1 pc. Receiver LKO-720
• 2 pcs. Cable 1,2 m 1 kV (banana plugs) red and blue
• 2 pcs. Crocodile 1 kV 20 A red and blue
• 2 pcs. Sharp probe 1 kV (banana socket) red and blue
• 1 pc. Cable 20 m red 1 kV on spool (banana plugs)
• 1 pc. Measuring probe for driving into the ground (25 cm)
• 1 pc. Contactless probe
• 1 pc. Data cable mini-USB
• 1 pc. Shells for meter (type M-1)
• 1 pc. Case
• Declaration check
• Instruction manual in Polish

The main advantages of the device

• Precise location thanks to additional accessories - such as touch or non-contact probe, measuring clamps
• Smooth and accurate targeting of the object
• phase detection mode
• Cooperation of the receiver with four transmitters at the same time to locate gaps or identify cables
• Headphone jack in receiver
• Tracking the course of conductive pipes of water installations or CO
• Operation in a wide range of rated voltage - up to 500 V RMS
• Backlit screens for working in the dark
• Transmission to the receiver battery status and transmitter settings
• Three gain levels in the transmitter
• Automatic or manual selection of operating modes
• Software update via USB

How will the cable and cable locator make your job easier?

🔧 Detection and routing of wires in ceilings, walls and floors

🔧 Finding in buildings sockets and connectors

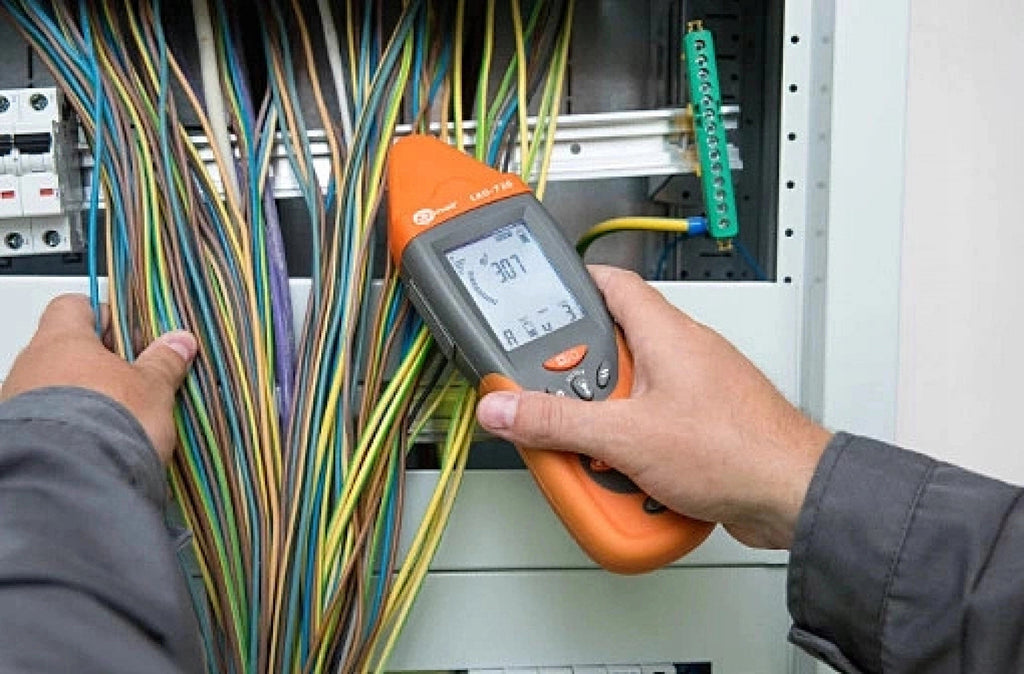

🔧 Identification of safety features in electrical switchgear

🔧 Training in guides deprived of access from outside

🔧 Contactless detection of voltage cables

🔧 Training of water pipes, sewage and heating using additional probes

🔧 Training of cables laid underground and cables in metal channels

🔧 Location of short circuits between wires

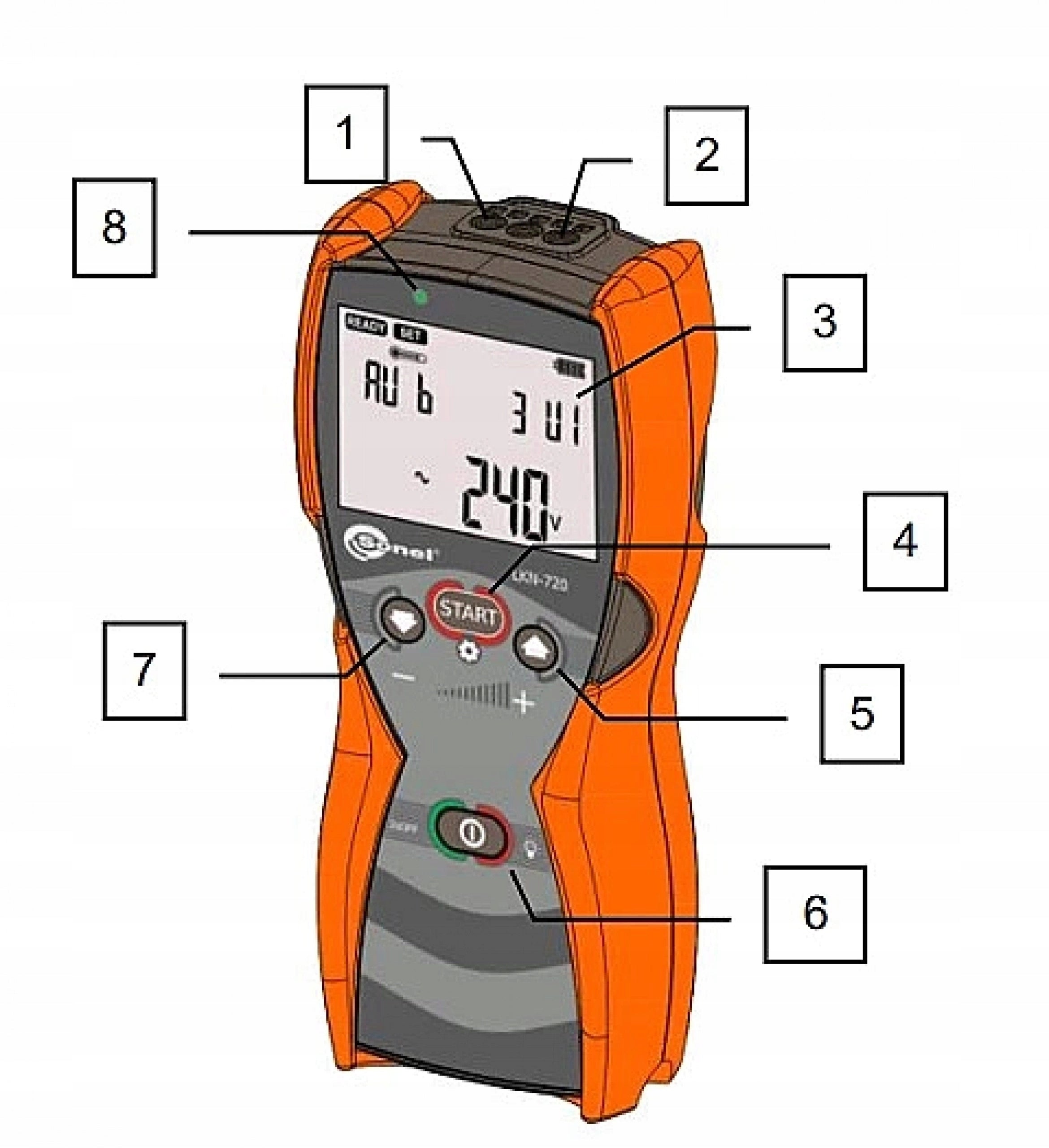

Transmitter- Front plate construction

1- Socket banana N transmitter

2- Socket banana L transmitter.

3- State display of transmitter and connected object.

4- Start/Stop signal transmission. Access to the settings menu. Approval.

5- Increase of the level of the transmitted signal. Navigation in the menu.

6- Power on/off. Power off (approx. 10 s). Enabling and selecting the brightness of LCD backlighting.

7- Reduction of the transmitted signal. Navigation in the menu.

8- Indicator diode two-tone: Green: signal transmission correct, Red: incorrect signal transmission or lack thereof

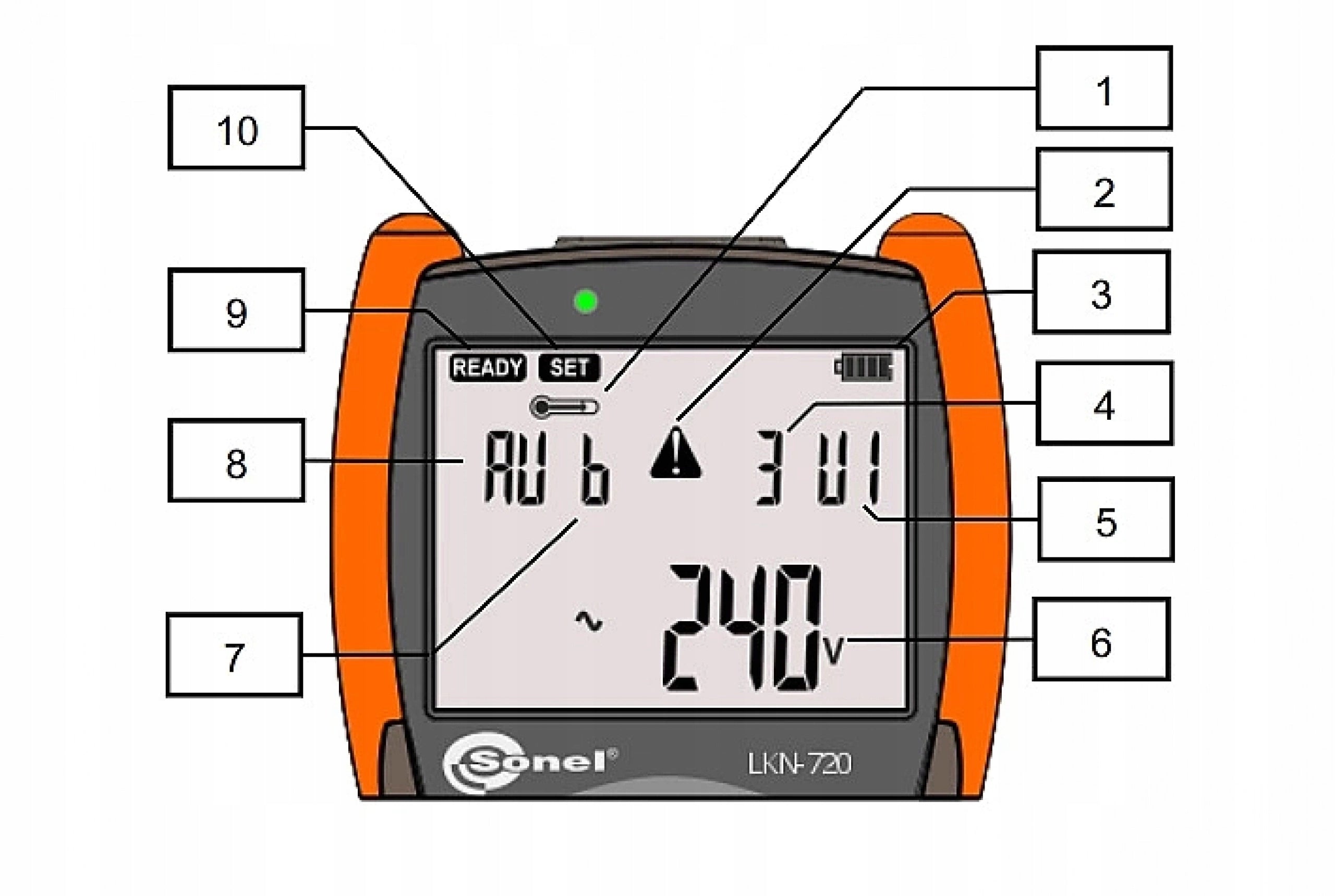

Construction of LCD display

1- Exceeded temperature.

2- Note high voltage.

3- Power status of battery or accumulator

4- Power transmitted signal.

5- Mode transmitted signal.

6- Voltage on the object. Mnemonics menu.

7- Code of the transmitted signal

8- Automatic mode on.

9- Measurement ready for action

10- Settings menu of the transmitter

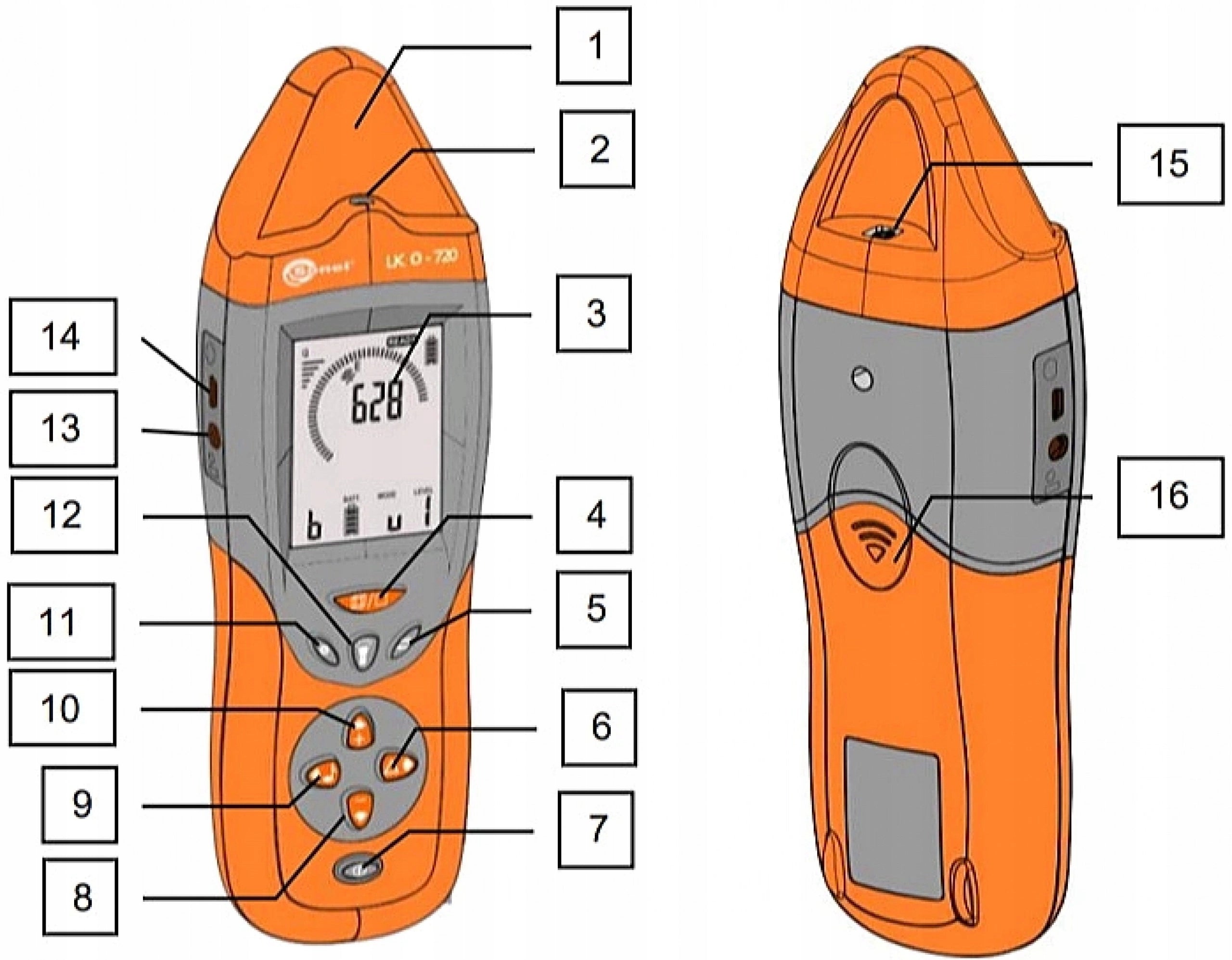

Receiver- Front plate construction

1- Antenna magnetic and electric field.

2- Lighting machine

3- Display receiver.

4- Switching the location mode.

5- Selection of receiver mode.

6- Change display mode of signal level values absolutely (ABS) / relatively (REL).

7- Functions: On/off receiver. Enable and select brightness of the display backlight.

8- Reduction of the intensity of the sound signal.

9- Change of sound signal.

10- Increasing the intensity of the sound signal.

11- Receiver settings

12- Lighthouse. Inclusion and selection of brightness. Holding down the key maximum brightness mode.

13- Socket connection of headphones.

14- USB port.

15- Accessory connection socket

16- Battery cover

How to synchronize the transmitter with the receiver?

The frequency of the clock signal of the transmitter (transmitters), on the basis of which the location signal is generated, must be the same as the frequency of the clock signal of the receiver.

Transmitter Setting:

• Arrange the devices according to the drawing.
• Turn on the transmitter.
• Press and hold the START button.
• With the UP and DOWN buttons select menu of the transmitter settings.
• Approve selection.
• With the UP and DOWN buttons, select the sync mode.
• Approve selection.

Receiver Setting:

• Holding the 2D/3D button, turn on the receiver by pressing the ON/OF button.
• Approve the selection of device synchronization with the flashlight button.

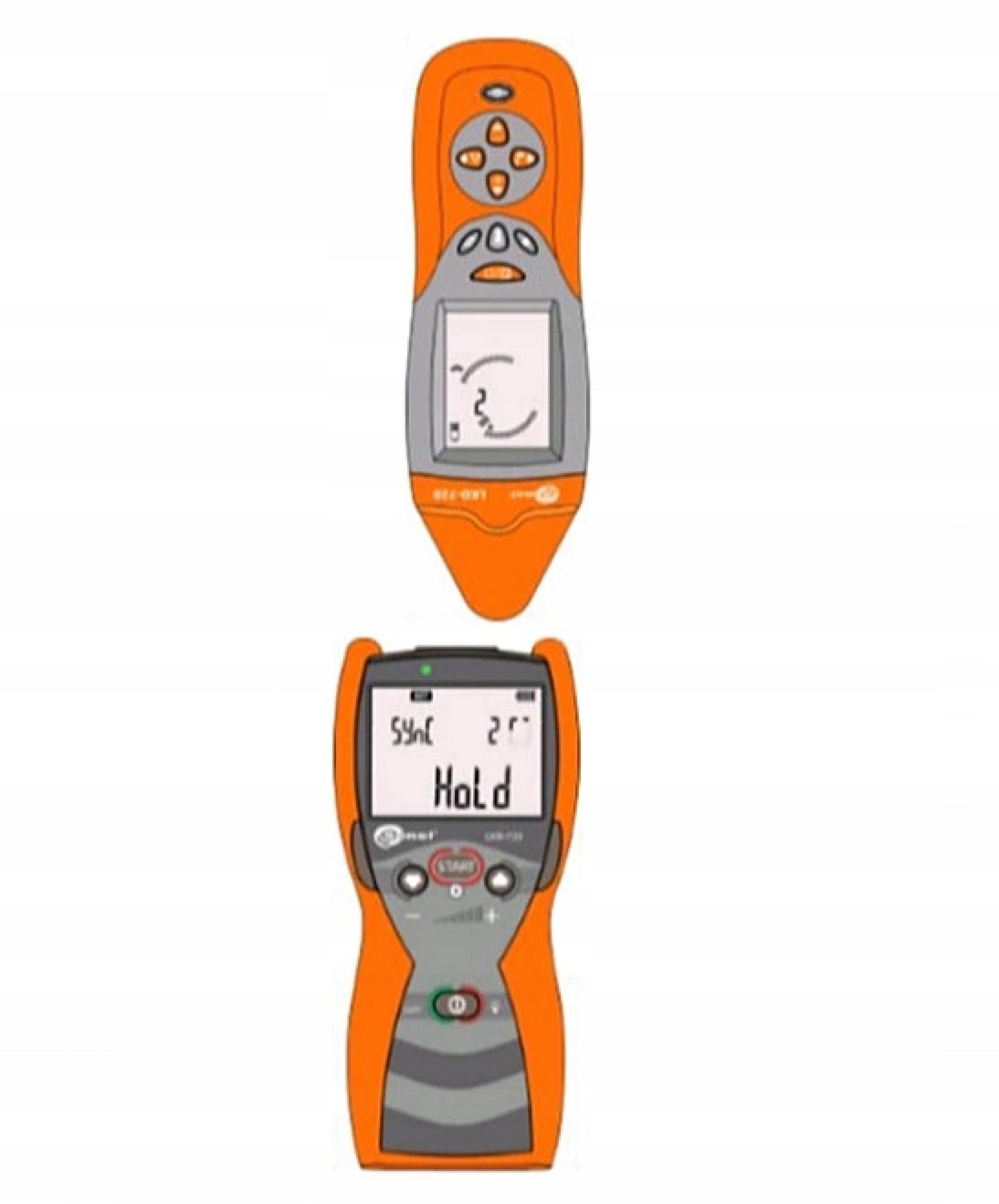

Lynx. Laying of transmitter and receiver during synchronization

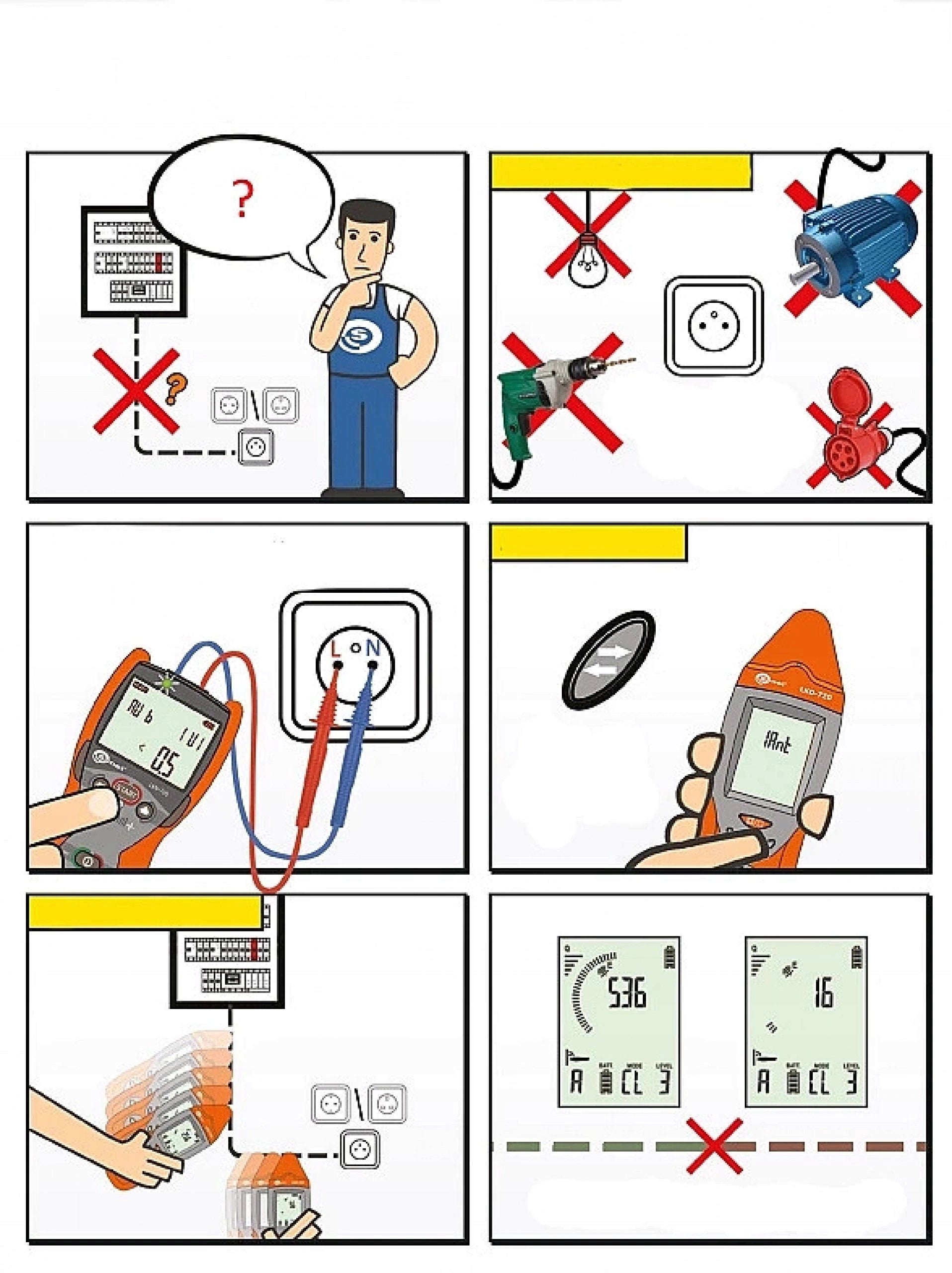

How to find the place of short circuit of wires?

✔ Make sure that no devices are connected to the socket in the circuit

✔ Connect the transmitter to the and socket select the automatic selection mode AU or manually select the UI mode

✔ Press START, to start broadcasting

✔ Use the selection button to set the IAnt function in the receiver

✔ Location of short circuit in the cable

✔ After passing the possible short-circuit point, the signal strength displayed in the receiver will clearly weaken.

Technical data

General:

• Transmitter power supply: 4 x AA alkaline battery or 4 x Ni-MH rechargeable battery
• Receiver power supply: 9V alkaline battery
• Working temperature: -10°C...+50°C

Maximum possibilities:

• Maximum transmitter operating voltage: 500 V RMS
• Maximum depth of position of the test object: (mode “I”) 2 m
• Maximum range of non-contact neon probe: in air 50 cm, in concrete 5 cm

Electrical safety:

• type of insulation: double, according to PN-EN 61010-1
• measuring category of transmitter: CAT III 600 V according to PN-EN 61010-1
• degree of enclosure protection: transmitter according to PN-EN 60529 IP67
• degree of enclosure protection: receiver according to PN-EN 60529 IP40

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Sonel
Parametry	Kind	wire detector
Parametry	Power supply	batteries
Parametry	Manufacturer code	WMPLLKZ720
Parametry	EAN (GTIN)	5907624024885
Parametry	Batteries included	yes
Parametry	Packaging status	original
