Kabelių ieškiklis ir detektorius Noyafa NF-826

Trumpai apie prekę

Prekė: Kabelių ieškiklis ir detektorius Noyafa NF-826. Kategorija: Detektoriai.

• Gamintojas: Noyafa
• Modelis: NF-826

Features and advantages

• Find underground wires or cables. Easily locates and tracks any wires, cables and pipelines buried in the ground or wall, including electrical wires, invisible fences, power cables, fiber optic cables, twisted pair cables, coaxial cables, water/gas pipelines, etc. and determines the depth of the tracked wire.
• Locates underground wire faults. Quickly and accurately detects and locates a short circuit or breakpoint in cables and electrical lines buried in the ground or wall.
• Fuse detection. Detects an air switch or earth leakage switch corresponding to an electrical circuit and assigns current circuits.
• Socket detection. Detects sockets and distribution sockets accidentally covered with plaster.
• LCD display. Both the transmitter and receiver have a 52*35mmTN screen with backlight that displays detection information such as power level, code, battery, type and value of detected voltage and high voltage alarm.
• Sensitivity adjustment. Use high sensitivity to quickly locate the approximate position, then lower the sensitivity to accurately locate the target position.
• Voltage testing. The transmitter can be used as an AC/DC voltmeter to measure AC/DC voltage up to 400V in linear mode.
• Non-contact voltage detection (NCV). The receiver has a built-in NCV detector, which allows you to quickly detect live voltage.
• LED lighting. The receiver is equipped with an LED for easy operation at night or in dark environments.
• Dimensions and weight. The NF826 transmitter is 156 mm long, 80 mm wide, 32 mm thick and weighs 235 g with battery, and the receiver is 226 mm long, 73 mm wide, 29 mm thick and weighs 235 g with battery. It is easy to carry and store.

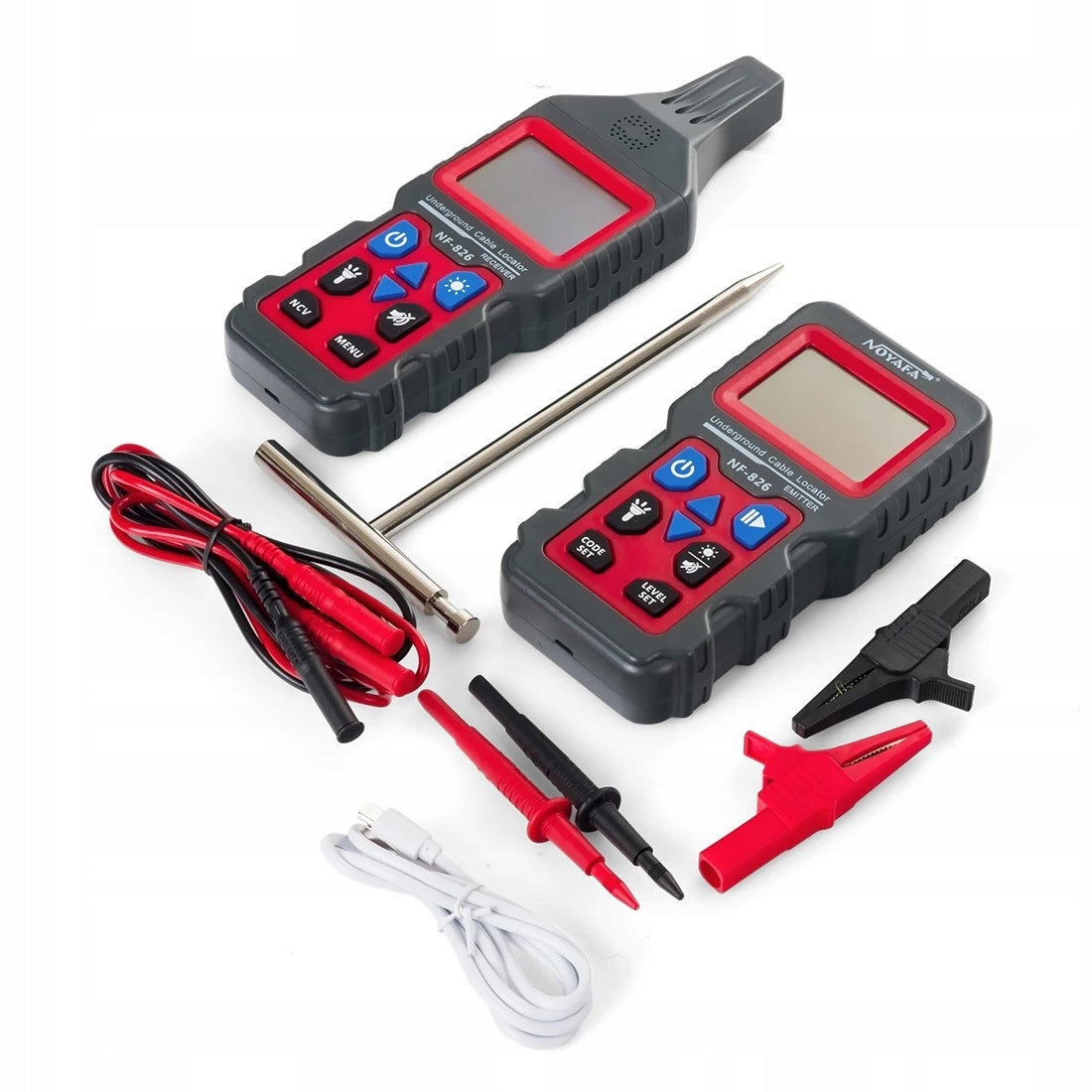

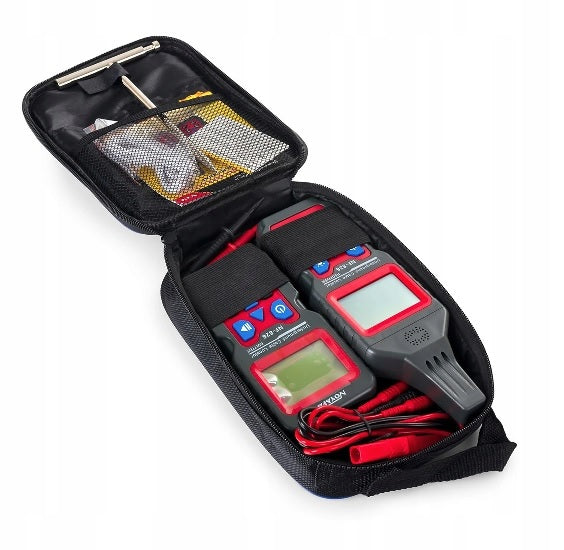

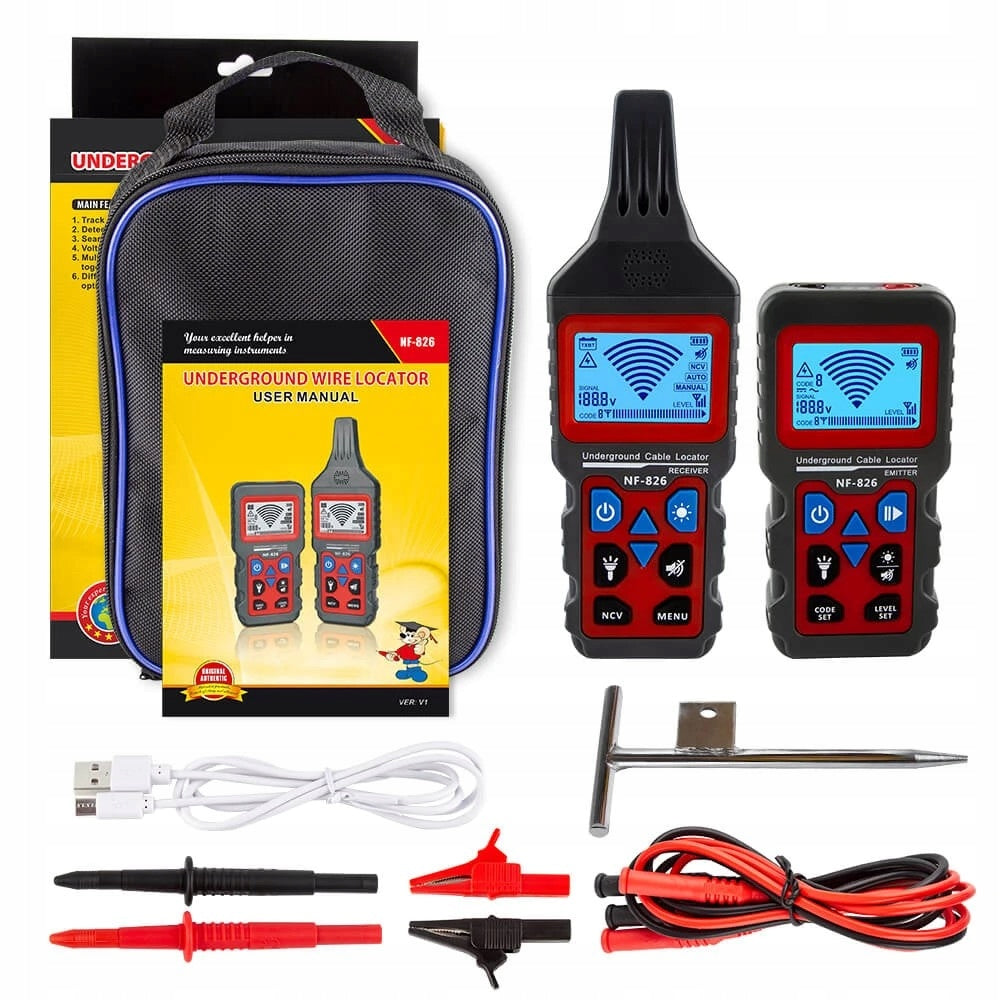

• Package Contents: Transmitter * 1, Receiver * 1, Connecting Cable * 1, Test Pen * 1, Ground Rod, Alligator Clip * 1, USB Cable * 1, Carrying Bag * 1, User Manual * 1

Quick Details

• Model Number: NF-826
• Depth Range: 2m
• Voltage Detection: Yes
• Maximum cable length: 1000m
• Operating voltage range: 0 - 400V
• Sensitivity adjustment: various modes
• Power Supply: LI Battery
• Display signals and results: Sound and LCD display
• Key: Silicone Wrenches * 8
• Permissible transmitter signal codes: 6 types
• Permissible transmitter signal amplitude: 3 degrees
• Buzzer: OK
• Mute: OK
• Lamp: OK
• LCD Backlight: ON/OFF
• Power supply: 3.7V 1400mAh lithium battery
• Charging Voltage: DC5V
• Charging Current: < 600mA

Application scenarios

The NF-826 cable locator is a portable device consisting of a transmitter, receiver and some accessories. With advanced integrated devices and digital circuit technology, it provides highly stable and reliable electrical performance. With this cable locator, it can effectively help users locate and detect cables, and you no longer have to risk building. Low current system installation and maintenance, comprehensive communication line wiring circuit, telephone system, computer network, other metal wire circuit, etc.

Features:

• The transmitter has a self-control function that can detect its own operating status and display it on the LCD screen to refer to the user.
• Receiver sensitivity can be adjusted manually or automatically.
• The receiver can automatically scan the frequency.
• Both the transmitter and receiver can operate in silent mode.
• Additional transmitters can be used to extend or distinguish multiple signals.
• Compact - Durable and portable.
• Automatic power off in 10 minutes.
• Flashlight function.
• Backlight function.
• Mute function.
