Kablys su 7 kontaktų moduliu Volkswagen Passat B7 2010–2014, 2200 kg

Trumpai apie prekę

Prekė: Kablys su 7 kontaktų moduliu Volkswagen Passat B7 2010–2014, 2200 kg. Kategorija: Pilnas vilkimo kablys (sija + rutulys).

• Gamintojas: Imioła Hak-Pol

Tow bar with 7-Pin module for Volkswagen Passat B7 — Sedan / Wagon (2010–2014). Allows for safe trailer towing and mounting of a bike rack on the tow bar. Its tailored design ensures installation at designated mounting points. Specifications: towing capacity 2200 kg, tongue weight 90 kg, homologation E20.

Towbar with 7Pin Module Fits the following Cars:

• ✅ Volkswagen Passat B7: sedan / estate (estate) - from 10/2010 to 12/2014

POLISH PRODUCT - HAKPOL IMIOŁA ✅

Key Benefits

• Towing Capacity: 2200 kg — suitable for most trailers (vehicle limits may apply).
• Tongue Weight: 90 kg — more stable for bike racks and trailers (less sway).
• Tow Bar Homologation: E20 — legal installation and use (inspection/MOT compliant).
• 7-PIN Module + Wiring Included — dedicated electronics for modern vehicle systems.
• Module Compatible with CAN-Bus and LED lights — reduces error risk when connecting a trailer. (as per your module specifications)
• Trailer Connection Detection — module recognizes when a trailer is connected. (as per your module specifications)

COMPLETE HOOK for mounting Towbar

Companies: IMIOŁA HAK-POL ✅

SPECIFICATION OF THE HOOK :

• ✔ Catalog No.: R/009
• ✔ Pull: 2300 kg
• ✔ Pressure on the hook ball: 100 kg
• ✔ Value D: 13,62 kN
• ✔ MODULE 7pin is included
• ✔ Hook approval: E20
• ✔ Installation information: installation at factory/technological mounting points; without bumper undercutting

COMPLETE TOW BAR KIT for Installation

Brand: HAK-POL IMIOŁA✅

FITS VEHICLES:

• Volkswagen Passat B7 — Sedan / Wagon (Estate), 2010–2014

TOW BAR SPECIFICATIONS

• Towing Capacity: 2200 kg
• Tow Ball Tongue Weight: 90 kg
• Tow Bar Homologation: E20
• Tow Ball: Removable, secured with 2 bolts

When You Purchase Our Kit

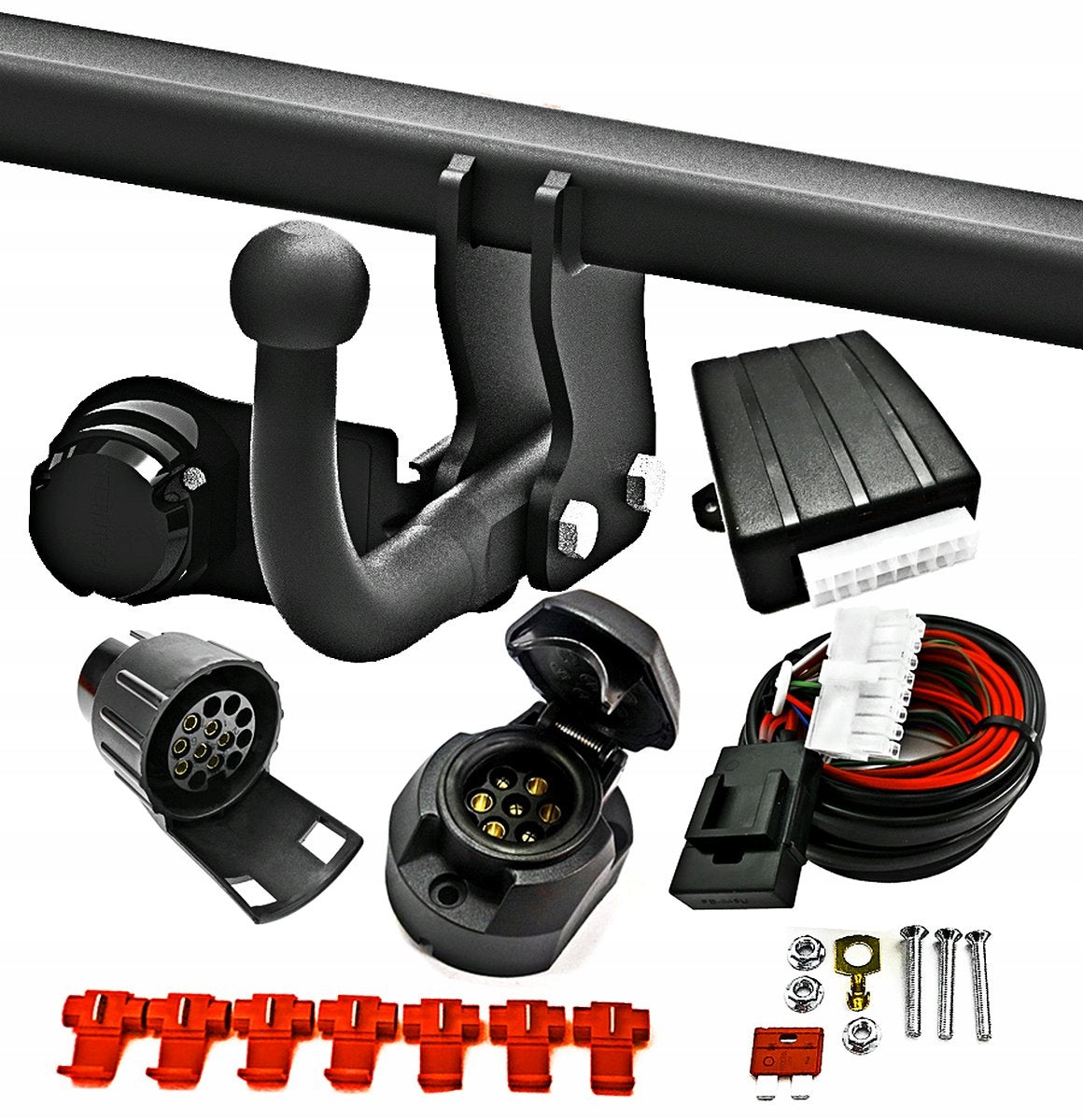

Tow bar kit for Volkswagen Passat B7, you will receive:

1. Tow bar with a removable ball (secured with 2 bolts)
2. Ball cover
3. RATING PLATE with homologation number and tow bar specifications — essential for registration
4. Clear INSTALLATION INSTRUCTIONS
5. All BOLTS and WASHERS needed to install the tow bar kit.

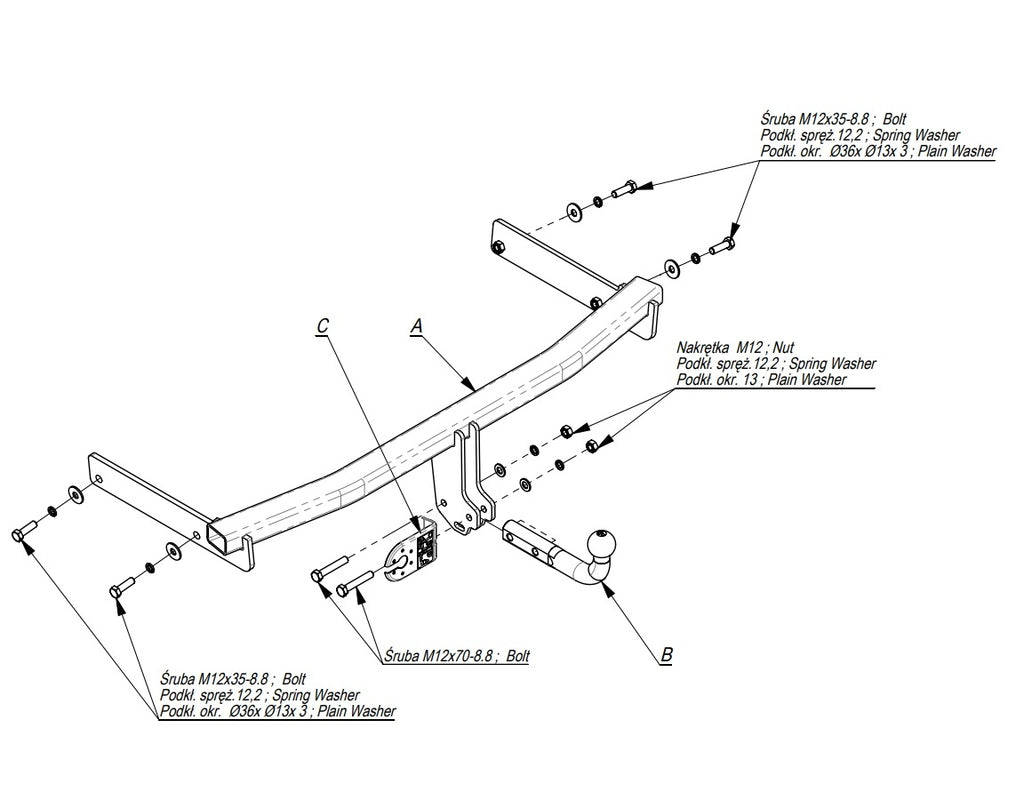

6. Tow bar installation manual.
7. 7-PIN electrical harness with electronic module and complete wiring
8. Electrical installation mounting kit
9. Electrical installation wiring diagram
10. Gasket for the tow bar electrical socket

7pin module + harness + module kit accessories.

The module kit includes:

• connectors
• fuse
• screws
• nuts
• headbands
• instruction

Specification

• Works with CAN-Bus installation;
• Works with LED and single-filament lighting;
• To connect the 7 PIN socket;
• Trailer connection detection;
• E20 approval

FUNCTIONS OF THE MODULE CONTROL UNIT

1. fog lights - YES
2. reversing lights - NO
3. STOP brake lights - YES
4. position lights - YES
5. turn signals - YES
6. trailer module - YES
7. LED light support - YES
8. CAN BUS - YES
9. compatibility with parking sensors - NO (we have modules supporting parking/reversing sensors in another offer)
10. trailer lights operation check - NO
11. homologation - YES, E20

Contents of the 7pin module kit:

• electronic module - 12VDC control unit,
• 7-pole socket with seal,
• harness with fuse,
• accessories needed for assembly,
• instructions in Polish ,
• SEAT GASKET

Free 7-pin to 13-pin adapter included

We know how important safety and security are to you – that’s why our hooks have the required approvals and certificates.

This allows you to install a compliant product and can tow legally and without stress during inspection or inspection.

Approval E20 is peace of mind for you: you assemble a product approved for use and use the legally hook — without stress when inspecting or reviewing.

It is also a signal that the hook meets the strength requirements and has been assessed in accordance with the applicable standards.

Imioła Hak-Pol – polish manufacturer since 1991.

Modern production (laser/robot/CNC) and confirmed quality: E20/e20 approvals + PIMOT certificate

Imioła Hak-Pol is a polish manufacturer of tow hooks operating since 1991, offering solutions tailored to more than 500 models of passenger cars and vans.

You choose a brand that focuses on precision and repeatable quality: production is based on m.in. o laser cutting, robotic welding and CNC, which translates into a certain fit and durability.

Why does this matter to you?

• Peace and legality: the products have the required approvals (E20/e20) and PIMOT certificate of conformity, and the hitches are tested in the laboratory of the Industrial Automotive Institute (PIMOT).
• Durability for years: Anti-corrosion protection includes screwing, phosphating and powder coating with polyester paint — important if the car drives all year round and sees salt/winter.
• Repetitive build quality: modern technologies (laser/robots/CNC) mean less risk of “fighting during assembly” and greater certainty that the elements are evenly made.
