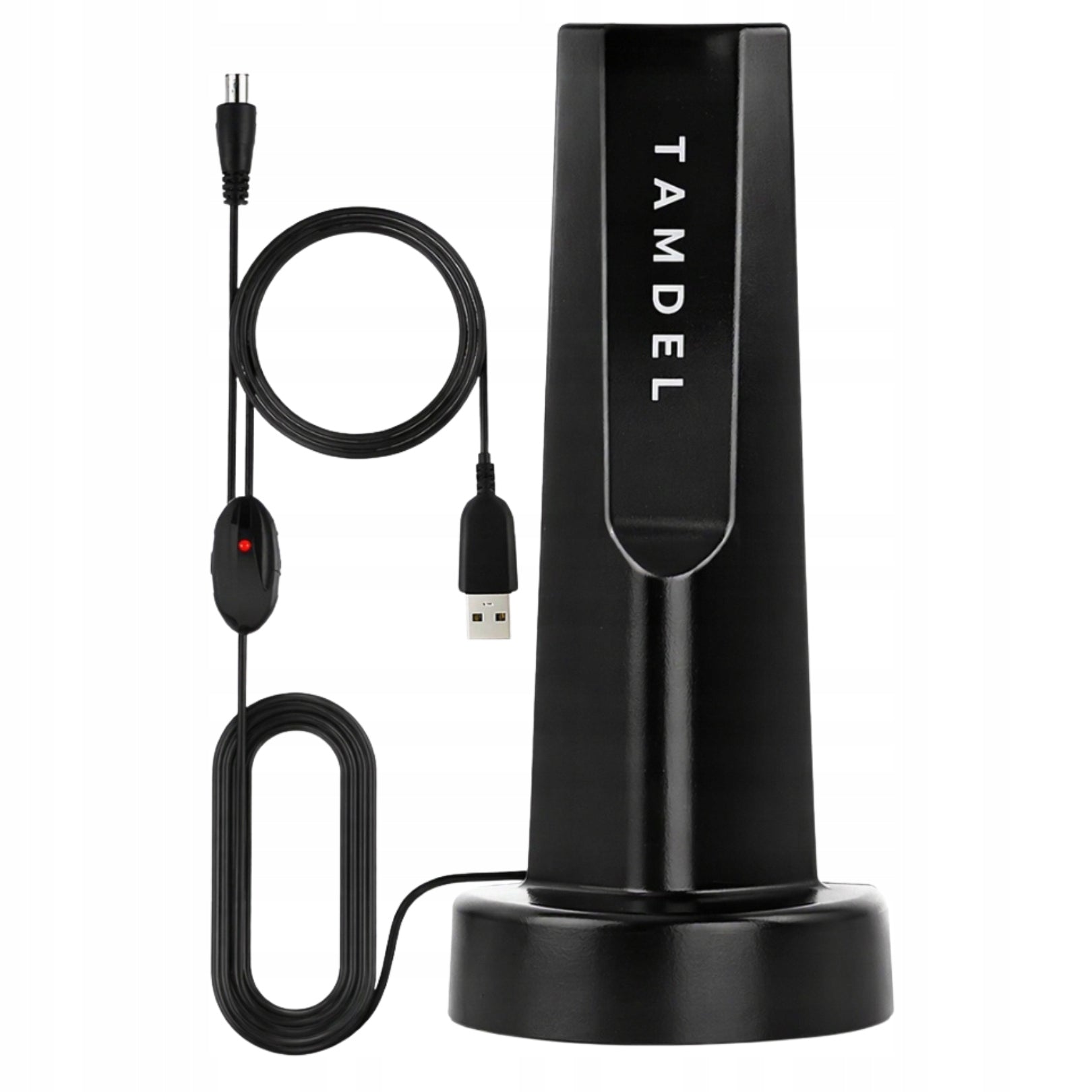

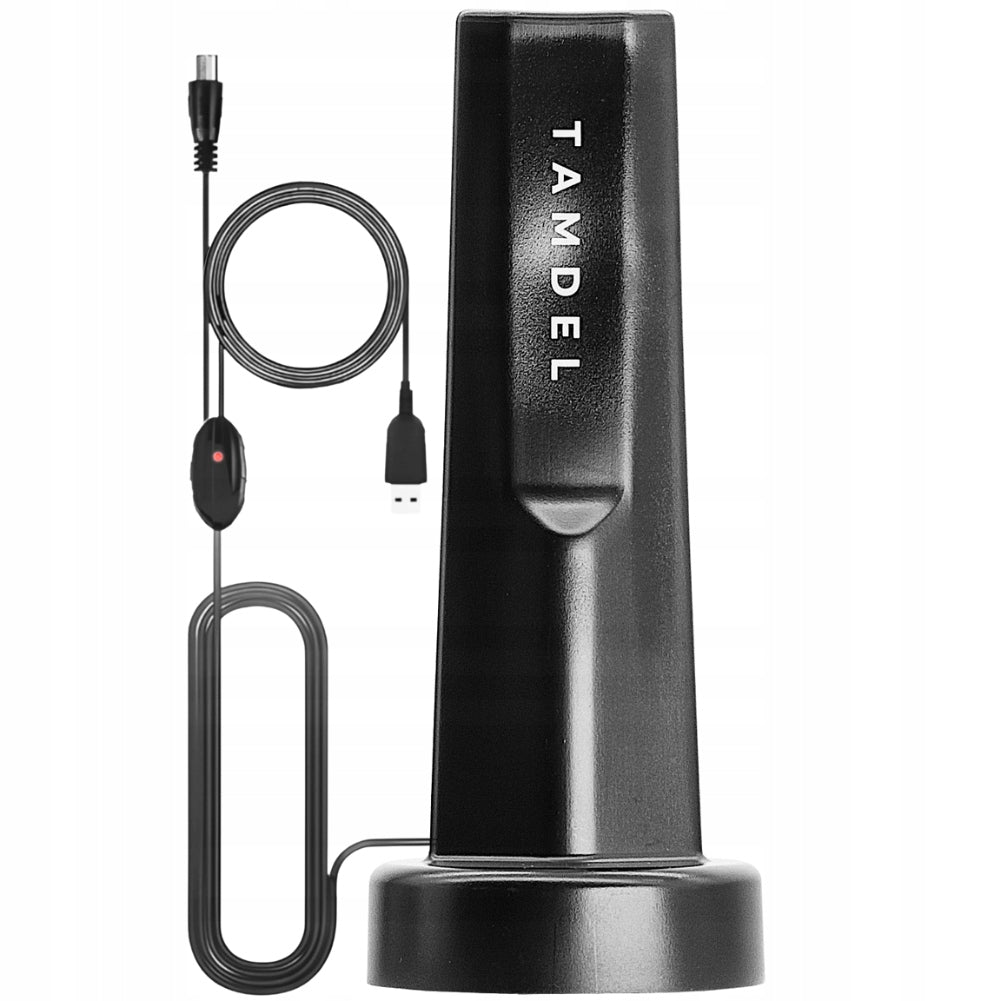

Kambarinė DVB-T2 4K TV antena su stiprintuvu, VHF/UHF, LTE filtras, 5 m laidas

Trumpai apie prekę

Prekė: Kambarinė DVB-T2 4K TV antena su stiprintuvu, VHF/UHF, LTE filtras, 5 m laidas. Kategorija: Antenos.

• Gamintojas: TAMDEL
• Modelis: TAW-12
• Spalva: black

💡 Compact active antenna for receiving free DVB-T2 terrestrial television.

With its omnidirectional design, it does not require as precise alignment as a classic directional antenna, and the 5m cable makes it easy to find the spot for the best reception.

✔ Outdoor Room Antenna

✔ Built-in amplifier powered by USB 5 V

✔ MUX-1 / MUX-2 / MUX-3 / MUX-4 / MUX-8 reception

✔ VHF + UHF band

✔ LTE 800 filter to reduce interference

✔ Magnetic base

✔ Antenna cable 5 m

⭐ Ideal for apartment, house, gazebo, motorhome or plot.

📶 DVB-T2 reception with LTE filter

✔ Support for DVB-T and DVB-T2 terrestrial television

✔ Compliance with HEVC H.265 codec

✔ Reception MUX-1 / MUX-2 / MUX-3 / MUX-4 / MUX-8

✔ Ability to receive Full HD and 4K* channels

✔ LTE 800 filter to reduce interference from mobile networks

ℹ An older TV without DVB-T2/HEVC support requires the use of an appropriate decoder.

🏠 Antenna setting and mounting

✔ Set the antenna on a shelf, TV cabinet or windowsill

✔ In case of poor reception, move it closer to the window

✔ The antenna can also be placed on the balcony or outside the building

✔ Magnetic base allows quick positioning on the appropriate metal surface

✔ No drilling, screws or additional handles

⭐ The compact height of 15 cm means that the antenna does not take up much space.

🔧 How to connect the antenna?

✔ connect the antenna plug to the TV or decoder

✔ connect the USB cable to a 5 V power source

✔ position the antenna as close to the window or outside as possible

✔ start automatic DVB-T2 channel search

⚙ Technical specification

▶ Model: TAMDEL TAW-12

▶ Antenna type: internal / external

▶ Operating system: active (with amplifier)

▶ Frequency range: VHF 174 – 230 MHz / UHF 470 – 790 MHz

▶ Working channels: 6 – 57

▶ Signal Gain: VHF up to 18 dB / UHF up to 25 dB

▶ Impedance: 75 Ω

▶ Amplifier power supply: 5 V DC (USB)

▶ Signal cable: 5 m

▶ LTE filter: yes

▶ Receive standard: DVB-T / DVB-T2 (HEVC H.265)

📏 Compact dimensions

✔ Antenna height: 15 cm

✔ Base diameter: 6,5 cm

✔ Slim vertical design

✔ Does not take up much space on the windowsill, shelf or TV cabinet

⭐ The small size makes it easy to position the antenna even in small rooms.

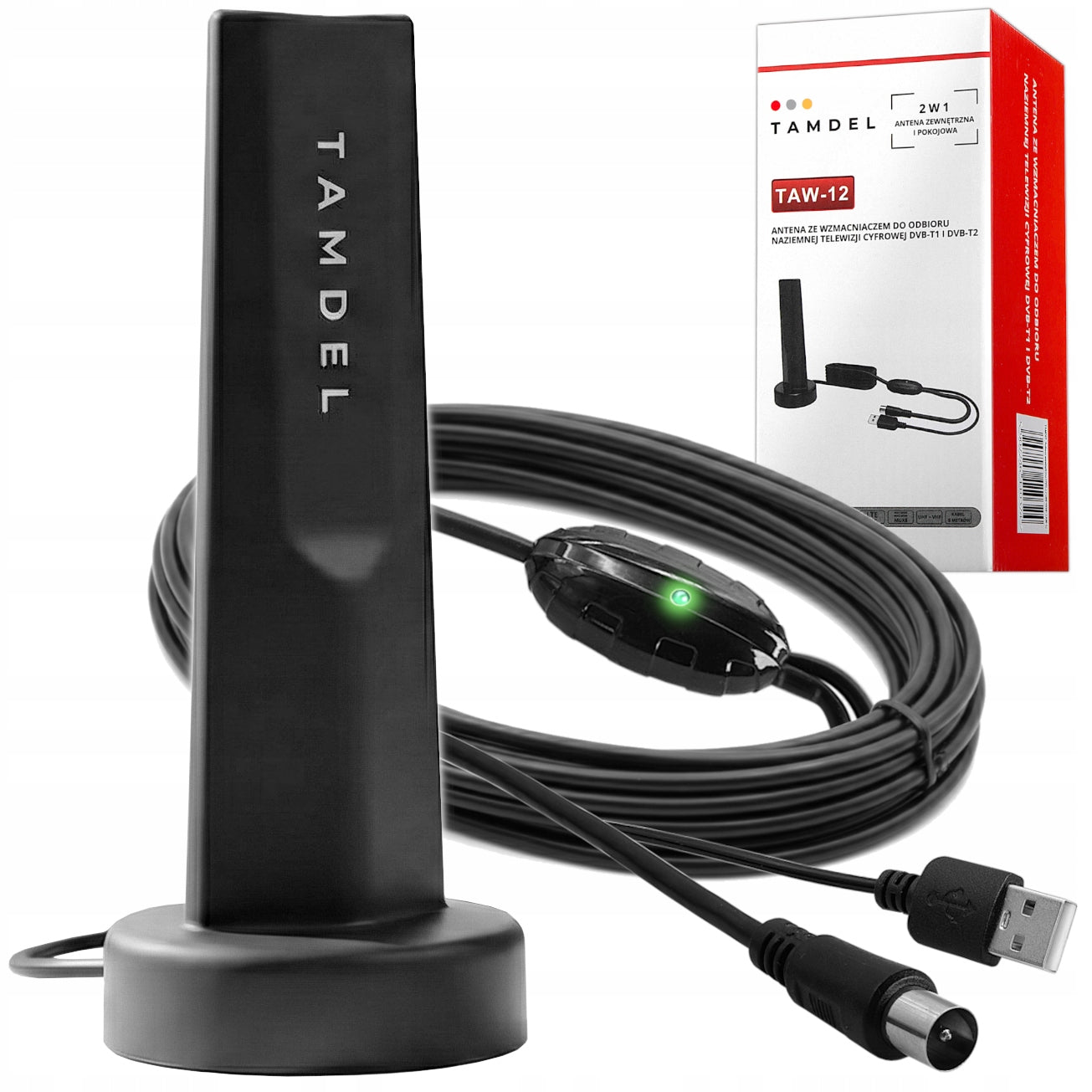

📦 Set includes

✔ TAMDEL TAW-12 antenna with built-in amplifier and LTE filter

✔ Integrated 5 m antenna cable with IEC TV plug

✔ USB power cord

✔ User manual in Polish

✔ Original manufacturer packaging

ℹ USB AC adapter not included. The amplifier can be powered from the USB port of the TV, decoder, powerbank or standard USB 5 V charger.
