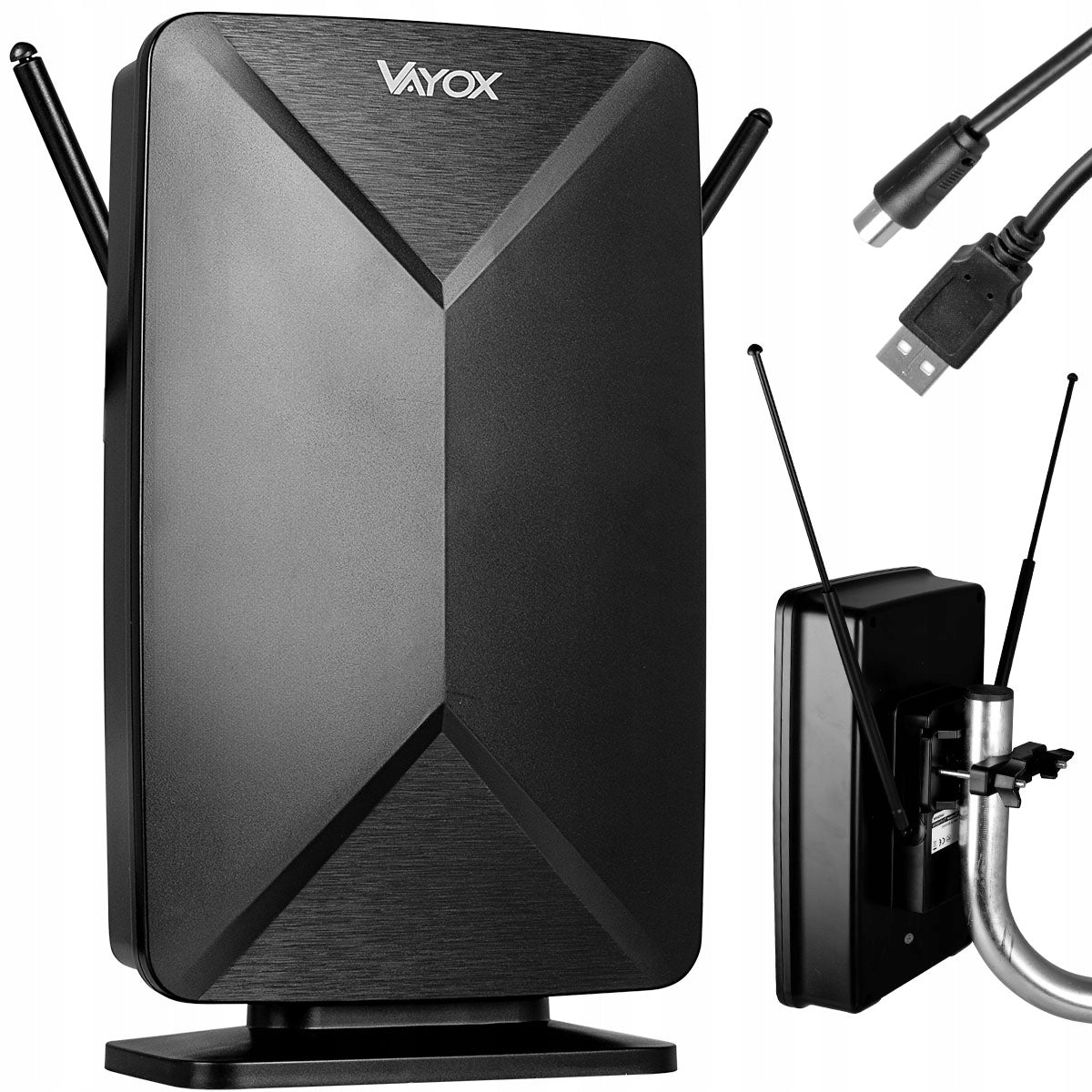

Kambarinė ir lauko TV antena VAYOX, DVB-T2, 4K

Trumpai apie prekę

Prekė: Kambarinė ir lauko TV antena VAYOX, DVB-T2, 4K. Kategorija: Antenos.

• Gamintojas: Vayox
• Modelis: VA0248
• Spalva: black

✅360 DEGREE UHF+VFH+MUX8 ✅TWO EXTERNAL+INTERNAL HANDLES

✅SATURATED FROM 230V NETWORK OR VIA USB✅8M ANTENNA CABLE INCLUDED

📽 Antenna presentation and installation instructions in video form: https://youtu.be/w9J7OKtaA7A

ANTENNA ACTIVE EXTERNAL DVB-T2 TERRESTRIAL TV OMNIDIRECTIONAL 4K VAYOX

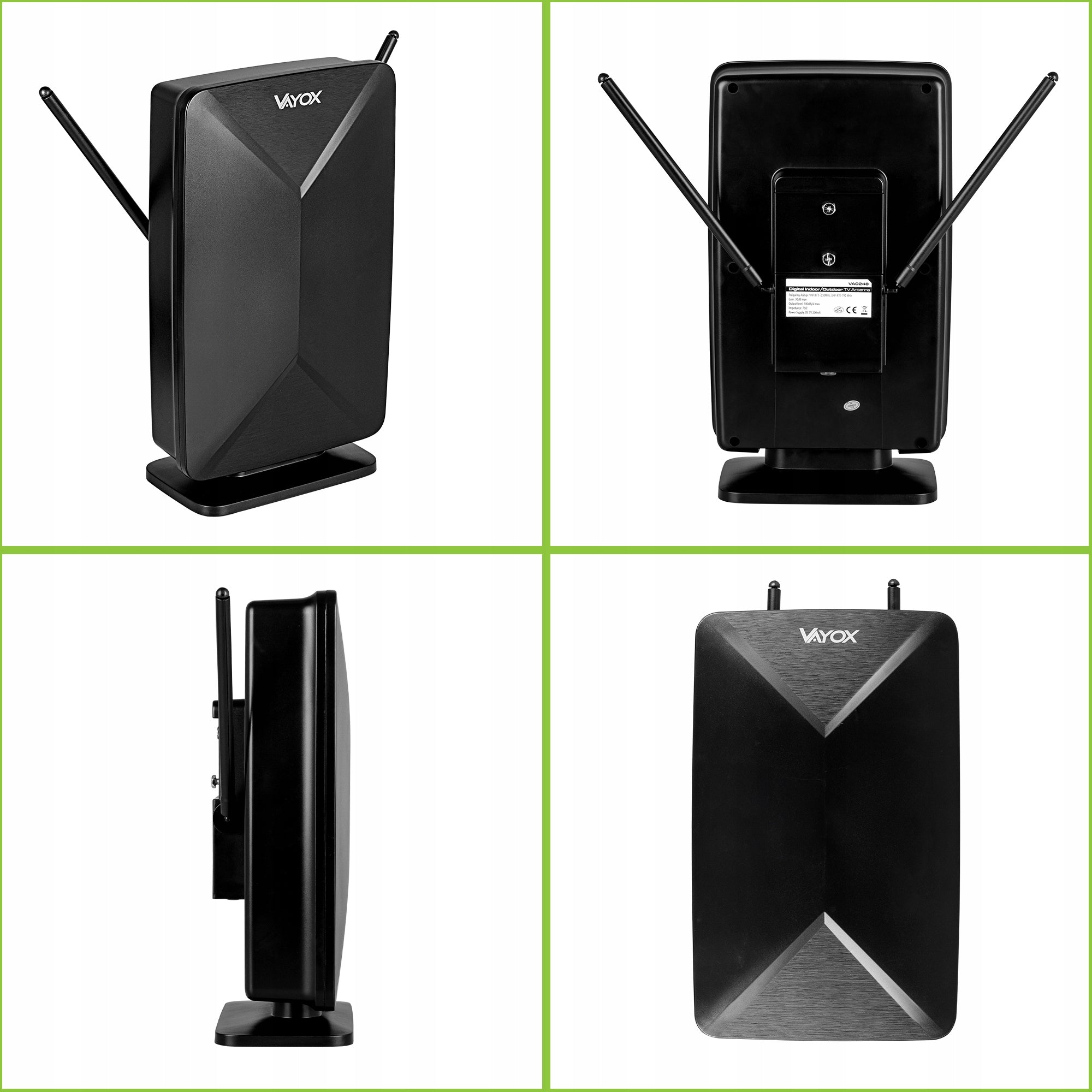

Model: VA0248

⭐Large gain and reception 360 degrees: The built-in active amplifier has a constant gain of 30dB and 100dBuV. The antenna, thanks to its design, receives a signal from all directions of 360 degrees.

⭐External + Internal: Two types of brackets allow the antenna to be mounted inside and outside, thanks to its light weight and compact dimensions, the antenna can be used in both professional home installation and caravans.

⭐Easy Connection: The antenna is fully ready to work out of the box and connect the necessary cables to the TV or set-top box, which requires neither specialized tools nor extensive knowledge of antennas and television.

⭐Power supply 2in1: The antenna can be powered from either the 230 V power grid or the 5V USB port so it can be used almost anywhere.

⭐VHF+ UHF+MUX8+FILTR LTE: Antenna adapted to receive all DVBT-2 signal bands broadcast in Poland. Built-in lte filter cuts interference generated by 3G/4G networks

⭐Included: Antenna va0248, 5V power supply, 8M antenna cable, Wall mount, Internal mount

✅NEW GENERATION ANTENNA

Thanks to its light weight and compact dimensions, the antenna can be used both in a professional home installation and on the go. The antenna is equipped with a convenient mount that allows you to maneuver in virtually any plane.

• Maximum output signal level: 100dbuv
• Antenna gain: 30dB
• It is adapted to receive channels in the highest 4K resolution and DVB-T2 encoding

✅ANTENNA THAT WILL SET ITSELF

The antenna, thanks to its construction, receives a signal from every direction (360 degrees), and the receiving radius is a distance of up to 100km from the transmitting station, of course, the reception depends on the signal strength in a given area.

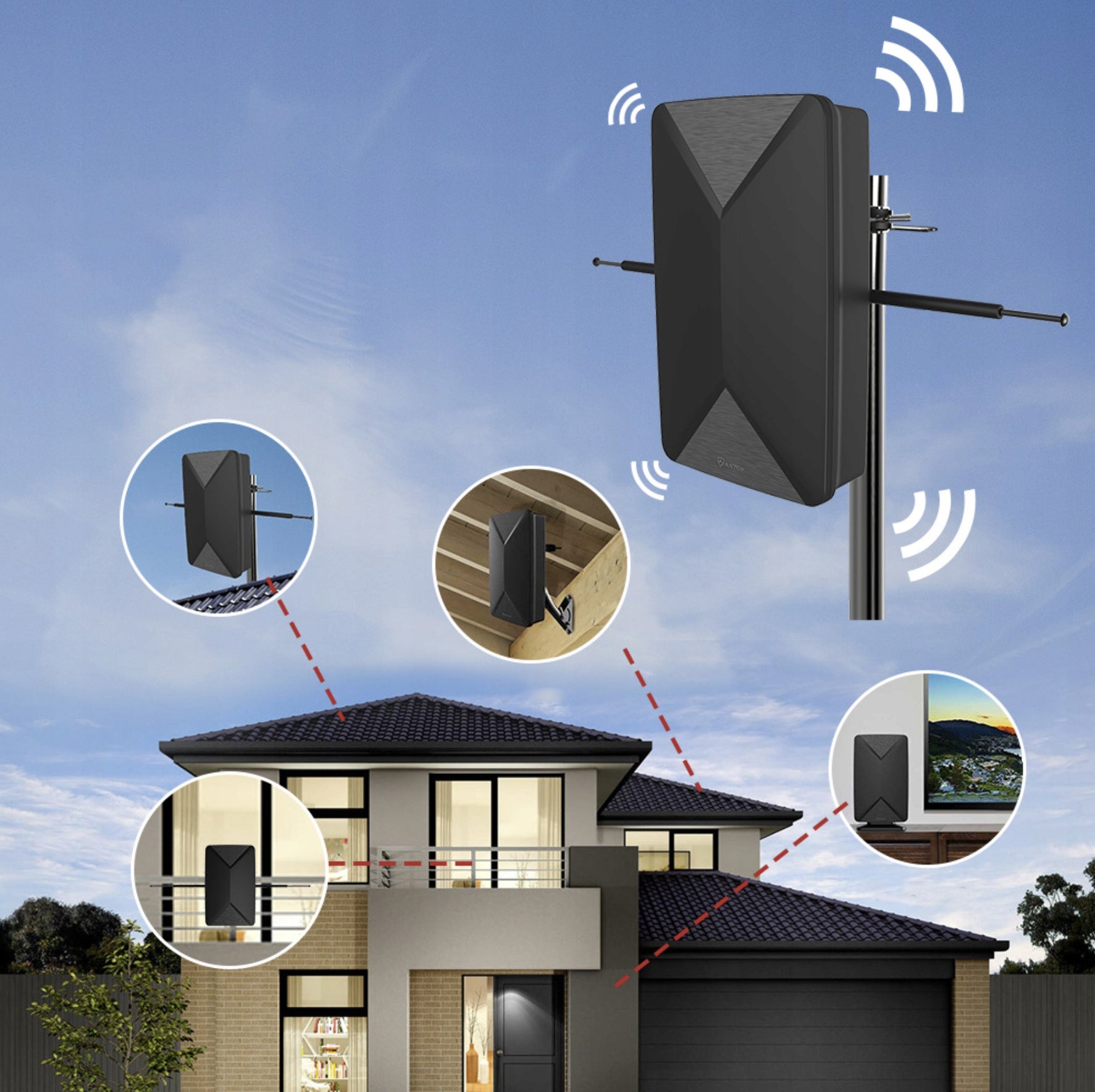

✅EXTERNAL OR INTERNAL

At home, on the plot, in the car or caravan no matter where you want to enjoy the reception of free channels DVB-T2 our antenna will be an ideal choice because it has two independent ways of mounting.

1. Metal cover for external mounting on handle, railing, etc.
2. Special stand allows you to place the antenna anywhere

✅ALL CHANNELS + FILTER LTE 4G

Pull-out side antennas guarantee VHF band signal amplification guaranteeing channel reception from all multiplets in the highest quality.

⭐Antenna receives all channels available in Poland MUX1 MUX2 MUX3 MUX8

The anti-interference LTE filter allows you to get rid of problems with the DVB-T2 signal caused by the fact that the frequencies of wireless LTE Internet are also frequencies used by the DVB-T2 digital TV signal. In this case, there may be overlapping of the most important frequencies and lead to a problem with the signal, and thus interference, and even limitation of the DVB-T signal.

✅POWERED BY USB OR 230V OUTLET

1. Connecting the power supply to the USB port (antenna can be powered from a TV or external decoder)
2. Power connection to mains socket 230V (230v power supply included)

Regardless of the mounting method chosen, the antenna will work in the same way

✅EASY CONNECTION

Thanks to this antenna, there is no need to mount any other antenna, the installation of which requires a lot of work, and often the risk associated with installation on the roof of the building. The antenna is fully ready to work out of the box and connect the necessary cables to the TV or decoder, which requires neither specialized tools nor extensive knowledge of antennas and television

📽 Quick installation instructions in video form available at the link: https://youtu.be/w9J7OKtaA7A

UNDER ALL CONDITIONS

• The antenna has a waterproof hermetic housing made of ABS
• The antenna is coated with a radiation resistant coating UV
• The set includes a special rubber cover to protect the F socket from rain

CONSTRUCTION

1. INNOVATIVE MECHANICAL COMPONENTS PROVIDE INCREASED SIGNAL STRENGTH FOR OPTIMAL RECEPTION
2. SMARTPASS AMPLIFIER AND LTE FILTER FOR A BALANCED RECEPTION RANGE + BLOCKING UNWANTED 3G+4G SIGNAL
3. EXTRACTED AMPLIFICATION ANTENNAS VHF FOR BETTER VHF SIGNAL CIRCULATION

Specification

• Reception: DVB-T, DVB-T2, UHF, VHF,
• Noise level: Below 5 dB
• Reinforcement: 30dB
• Maximum output signal level: 100dbuv
• Impedance: 75 Ohms
• Power supply: AC 110 V - 230 V/ USB 5V
• Temperature range: -30°C...+65°C
• Color: Black
• Frequency: 87-230MHz, 470-790MHz

Composition of the set

• Antenna VA0248
• Adapter AC length 8m
• 5V power supply
• USB/dc cable
• Handle: external/internal
• Original packaging
