Kampinis pjūklas Evolution R185SMS+, 185 mm, 1200 W, tinka kelioms medžiagoms

Trumpai apie prekę

Prekė: Kampinis pjūklas Evolution R185SMS+, 185 mm, 1200 W, tinka kelioms medžiagoms. Kategorija: Kampiniai pjūklai.

• Gamintojas: Evolution
• Modelis: 047-0003A

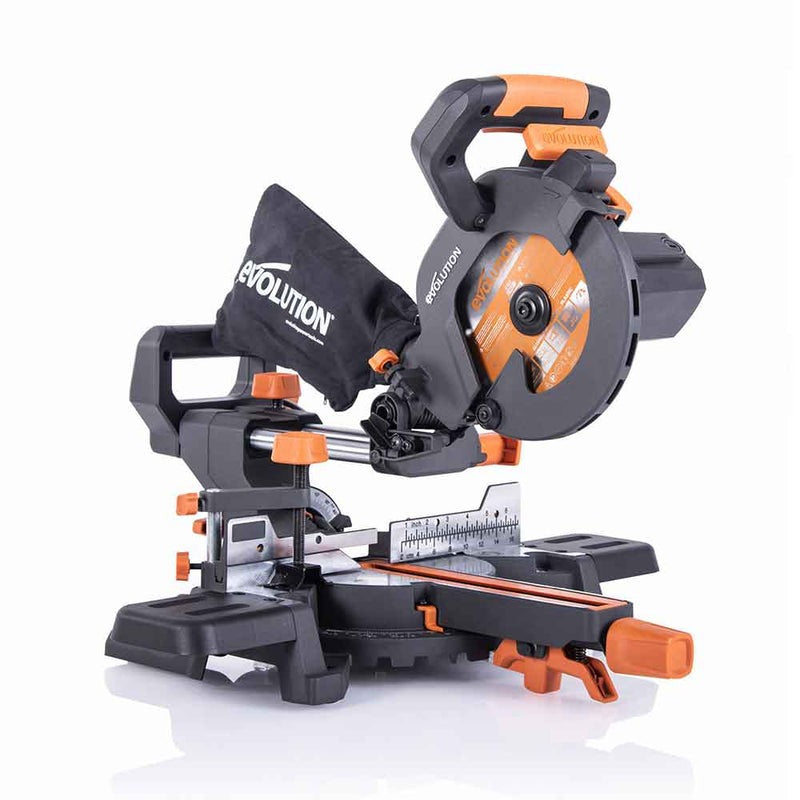

Sliding cutter Evolution R185SMS+ 185 mm with TCT blade for cutting various materials TCT

Our smallest sliding mitre saw with all the features of the PLUS model is just as efficient as our larger models. The R185SMS+ is perfect for home DIY projects. You can easily fit it in a van and install it on site using one of our compact stands.

The R185SMS+ enables precise cutting thanks to the supplied premium R185TCT-20T tungsten carbide blade. Cuts plastics, soft and hard wood, sheet metal, aluminum, steel profiles and angles, and copper pipes. Additionally, it is equipped with a laser. This is the ideal tool for making compound cuts in decorative and floor moldings.

Thanks to its high power, the R185SMS+ model will allow you to handle most tasks without any problems. The whole is complemented by a compact size, precision, the ability to make diagonal cuts, with a deviation from the vertical and complex, a high torque motor, a laser pointer and a dust container. The effect? A device that continues to enjoy enormous popularity.

Product characteristics

• Cutting technology of various materials. One saw, one shield, cuts everything. *
• Accurate cutting using laser pointer and smooth travel function, adjustable depth and 9 fixed bevel positions.
• Reliable, smooth and regular cutting every time for many different materials.
• Powerful, high torque 1200W motor with optimized transmission and disc system.
• The 0°- 45° vertical deviation and 50˚-50˚ bevel allow easy and precise cutting at all the most common angles.
• Possibility of cross-cutting max. 210mm x 56mm.
• Ergonomic handle with actuation button for left- and right-handed users.

Features of the PLUS model

• Compatible with Evolution slash stand.
• Compact, lightweight and robust design, weight less than 8,95 kg
• The set includes a Japanese production of a premium 185 mm tungsten carbide (TCT) cutting disc.
• 3 years limited warranty.

Specification

• Motor (110 V 50 Hz): 1200 W
• Motor (240 V 50Hz): 1200 W
• No-load speed: 3700 min-1
• Max. Bevel: 50° - 50°
• Max. Vertical deviation (left): 45°
• Shield Cover: Cast Aluminum
• Cable Length: 3m
• Disc diameter: 185 mm
• Number of Teeth: 20
• Hole: 20 mm
• Row: 1,7 mm

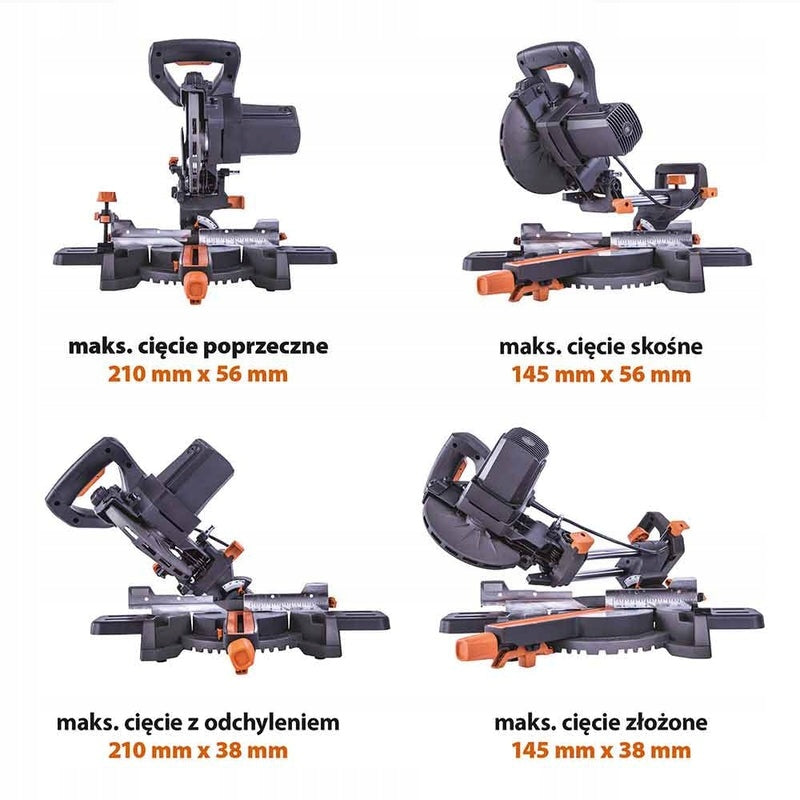

• Max. cross-cutting (0° x 0°): 210 mm x 56 mm
• Max. Vertical deviation (0° x 45°): 210 mm x 38 mm
• Max. diagonal cutting (45° x 0°): 145 mm x 56 mm
• Max. compound cutting (45° x 45°): 145 mm x 38 mm
• Soft steel plate (max. thickness): 6 mm
• Soft steel box section (max. wall thickness): 3 mm
• Product Dimensions: 290 mm x 595 mm x 565 mm (with lowered cutting head)
• Package Dimensions: 445 mm x 435 mm x 315 mm
• Product weight: 8,95 kg
• LPA sound pressure level: 110 V: 91,9 dB(A) / 220-240 V: 93,1 dB(A)
• Sound power level LWA: 110 V: 104,9 dB(A) / 220-240 V: 106,1 dB(A)
• Uncertainty factor K: KpA and KWA: K=3 dB(A)
• Laser Class: Class 2
• Laser Source: Laser Diode
• Laser output power (max. ): 1 mW
• Wavelength (Nm): 650

Included

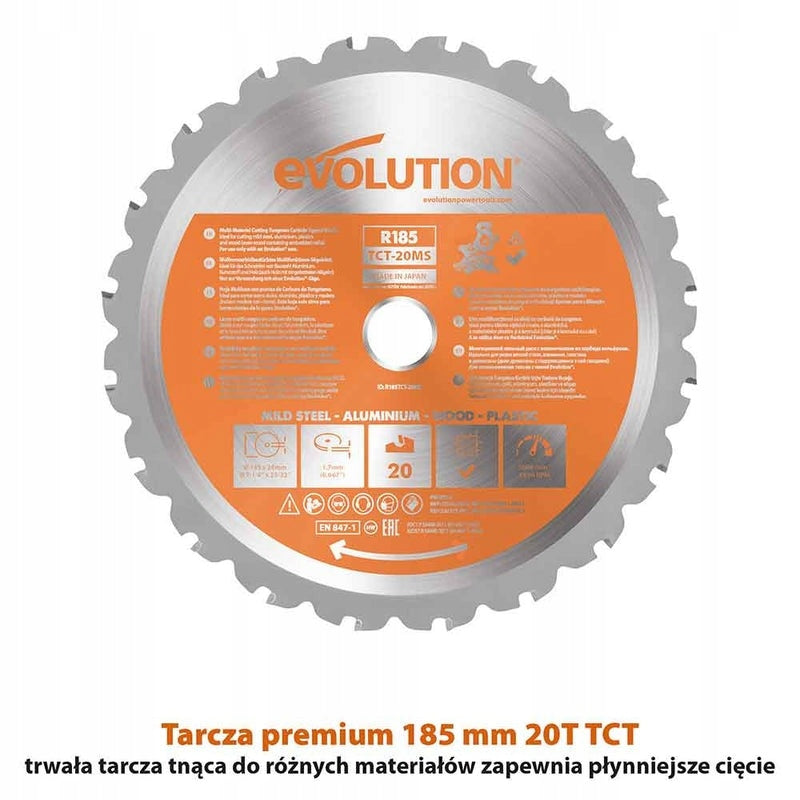

• Premium disc R185TCT-20T for cutting various materials
• Upper clamps
• Device Table Extension Elements
• Dust bag
• Dust Removal Port Adapter
• Double-sided Allen key (M6 and M4)
• Ergonomic rear carry handle
• Cable 3 m
