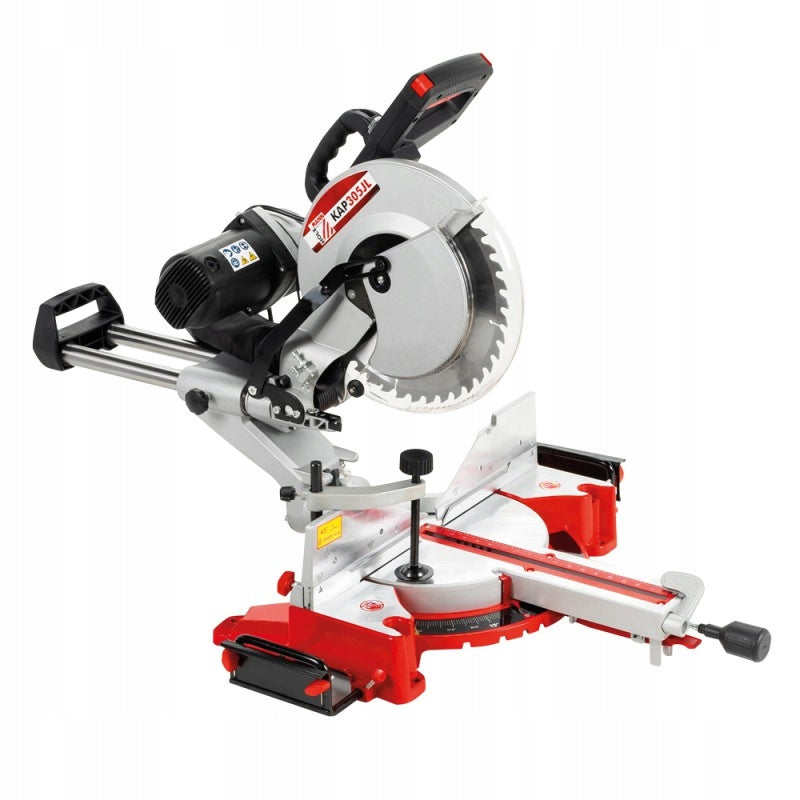

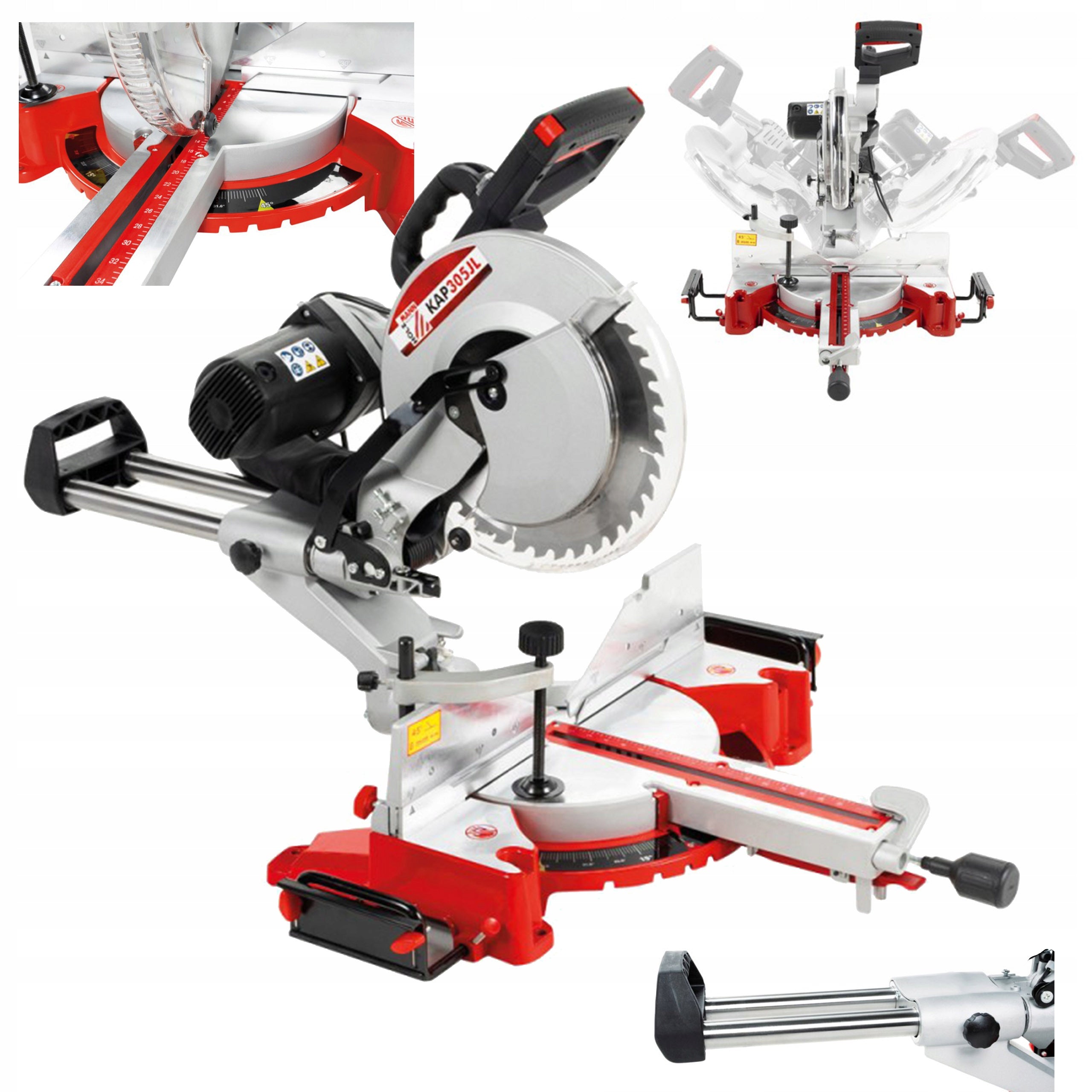

Kampinis pjūklas KAP305JL su lazeriu, 1600 W, 305 mm, AUSTRIA

Trumpai apie prekę

Prekė: Kampinis pjūklas KAP305JL su lazeriu, 1600 W, 305 mm, AUSTRIA. Kategorija: Diskiniai pjūklai.

• Gamintojas: Holzmann
• Modelis: 9120039900742

Product code: |ID:1090|

• Belt drive system is characterized by quiet operation,

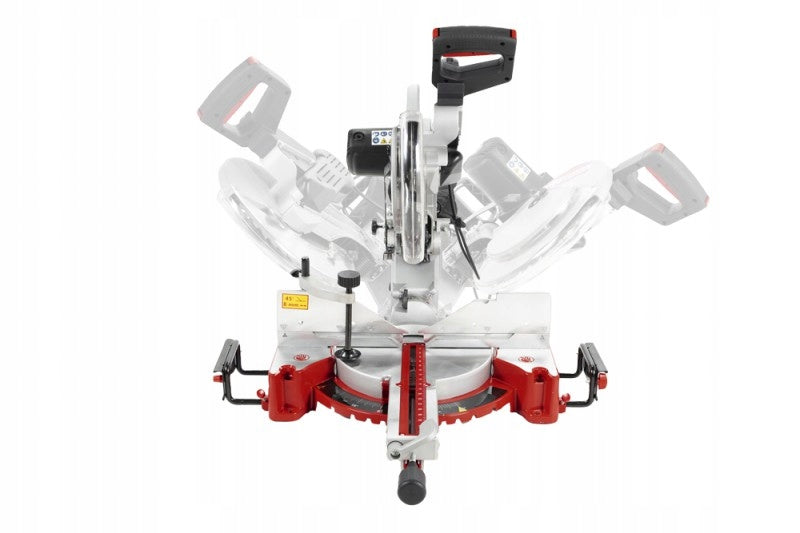

• saw head tilted to the right/left (-45˚/+45˚) and rotary (-45˚ to +45),

• rear guide extending to the right and left side and extended table (right/left),

• thin, red laser light indicates cutting lines,

• sawing depth limiter included,

• stable and precise, double bearing guide,

• massive aluminum base made of cast aluminum ensures high durability.

• Voltage: 230 V / 50 Hz
• Engine power: 1600 W S1 (100%), 2000 W S6 (25%)
• Protection class: II
• Protection type: IP 20
• Rotary speed: 4200 rpm. /min
• Disc: Ø 305 mm / 40Z (2,8 mm)
• Hole: Ø 30 mm
• Table angle: -45° / 0° / +45°
• Straight cut: 0° x 0°: 330 x 115mm
• Max. cut: 45° x 0°: 240 x 115mm
• Max. cut: 0° x 45°: 330 x 85mm
• Max. cut: 45° x 45°: 240 x 85mm
• Min. Tool size: 30 x 5mm
• Straight cut: 0° x 0°: 330 x 115mm
• Dimension of limiter: 520 x 115 mm
• Diameter of extraction nozzle: Ø 68 mm
• Cable length: 1,2 m
• Sound pressure level: 95dB(A) K:3dB(A)
• Acoustic power level: 108dB(A) K:3dB(A)
• Package dimensions: 925 x 550 x 525 mm
• Dimensions (L. x width x H ): 895 x 900 x 700 mm
• Net weight: 21 kg
• Gross weight: 25 kg
• Laser class: II
• Laser standard: EN 60825-1:2014
• Laser light wavelength: 650nm
• Laser power: < 1 mW
• EAN code: 9120039900742
• Transport carrier: package

The KAP 305JL slash saw is used for cross-cuts, diagonal cuts and inclined cuts in boards and slats.

Additionally, it is possible to cut nurseries.

It is also possible to process solid wood, chipboard,

plastic panels and profiles.

Scope of delivery:

• Spectral cutting disc
• laser
• extension of the table

Optional equipment:

• Set of discs 300mm KSB300SET
• USK 2760 work table

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Holzmann
Parametry	Manufacturer code	9120039900742
Parametry	EAN (GTIN)	9120039900742
Parametry	Batteries included	no
Parametry	Power supply	mains
Parametry	Saw bore diameter	30 mm
