Kampinis pjūklas SCHEPPACH HM140L, 2000 W, 305 mm, su 2 diskais

Trumpai apie prekę

Prekė: Kampinis pjūklas SCHEPPACH HM140L, 2000 W, 305 mm, su 2 diskais. Kategorija: Kampiniai pjūklai.

• Gamintojas: Scheppach
• Modelis: SCH5901218901

Description and product details

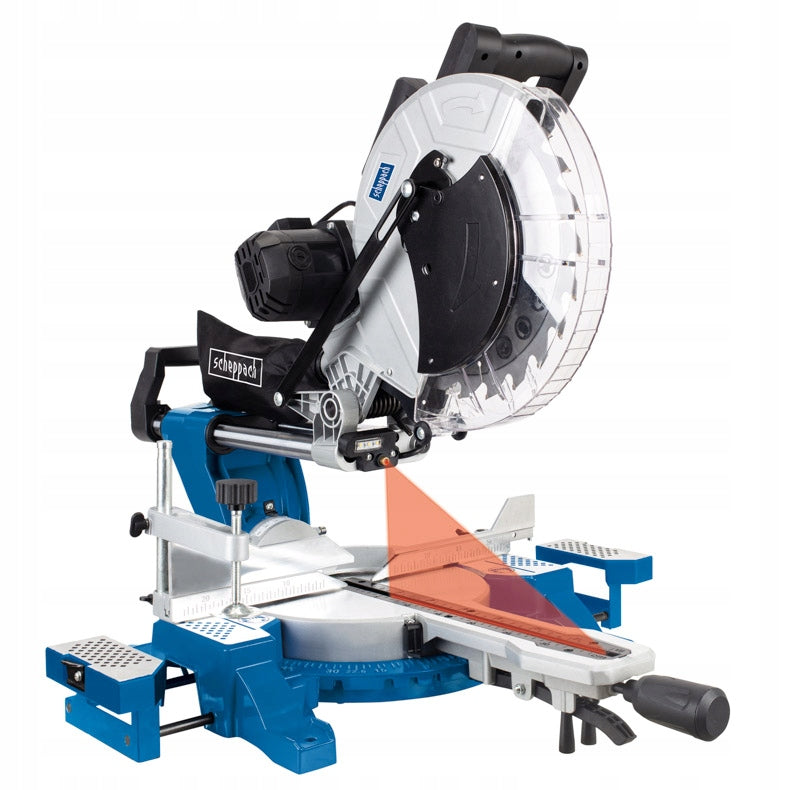

Bevel saw Scheppach HM 140 L with laser and double-sided tilt adjustment

The robust and precise Scheppach HM 140 L bevel saw is the perfect helper in every workshop and construction site. It comes from a new generation of bevel saws, which puts it at the top of its segment. It is designed for precise cutting of hard and soft wood, wood profiles, laminated and plastic boards and similar materials. The main advantage is the large diameter of the disc 305 mm, and thus high cutting values of 330 mm in length and 105 mm in height. A unique feature in its category is also the ability to tilt the saw on both sides, which makes the machine very convenient and faster to operate when making more complicated cuts. The saw is made of a very durable but lightweight aluminum alloy, making it easy to carry. Not without significance is also the long service life of this type of material and its resistance to external factors. The driving rods are highly durable and embedded in high-quality bearings, allowing you to make even complex cuts with high precision. High-quality material is also used in clamps and side booms. For convenience, the saw is equipped with a laser, and the transparent saw blade cover ensures maximum operator safety and excellent visibility of the work area. The set also includes a handy stop, ruler, dust bag for sawdust removal, and a second 48-tooth saw blade for finer cuts.

Power (W) 2000

Wheel diameter (mm) 305

Tilt adjustment (°) -45 / 45

Cutting 90°/45° (mm) 230 x 105

Cutting 45°/45° (mm) 230 x 60 / 35

Cutting 90°/90° (mm) 330 x 105

Cutting 45°/90° (mm) 330 x 60 / 35

Table tilt range (°) - -. .45 / 45

Inner diameter of disc (mm) 30

Number of disc teeth (z) 24

Rotation speed (rpm) 3800

Motor type 230 V, 50 Hz

Weight (kg): 20.80

Dimensions (cm): 89 x 61,5 x 49

Radial bevel saw SCHEPPACH 305 mm 2000W - HM140L, with which you can easily cut handles and elements with a large cross-section. This tool allows you to cut through the toughest wood and perform demanding jobs with maximum precision. Advantages : Double-sided tilting head for optimal performance Orientation from -45° to +45° for efficient work Precision cuts thanks to the double guide equipped with durable linear ball bearings for precise and repeatable results Low weight (20,8 kg) thanks to the robust and lightweight cast aluminum construction for easy transport and storage Integrated laser,which accurately visualizes the line of 305 mm carbide disc for accurate and reproducible results Large cutting capacity of 330 mm width and 105 mm height Disc with fully enclosed cover for maximum operational safety Features : Dimensions L. x W x H in mm: 890 x 615 x 490 Blade: 305 mm and 48 teeth Blade speed: 3800 min-1 Head tilt: 2 x 45°.

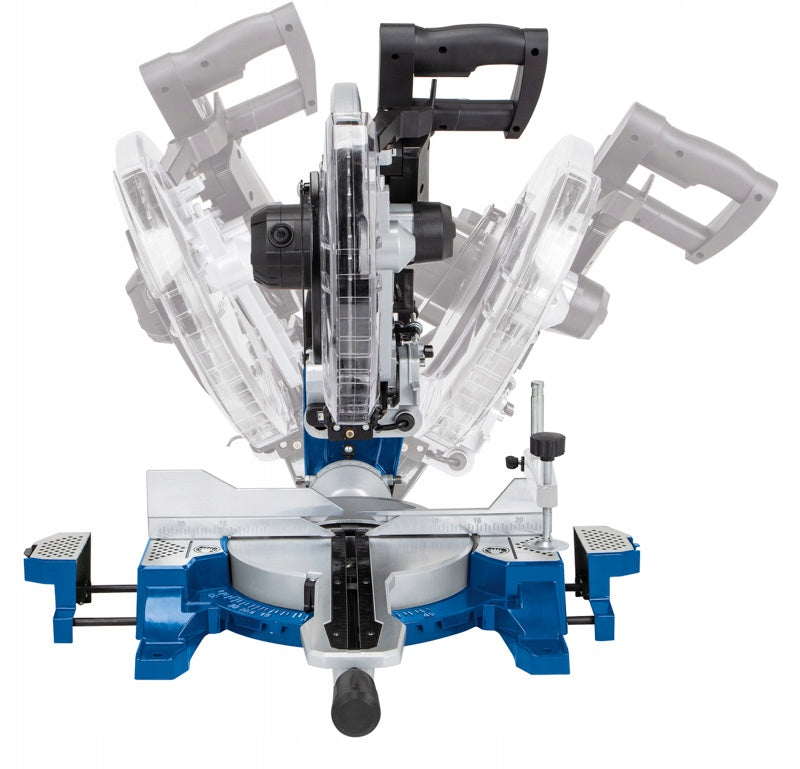

• Possibility of double-sided tilt of the saw head for professional results
• Rotating work table in the range from -45 to +45
• Double column guide with durable linear ball bearings for consistent, precise cutting results
• Lightweight die-cast aluminum construction for easy transport
• Built-in laser for precise cutting
• The saw blade stays sharp and provides a clean cut
• High cutting efficiency
• Fully enclosed cutting disc cover for maximum operational safety

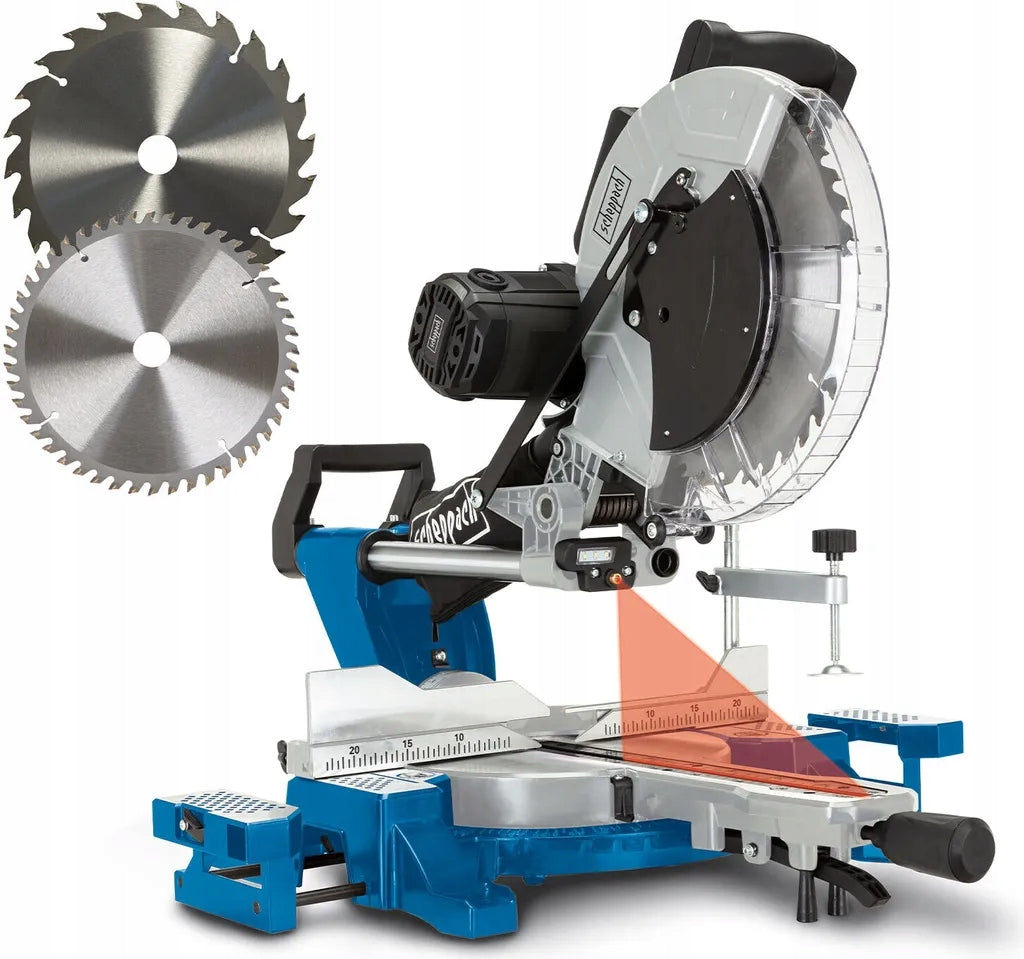

• Supplied with 24T and 48T saw blade

Technical data:

• Saw blade: 305 mm
• Center bore: 30 mm
• 230V
• Power: 2000 W
• Rotation speed: 3800 rpm
• Rotation angle: 45 / -45
• Cutting capacity 45: 230x35 mm
• Cutting capacity 90: 330x105 mm
• Dimensions (L. x W x H ): 890x615x490 mm
• Weight: 21 kg

EAN: 4046664072843 Article number: 5901218901
