Aprašymas
Trumpai apie prekę

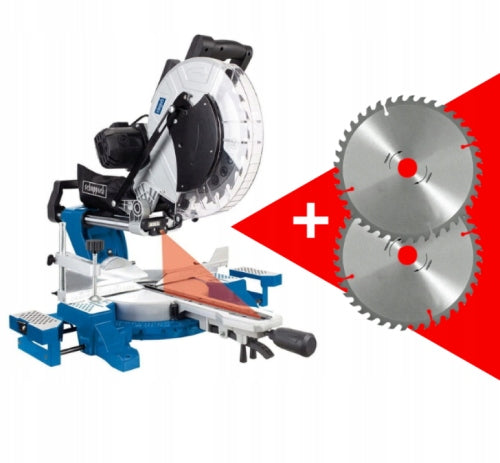

Prekė: Kampinis pjūklas Scheppach HM140L su 305 mm pjovimo disku ir papildomu disku. Kategorija: Kampiniai pjūklai.
- Gamintojas: Scheppach
- Modelis: SCH5901218901
We are an Authorized Dealer
Scheppach products purchased from us are covered by the manufacturer’s protection and service in an authorized Polish service center. This applies only to equipment from the official distribution of Scheppach on Polish territory. Please check the information carefully at other auctions – the purchase of equipment from outside the polish distribution may mean that it is not possible to use the in Poland!
TECHNICAL DATA:
- Power: 2000 W
- Power supply: 230/50 V/Hz
- Diameter of cutting disc: 305 mm
- Cutting disc rotation speed: 3800 rpm
- Tilt Angle: 2 x 45°
- Angle of stroke 45° on the left to - 45° on the right
- Raster positions in the 45-31,6-22,5-0-22,5-31,6-45° rotating base
- Cutting width / height: 90°/ 90° 330 x 105 mm
- Cutting width / height: 45°/ 90° 330 x 60 mm
- Cutting width / height: 90°/ 45° 330 x 60 mm
- Cutting width / height: 45°/ 45° 230 x 60 mm
- Dimensions: 890 x 615 x 490 mm
- Weight: 21 kg
Features of the miter saw:
- The machine is ideal for cutting when laying floors from panels, parquet and boards thanks to the rotation and tilt range of the cutting disc in both directions.
- It provides accurate cutting results in soft and hard wood, as well as in multilayer materials, non-ferrous metals and plastics.

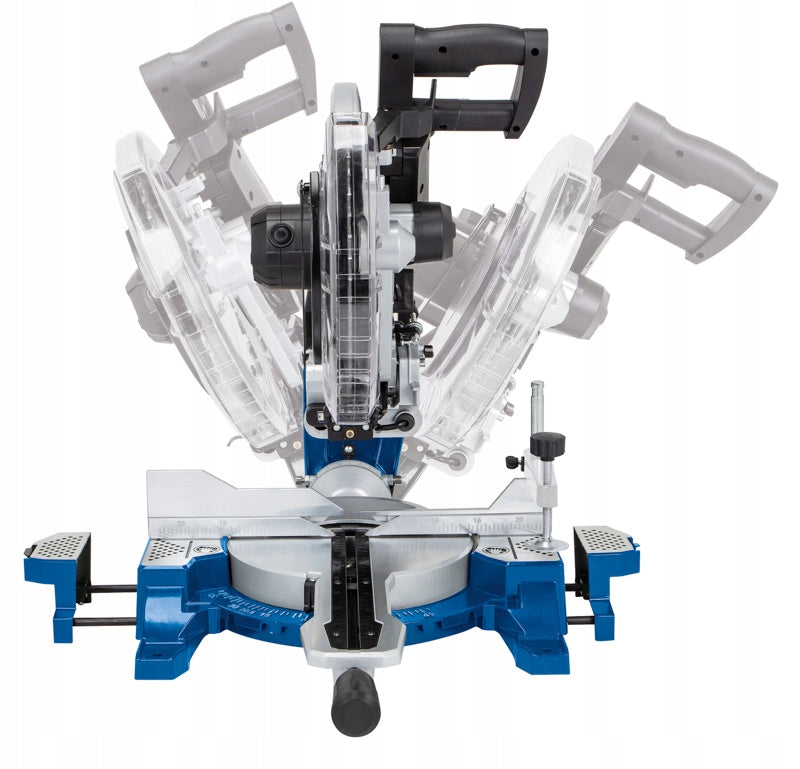

- Bilaterally tilting cutting disc for angled cuts in the vertical plane.
- Bilaterally adjustable rotationally from -45° to +45° for oblique cuts in the horizontal plane.
- Precise cuts thanks to double column guidance with durable linear ball bearing for consistent, accurate cutting results.
- Precise and high resistance on the stand.
- Built-in laser for precise indication of the cut edge.
- High cutting capacity with a width of 330 mm and a height of 105 mm.
- Fully lockable shield guard for maximum operational safety.

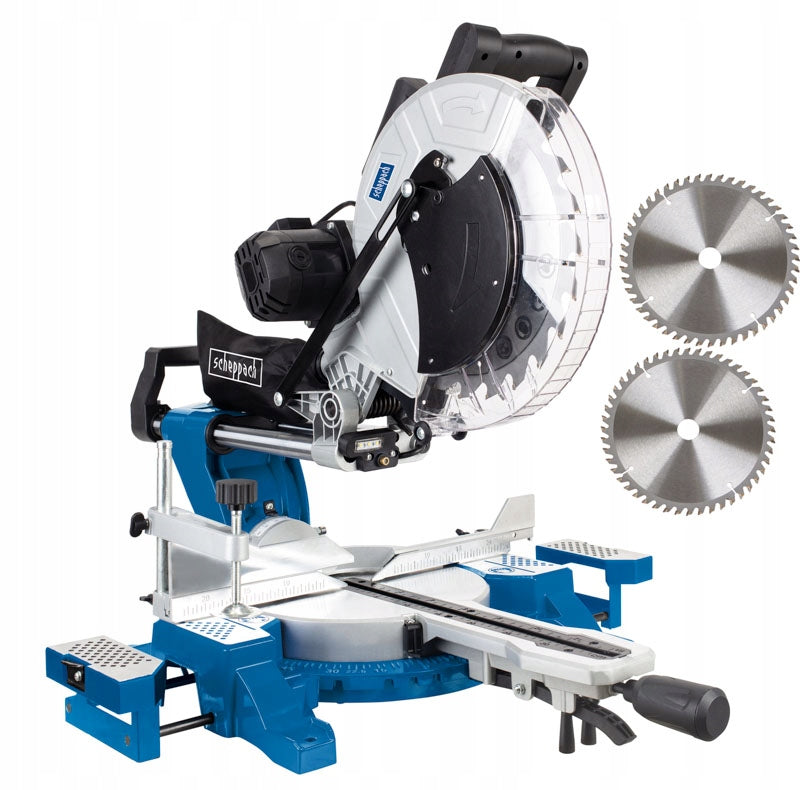

Scope of delivery:
- Scheppach HM140L - Miter saw with feed
- Cutting disc 24 teeth
- Cutting disc 48 teeth
- Key to changing shields
- Spare carbon brushes
- Tension clamp
- User manual
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Scheppach |
| Parametry | Manufacturer code | SCH5901218901 |
| Parametry | EAN (GTIN) | 4046664072843 |
| Parametry | Series | HM140L |
| Parametry | Batteries included | no |
| Parametry | Packaging status | original |
| Parametry | Certificates of conformity | CE,WEEE |
| Parametry | Maximum power | 2000 W |
| Parametry | Power supply | mains |
| Parametry | Rotational speed | 3800 rpm |
| Parametry | Saw bore diameter | 30 mm |
| Parametry | Battery voltage | 230 V |
| Parametry | Additional features | laser pointer for cutting line,feed |
| Parametry | Disc diameter | 305 mm |
| Parametry | Cutting depth at 45 degrees | 60 mm |
| Parametry | Cutting depth at 90 degrees | 105 mm |
| Parametry | Cutting width at 90 degrees | 330 mm |
| Parametry | Cutting width at 45 degrees | 230 mm |
| Parametry | Device weight | 20 kg |
| Parametry | Product weight with unit packaging | 25.7 kg |
