Kampinis šlifuoklis 125 mm 720 W metalui, betonui, plytelėms YATO YT-820833

Trumpai apie prekę

Prekė: Kampinis šlifuoklis 125 mm 720 W metalui, betonui, plytelėms YATO YT-820833. Kategorija: Kampiniai šlifuokliai.

• Gamintojas: Yato
• Modelis: YT-820833

YT-820833 ANGLE GRINDER 720W 125MM

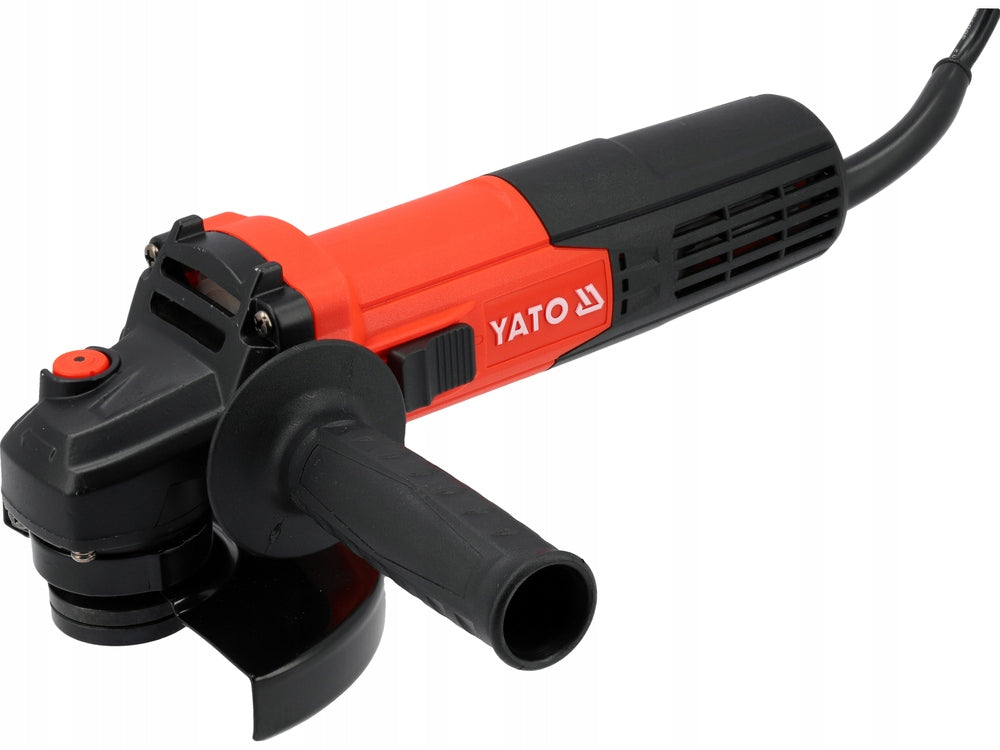

Compact angle grinder YATO YT-820833 with a power of 720 W and a disc diameter of 125 mm is an extremely handy and versatile power tool. It has been designed for renovation, installation, assembly and workshop work. The device is perfect for cutting and grinding metal elements (profiles, pipes, sheets), as well as mineral building materials such as concrete, brick, natural stone or ceramic tiles. Thanks to its slim design, low weight of only 1.7 kg and high rotational speed of 12 000 rpm /min, this tool guarantees excellent maneuverability, precision handling and high rate of removal of excess material.

Contents of the set

• Angle grinder YATO YT-820833
• Additional side handle (handle)
• Adjustable abrasive/cutting disc cover
• Lower and upper disc mounting flange
• Fork wrench (special key for tightening the fastening nut)
• User manual in Polish

Golden safety principle when working with angle grinder (OHS): Angle grinder is one of the most dangerous tools in the workshop due to the huge rotational speeds of the disc (up to 80 m/s perimeter). Never, under any circumstances, dismantle a steel shield or use discs with a diameter greater than 125 mm. Before each switching on the device, check the condition of the shield – a cracked or chipped corundum shield under the influence of centrifugal force immediately explodes, which poses a direct threat to life and health. When working, absolutely use safety glasses (or visor) and gloves.

Operating tip (selecting accessories and overloading): The 720 W motor is optimized for light and medium work. To ensure the longevity of the transmission and winding, do not press the grinder against the material with excessive force, which would cause a drastic decrease in the rotation of the device. The tool should cut under the influence of its own weight and sharpness of the disc itself. For working in hard mineral materials (e.g. stoneware, reinforced concrete) use only high-quality, sharp diode discs dedicated to a given substrate.

Key design and performance features

• Optimal 720 W motor: The drive unit provides a stable power reserve during typical workshop and installation work. High Rotational Speed (12 000 RPM) /min) makes diode or corundum discs work in their optimal linear ranges, which minimizes wear and tear on the fixture.
• Compact and ergonomic housing: The small circumference of the body allows for a secure grip of the grinder with one hand. Low weight (1.7 kg) drastically reduces hand fatigue during prolonged overhead cutting or in hard-to-reach forced positions.
• Standard M14 thread with lock: Allows the installation of not only discs, but also butt wire brushes, pot discs or diode foraminifera for stoneware. The spindle lock immobilizes the shaft with one click, allowing for quick attachment changes.
• Auxiliary handle and safety guard: The included side handle improves the stability of the grinder during precise cuts. The steel shield guard protects the operator from dangerous streams of sparks, filings and chipping of the workpiece.

Application in assembly and construction work

• Metalworking: Cutting steel profiles, rebar, pipes, weld cleaning, rust removal and deburring of sharp edges.
• Construction and glazing works: Trimming ceramic tiles, stoneware, cutting furrows in brick or concrete for electrical wires, cutting paving stones or natural stone.

Technical parameters and specification

• Brand: Yato
• Marketing Authorisation Holder (EU): TOYA S.A.
• Product Series: GRF
• Rated power: 720 W
• Power supply voltage: 220 - 240 V a.c. (50/60 Hz)
• Maximum rotational speed: 12 000 min⁻¹ (rpm. /min)
• Diameter of abrasive / cutting disc: 125 mm
• Diameter of inner hole of the disc: 22.2 mm (market standard)
• Spindle thread size: M14 (universal accessory mount)
• Electrical insulation class: II (double insulation, no grounding required)
• Housing protection rating: IPX0
• Spindle lock: Yes (button on the head for easy disc replacement)
• Weight of the device: 1.7 kg
• Catalog symbol: YT-820833

Noise and vibration emission (Health and Safety Standards)

• Sound pressure level: 67.7 ± 3.0 dB(A) (very quiet operation in this class of equipment)
• Acoustic power level: 75.7 ± 3.0 dB(A)
• Vibration / vibration level (surface grinding): 6.841 ± 1.5 m/s²

YATO is a valued brand by specialists, designed for car workshops, construction, finishing and gardening. The assortment includes battery, electric, combustion, pneumatic and manual tools, as well as health and safety articles. High-quality materials, a wide range of parameters and applied solutions have won the recognition of DIY professionals and users.
