Kanalinis vandens šildytuvas Vents NKV 125-4

Trumpai apie prekę

Prekė: Kanalinis vandens šildytuvas Vents NKV 125-4. Kategorija: Oro šildytuvai.

• Gamintojas: Vents
• Modelis: NKV160-4 fi 125 mm - 4 rzędowa

Producer: Vents

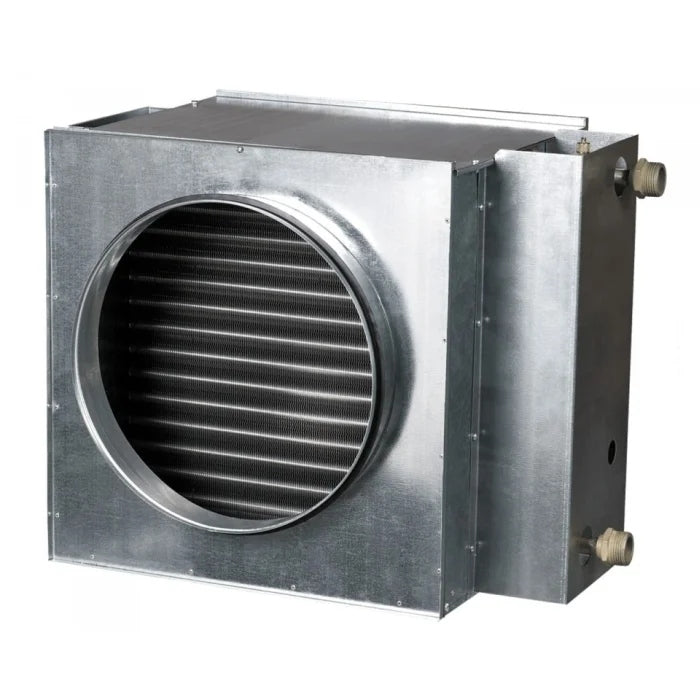

Channel water heater Vents NKV 125-4

Heater designed to heat supply air, used in round ventilation ducts.

The housing is made of galvanized steel, stainless steel heating elements, the surface of the heat exchanger from aluminum plates and tubular copper collectors. Heaters are available in two- or four-row variants, they are designed for operation at a maximum operating pressure of 1,6 MPa (16 bar) and a maximum operating water temperature of +90ºC. On the inlet nozzle it is possible to install a temperature sensor protecting against freezing.

Characteristics of the device:

• Robust galvanized steel construction
• Automatic regulation of the power and temperature of heated air
• Enabling the ventilation system with preheating of the heater
• Designed for installation in round ventilation ducts
• Application of a leak-proof throttle under the return spring actuator
• Assessment of filter status using differential pressure sensor – pressure switch
• Stopping the fan in case of threat of freezing of the heater
• Number of Pipe Rows: 4
• Power 4,8 kW
• Minimum airflow: 215 m³/h
• Dimensions (mm): inlet diameter 124, width 350, height 230, length 300
• Weight 5,3 kg

Manufacturer and distributor of comprehensive solutions in the field of ventilation and recuperation. During 28 years of experience in the industry, the company has created a community sharing innovation, practices related to ventilation and healthy lifestyle.

• Producer: Vents

Specifications
