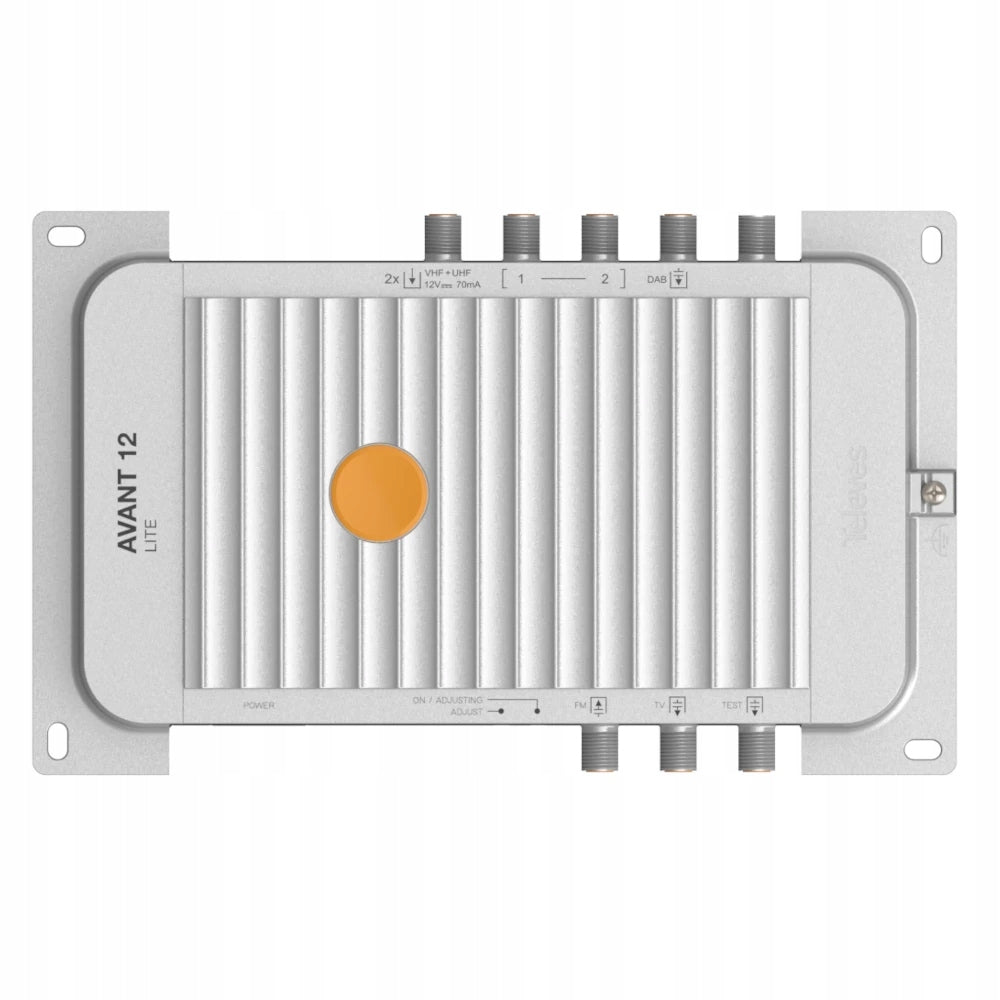

Kanalų stiprintuvas Televes AVANT 12 Lite, 532210

Trumpai apie prekę

Prekė: Kanalų stiprintuvas Televes AVANT 12 Lite, 532210. Kategorija: Stiprintuvai.

• Gamintojas: Televes
• Modelis: AVANT 12 LITE

Multi-band, multi-input amplifier, ideal for single or collective terrestrial TV installations, which allows individual programming of channels available on 2 VHF+UHF (terrestrial TV) inputs, for a total of 20 digital filters. The amplifier can configure its inputs in 2 distribution modes: FM-2x[VHF+UHF] or FM-DAB-2xUHF, and can achieve programmable amplification and balancing of various RF inputs. In addition, it includes 4G/5G filtering, so that the device itself distinguishes filter programming to channel 48 (LTE700).

Thanks to the built-in Bluetooth® antenna, wireless advanced amplifier programming from a smartphone or tablet (Android/iOS) is possible using the ASuite application. This application allows you to perform a wide range of functions:

• Programming of channel filters
• Automatic channel level adjustment to balance all filters
• Manual accurate customization after automatic setting for each channel separately
• Activating antenna power
• Import/export configuration

In addition, the model is also equipped with the self-programming function, executable from the ASuite level, through which the device uses its intelligence and programs itself, searching for and selecting the most visible channels, and then balancing the signal level between them.

Red Compliant

Distinguishing features

• Using the ASuite app, advanced device programming can be carried out wirelessly (Bluetooth®), easily and conveniently from your smartphone or tablet (Android/iOS)
• Device with 2 distribution modes: 2 inputs support VHF+UHF or one DAB input and two UHF inputs
• High output level: up to 121 dBµV (EN50083) to reach a large number of sockets
• Automatic programming: With this feature available in ASuite, the device triggers channel assignment and level adjustment, as well as antenna power activation when it detects that the signal requires it
• Up to 20 individually programmable filters, with individual digital filtering of each channel, including adjacent channels
• Digital channel processing, resulting in a perfectly balanced signal level between different channels at the output
• Automatic signal adjustment in each filter (AGC). It is also possible to precisely adjust the output level after self-adjustment
• High selectivity of digital VHF/UHF filters: rejection >30 dB (@ 1MHz)
• SAW (Surface Acoustic Wave) filter for separation of 4G/5G signals from channel 48, with the best selectivity and stability
• Compatibility with DVB-T and DVB-T2
• TForce technology: the ground signal level is always balanced and adjusted to the optimum value
• Power supply on inputs to power antenna when signal requires it
• LED status indicator and physical auto-adjustment button built into the control panel
• Highly shielded housing (Zamak) to protect against electromagnetic interference
• Very light, compact and powerful device (196x122x43mm)
• 100% European design and production: fully automated production and rigorous quality controls
