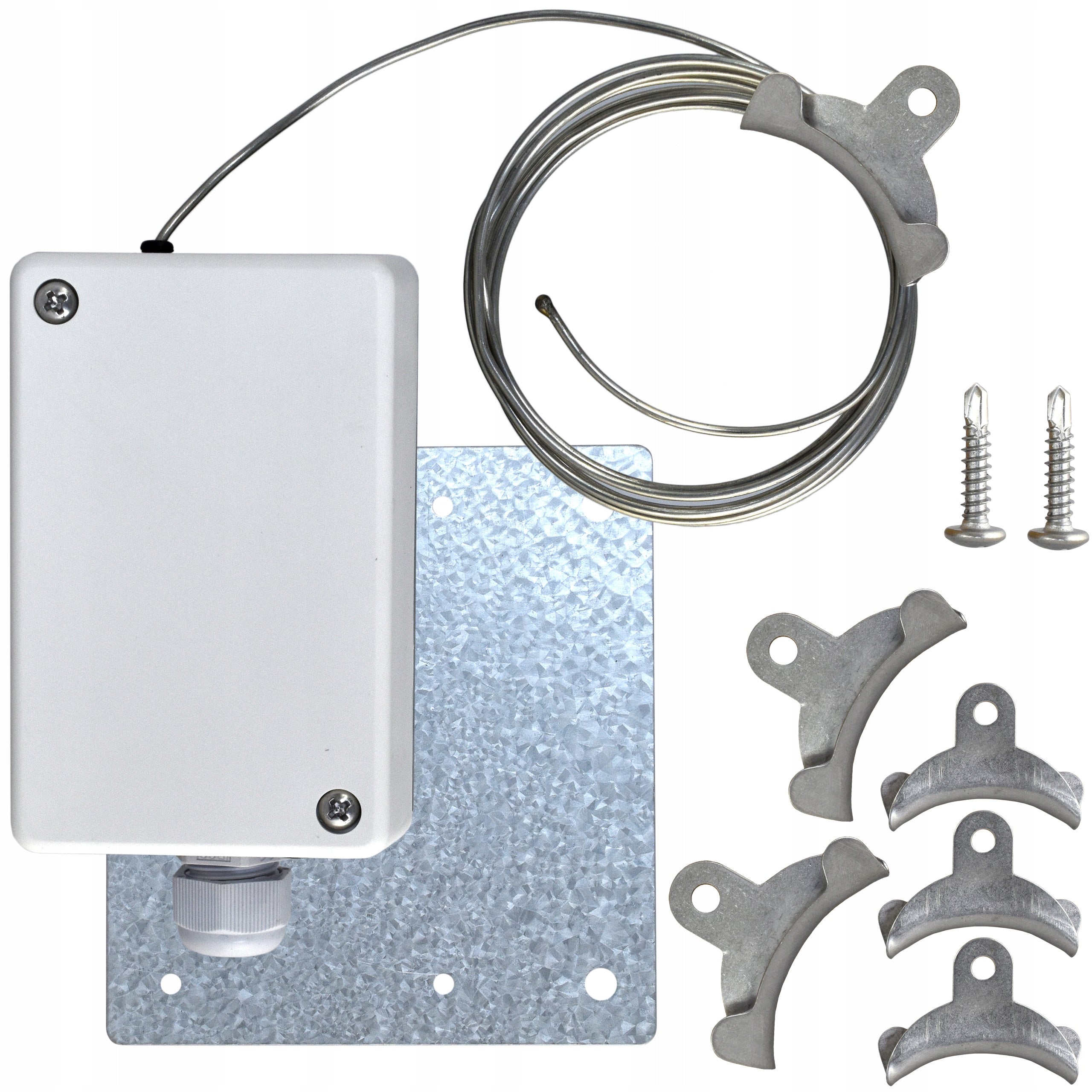

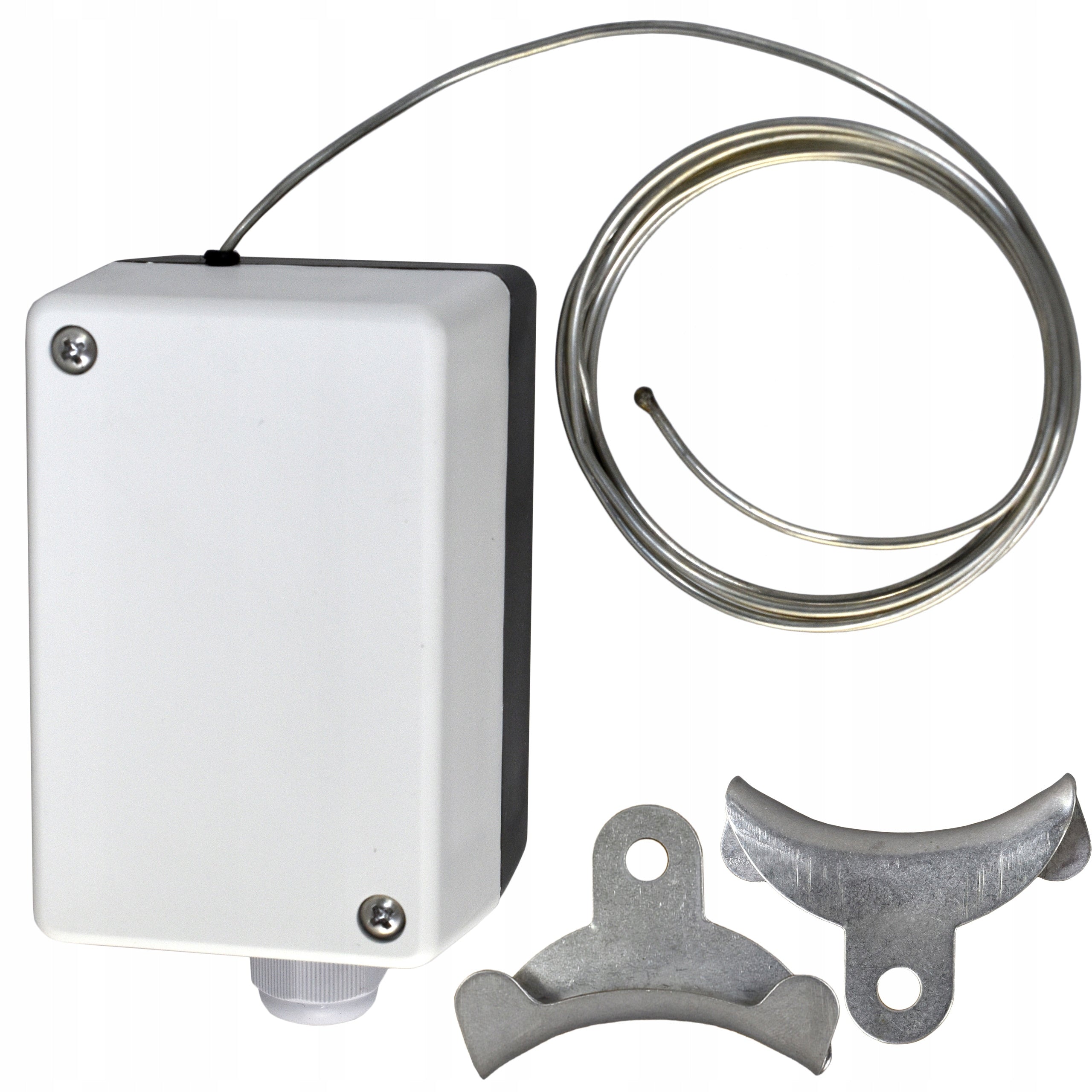

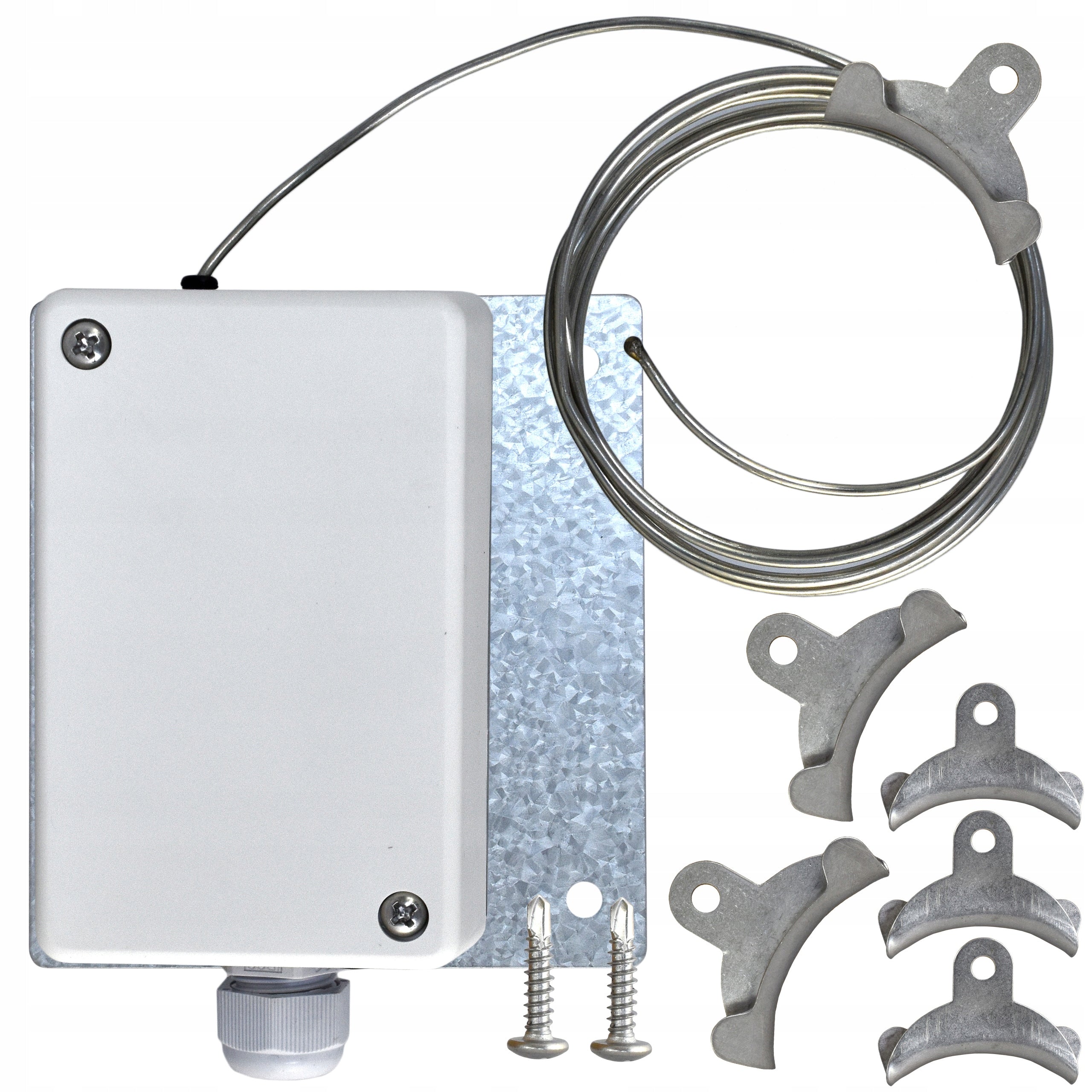

Kapiliarinis termostatas šildytuvams ESCO AHQ+

Trumpai apie prekę

Prekė: Kapiliarinis termostatas šildytuvams ESCO AHQ+. Kategorija: Oro šildytuvai.

• Gamintojas: Esco
• Modelis: AFT-2 2m antyzamrożeniowy

Antifreeze thermostats are used as protection against low temperatures in air conditioning and ventilation systems. Responds to temperature changes on any section of the capillary. Measurement is made along the entire length

Typical applications

• Stopping the fan
• Closure of external air dampers
• Opening of the heater valve to 100 %
• Starting the heater pump
• Disabling the chiller (condenser) and humidifier
• Enabling acoustic-optical alarm

The thermostat protects against damage due to freezing of heaters, filters and fans. The measuring element is a 2-meter capillary. On other auctions available version 6m

• adjustable setting -18...15°C
• mounting brackets for capillaries and thermostat in set.
• Precision hysteresis 1,5°C
• SPDT switching contact 16A 230V
• Branded product ESCO
• IP68 choke in set

The contact of the antifreeze protection thermostat is switched when the temperature measured by the capillary falls below the value set by the knob. When the temperature rises above this value, the contact will automatically return to its initial position.

The capillary along the entire length is filled with gas, which under the influence of temperature changes volume causing the mechanism changing the position of the working contact to work. The capillary reacts to the temperature along the entire length.

• Regulatory range: -18°C...+15°C
• Head type: distant
• measuring head (l x d): 2000 x 2mm
• Housing dimension: 65 x 105 x 72mm
• Capillary length: 2000mm
• Hysteresis: 1,5°C
• Contact load capacity: 16(4)A 250V~
• Contact system: SPDT switchable
• Connections: screwed
• Degree and class of protection: IP44
