Katilų valdiklis DK SYSTEM MASTER 500 RS V2 su padavimo mechanizmu KC141

Trumpai apie prekę

Prekė: Katilų valdiklis DK SYSTEM MASTER 500 RS V2 su padavimo mechanizmu KC141. Kategorija: Išoriniai moduliai.

• Gamintojas: DK System
• Modelis: 201211

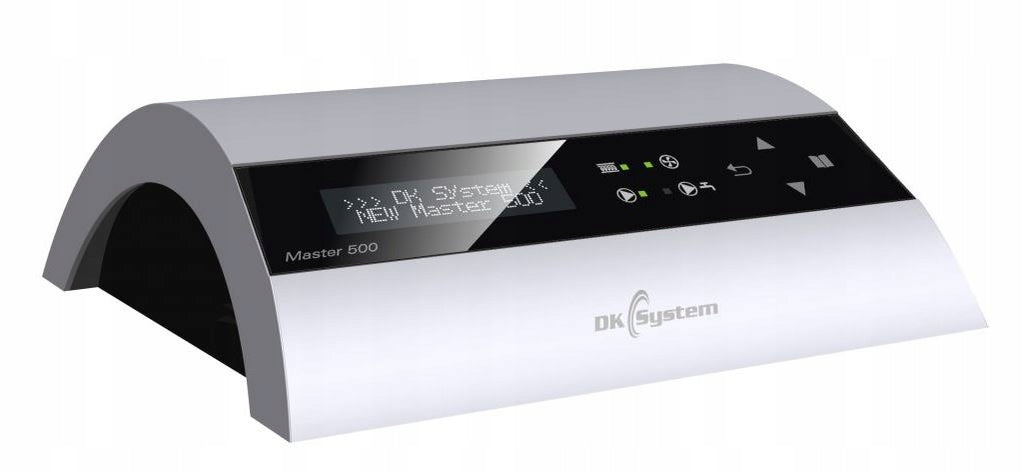

Master 500 RS Boiler temperature controller with feeder

The auction applies to the regulator without wiring.

Cable available at our other auction.

The MASTER 500 RS controller is designed to control the operation of the boiler with automatic fuel feeding, hot water pump and hot water pump in central heating systems. The controller has the possibility of expansion with an additional 3 DKMZ 1 modules controlling the circulation with a pump and a 3 or 4 road valve cooperating with the room regulator each.

Description of regulator

The MASTER 500 RS controller is designed to control the operation of the boiler with automatic fuel feeding, hot water pump and hot water pump in central heating systems. The controller has the possibility of expansion with an additional 3 DKMZ 1 modules controlling the circulation with a pump and a 3 or 4 road valve cooperating with the room regulator each. The regulator has the following functions:

• maintaining the set temperature of the boiler by controlling the blowing and operation of the feeder

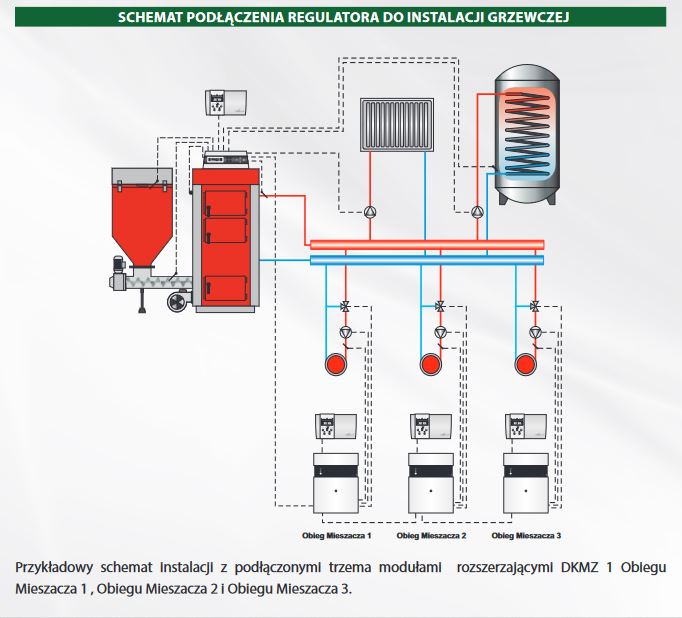

• possibility of expansion with additional 3 DKMZ 1 modules controlling the circulation with pump and 3 or 4 road valve cooperating with the room regulator each
• possibility of cooperation with the DK MATIC weather controller (using the connection module)
• possibility of operating a boiler with an emergency grate
• smooth fan operation and adjustable power
• programmable boiler blowout
• adjustable shutdown time and automatic shutdown of control in the absence of fuel
• control of central heating circulating pump operation
• the ability to turn hot water priority or SUMMER mode on or off
• control of the domestic hot water heater charging pump depending on the required temperature
• possibility of operation of boiler and hot water pump according to. one of several weekly programs installed in the MASTER 300 RS controller
• COMFORT SYSTEM function, protecting the pump against limescale build-up
• protection system – thermal fuse TERMIK
• function of protection of the installation against freezing and overheating of the boiler
• Indication of damage to temperature sensors
• adjustable display brightness – increased when changing settings
• possibility of connecting a room thermostat

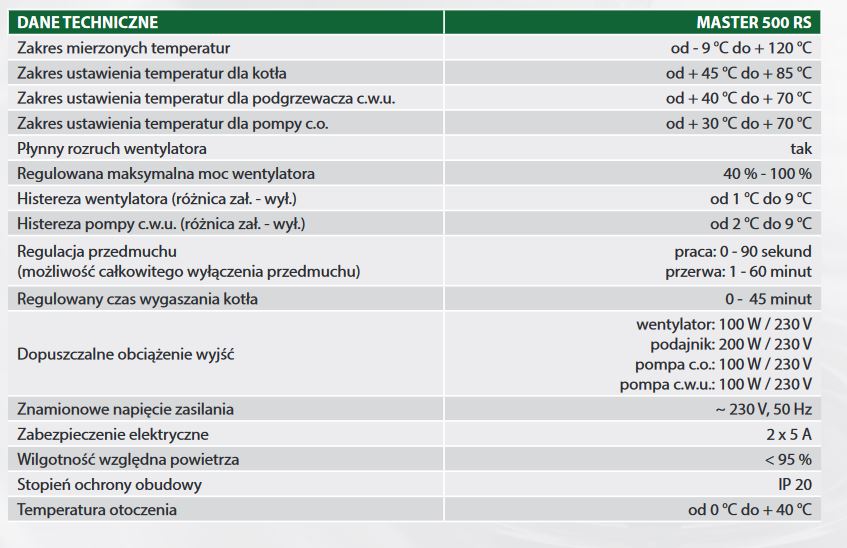

Specifications
