Keitiklis-kroviklis Victron MultiPlus 48V 500VA 6-16A

Trumpai apie prekę

Prekė: Keitiklis-kroviklis Victron MultiPlus 48V 500VA 6-16A. Kategorija: Įtampos keitikliai.

• Gamintojas: Victron energy

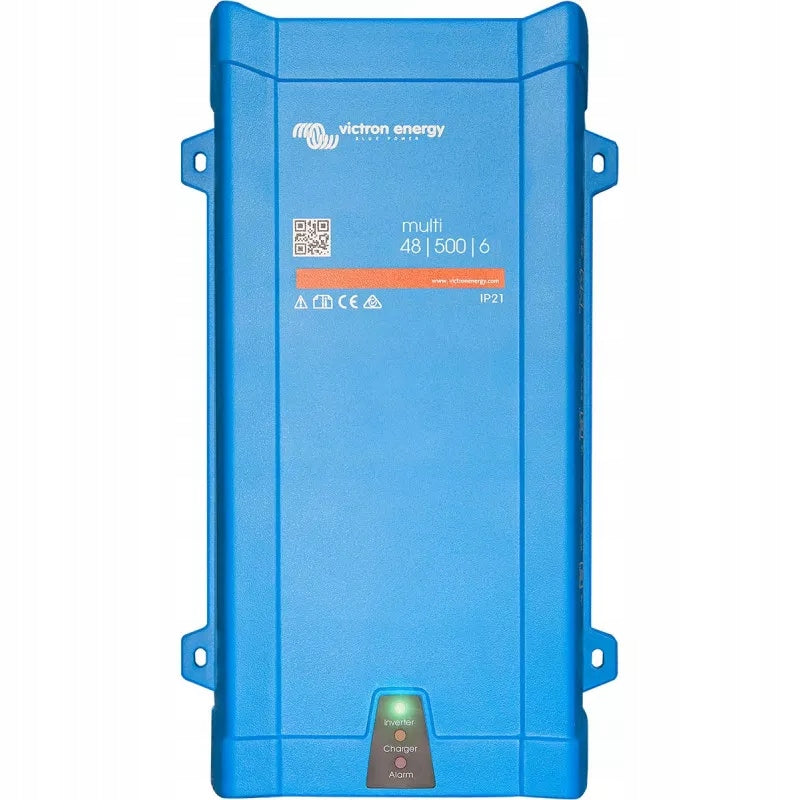

Victron Energy MultiPlus 48/500/6-16 is an advanced voltage converter that combines efficiency, flexibility and reliability to provide continuous power supply in a variety of applications. With its 500 VA power and built-in 6 A charger, this device is the ideal solution for motorhomes, small home emergency power systems and energy storage systems. Designed for optimal functionality, the MultiPlus provides stable power and is equipped with a range of features that make it a versatile choice for a variety of users.

Why choose MultiPlus 48/500/6-16? Advanced UPS and charger in one MultiPlus is not just an ordinary inverter – it is a device that combines UPS and charger functions. In the event of a network failure, MultiPlus switches to inverter mode in less than 20 milliseconds, ensuring that all connected devices, such as computers, medical equipment or alarm systems, will operate without interruption. It is a perfect solution for anyone who needs trouble-free power supply in any situation. Plus, with a built-in charger with adaptive charging technology, the MultiPlus ensures that your batteries are charged quickly and efficiently, allowing you to get the most out of your energy resources. Remote monitoring and management via the Internet In the modern world, remote management of the energy system is becoming increasingly important. MultiPlus 48/500/6-16, in conjunction with the Cerbo GX system, offers full monitoring and remote control via the Internet. With the free VRM app, you can keep track of all key parameters such as battery status, power consumption, and device operation. Whether you're at home, in the office, or on vacation, you have complete control over your power system, ensuring your safety and peace of mind. Voltage versatility and reliable power MultiPlus 48/500/6-16 supports a wide voltage range from 12V to 48V, making it an ideal solution for both smaller home systems and more complex industrial installations. With a power output of 500 VA and the ability to operate at different temperatures, this device is perfect for a variety of environmental conditions. Its versatility allows for easy integration with solar systems, as well as external LiFePO4 or AGM batteries, which increases its efficiency and service life. Energy saving and extended battery life Thanks to the intelligent adaptive charging system, MultiPlus automatically adjusts the charging process to the needs of the battery, which extends its life and reduces the risk of damage. This technology allows for efficient energy management, optimizing energy consumption and reducing operating costs. MultiPlus is also able to work in parallel systems, which allows you to scale the power depending on the user's needs. Compact and durable construction With a weight of only 4,4 kg and compact dimensions of 311 x 182 x 100 mm, the MultiPlus 48/500/6-16 is easy to install even in confined spaces. Its durable housing with IP21 rating ensures that the device is resistant to harsh operating conditions. Whether you're installing it in your RV, boat, or small industrial installation, the MultiPlus will provide you with reliable power wherever you need it. Key Features of MultiPlus 48/500/6-16

• Emergency power supply (UPS): Immediate switching to inverter mode in case of network failure, which ensures the continuity of operation of critical devices.
• Adaptive charger: Intelligent management of the battery charging process, extending their service life.
• Remote monitoring: Full control over the power supply system via the VRM application and the web portal.
• Voltage versatility: Supports a wide range of DC voltages, from 12V to 48V.
• Parallel and three-phase operation: The ability to scale the system by connecting multiple MultiPlus devices.

Technical specification

• Model : MultiPlus 48V 500VA 6A-16A
• PowerControl / PowerAssist: No
• Three-phase and parallel operation: Yes
• Transfer switch: 16 A

inverter

• Input voltage range (V DC): 9,5 – 17 V
• Output voltage: 230VAC ± 2%
• Output frequency: 50Hz ± 0,1%
• Output power at 25ºC / 77°F: 500 VA
• Output power at 25ºC / 77°F (W): 430 W
• Output power at 40ºC / 104°F (W): 400 W
• Output power at 65ºC / 150°F (W): 300 W
• Peak power: 900 W
• Maximum efficiency: 92%
• Power at zero load: 7 W
• Power at zero load in AES mode: 3 W

Charger

• Alternating current (AC) input: 187-265 VAC
• Input frequency: 45 - 65 Hz
• Charging voltage "absorption" (V DC): 57,6 V
• Charging voltage "float" (V DC): 55,2 V
• Storage mode (V DC): 52,8 V
• Home battery charging current: 13 A
• Battery temperature sensor: Yes

Storage conditions: humidity: 20 to 80% (non-condensing)

• Auxiliary output: Yes
• Programmable relay: No
• Protection: Full protection (a-g) against overload, short circuit, overheating
• Communication port VE.Bus: For parallel and three-phase operation, remote monitoring and system integration (RJ45 splitter ASS030065510 required for 500 / 800 / 1200 VA models)
• DIP switches: Yes (6)
• Remote on/off: On/off/charger only

Common characteristics

• Operating temperature range: -40 to +65°C (fan-assisted cooling)
• Moisture: Maximum 95% (non-condensing)
• Internal DC Fuse: 30 A

Permissible storage temperature: -40℃~70℃ (-40℉ ~158℉)

• Protection category: IP 21
• Battery connection: 10 mm²
• 230 V AC connection: G-ST18i connector
• Weight: 4,4 kg
• Dimensions: 311 x 182 x 100 mm

Victron Energy MultiPlus 48/500/6-16 is a versatile and reliable device that combines emergency power and intelligent battery charging functions. Ideal for motorhomes, solar systems and emergency power, it provides stability, efficiency and remote management in a compact form.
