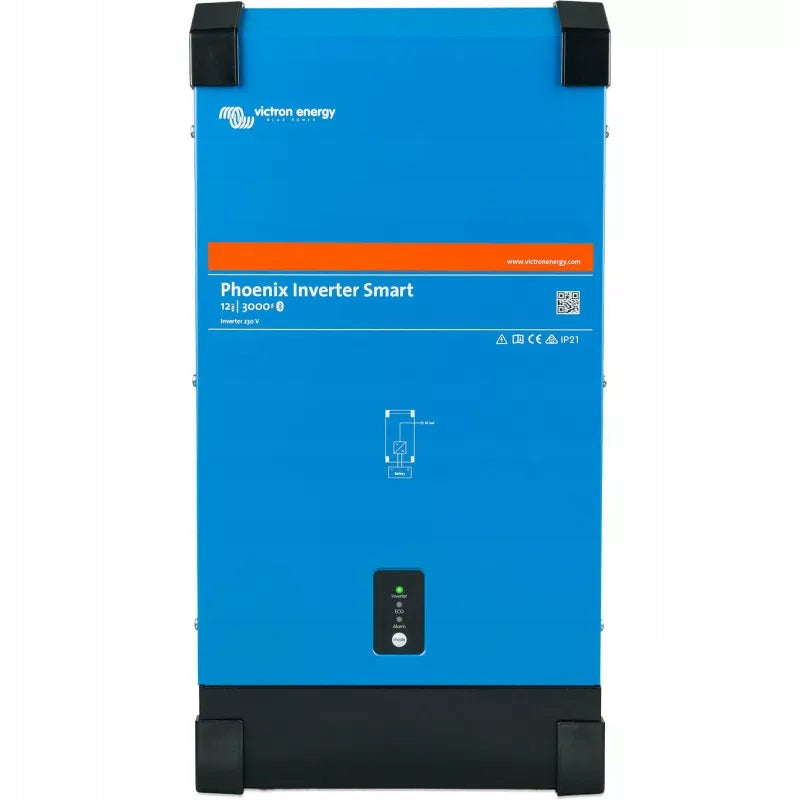

Keitiklis Phoenix Inverter 12/3000 Smart

Trumpai apie prekę

Prekė: Keitiklis Phoenix Inverter 12/3000 Smart. Kategorija: Įtampos keitikliai.

• Gamintojas: Victron energy

Phoenix Inverter 12/3000 Smart from Victron Energy is an advanced voltage converter designed for demanding mobile and stationary installations. With its robust design and innovative features, this device provides reliable power supply in motorhomes, boats, photovoltaic systems, and other applications where access to the traditional power grid is limited or impossible.

This 3000 VA converter offers stable power supply with pure sine wave voltage, making it an ideal solution for delicate electronic devices such as computers, printers and even electric motors.

Most important functions High energy efficiency: Phoenix Inverter 12/3000 Smart is characterized by exceptionally high efficiency at the level of 93%. Thanks to this, the battery energy is effectively used, which translates into longer working time and energy savings in photovoltaic and battery systems.

ECO mode – Intelligent energy management: The device is equipped with ECO mode, which automatically switches the converter to sleep mode when the load is minimal. This not only extends the life of the batteries, but also minimizes energy consumption, which is beneficial for both the environment and the wallet.

Full control and flexibility: Phoenix Inverter offers full configuration and remote control thanks to the built-in Bluetooth module. Users can easily monitor the operation of the device and adjust its settings to individual needs using a dedicated mobile application. It is a perfect solution for those who expect maximum control over the power system, regardless of where they are located. Advantages

• Pure sine wave: Thanks to the pure sine wave voltage generation technology, the converter ensures the safe operation of electronic devices that are sensitive to power quality.
• Application versatility: The Phoenix 12/3000 Smart converter is the ideal choice for both recreational vehicles and photovoltaic systems. It is perfect for use in harsh environments, such as boats, RVs, and off-grid installations.
• Solid design: The device is designed for long-term operation in extreme conditions. It is resistant to shock, vibration and high and low temperatures, which guarantees its reliability even in the most difficult environments.

Technical specification

• Model: Phoenix 12/3000 Smart
• Parallel and 3-phase operation: No
• Input voltage range (V DC): 9.3 – 17 V

Exit:

• Output voltage: 230 VAC ± 2%
• Frequency: 50 Hz ± 0,1%
• Output power at 25ºC (VA): 3000 VA
• Output power at 25ºC (W): 2400 W
• Output power at 40ºC (W): 2200 W
• Output power at 65ºC (W): 1700 W
• Peak power (W): 6000 W
• Characteristics: Automatic retry of the number Performance: 93%
• Power at zero load: 12 W
• Power at zero load in ECO mode: 1.5 W

General:

• Programmable relay: Yes
• Stop & Start Power ECO Mode: Adjustable
• Protection: a - g
• Bluetooth wireless communication: For remote monitoring and system integration
• VE.Port direct communication: For remote monitoring and system integration
• Remote on/off: Yes

Working conditions:

• Working temperature range: -40 to +65ºC (fan-assisted cooling)
• Moisture (non-condensing): max. 95%

28 x 75 x 15 cm

• Material and colour: Steel (blue RAL 5012; and black RAL 9017)
• Protection category: IP21
• Battery connection: 2+2 M8 screws
• 230 V AC connection: Screw terminals
• Weight (kg): 19 kg
• Dimensions (mm): 533 x 285 x 150 mm

The Phoenix 12/3000 Smart converter is a reliable solution for those who need a mobile and autonomous power system with high efficiency and versatile capabilities. With its advanced technology, durable construction, and intuitive operation, it is a product that will meet the expectations of the most demanding users.
