Keitiklis sunkvežimiui Green Cell, 24V į 230V, 1000W/2000W, su USB

Trumpai apie prekę

Prekė: Keitiklis sunkvežimiui Green Cell, 24V į 230V, 1000W/2000W, su USB. Kategorija: Įtampos keitikliai.

• Gamintojas: Green Cell

• Manufacturer: Green Cell
• Model: INV23
• Using power (continuous): 1000W
• Momentary power (pulse): 2000W
• Output: 1x power socket, 1x USB port (5V/1A-2.1A)
• Protection against overheating
• Overvoltage protection
• Fuse value: 30A
• Power consumption without load: 0,42A
• Input voltage: 24V DC
• Output voltage: 230V AC
• Output frequency: 50Hz
• Output voltage shape: Modified sine wave
• Efficiency: 90%
• Cooling: Turbo Cooling fan
• Color: Black
• Dimensions: 264 x 135 x 76 mm
• Weight: 1716 g
• Product code: 27078

An inverter, also called an inverter or inverter, is a device whose task is to change the DC voltage from a car battery or cigarette lighter socket to an alternating current of ~230V. Exactly the same voltage is found in every household outlet (Type E) throughout Europe. The inverter is an excellent choice for those going on a trip by car, motorhome or truck - thanks to it you will be able to freely use all the necessary devices that require an outlet for operation.

• Portable outlet - a car inverter is a device that allows you to use electrical devices wherever you are, even away from a power source
• Universality - the Green Cell converter has not only network sockets to which electrical devices can be connected, but also a USB port for charging smaller gadgets such as a smartphone or tablet
• Full safety - don't worry about surges, with the Green Cell your equipment is always safe. The converter has a number of security features and certificates to ensure that it works without interference
• Modified sine wave - is associated with a simpler inverter design, which ensures less failure rate. Inverter with modified sine wave allows for stable operation of devices such as power supplies, computers, LED lamps

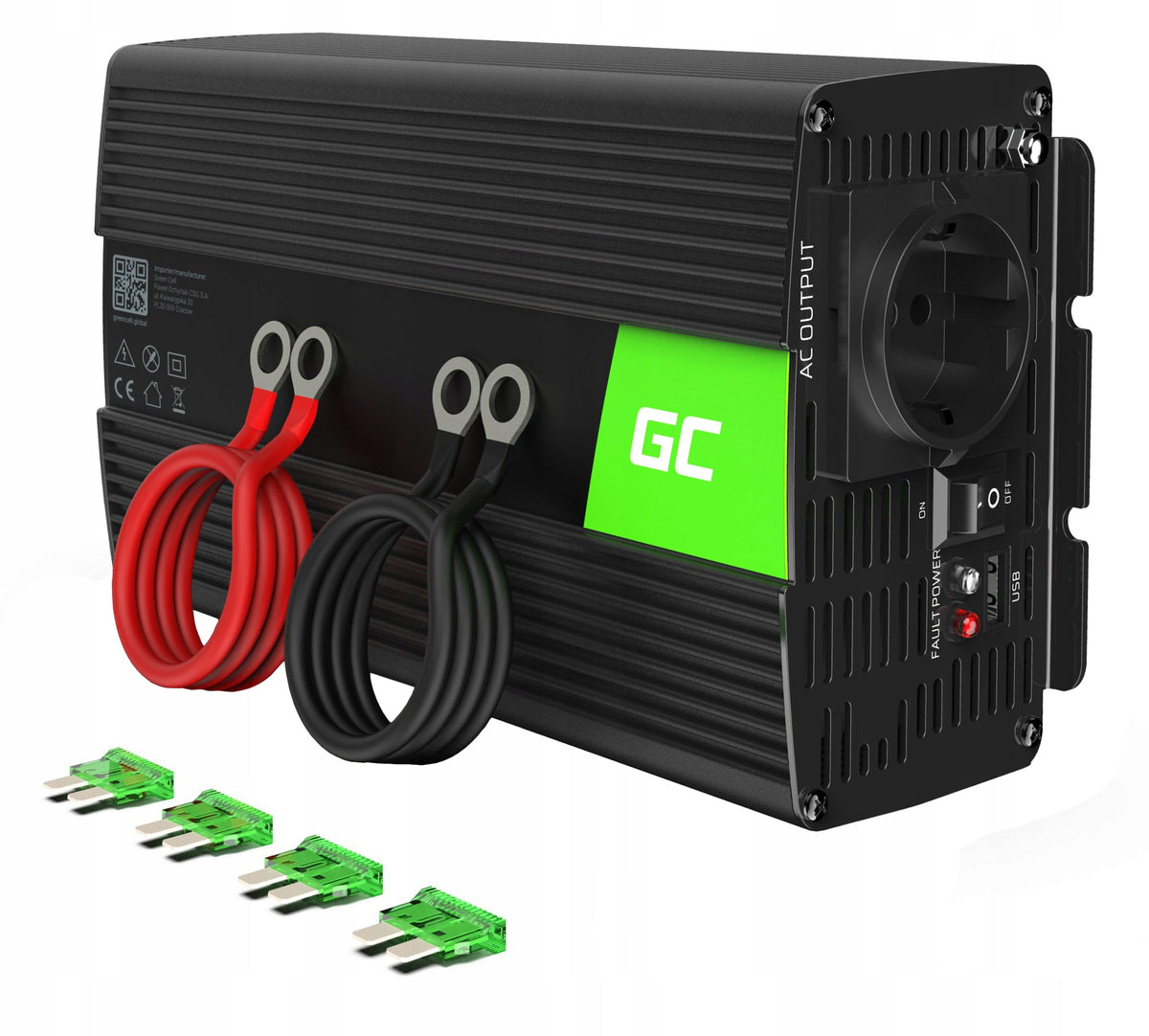

The device has been designed to make the use as comfortable as possible. The front of the converter is equipped with a network socket adapted to plugs used throughout Europe and a USB port, thanks to which we will charge our smartphone, ebook reader and any other device with the ability to connect via USB port.

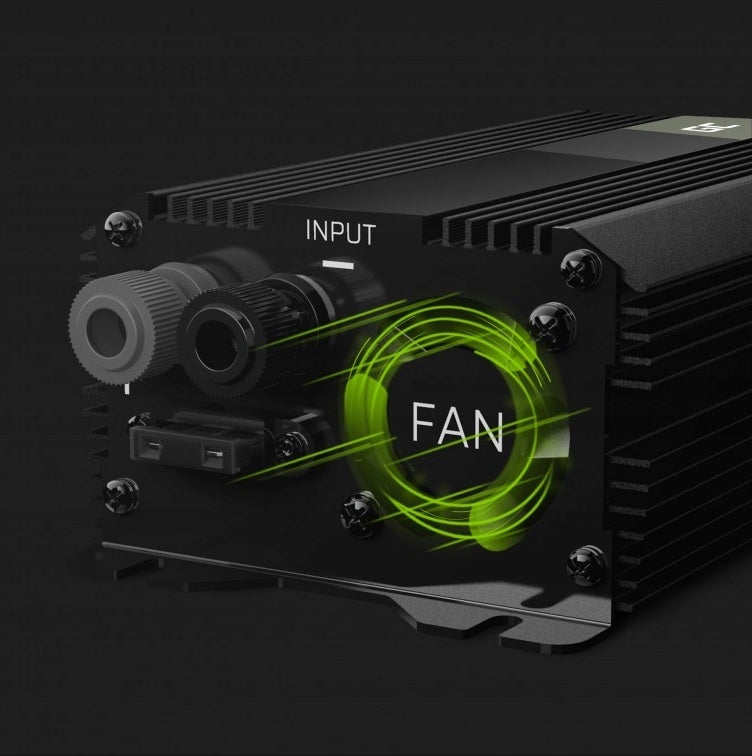

On the back of the inverter there is a fan providing it with effective active cooling.

The whole is enclosed in a small, yet very durable housing, made of high quality aluminum. Thanks to this, the converter is resistant to any mechanical damage and shocks occurring during travel.

The first parameter to be determined is the voltage of our battery, which should be fully compatible with the one given on the converter. The most common voltage value is 12V, found in passenger cars, motorhomes and some trucks, and 24V, used mainly in trucks.

After selecting the voltage, you should decide what power of the converter will be appropriate. It has a key aspect, because informs us how many and what devices it is able to supply with electricity. If we want to connect the selected device to the inverter, we need to check on the rating plate what power it draws (if you want to connect more devices, the power should be added up). The power consumed by your device should not exceed 85% of the rated power of the converter! For example, for a laptop with a power consumption of 100W and a heater with a power consumption of 300W, the appropriate converter will be the one with a power of 500W and more.

The inverter has been equipped with a number of necessary security to protect the user and connected devices. This is confirmed by CE and RoHS certificates, which mean a guarantee of safety.

The Green Cell converters have a replaceable fuse, which is an essential protection for the converter and connected devices. Its replacement is very simple and should not cause anyone any problems. We attach spare fuses to each converter to guarantee full safety and the longest possible operation of the equipment.

No forms of fuses, including surge protectors, i.e. popular distributors with protection, should be used at the output of voltage converters. The only safe form of protection of the system is to install a fuse on the battery side and the only allowed form of separation from the mains sockets is the use of a basic distributor, devoid of protection, diodes and switches.

• Green Cell Voltage Converter with Modified Sine Wave - 24 V / 230 V, 1000W/2000W
• Cables for direct connection to the battery
• Spare fuses

Specifications
