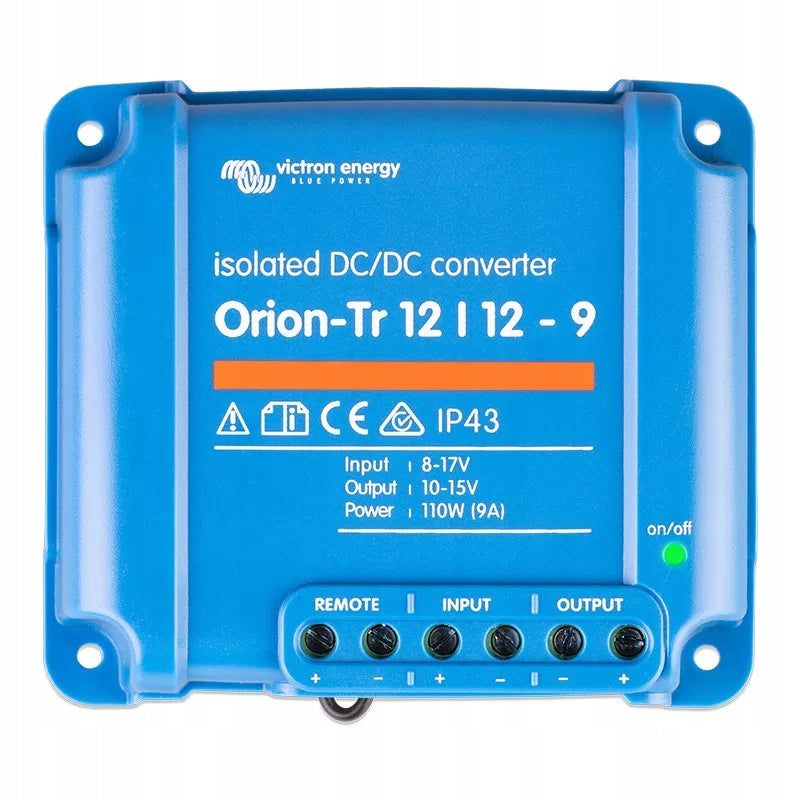

Keitiklis Victron Orion-Tr 12/12-9A, 110 W

Trumpai apie prekę

Prekė: Keitiklis Victron Orion-Tr 12/12-9A, 110 W. Kategorija: Įtampos keitikliai.

• Gamintojas: Victron energy

Orion-Tr 12/12-9A (110W) is a modern DC-DC converter from the Victron Energy brand, which was created for reliable DC voltage conversion. This device is characterized by high efficiency, which translates into minimal energy loss during operation, making it extremely economical and efficient. Thanks to this, the converter ensures stable operation, even under heavy loads, which is important in the case of solar installations, systems in motorhomes, yachts or commercial vehicles. The converter's high energy efficiency of 85W at 40°C allows it to power multiple devices with minimal power consumption, making it an excellent choice for those looking for efficient power supply.

The Orion-Tr converter also features a solid design, which ensures longevity and resistance to harsh working conditions. Weather resistant housing, combined with IP43 protection, enables safe operation of the device even in humid environments, which is important for outdoor installations. Regardless of the conditions, Orion-Tr guarantees a stable output voltage, which is crucial when powering sensitive electronic devices. Thanks to screw terminals, the installation of the converter is quick and simple, without requiring specialized tools.

Versatility and Precise Voltage Regulation Orion-Tr 12/12-9A offers a wide range of applications thanks to the ability to adjust the output voltage in the range of 10-15 V, which allows you to customize the operation of the converter to individual needs. Whether used in photovoltaic systems, on yachts or in recreational vehicles, the converter provides a stable voltage with high precision, which makes it ideal for powering delicate devices. The operating temperature range from -20°C to +55°C allows the device to be used in almost any environmental conditions, which is particularly useful in mobile installations or off-grid systems.

Orion-Tr also has a very low current consumption without load, below 50 mA, which is particularly important in installations where the converter operates in standby mode for a long time. In addition, the device has galvanic insulation at the level of 200 V DC, which ensures operational safety, protecting the installation from surges and other electrical anomalies. Output noise of only 2mV rms ensures that Orion-Tr does not interfere with the operation of connected devices, which is crucial for delicate electronic systems. Technical specification

• Model: Orion TR DC-DC 12/12-9A 110W
• Input voltage range: 8-17 V
• Power off: 7 V
• Restart under voltage: 7,5 V
• Nominal output voltage: 12.2 V
• Output voltage adjustment range: 10-15 V
• Output voltage tolerance: +/- 0.2 V
• Output noise: 2mV rms
• Output current at nominal voltage and 25°C: 9 A
• Maximum output current (10 s): 12.5 A
• Output short-circuit current: 32 A
• Output power at 25°C: 110 W
• Output power at 40°C: 85 W
• Input current without load: < 50 mA
• Power consumption after switching off via remote port: < 200uA
• Galvanic insulation: 200 V DC between input, output and housing
• Operating temperature range: -20°C to +55°C (power reduction of 3% for each °C above 40°C)
• Moisture: Max. 95% non-condensing
• DC connection: Screw terminals
• Weight: 0,42 kg
• Dimensions (H) x W x D. ) : 100 x 113 x 47 mm
• Safety standards: EN 60950
• Emission standards: EN 61000-6-3, EN 55014-1
• Resilience standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2
• Automotive Directive: ECE R10-5

The Orion-Tr 12/12-9A (110W) converter is a versatile device that will meet the expectations of users in various power systems. With its high performance, precise voltage regulation, and robust design, it is a reliable solution for professionals and amateurs alike. With its easy installation, low power consumption, and ability to operate in harsh environments, the Orion-Tr is the perfect choice for those looking for reliable, high-efficiency power supply.
