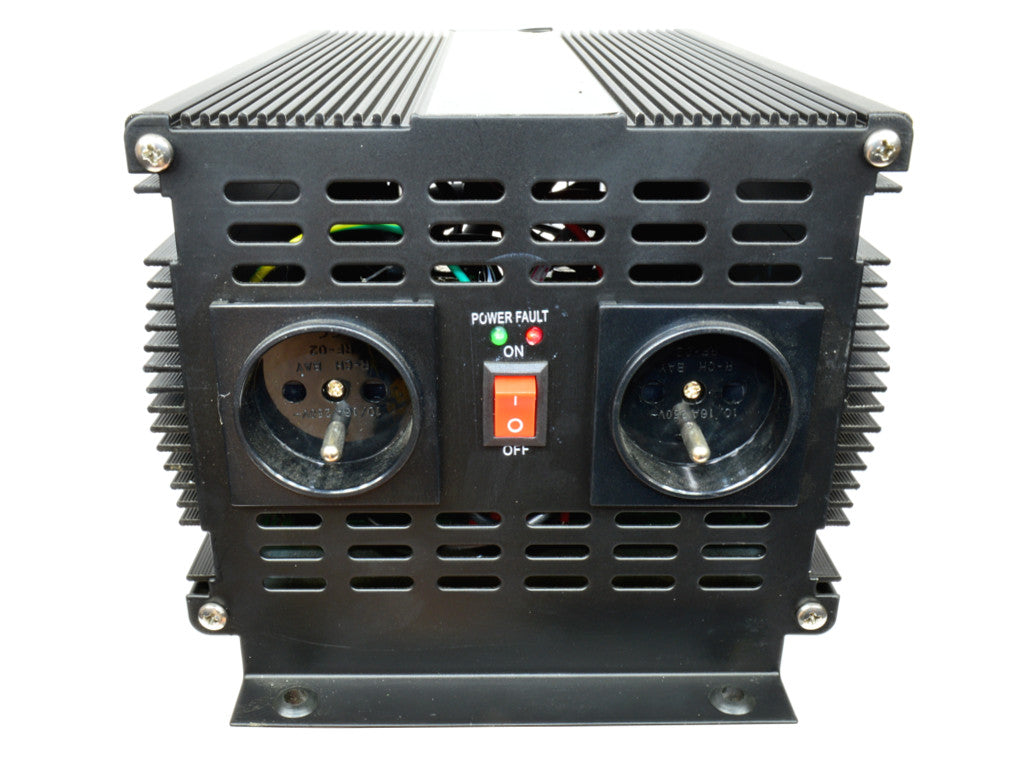

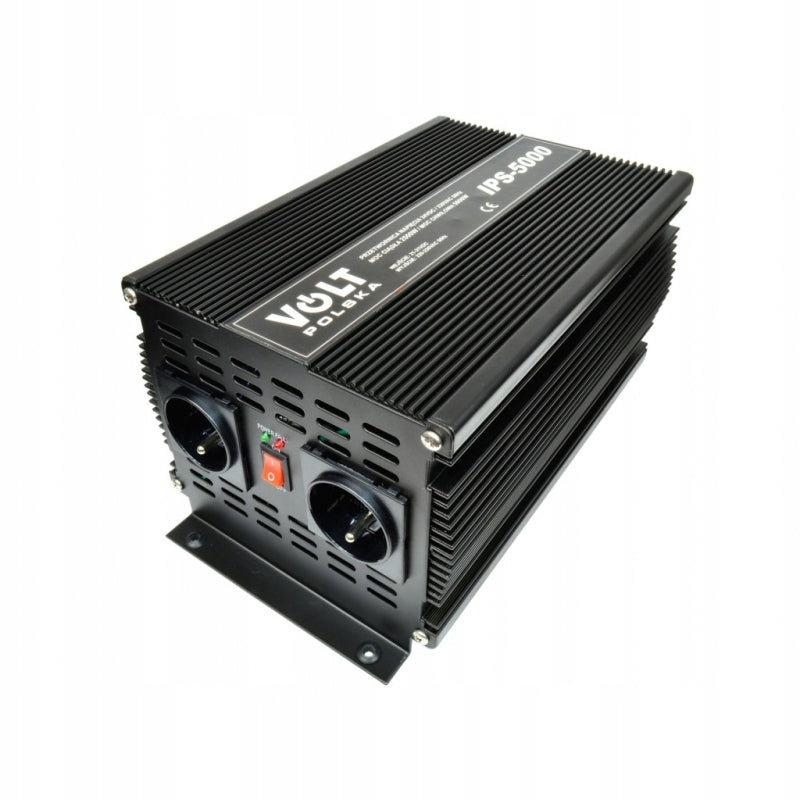

Keitiklis VOLT IPS5000 24/230V

Trumpai apie prekę

Prekė: Keitiklis VOLT IPS5000 24/230V. Kategorija: Įtampos keitikliai.

• Gamintojas: Volt

• Total power (instantaneous): 5000VA
• Permanent power: 2500W
• Battery voltage: 24V
• Input voltage: 21-31V
• Output voltage: 225-235V
• Output voltage frequency: 50Hz(+-2Hz)
• Full load efficiency: 92%
• Undervoltage protection threshold: 21,4V(+-0,6V)
• Working temperature: -10-40°C
• Dimensions: 290 x 175 x 14 mm
• Weight: 3,52 kg
• Product code: 20831

Electronic IPS 5000 24V converter is used to power electrical devices requiring an alternating voltage of 230V from batteries and automotive installations with a solid voltage of 24V.

It is perfect for vehicles and places where there is no possibility of direct connection to the power grid.

In addition, the product is equipped with a USB socket for powering or charging mobile devices.

• The IPS converter produces the so-called output. Modified sine wave, i.e. alternating voltage with a rectangular waveform.
• It can power resistive-resistance devices such as m.in. laptops, chargers, etc.
• It also allows you to reduce the price and increase the reliability of the entire device.

A number of protections are responsible for the safe operation of the converter protecting both connected devices and the electrical system of the vehicle. The converter will turn off automatically in case the load rises above 120%, as well as in case of short circuit.

• Short-circuit protection
• Thermal protection
• Undervoltage protection
• Overvoltage protection
• Overload protection

• Laptops
• Chargers
• Electronic power supplies
• Small electric kettles
• RTV equipment
• Audio-video equipment

• Voltage converter VOLT IPS 5000 24V 5000VA/2500W 24/230V

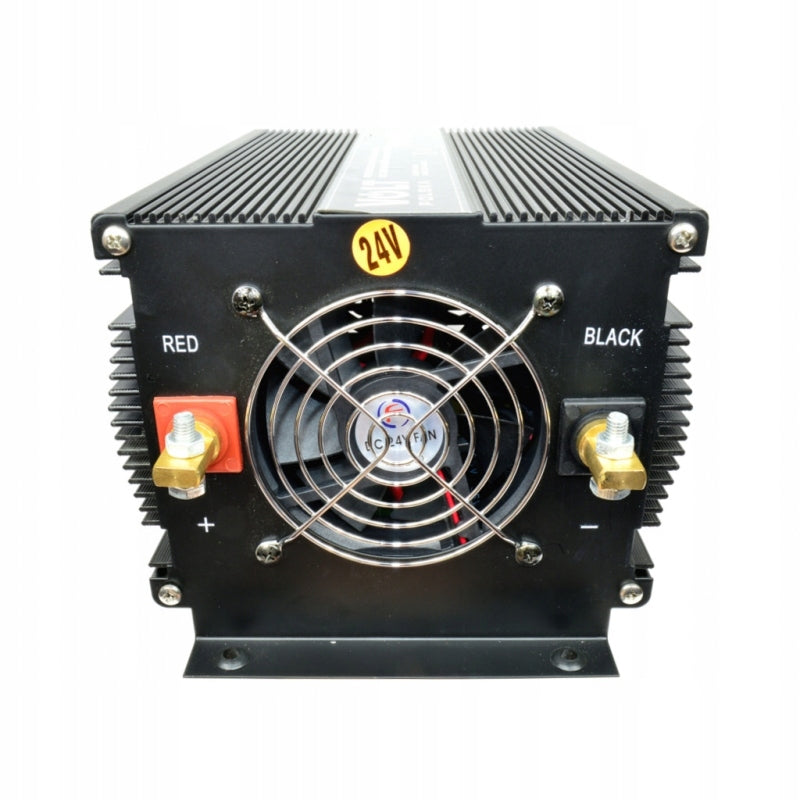

• Wiring for battery power

Specifications
