Keramikos pjovimo įrenginys YATO YT-36980, iki 320 cm

Trumpai apie prekę

Prekė: Keramikos pjovimo įrenginys YATO YT-36980, iki 320 cm. Kategorija: Plytelių pjaustytuvai.

• Gamintojas: Yato
• Modelis: YT-36980

⭐A TOOL FOR CUTTING GLAZE UP TO 320CM

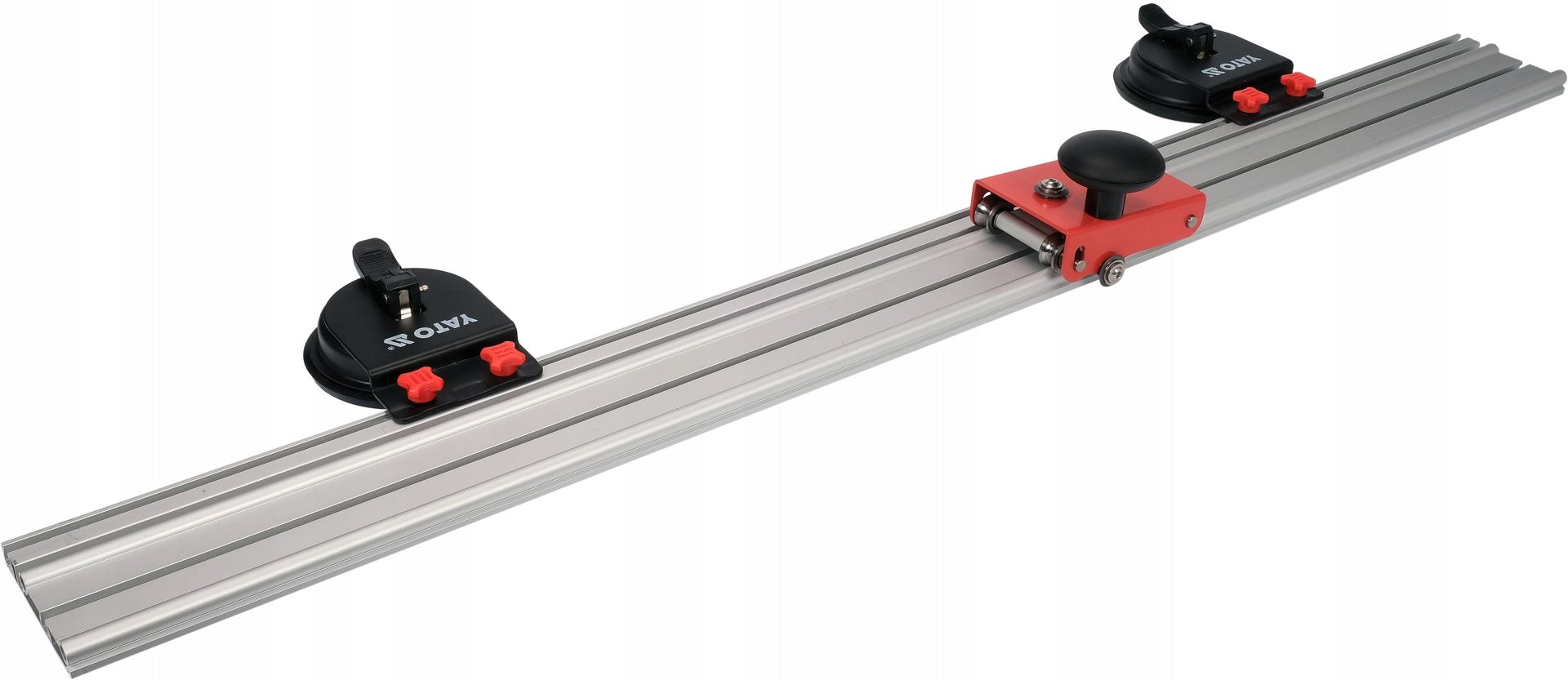

Cutter for large ceramic plates up to approx. 320 cm. The set includes:

✅ three rails - guides made of aluminium

✅ four mounting suction cups that are rail connectors

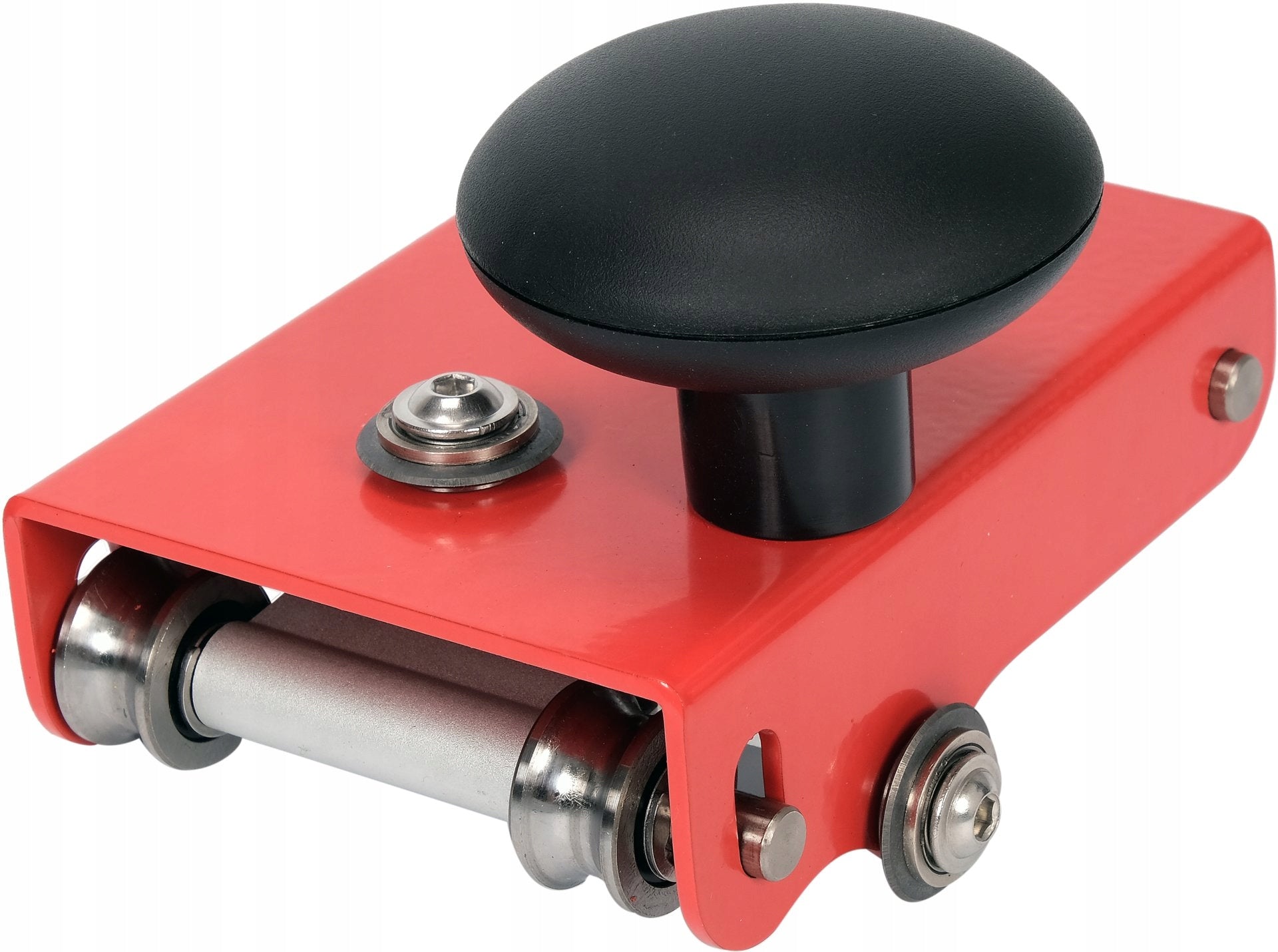

✅ one knife on four rollers to guide on the guide

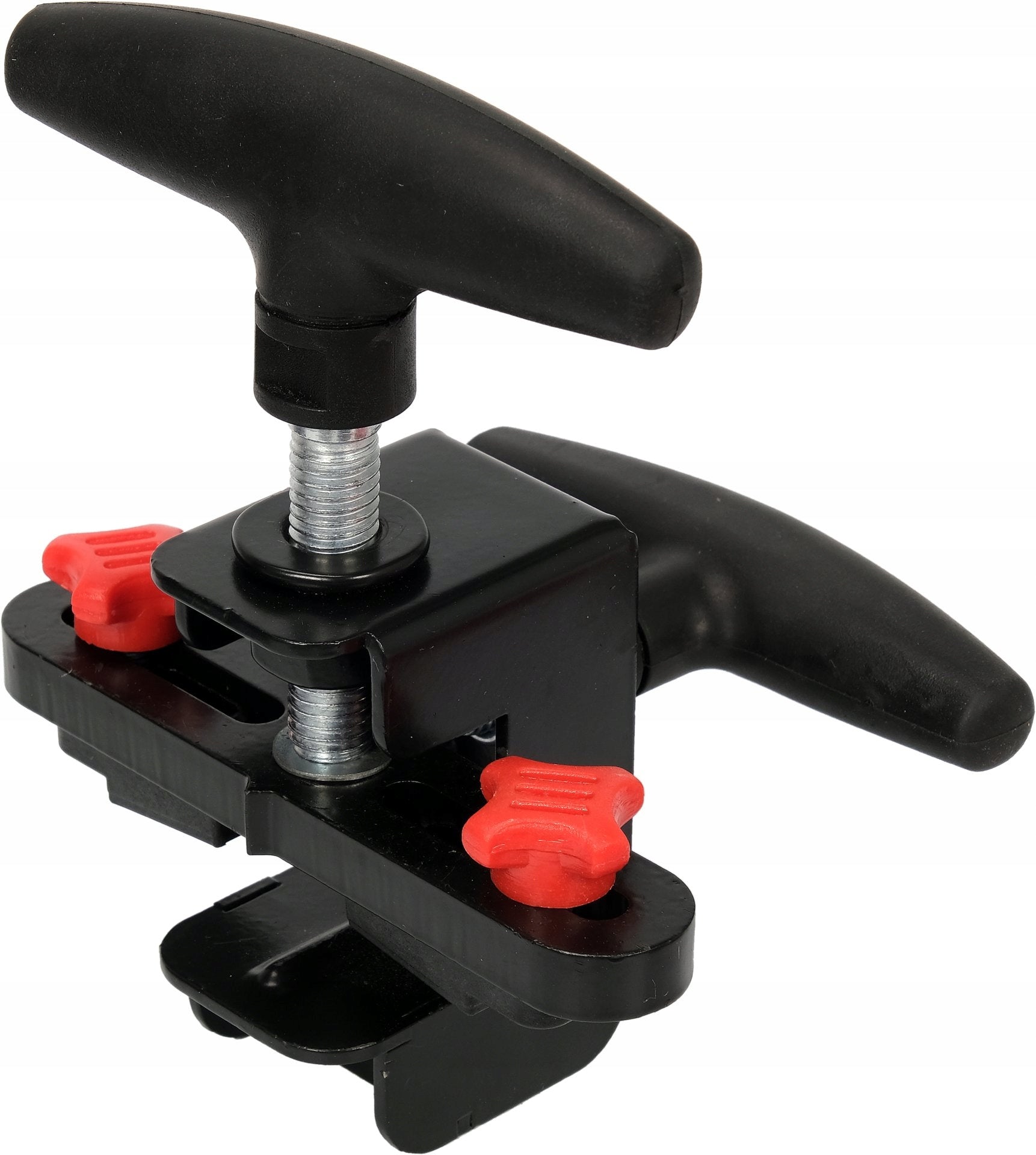

The set includes hand pliers for breaking the cut plate and wide handle for breaking larger parts of the plate. The set is packed in a bag - a cover made of thick nylon✅.

⚙ TECHNICAL DATA:

The cutting element is a bearing spectral wheel with a diameter of 22 mm. It can be pressed by the operator against the material during cutting. The cutter is designed for cutting large ceramic plates with a thickness of 3 to 8 mm. Maximum cutting length approx. 320 cm✅.

Usage:

✅ depending on the size of the cut plate, we attach one, two or combined three guides on its surface

✅ to the guide mounted on the suction cups, we attach a trolley with a cutting unit

✅ by moving the knife along the guide, press sensitively to the surface of the plate obtaining the required incision

✅ breaking is carried out with the help of pliers or a breaker included in the set
