Keraminis sieninis rekuperatorius PILOT, 125 mm, baltas

Trumpai apie prekę

Prekė: Keraminis sieninis rekuperatorius PILOT, 125 mm, baltas. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Kotarbau
• Modelis: R434

The CUPER decentralized wall recuperator is a high-tech device that brings a revolution in home ventilation. Thanks to it, you will provide a constant supply of fresh air to your home, while taking care of the health of household members and minimizing heating costs. It is not only a device, but also an investment in the comfort of everyday life.

ACTION

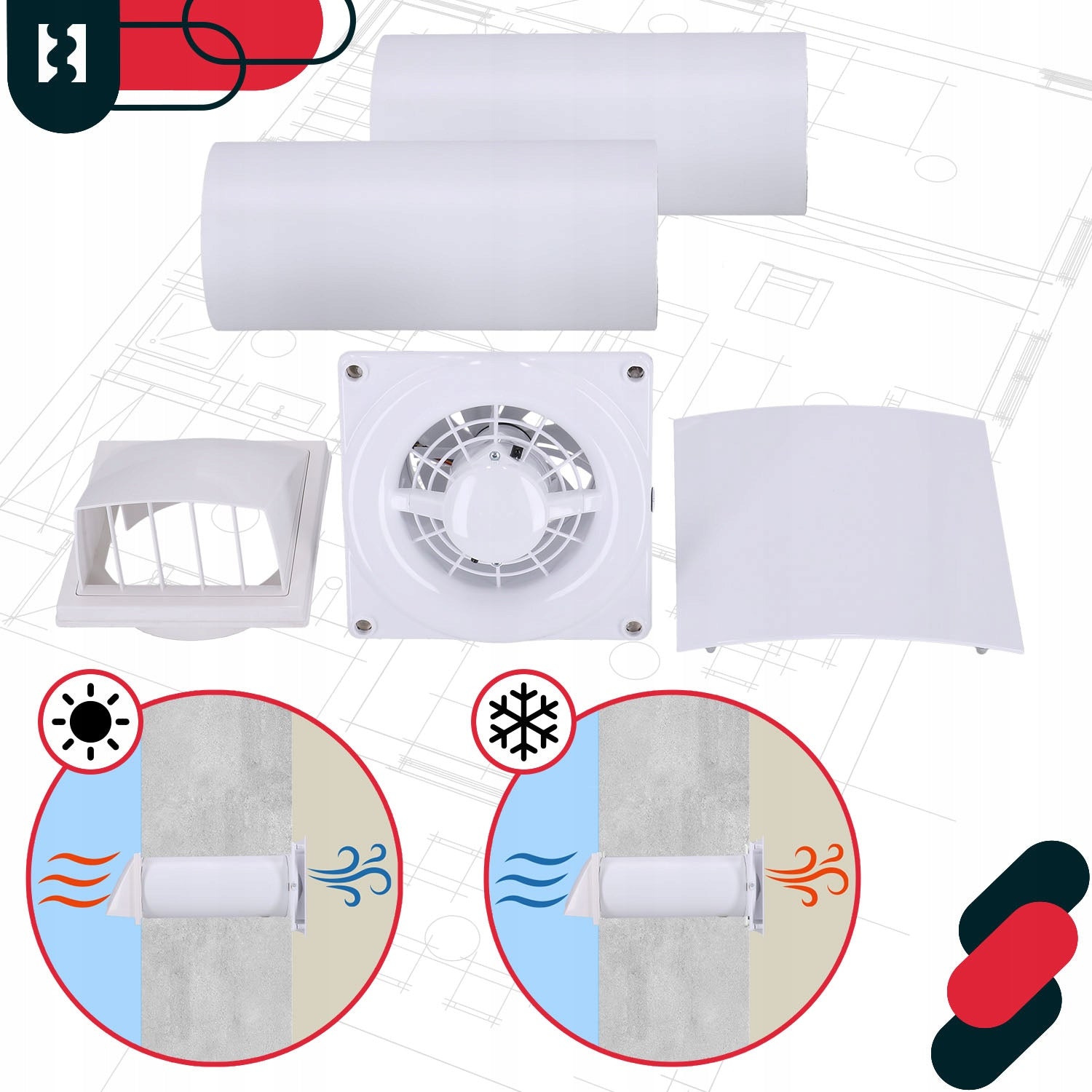

• The principle of operation of the CUPER recuperator is based on the recuperation process, i.e. heat recovery.
• The device draws air exhausted from the interior, recovers heat from it using a ceramic exchanger, and then uses this heat to heat fresh air supplied to the rooms.
• Thanks to this, air at the right temperature enters the interior, which significantly reduces heat loss.
• The recuperator works efficiently even in harsh weather conditions, ensuring a comfortable atmosphere throughout the year.

DURABILITY

• The recuperator is designed for universal use and long-lasting use.
• It can operate at temperatures ranging from -30°C to +50°C, making it suitable for a variety of climatic conditions.
• With an IP24 rating, the device is resistant to water and fine solids, ensuring safe and hassle-free use.

FUNCTIONALITY

• The device is equipped with six gears, which allow for precise adjustment of the work intensity to the individual requirements of the user and the size of the room.
• In addition, the ceramic exchanger provides excellent heat recovery efficiency, which translates into lower heating bills.

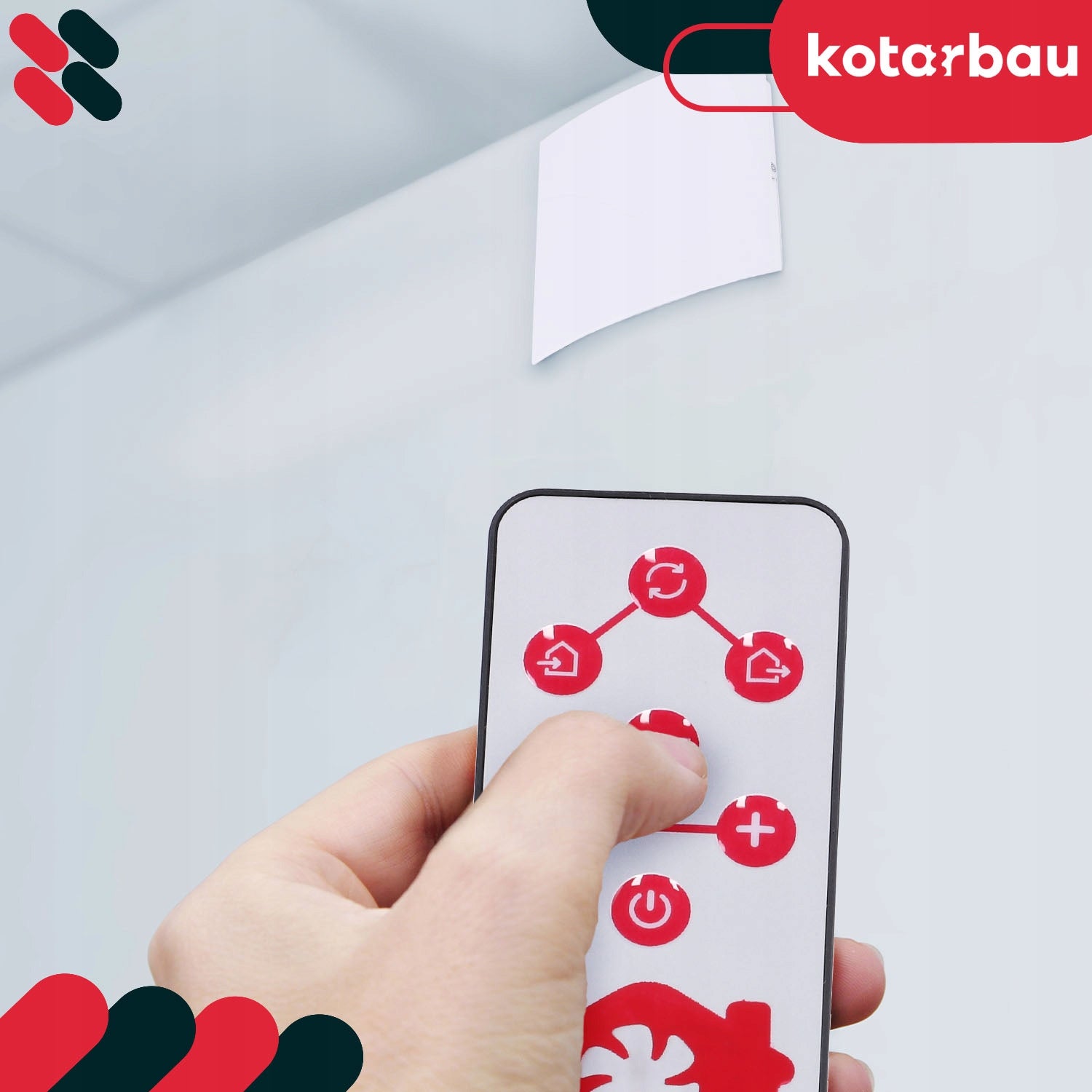

• Controlling the recuperator with a convenient remote control allows for intuitive operation, allowing you to change settings without having to approach the device.

EASY INSTALLATION

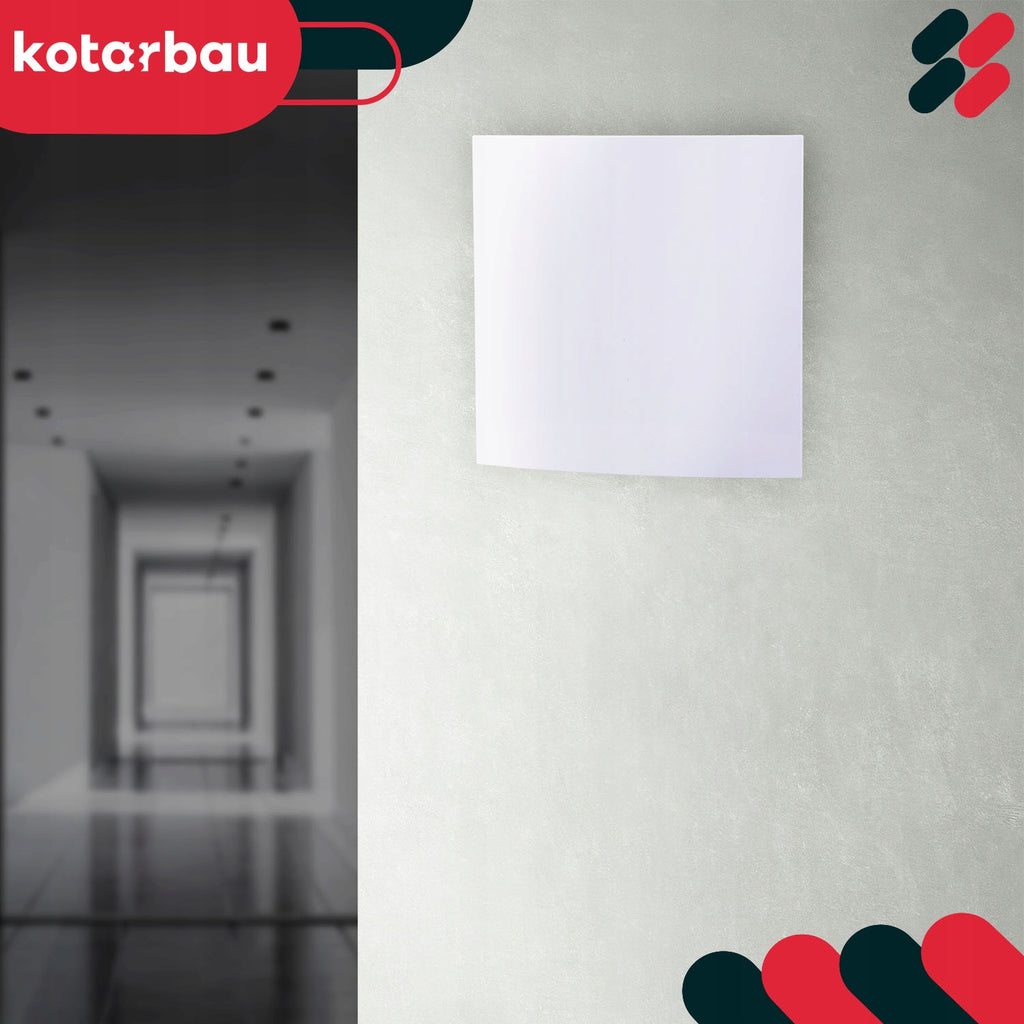

• The recuperator is distinguished by simple wall mounting, which makes it an ideal solution for both new buildings and renovated rooms.
• The compact design makes the device perfectly fit into any space, without taking up valuable space.

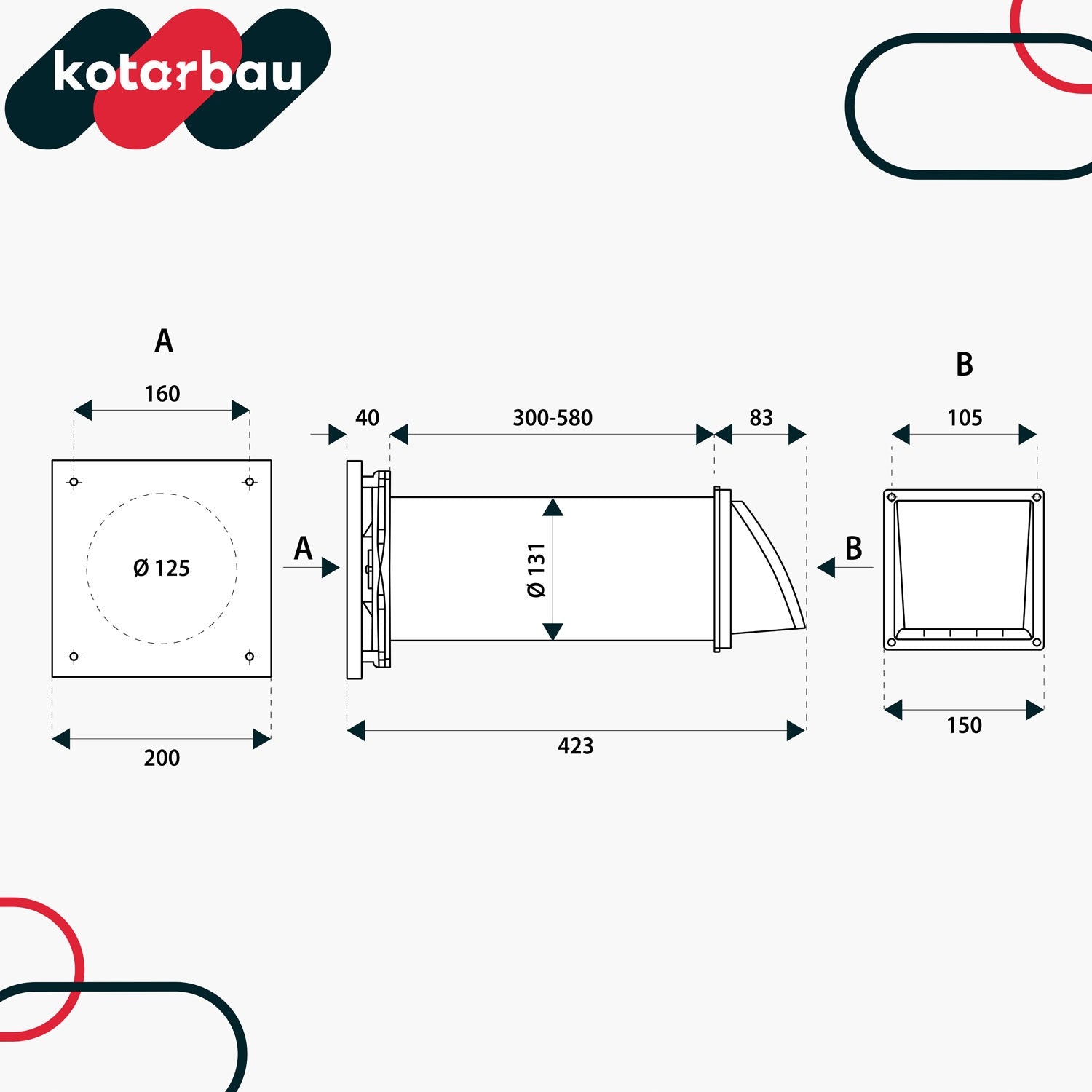

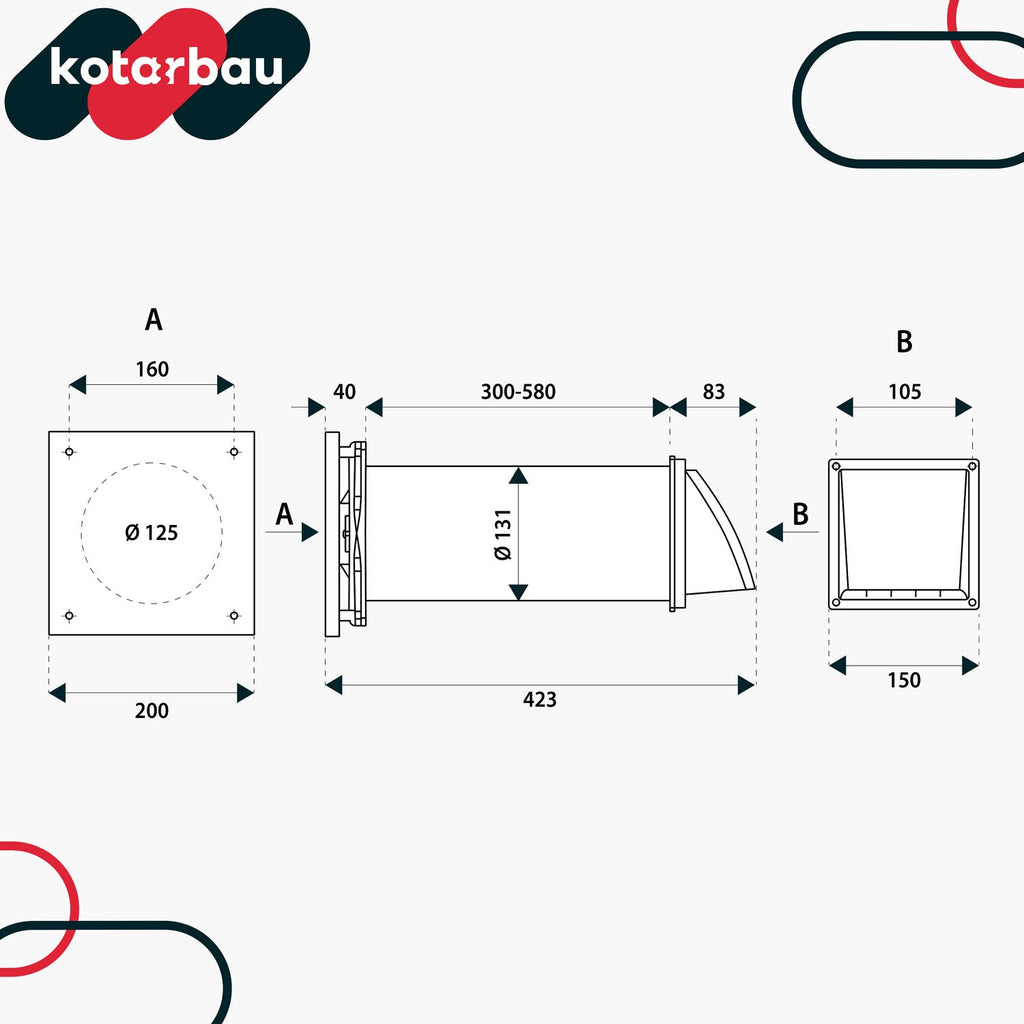

TECHNICAL DATA:

• Total length: 423 mm
• Width: 200 mm
• Channel length: 300-580 mm
• Channel diameter: 131 mm
• Length of hood: 83 mm
• Width of hood: 150 mm
• Internal panel thickness: 40 mm
• Internal panel width: 200 mm
• Net weight: 2 kg
• Gross weight: 2,7 kg
• Material: plastic, ceramic
• Color: white
• Energy efficiency class: A

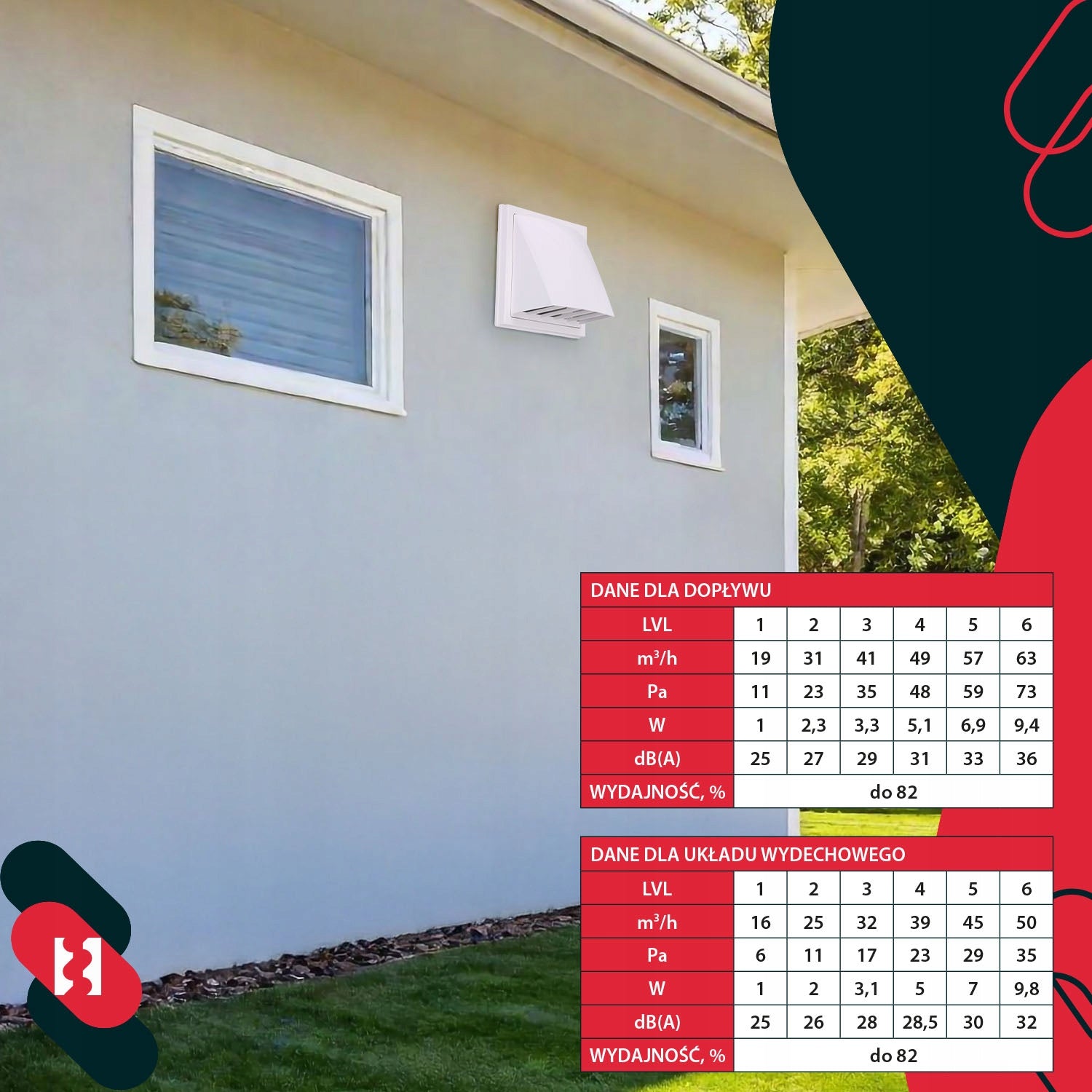

Run: I / II / III / IV / V / VI

• Maximum airflow/ventilation (m3/h): 19 / 31 / 41 / 49 / 57 / 63
• Maximum airflow/extract (m3/h): 16 / 25 / 32 / 39 / 45 / 50
• Maximum airflow/energy recovery (m3/h): 9 / 14 / 18 / 22 / 26 / 28
• Maximum pressure/ventilation (Pa): 11 / 23 / 35 / 48 / 59 / 73
• Maximum pressure/exhaust (Pa): 6 / 11 / 17 / 23 / 29 / 35
• Noise level/ventilation (dB(A)): 25 / 27 / 29 / 31 / 33 / 36
• Noise level/exhaust (dB(A)): 25 / 26 / 28 / 28,5 / 30 / 32
• Power consumption (W): 1 / 2,3 / 3,3 / 5,1 / 6,9 / 9,4
• Heat recovery efficiency: up to 82%
