Keraminis šildytuvas Olimpia S, 2000 W, su nuotolinio valdymo pultu

Trumpai apie prekę

Prekė: Keraminis šildytuvas Olimpia S, 2000 W, su nuotolinio valdymo pultu. Kategorija: Elektriniai šildytuvai.

• Gamintojas: Olimpia Splendid
• Modelis: CALDOSTILE D

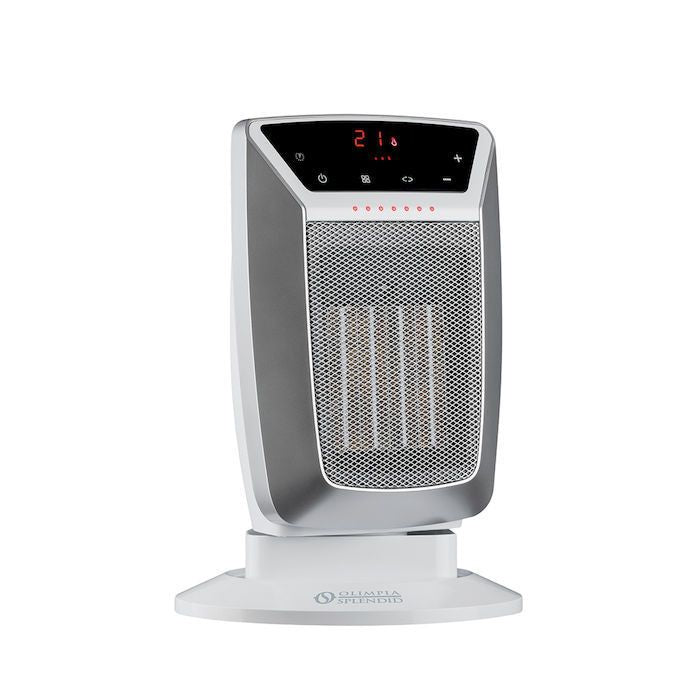

Caldostile D, ceramic fan with a maximum power of 2000 W with remote control

Thanks to the integrated timer, once programmed, you can forget about it!

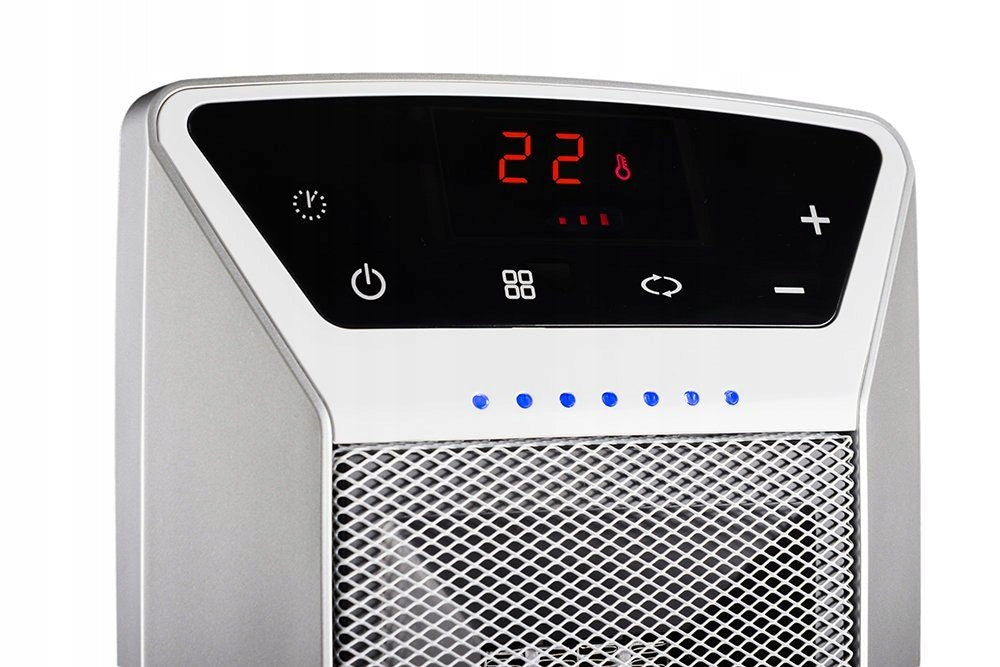

TOUCH PANEL

With a touch LCD display, you can easily set the main functions of the heater.

AIR FILTER

Air filter with dust proof, easy to remove and clean.

OSCILLATION

It has a 90° oscillation for enhanced heat distribution and is equipped with a handy remote control.

CERAMIC HEATER

Ceramic heating technology with 2000W power

PROTECTION AGAINST FROST

Starting the operation of the device in ventilation mode, this mode can be selected by pressing

SW2 button. Control panel (D1) will display S3" symbol and temperature setting

(Set temperature) constant at 7°C. The device will operate at a minimum power,

to maintain a constant temperature of 7°C.

WORKING WITH A TIMER

In this mode, you can program the device to turn on or off.

SETTING THE ON TIMER

When the device is turned on, select the operating mode and the desired temperature at which the device

will work when turned on. Then put the device into standby mode. Press

SW6 button to activate the switching timer mode (on the control panel display)

The symbol S1 appears), then set the desired delay (from 0,5 to 24 hours), after

which device is to be switched on (after confirming the timer) using the SW4 buttons

and SW5. The selected delay can be displayed on the control panel. If within 5 seconds

no key will be pressed, the timer setting function will be automatically

canceled. Confirm the desired value by pressing SW6. Control panel will display

countdown to inclusion. After the set time, the device will start working

with recently selected settings. To cancel the delayed on, press SW1,

and the device will start with the last selected settings.

SETTING THE SHUTDOWN TIMER

During operation of the device, press the SW6 button to activate the switch mode

temporal (the symbol S1 will appear on the display of the control panel), then behind

Use the SW4 and SW5 keys to set the desired delay (from 0,5 to 24 hours), after which

The device is to turn off. If no key is pressed within 5 seconds,

The function will be activated. After the set time, the device will switch

in standby mode. To cancel a delayed shutdown, press SW1 and the device

It will go into standby mode.

REMOTE CONTROL

There are 6 function buttons on the remote control (Fig. 3) and their functions are the same as

buttons on the radiator control panel.

Switch when tipping over

Dimensions (W) x H x D. ): 238 x 337 x 173 mm

KEY SYMBOLS AND KEYS ON THE CONTROL PANEL

SW1:ON/Vigil

SW2:Selection of operating mode (ventilation - minimum power - average power - maximum power - frost protection)

SW3:Oscillation activation/deactivation

SW4: Increase temperature/delay

SW5: Reduce temperature/delay

SW6: Confirm/cancel device on/off delay

D1:Set Temperature/Timer

S1: Timer mode active

S2: Active ECO mode

S3: Active frost protection mode

S4: Ventilation mode active

S5: Heating mode. Indicated power levels MIN-MAX

Specifications
