Keturių kanalų radijo imtuvas Zamel Exta Life ROM-24 išmaniajam namui

Trumpai apie prekę

Prekė: Keturių kanalų radijo imtuvas Zamel Exta Life ROM-24 išmaniajam namui. Kategorija: Išoriniai moduliai.

• Gamintojas: Zamel
• Modelis: ROM-24

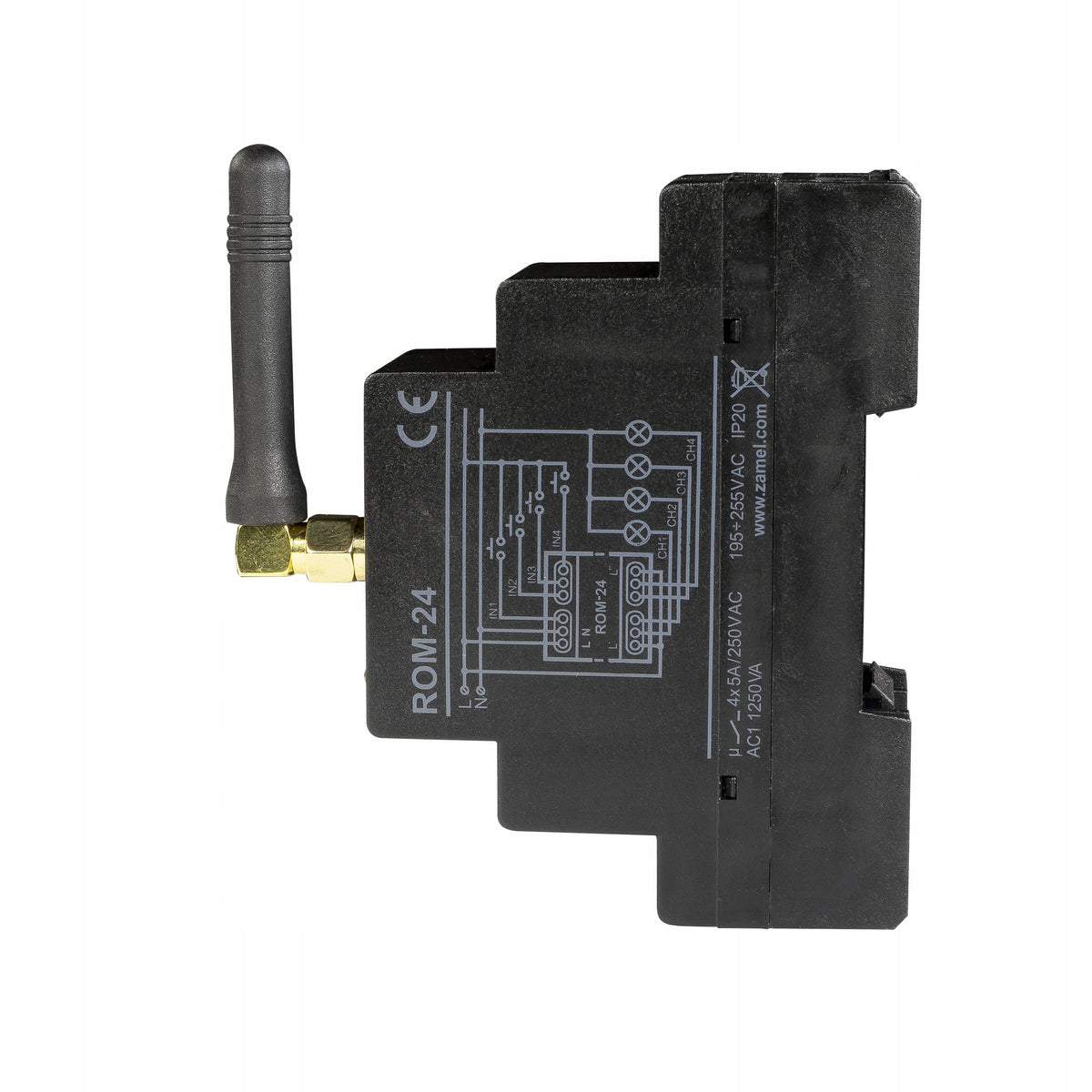

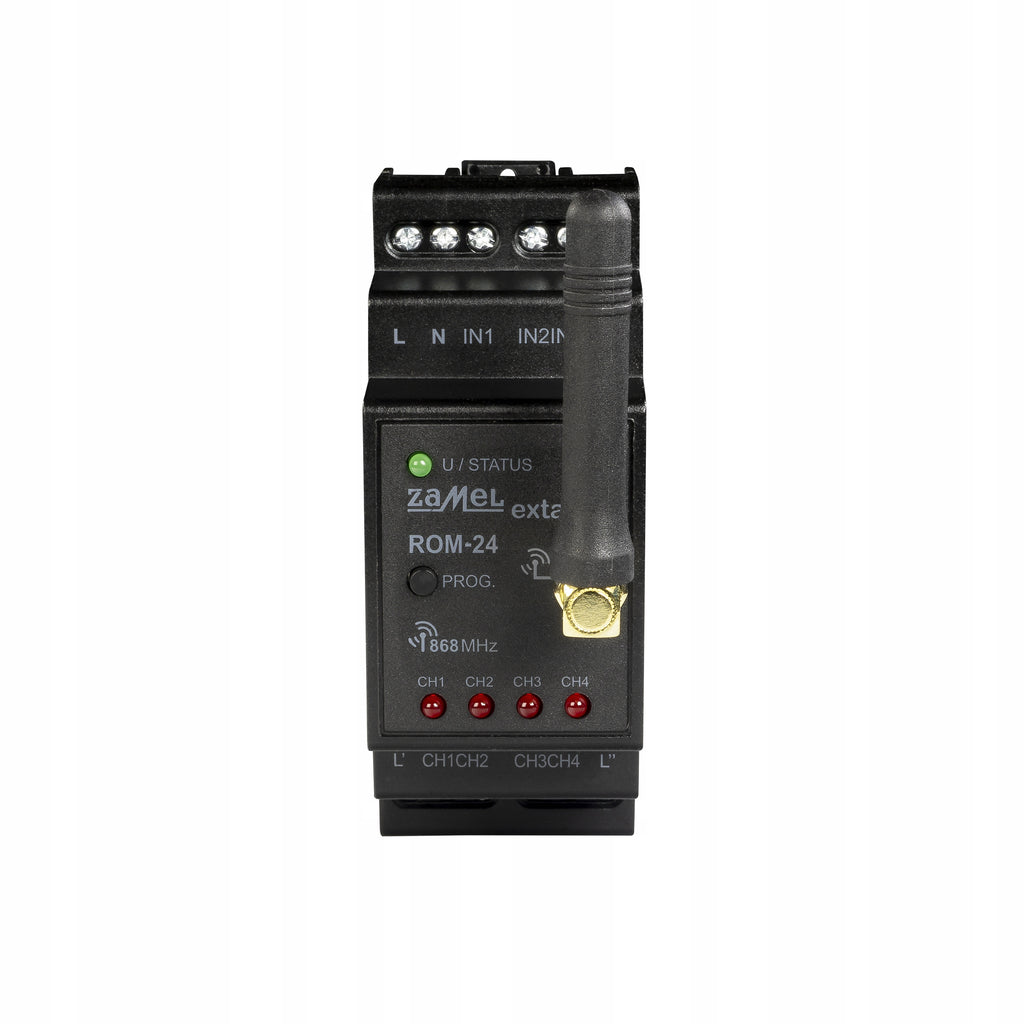

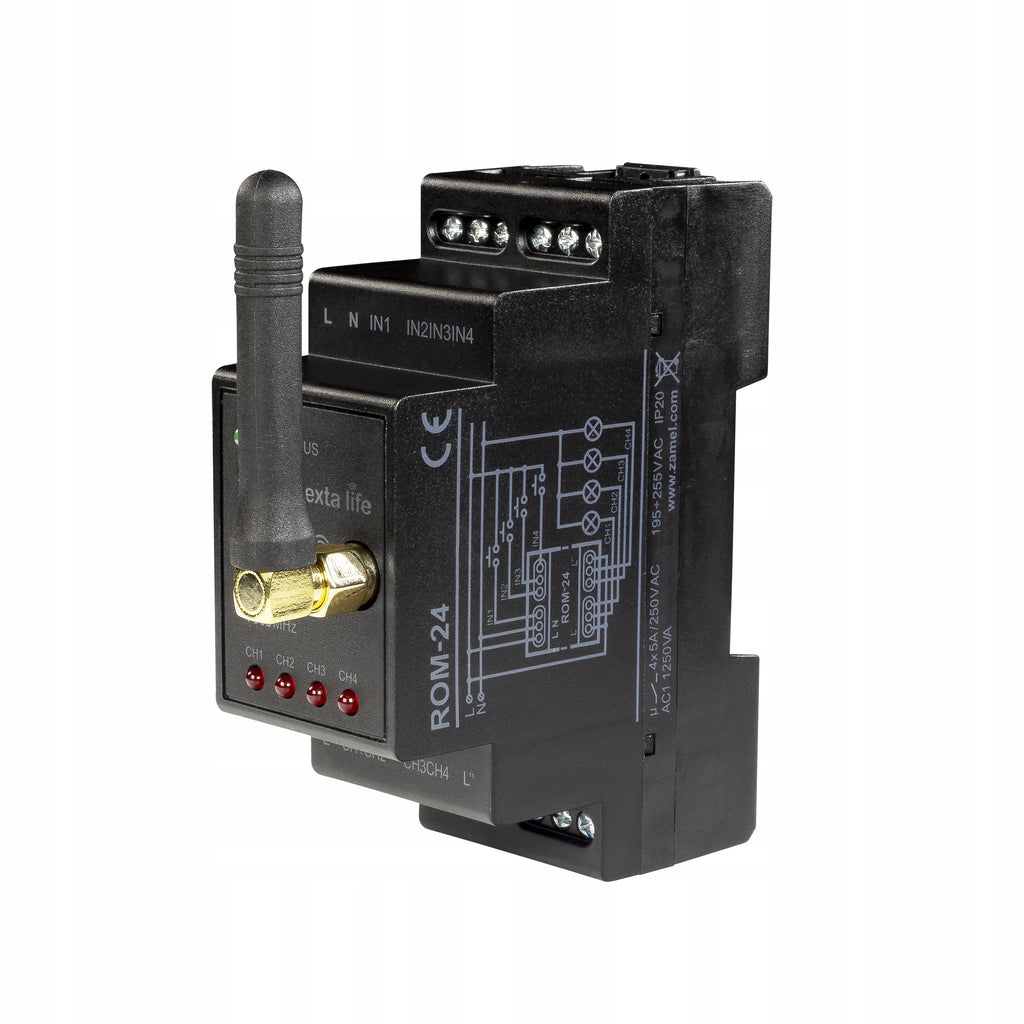

Radio Modular Receiver

ZAMEL ROM-24

Features:

• rated supply voltage 230 V AC
• two-way transmission – indication of the current state of each output in the application
• possibility of connecting monostable or bistable connectors
• independently programmable time for radio transmitters, external inputs and controller
• compatible with EXTA LIFE controller and transmitters, programmable status of outputs after power failure
• 4 modes of operation in cooperation with transmitters (on/off, bistable, monostable, temporary)
• times assigned independently for each output
• 4 output channels (4 x voltage-free contacts)
• 4 programmable external inputs
• 2 modes of operation in cooperation with the controller (on/off, temporary)
• possibility of remote software update

The ROM-24 modular radio receiver is the final component of the EXTA LIFE system, which allows independent control of up to four devices / circuits.

• The outputs are realized in the form of four relays with contacts with a maximum load capacity of 5 A.
• This gives you the ability to control low-voltage circuits (for example, 12/24 V AC/DC) and high-voltage circuits (230 V AC).
• The receiver works well when remotely triggering other devices.
• It can be successfully used when providing control signals.
• The ROM-24 is also suitable for controlling solenoid valves in heating systems. Two-way communication between the receiver and the controller ensures that the current status of each receiver channel is always indicated in the mobile application.
• This method of communication also allows you to change selected receiver parameters and remotely add transmitters (without access to the receiver).
• The implemented frame encoding algorithm ensures control security.
• ROM-24 outside the controller can be controlled in parallel from the EXTA LIFE system transmitters.
• A larger number of transmitters can be entered into the receiver, which gives the possibility of independent control from several places.
• Additional configurable wired inputs enhance control functionality.
• The receiver has implemented the function of remote software update from the controller.
• The device is designed for installation in switchgears on the TH35 rail (DIN).
• The unscrewable antenna allows you to attach an external antenna.

Technical data:

• Rated supply voltage: 230V AC
• Number of channels: 4
• Transmission: radio band ISM 868,50 MHz
• Transmission method: bidirectional – 9600 bps
• Coding: algorithm based on 128 bit key
• Range of operation: up to 350 m in open area
• Optical signaling of radio transmission: LED
• Temperature operating range: -10 55 °C
• Housing mounting: TH-35 rail (according to PN-EN 60715)
• Housing protection rating: IP20
• Protection class: II
• Dimensions: 90 x 35 x 66 mm
• Weight: 0,125 kg
