Kiemo vartų automatika NICE ROBUS 600 (iki 600 kg) su 3 FLO2RE pulteliais ir šviestuvu

Trumpai apie prekę

Prekė: Kiemo vartų automatika NICE ROBUS 600 (iki 600 kg) su 3 FLO2RE pulteliais ir šviestuvu. Kategorija: Kietieji diskai.

• Gamintojas: Nice
• Modelis: RB600_MAX_3FL_SLUP

The Nice ROBUS 600 set is a ready-made automation set with accessories designed for sliding gates weighing up to 600 kg.

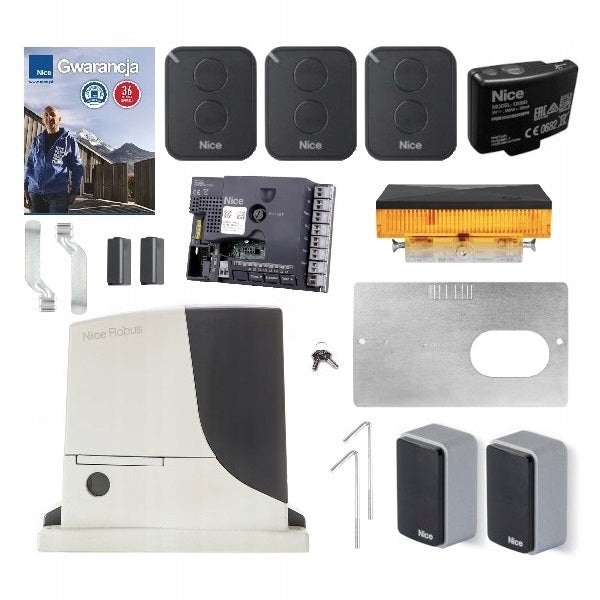

THE SET INCLUDES:

• Self-braking actuator RB600 24V with integrated control panel RBA3R10 BLUEBUS
• Two-way 4-channel radio receiver OXIBD (SM radio connector)
• 3 x Era Flor FLO2RE 2-channel remote control with variable code, 433,92MHz
• Set of EPMB photocells (transmitter + receiver) BLUEBUS, range up to 30 m
• LED Bar Signal Lamp 12-24V / 230V (Orange)
• 2 x Metal key to unlock the drive (in case of power failure)
• Metal gear
• Mechanical limit switches for opening and closing
• Mounting base + 2 anchors for fixing in concrete
• Installation, use and maintenance instructions

The Nice ROBUS actuators are one of the most popular sliding gate machines on the market, which consists of a number of advantages:

• BLUEBUS System - Allows you to connect peripheral devices using only a 2-wire cable, and LEDs indicate enabled functions.
• Practical - Built-in modular control panel, only 3 programming buttons and removable plugs for connections.
• Intelligent - The actuator automatically remembers the end positions of the gate (autoprogramming function) during programming.
• Safe - Constant control of connected devices: the lamp signals malfunctioning of the system (the number of flashes determines the type of error), amperometric obstacle detection system, gentle start at opening and release at closing.
• Advanced - Strength, operating mode, speed can be adjusted on several levels, and using the O-View programmer (optional, to be purchased separately) it is possible to set the function parameters very accurately.
• Modern - It has a temperature sensor that adjusts the actuator force to weather conditions, also correcting the overload threshold.
• Efficient - At rest, it reduces energy consumption by switching to "Stand-by" mode.
• Service function - The control signals the need for maintenance after a pre-programmed number of cycles.
• Possibility of using inductive limit switches (RBA1).

The ROBUS motor is the flagship product of the Italian manufacturer of automation for gates Nice.

• The built-in amperometric (anti-crush) sensor ensures your safety - when the gate meets an obstacle in its path, it will automatically reverse its gear.
• The improved RBA3R10 BLUEBUS control panel is programmable in a very wide range and is therefore an ideal solution for smart buildings. In addition, the R10 series is completely backwards compatible, which means it can replace older control panel models, i.e. RBA3/A, RBA3/B, RBA3/C.
• Thanks to the PS124 emergency battery (optional, to be purchased separately), the actuator will open and close the gate even in the absence of power.

TECHNICAL DATA of RB600 drive:

• Power supply for control panel: 230V
• Motor power supply: 24V
• Power consumption: 515 W
• Current: 2.5 A
• Degree of protection: IP 44
• Nominal torque: 9 Nm
• Starting torque: 18 Nm
• Min-max gate speed: 0,15-0,31 m/s
• Max. Gate weight: 600 kg
• Operating temperature: -20°C to +50°C
• Insulation Class: 1
• Operating intensity: 100 cycles/day
• Actuator weight: 11 kg

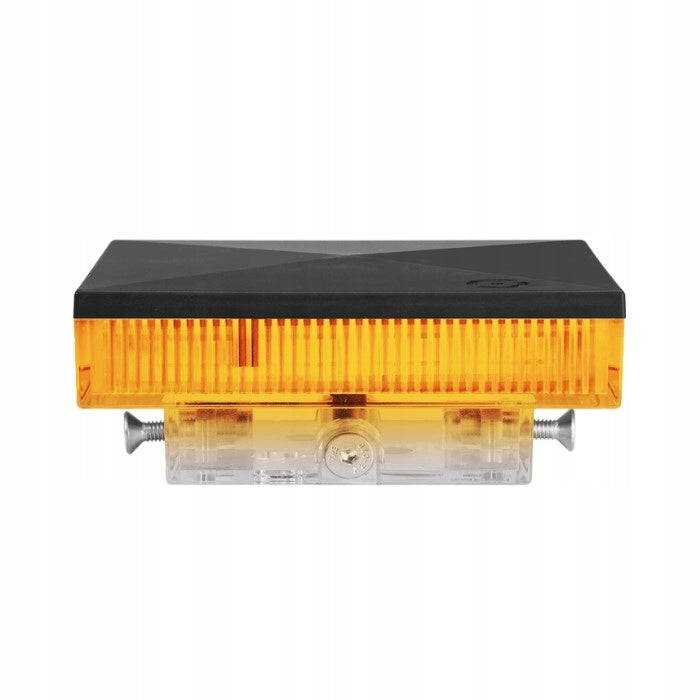

The signal lamp is the end of a rectangular post with dimensions 80 x 80 mm or 100 x 100 mm. The dimensions of the post opening must be at least 72 x 72 mm. The lamp is powered by 12-24V AC/DC or 230V AC. The use of LED light source and built-in interrupter allows you to achieve a long lamp life.

• possibility of reprogramming the I/O function of the control panel or function parameters before shipment
• possibility of preconfiguration (preconfiguration) of the set, e.g. installation of the radio receiver and programming of the remote control(s)
• the ability to create a personalized set by matching the radio path to already used remote controls
• telephone technical support of a licensed installer

By buying from us, you can be sure that you will receive a fully original product from a certified distributor and installer, and only such a purchase gives you the opportunity to complain and repair directly from the Manufacturer (you can check our authorization on the NICE website).

Nice to as part of the Italian Nice Group. Founded in 1993, Italian company Nice is now the international leader in the Home Automation, Home Security and Smart Home sectors, offering a wide range of integrated solutions for the automation of entrance gates, garage doors, sun visors, parking systems, wireless alarm systems and security systems for home and industry.
