Kompaktiškas rekuperatorius Awenta HRV100P

Trumpai apie prekę

Prekė: Kompaktiškas rekuperatorius Awenta HRV100P. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Awenta
• Modelis: HRV100P

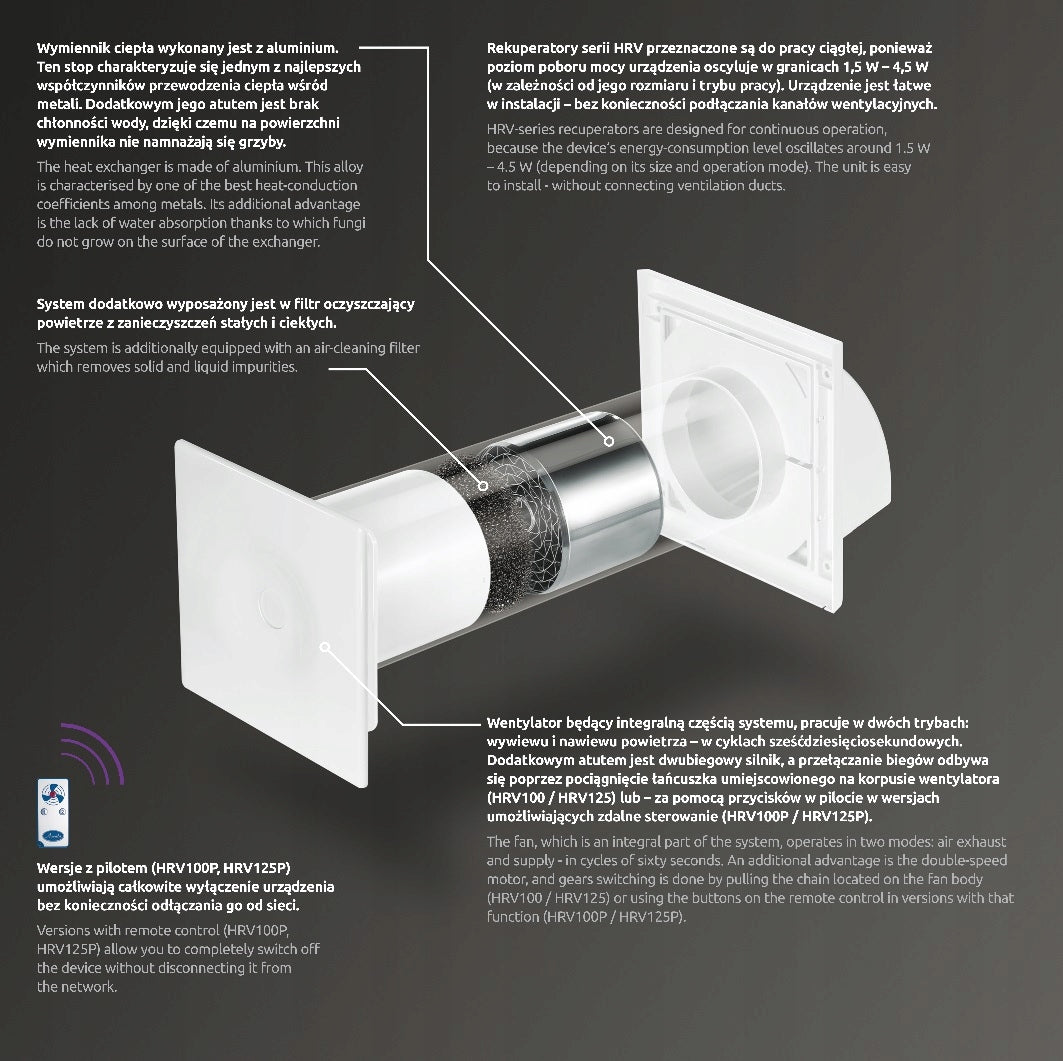

The compact recuperator HRV100P - designed for continuous operation - is equipped with an accumulative heat exchanger, whose task is to retain and accumulate thermal energy in the process of exhausting air from the room in which the system is installed.

The accumulated heat is successively transferred to the supply air from the outside.

The system operates in two modes: exhaust and air supply.

Each mode can operate in two-speed:

1 - free exhaust - free air supply

2 - quick exhaust - fast air supply.

The duration of each mode is 60 seconds.

Changing the gear is done by means of a pull chain located at the fan body.

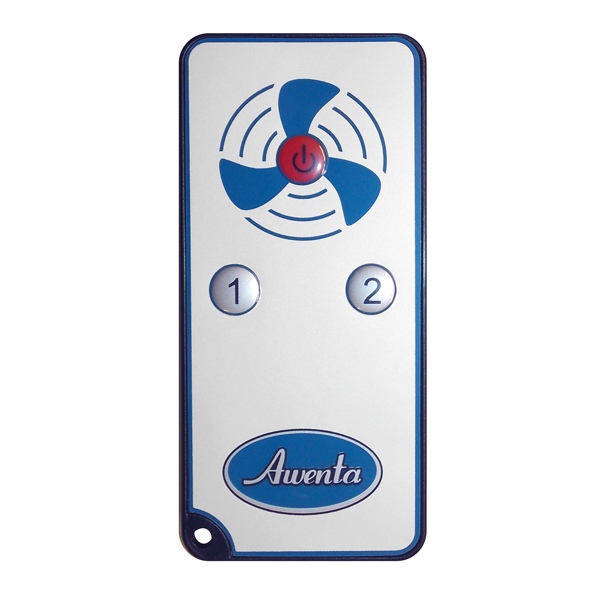

The set includes a remote control for remote control of the device.

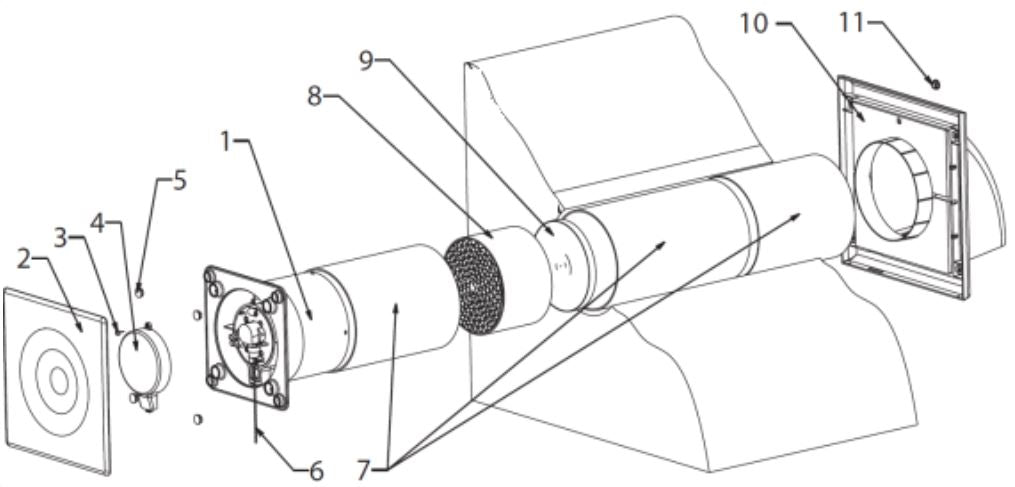

1 - supply and exhaust fan

2 - fan grille

3 - screw fixing the power chamber cover

4 - cover of the power chamber

5 - end caps masking screws fixing the fan

6 - pull chain for switching between the first and second fan gear (*touch hrv100 without remote control)

8 - aluminum accumulation heat exchanger

9 - air filter

10 - external end of the ventilation duct

11 - screw masking caps

Advantages:

• Battery made of aluminum - this type of surface is easy to clean, and at the same time much less bacteria are deposited on it than on the ceramic surface

• Low energy consumption - only 1,5 W on the first gear

• Quick and easy installation

• Possible heat recovery when ventilation of only one room

• Very quiet operation - only 32 dB(A) on first gear

• Supply air filter

- Energy efficiency and ecology

When removing warm, stale air from the interior of the building, it heats the recuperator exchanger. The accumulated heat is transferred to cool air supplied from the outside. This means that the energy used to heat the air is not wasted (recovery up to 90%).

- Improving the comfort of life

Removing moisture and unpleasant odors, while supplying fresh air from the outside, without the need to open windows and without sudden temperature fluctuations.

- Savings

The use of recuperators improves the energy performance of the building. Recovery of heat from exhaust air reduces energy losses and savings.

- Modern design

Our recuperator is designed with attention to detail, and their elegant design will suit both modern and classic rooms. They are perfect for projects where aesthetics and quality are crucial.

- Health and wellbeing

Continuous air exchange ensures healthy conditions in the room and prevents mold formation. Breathing fresh outdoor air with low CO2 content improves sleep quality and body condition. In addition, REQU recuperators remove excess moisture that promotes the growth of mites, fungi and bacteria.

The compact recuperator HRV100P is designed for decentralized ventilation with heat recovery for use in one room in residential buildings.

The product is designed for continuous operation. It is equipped with an accumulative heat exchanger, whose task is to collect and render (recuperation) of thermal energy in the process of exhaust and air supply from the room in which it is installed.

1 - EXHAUST MODE

2 - AIR SUPPLY MODE

Technical data:

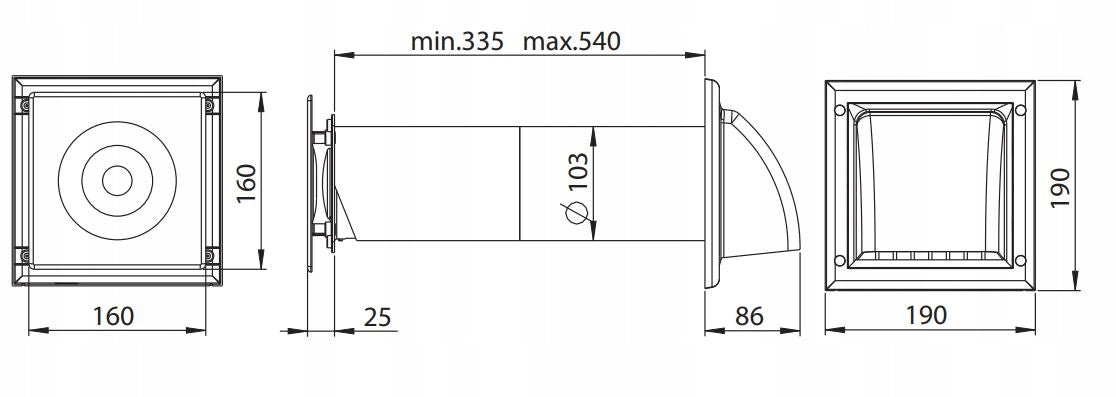

Channel diameter: 100 mm

Capacity: 30 m3/h - I gear; 45 m3/h - II gear

Power: 1,5 W - I gear; 2 W - II gear

Volume: 32 dB(A) - I gear; 36 dB(A) - II gear

Degree of protection: IPX4

Producer: Awenta

The system operates in two modes: exhaust and air supply. Each mode can operate in two directions:

• free exhaust - free air supply
• quick exhaust - fast air supply

The duration of each mode is 60 seconds.

The recuperator should be installed in the external partition / wall at an appropriate distance from sources of pollution (chimneys, exhaust gases, etc. ) so that the drawn – supplied air is free from contamination.

Installation should begin with making a hole in the wall with a deviation of 2-5o from the level with a drop outside the room. The deviation is caused by the need to drain liquefied water.

It is forbidden to mount the device in an upright position "in the ceiling, roof".

The device does not require connection to the sewage system.

The mounting height of the device is at least 2,3 m above the floor

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Awenta
Parametry	Kind	heat recovery ventilator
Parametry	Product weight with unit packaging	1 kg
Parametry	Manufacturer code	HRV100P
Parametry	Range of energy efficiency classes	A+ - G
Parametry	Energy efficiency class	A+
Parametry	Batteries included	yes
