Kompaktiškas sieninis rekuperatorius AIRDOT 200 link Harmann, 100 m³/val., su nuotolinio valdymo pultu

Trumpai apie prekę

Prekė: Kompaktiškas sieninis rekuperatorius AIRDOT 200 link Harmann, 100 m³/val., su nuotolinio valdymo pultu. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Harmann
• Modelis: AIRDOT 200 link

• Performance 100 m3/h
• Mounting hole diameter 200 mm
• Heat recovery efficiency up to 92%
• Ceramic exchanger
• Hygrostat function
• Twilight sensor
• Night mode
• Four feet of fan speed
• Wired communication up to 16 devices

• Model: AIRDOT 200 link
• Air flow max:100 m3/h
• Power max. 11,9 IN
• Sound pressure: from 22 dB(A)/3mb
• Mounting hole diameter: 200 mm
• Voltage: 50Hz
• Power supply: 220-240Vac
• Temp. Environment: -30 +50˚C
• Degree of protection: IPX4
• Producer: HARMANN

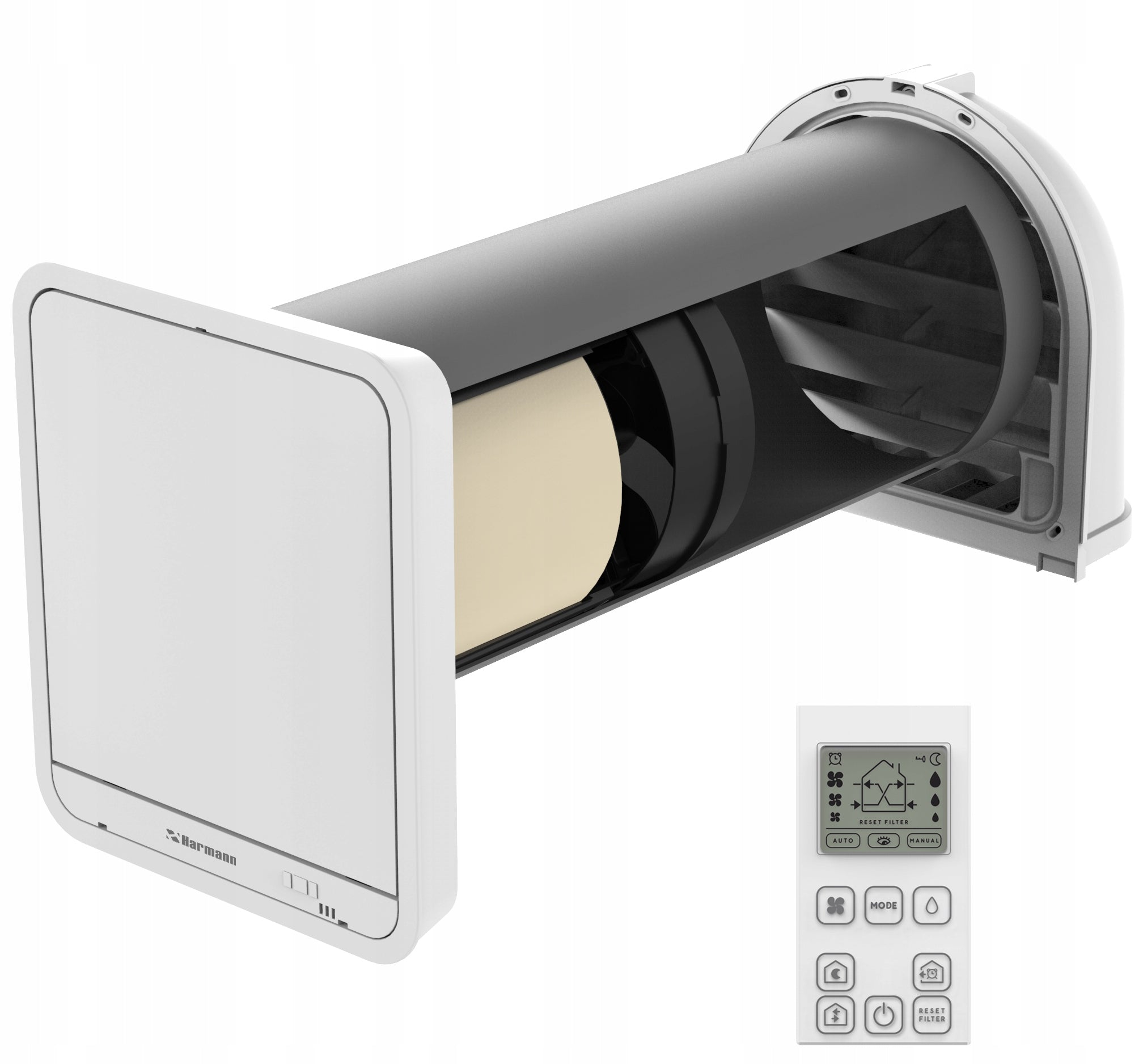

Comes with remote control

The list of UTIs is an aid for applicants of the Clean Air Programme in the selection of equipment and materials eligible for funding.

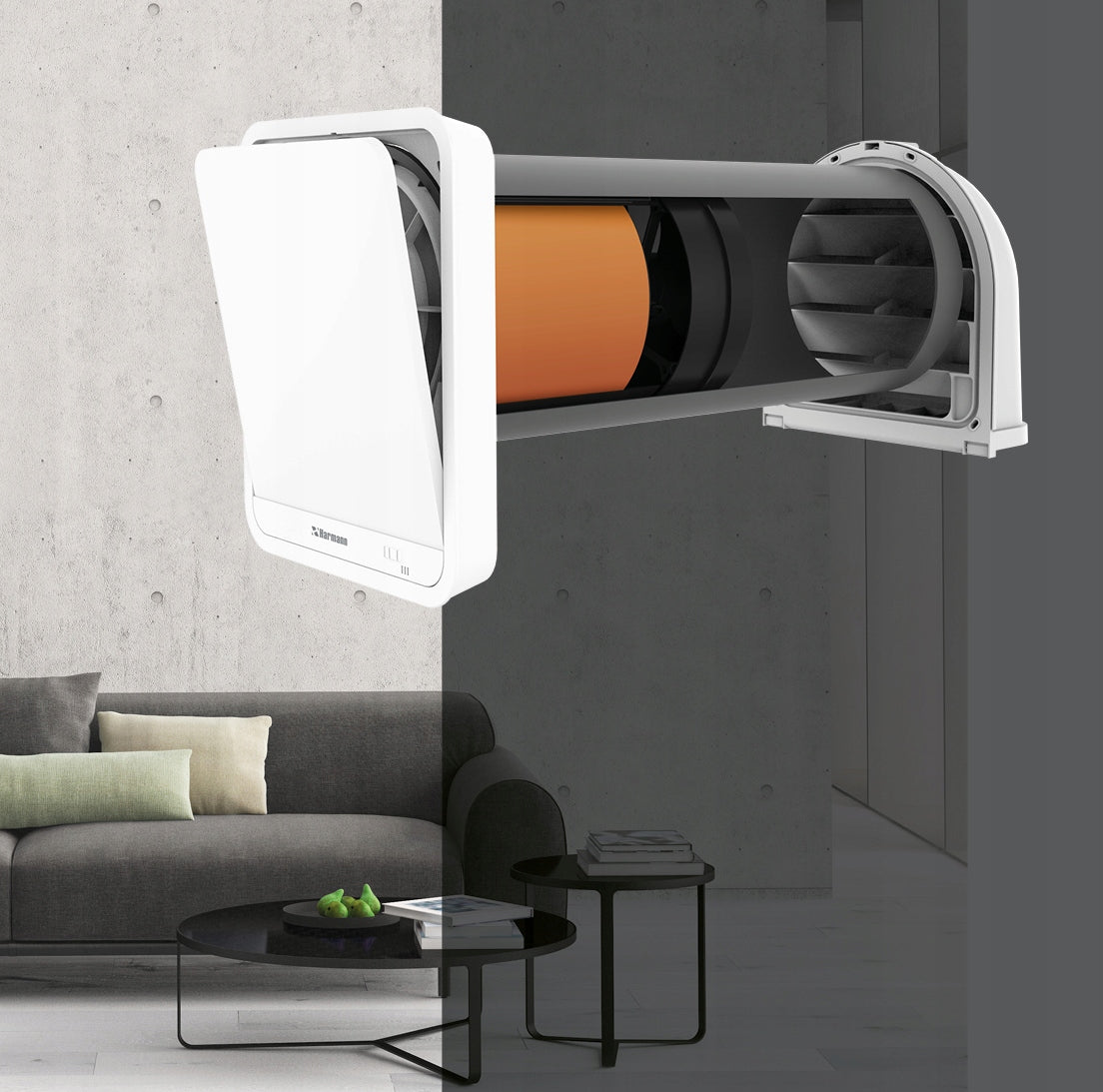

The HARMANN AIRDOT link wall recuperator is a modern wall recuperator with a specially designed reverse fan, whose task is to exchange air indoors. The device provides fresh air to the rooms. The recuperator works cyclically, first pulling used, dirty and heated air out of the room, and then supplying clean, fresh heated in a ceramic exchanger.

The absence of negative impact on human health and the environment is confirmed by the PZH certificate.

Versions of devices

In AIRDOT Link or wireless AIRDOT Link+, devices communicate with each other by synchronizing their work (wired or wireless communication, depending on the version).

The AIRDOT 200 link recuperator does not have an assembly channel included. The channel is an accessory offered separately

The HARMANN AIRDOT 200 recuperator uses a high-efficiency EC motor with ball bearings for very low energy consumption, only 11,9 W and a long service life.

Unlike competing models, the engine in the recuperator is located in the middle of the partition ensuring maximum comfort and silence with high efficiency.

In addition, the device uses an external intake that optimizes air flow and reduces noise

The recuperator is equipped with the longest monolithic ceramic honeycomb heat exchanger, ensuring heat recovery efficiency of up to 92%!

The recuperator uses a washable anti-plate filter made of high-quality polyurethane plastic. AIRDOT will remind you to clean it.

Specially designed intake, optimizing airflow while reducing noise

AIRDOT Link is equipped with an elegant front panel made of high-quality ABS plastic.

The tilting front panel prevents cold air from entering when the unit is turned off.

The well-thought-out design of the device allows for easy cleaning and maintenance.

The panel hides sensors for automatic operation, humidity sensor and dusk sensor (responding to light intensity)

With its use, control and selection of the operating mode of the device is carried out. One remote control can operate several recuperators.

The remote control allows you to control additional operating modes.

CYCLE 1 Extract of warm, used air. Heat accumulation in the exchanger.

CYCLE 2 Breath of fresh air. Reception of accumulated heat.

Exhaust mode

In this mode, all devices will work in extraction mode with the ability to determine the desired performance.

Additional information:

In this mode, the device extracts large amounts of used air without heat recovery. It is recommended in situations where the room is very crowded.

Supply mode

In this mode, all devices will operate in supply mode with the ability to determine the desired performance.

Additional information:

In this mode, the device blows fresh air from the outside without heat recovery. It is recommended in situations where fresh air needs to be delivered quickly.

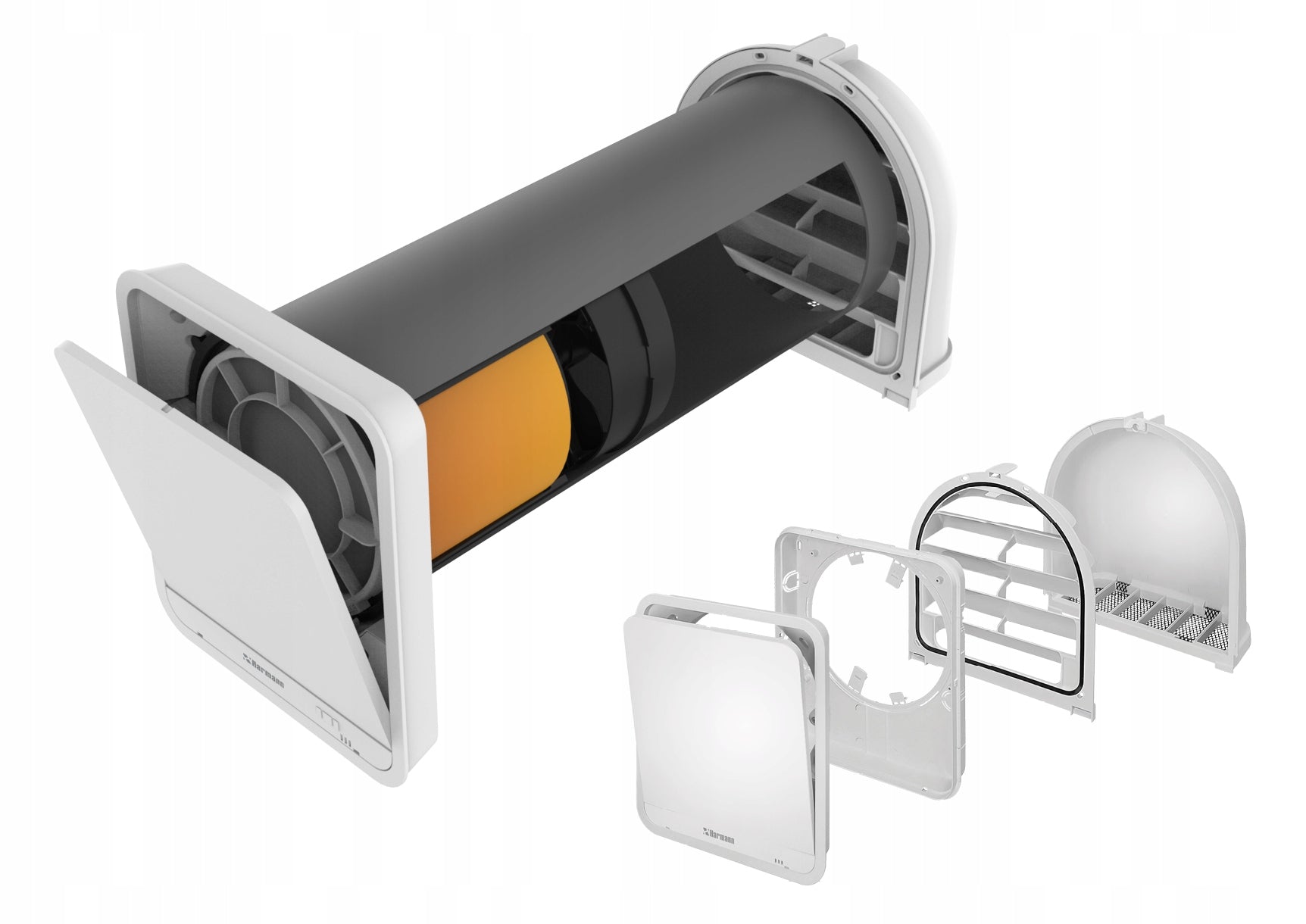

• Extended to 150mm ceramic exchanger accumulates and recovers more heat up to 92%
• High-performance EC motor with ball bearings guarantees low power consumption and long service life.
• Mute reverse fan located behind the exchanger, inside the wall.
• Tilting panel with the function of cutting off the cold air supply when the device is not working.
• Made from premium ABS material for durability and a sleek design.
• Washable dust filters facilitate and reduce operating costs.
• Can be configured up to 16 devices via wired communication
• Protection rating IPX4 protects the device against atmospheric phenomena.
• Automatic restart after power failure allows you to forget about operating the device.
• Installation with a drop “outside” eliminates the need to drain the condensate into the sewage system.
• Intelligent automation adapts the work to the demand and combines the units into one system of efficient ventilation.
• Automatic mode . The recuperator operates at an average fan speed – cyclically for 70 seconds in exhaust mode and 70 seconds in supply mode. After pressing the “AUTO” button, the device performs a test of active sensors (twilight sensor, hygrostat and CO2, if any). If the value above the set parameter is read, the recuperator will start operating in the maximum extraction mode until the CO2 sensor parameter is restored to the limit value.
• Standby function (sleep mode) When you press the "Standby mode" button, the recuperator remains in sleep mode with the shutter closed, but the sensors remain active. If the air parameters change, for example when humidity or CO2 concentration rises above the set limit, the device automatically starts in exhaust mode at maximum speed. After equalizing the air parameters, the recuperator returns to standby mode. This type of operation of the device works well in the case of a long absence of household members. The CO2 sensor is an optional extra.
• Hygrostat function with the possibility of selecting three values: 40% - 55% - 70%It is possible to set a maximum humidity threshold for the hygrostat to adapt it to the room in which it works. Once the relative humidity level is set, the device will draw air out of the room continuously until the sensor reading falls below the set value. In the case of combined operation of several units, all devices will work in extraction mode until the humidity drops to the desired value. By default, the level of H2 was set, which corresponds to the relative humidity at the level of RH: 55%.
• Twilight sensor When reducing the intensity of light, the fan speed will be automatically set to a minimum to reduce noise.
• Adjust the amount of supply air via the switch on the housing, remote control or wall switch (depending on the model).

Specification of the device in the version with wired communication AIRDOT Link ( model offered at the above auction )

• 4 fan speed levels (20/40/70/100 m3/h)
• Standby function (sleep mode)
• Hygrostat function
• Diode indicating the operation of the device and the need to clean the filter
• Four speed feet available, remote controlled
• Up to 16 devices can be communicated via cable connection

Specification of the device in the version with wireless communication AIRDOT Link+ (model available at our other auctions )

• 4 fan speed levels (20/40/70/100 m3/h)
• Standby function (sleep mode)
• Hygrostat function
• Diode indicating the operation of the device and the need to clean the filter
• Four degrees of speed, controlled by remote control
• Up to 16 devices can be configured via wireless communication
