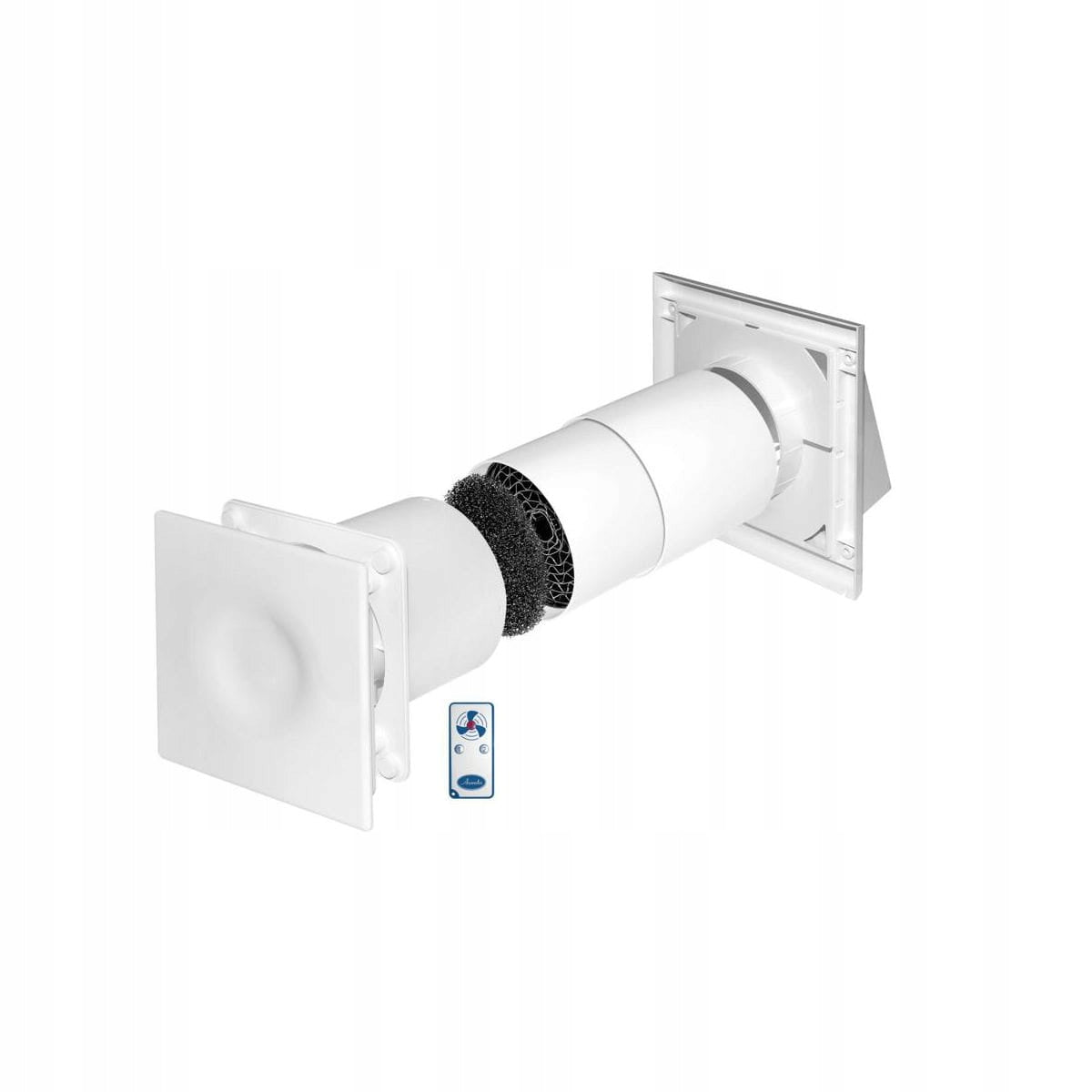

Kompaktiškas sieninis rekuperatorius Awenta HRV125 su nuotoliniu valdymu

Trumpai apie prekę

Prekė: Kompaktiškas sieninis rekuperatorius Awenta HRV125 su nuotoliniu valdymu. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Awenta
• Modelis: HRV125P

The compact recuperator HRV125P is designed for decentralized ventilation with heat recovery for use in one room in residential buildings.

The product is designed for continuous operation. It is equipped with an accumulative heat exchanger, whose task is to collect and render (recuperation) of thermal energy in the process of exhaust and air supply from the room in which it is installed.

Technical data:

• Type: Compact Wall Recuperator
• Adjustment: 2 gears, adjustable with infrared remote control
• Capacity: 50 / 70 m³/h
• Motor speed: 2100 / 2500 rpm
• Volume: 37 / 42 dB
• Power: 3 / 4,5 W
• Power supply: 230V 50Hz
• Diameter: 125 mm
• Installation: Through the wall
• Degree of protection: IPX4
• Producer: Awenta

The system operates in two modes: exhaust and air supply. Each mode can operate in two directions:

• free exhaust - free air supply
• quick exhaust - fast air supply

The duration of each mode is 60 seconds. Changing the gear is done by means of a two-position switch. Changing the position of the switch (fan operation) occurs by pulling the chain located on the front of the fan.

Installation of the device

The recuperator should be installed in the external partition / wall at an appropriate distance from sources of pollution (chimneys, exhaust gases, etc. ) so that the drawn – supplied air is free from contamination. Installation should begin with making a hole in the wall with a deviation of 2-5o from the level with a drop outside the room. The deviation is caused by the need to drain liquefied water. It is forbidden to mount the device in an upright position "in the ceiling, roof". The device does not require connection to the sewage system. The mounting height of the device is at least 2,3 m above the floor

Recuperation gives you the opportunity to reduce heat losses caused by ventilation of the room. The task of the recuperator is therefore to recover heat from the air exhausted from the room in which it is installed. The HRV series device is equipped with an accumulative heat exchanger that stops and collects heat energy to transfer it to the supply air from the outside. Thanks to this solution, it is possible to exchange fresh air at a temperature similar to the temperature in the room.

Exhaust mode

The HRV recuperator is always started in exhaust mode. The air coming out of the room after turning it on gives heat energy to the aluminum exchanger. After sixty seconds, the fan automatically switches to airflow mode.

Air supply mode

The air supplied from the outside - before it enters the room - is heated by the accumulated heat of the exchanger. Thanks to this action, the heat loss is not felt.

Scheme of electrical connection:

Connection of power cables should be made with double or reinforced insulation in accordance with the Low Voltage LVD Directive. The installer with sep 1kV permissions is responsible for the proper connection of the device. The fan supply system shall be equipped with a circuit breaker in which the contact distance is at least 3 mm.

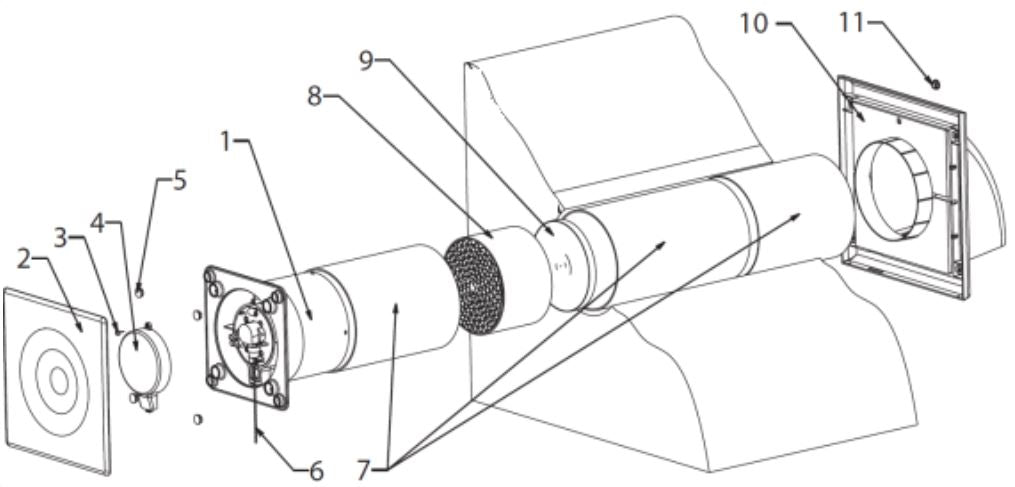

• 1 supply and exhaust fan
• 2 fan grille
• 3 screw fixing the power chamber cover
• 4 power chamber cover
• 5 Fan Mounting Screw Masking Caps
• 6 pull chain for switching between the first and second fan gear (only in the version without remote control)
• 7 telescopic ventilation duct for easy adjustment to the wall thickness of the room
• 8 aluminum accumulation heat exchanger
• 9 air filter
• 10 external end of ventilation duct
• 11 screw masking caps

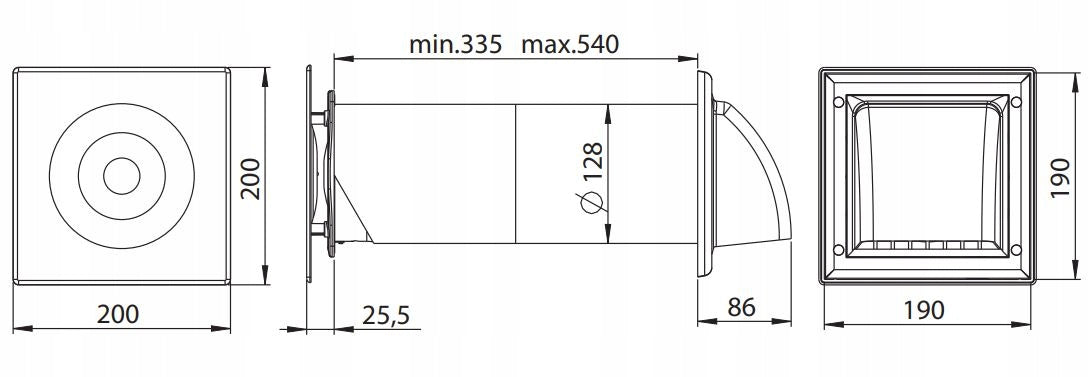

Dimensions:

Specifications
