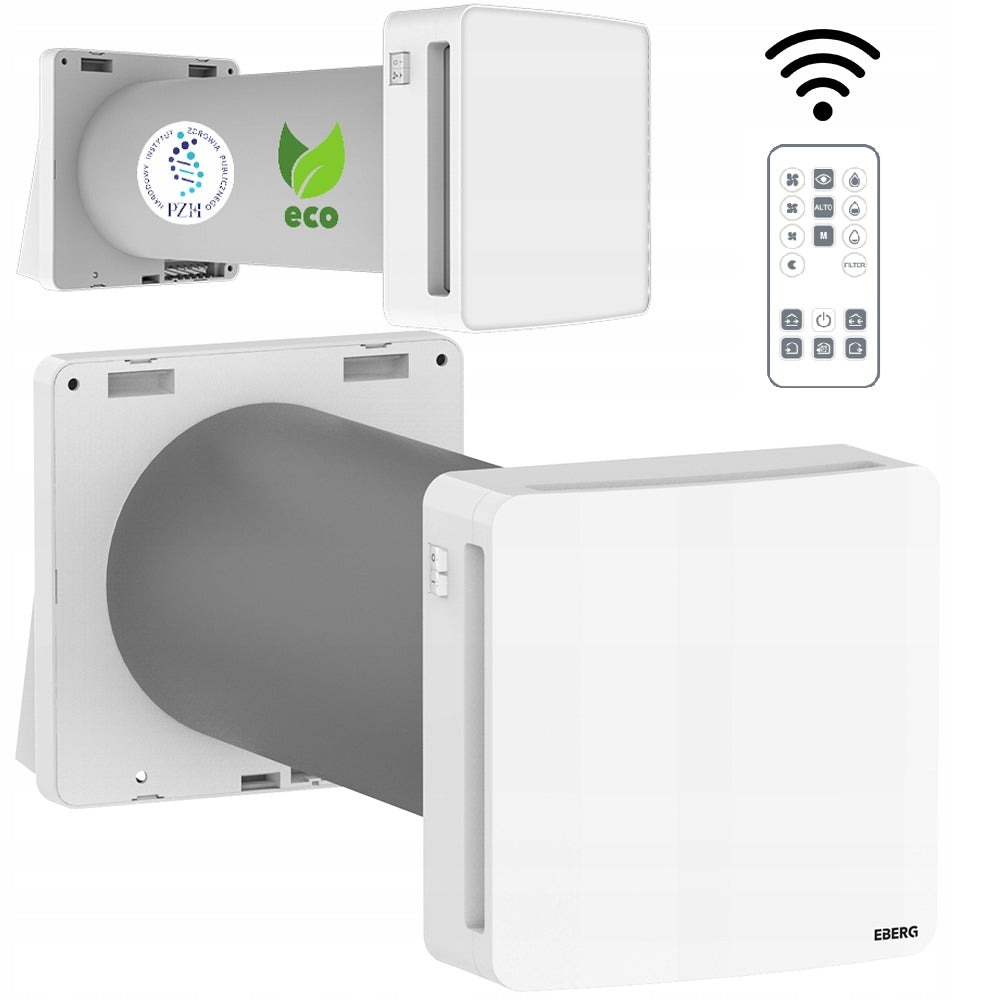

Kompaktiškas sieninis rekuperatorius REQU2 + nuotolinio valdymo pultas, 30 m³/val., drėgmės jutiklis

Trumpai apie prekę

Prekė: Kompaktiškas sieninis rekuperatorius REQU2 + nuotolinio valdymo pultas, 30 m³/val., drėgmės jutiklis. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: EBERG
• Modelis: Rekuperator decentralny REQU 2 + 100

Take care of the fresh air in your home!

Main features of EBERG REQU2 + 100:

• ✅Automatic throttle cut-off - improves energy efficiency
• ✅Humidity sensor - the ability to set the hygrostat 40%, 60% or 90%
• ✅Air flow max. up to 30 m3/h
• ✅Twilight sensor - automatic switching to night mode
• ✅Efficient ceramic exchanger – effective heat accumulation
• ✅Heat recovery efficiency up to 93% – energy saving
• ✅Wired communication between units – the ability to connect up to 16 devices
• ✅Night mode - quiet operation at a capacity of 5 m3/h
• ✅Brushless motor – smooth and energy-efficient operation
• ✅NIZP-PZH Hygienic Certificate - current certificate issued by the National Institute of Public Health

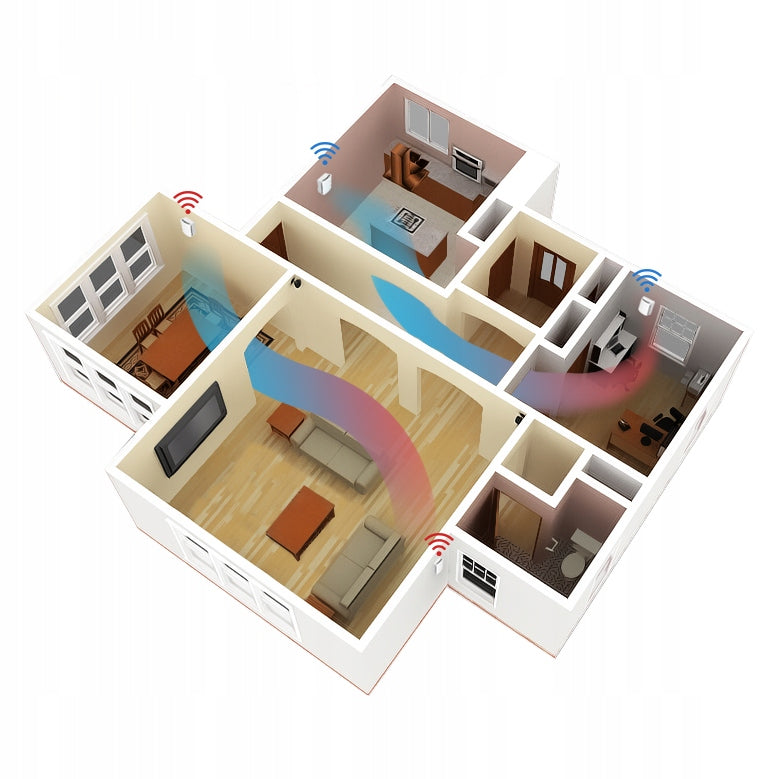

✅Wired communication – the ability to connect up to 16 devices

This solution will allow you to easily connect up to 16 devices without Control recuperator is carried out with the help of a remote control.

For more ventilation system management devices, the MASTER-SLAVE* configuration takes place.

Thanks to this, you control the operation of all units from one selected device. Enjoy comfort, silence and energy-efficient operation.

• MASTER - main unit
• SLAVE - subordinate unit

* details of connecting several devices in the MASTER-SLAVE configuration can be found in the user manual

✅Automatic shut-off throttle - improves energy efficiency

A key element of the EBERG REQU2 + 100 recuperator is the automatic shut-off throttle. It helps to keep the rooms warm when the device is not working. Thanks to this, the air from the outside does not get inside. This solution provides energy savings and comfort throughout the year. What’s more, the automatic throttle works maintenance-free, which means less worry for you.

The list of UTIs is an aid for applicants of the Clean Air Programme in the selection of equipment and materials eligible for funding.

✅ Humidity sensor and dusk sensor - intelligent condition control

The EBERG REQU2 + 100 recuperator is equipped with a humidity sensor. Thanks to it, you have full control over the level of moisture in the room. Hygrostat has 3 levels that you can set to 40%, 60% or 90%. When the value is exceeded, the recuperator will turn on automatically at maximum speed in extract mode. It will work until the reading from the sensor falls below the set value. This solution will help you maintain ideal conditions in your home.

Twilight sensor automatically switches the recuperator to night mode for quieter operation and greater comfort. The device also uses a signaling diode. It keeps you informed about the operation of the device, as well as reminds you to replace filters, which ensures trouble-free operation.

✅Efficient ceramic exchanger – heat recovery efficiency up to 93%

The EBERG REQU2 + recuperator guarantees up to 93% heat recovery, which translates into real savings on heating. Thanks to the ceramic exchanger, the device effectively accumulates heat from the exhaust air and uses it to heat the supply air. This means that your home is always full of fresh, warm air and your energy bills are lower. By investing in the EBERG recuperator, you take care of your comfort and savings while reducing energy consumption.

✅ Brushless motor – smooth and energy-efficient operation

The EBERG REQU2 + 100 wall recuperator is the perfect solution for those who value quiet and efficient operation of devices. The modern, brushless motor makes the recuperator work smoothly and consumes less energy, which translates into lower bills. Plus, the noise level is only 37 dB, so you can enjoy the fresh air in silence. This is the comfort you deserve!

✅Working modes - the ability to easily adapt to current needs

The ability to choose one of the three speeds of the fan will allow you to adjust the operation of the EBERG REQU2 + recuperator to your needs. The included remote control gives you full control over the air exchange. It will allow m.in.to select air supply mode or extract, and in the case of more devices it will allow synchronization of the direction of air flow. This solution will provide fresh air and effectively remove used. Intuitive control will allow you to easily adjust the ventilation to your expectations. This will improve comfort and quality of life while reducing your heating bills.

✅Standby mode

If you plan a longer absence from home, standby is the perfect solution. The recuperator goes to sleep, but its sensors are still working. When they detect too high humidity, the device will automatically start at full power to draw out moist air. When the moisture level returns to normal, it returns to standby mode.

✅Automatic mode

No need to worry about humidity control. In automatic mode, the recuperator itself will adjust its work, based on the humidity level in the room. Perfect air around the clock, without any of your actions.

How does the EBERG REQU2+ recuperator work?

The EBERG REQU2+ operates on the principle of variable ventilation. First, removes used air while heating the ceramic heat exchanger. Then breathes fresh filtered air, which is heated by the same exchanger. The direction of air flow changes every 70 seconds, which ensures effective air exchange.

The device effectively removes excess moisture and maintains its proper level in the room, improving the comfort and air quality in your home.

All features of the product:

• ✅ceramic exchanger - heat recovery up to 93%
• ✅wired communication - up to 16 devices can be configured
• ✅automatic shut-off damper - cold air does not enter the room
• ✅no need to drain condensate into the sewer
• ✅humidity sensor - the ability to set the hygrostat 40%, 60% or 90%
• ✅twilight sensor - automatic switching to night mode
• ✅night mode - quiet operation at a capacity of 5 m3/h
• ✅protection against contamination - filters at the inlet and outlet
• ✅ signaling diode - informs about the operation of the device or the need to replace the filter

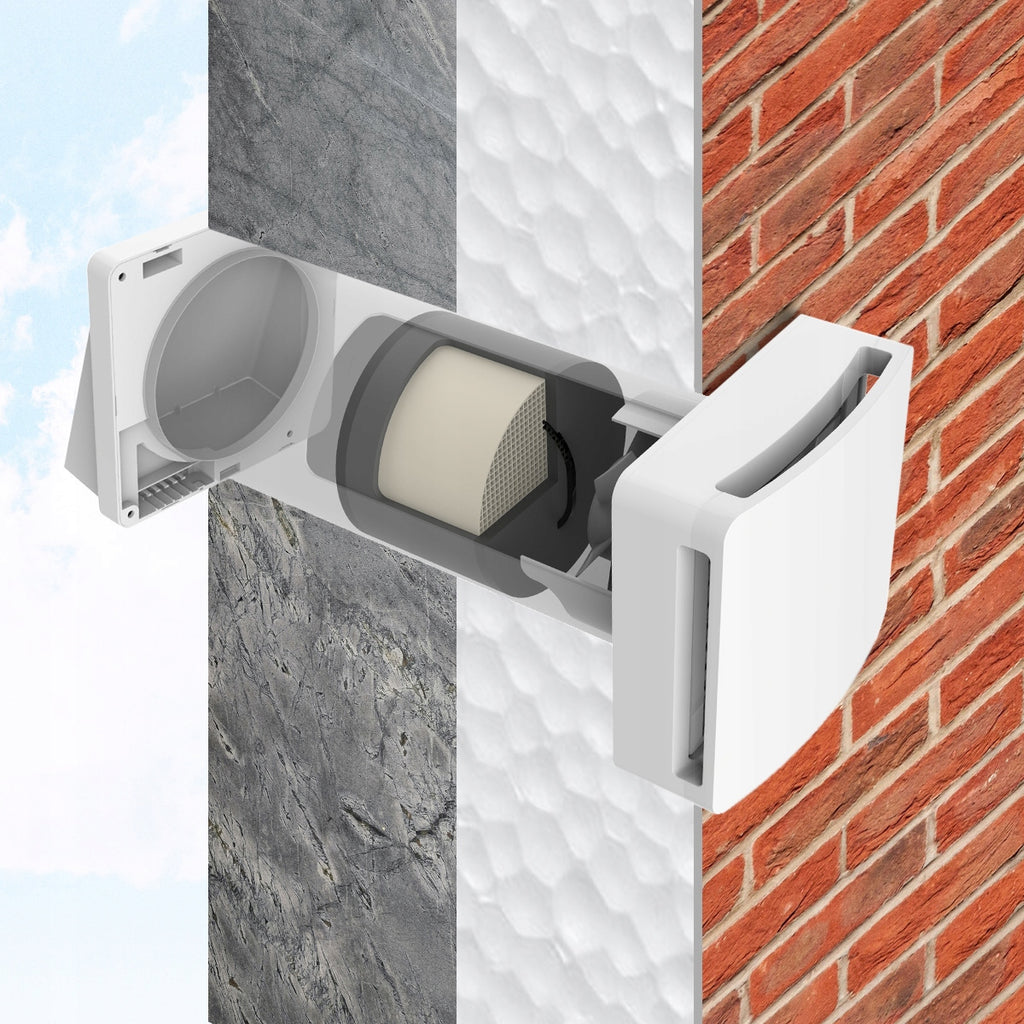

• ✅mounting in the partition 250-500 mm - can be adapted to the wall thickness
• ✅low noise - volume at 29 dB(A)
• ✅work in a wide temperature range - from -30˚C to +50˚C
• ✅easy cleaning and maintenance
• ✅durability and extended service life - made of high quality materials

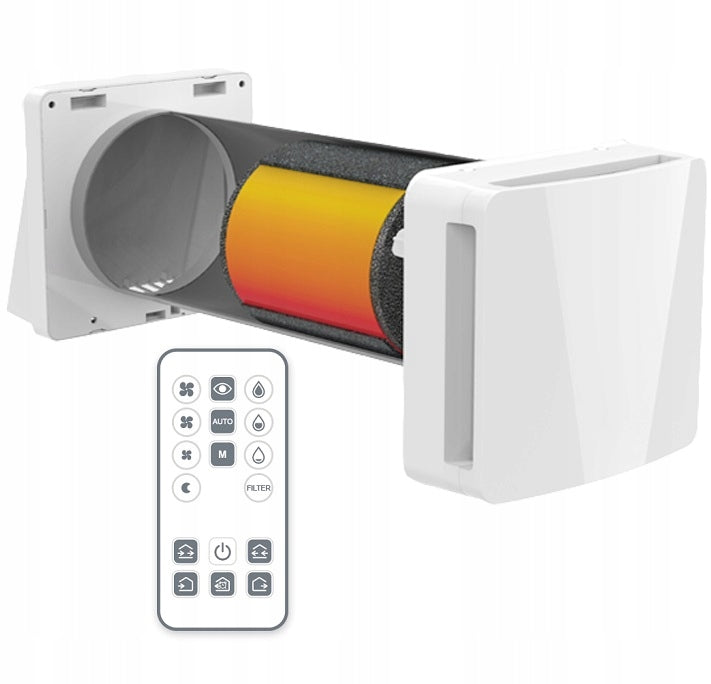

✅Description of remote control function:

• O - turn the device on/off
• S - standby mode
• A - automatic mode
• M - selection of operating mode
• V - fan speed selection
• H - setting the humidity limit
• N - night mode
• F1, F4 - direction of air flow
• F2 - air supply
• F3 - air extraction
• B - Boost mode
• R - filter reset

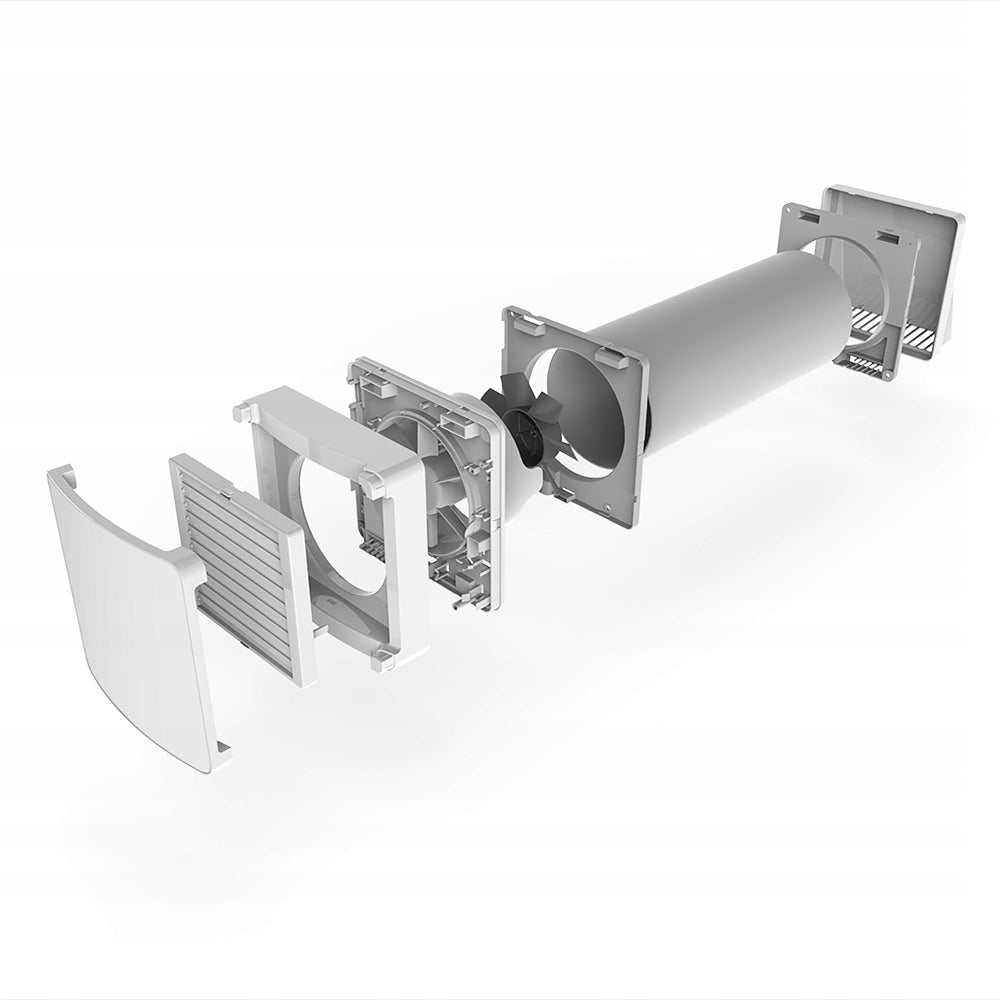

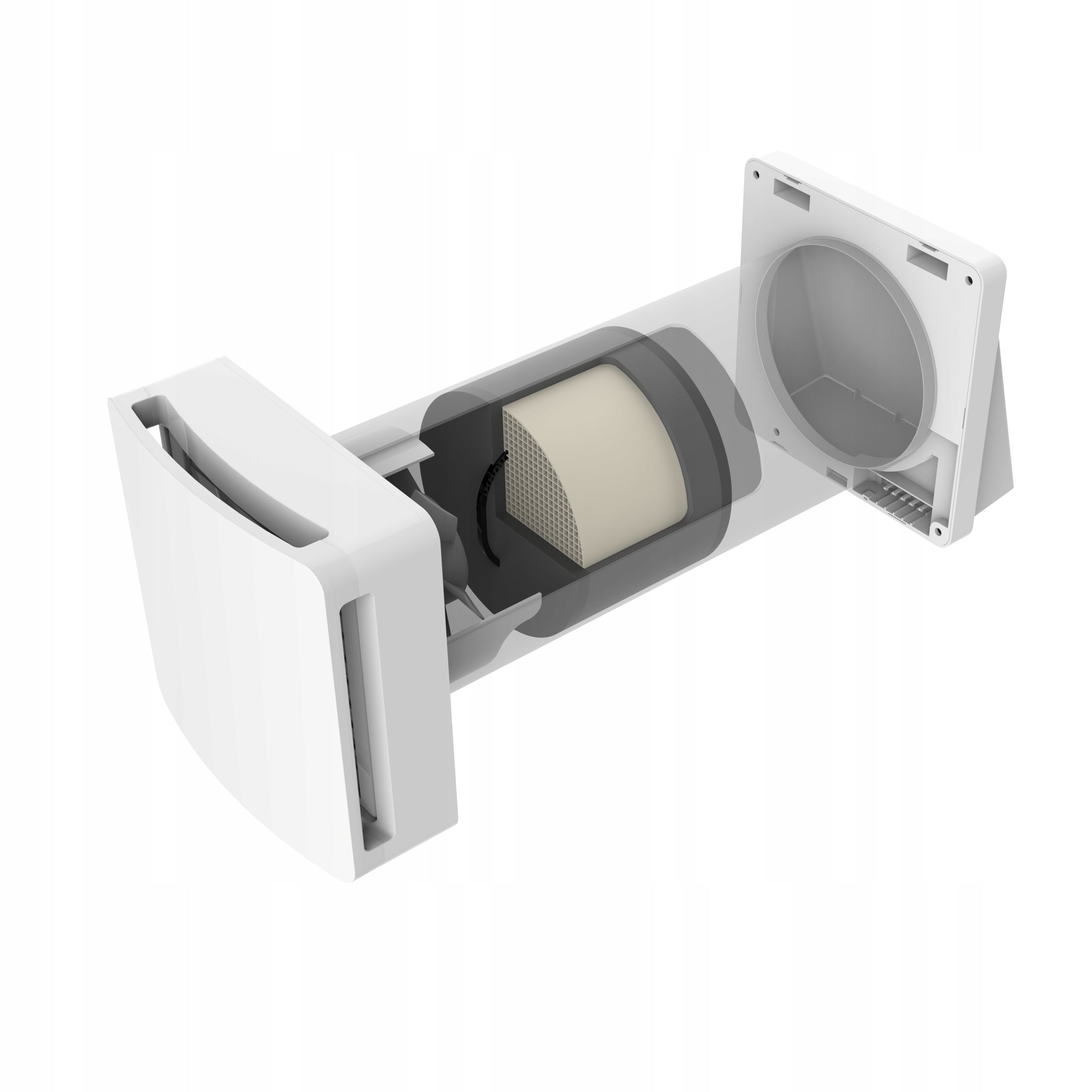

Construction and dimensions of the recuperator EBERG REQU2 +

The device consists of:

• grilles
• cutting throttle
• principal unit
• fan
• filters
• ceramic exchanger
• channel length 500 mm
• external grille

Technical data:

• Model: REQU2 + 100
• Air flow max: 30 m³/h
• Mounting hole diameter: 100mm
• Power max. 6,9 IN
• Voltage: 50Hz
• Power supply: 220-240Vac
• Temp. Environment: from -30˚C to +50˚C
• Sound pressure: 29dB(A)/3mb
• Degree of protection: IPX4
• Weight: 4,4kg
• Producer: EBERG

❗The new EBERG REQU2 series recuperators are not compatible with the previous REQU series
