Kompaktiškas sieninis rekuperatorius VANTUBO RECDUO 100 BASE, Italija

Trumpai apie prekę

Prekė: Kompaktiškas sieninis rekuperatorius VANTUBO RECDUO 100 BASE, Italija. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Vantubo
• Modelis: VANTUBO RECDUO 100

⚜ Local ventilation system with heat recovery ⚜

⭐⭐⭐⭐⭐

✅ Recovery efficiency up to 90%

✅ Compact front panel dimension: only 16 cm x 16 cm

✅ Does not require the use of cut-off throttle, designed for continuous operation 24/24h.

✅ Sleep/min/medium/max air flow: 30 / 40 m3/h

✅ Power consumption min / Wed / max: 2,8 / 3,5W

✅ Noise level min/medium/max: 15 / 29 dB (A ) (at a distance of 3 m )

✅ 220-240 V power supply

✅ 50/60 Hz voltage

✅ Insulation Class: IPX4

✅ Diameter 107mm

✅ Filtration G3

Option: protection against intense wind / noise.

⚜ Functions of the device VANTUBO RECDUO ⚜

✅ Two fan speeds

✅ automatic inlet 60 seconds / outlet 60 seconds.

✅ Ceramic recuperation system "honeycomb" recovering up to 90% of heat from the ejected air. It draws air from outside the building, introduces it into the room and then ejects the used air outside.

✅ Capacity up to 40 m³/h, is sufficient to ensure adequate indoor air exchange. This device is suitable for living rooms and office spaces.

✅ Washable dust filters (no need to purchase consumables)

✅ Automatically return to the last settings after resuming power supply

✅ Microprocessor controlled, brushless DC motor provides very quiet operation.

✅ It does not require expensive ventilation ducts.

✅ Changes the air in an optimal way.

✅ There is no need to drain the condensate.

✅ LED on the body indicating the current operating mode and the need to clean the filter.

✅ Low energy consumption which is confirmed by the excellent energy class.

✅ Easy cleaning and maintenance

✅ Optional wall-mounted air flow speed and direction controller (RLS)

✅ Timer with adjustable from 0 to 30 minutes

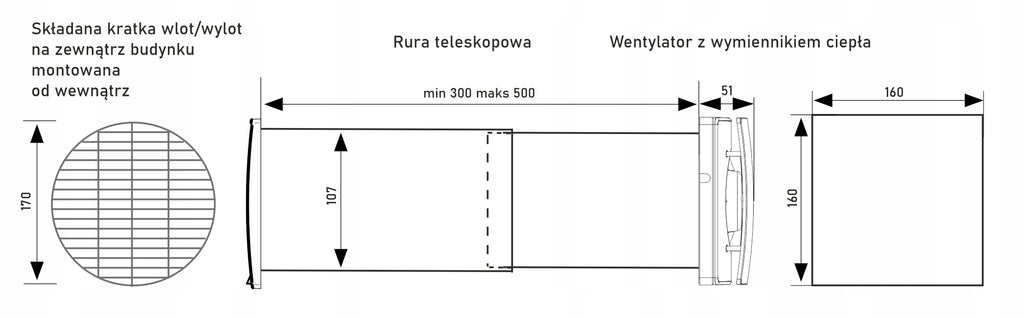

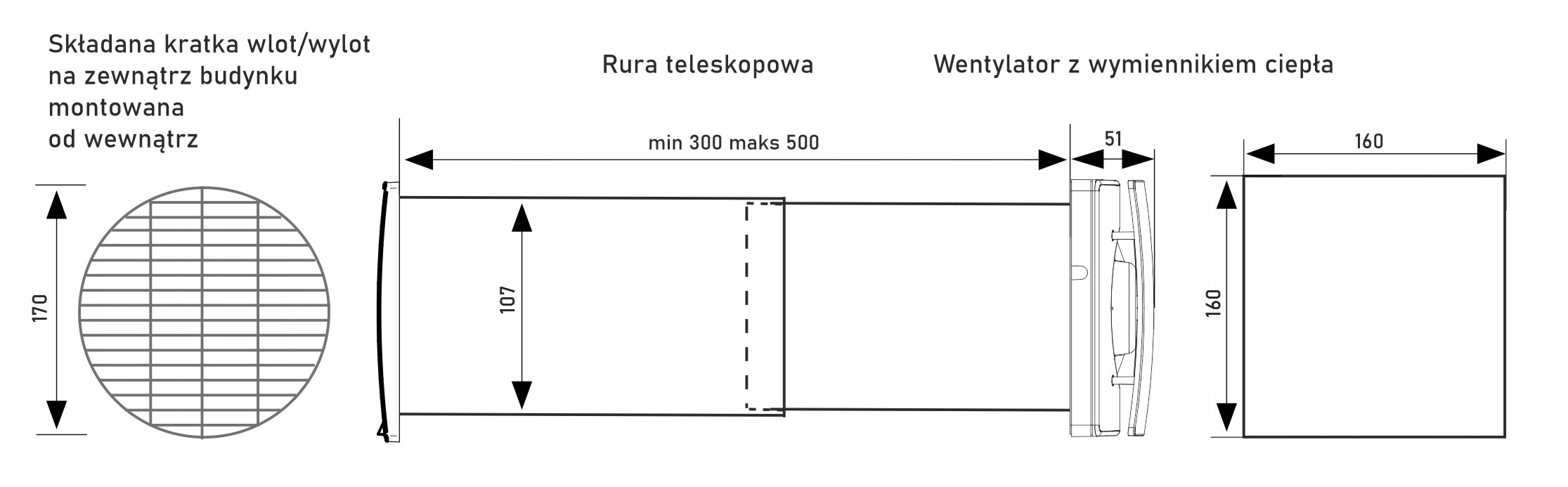

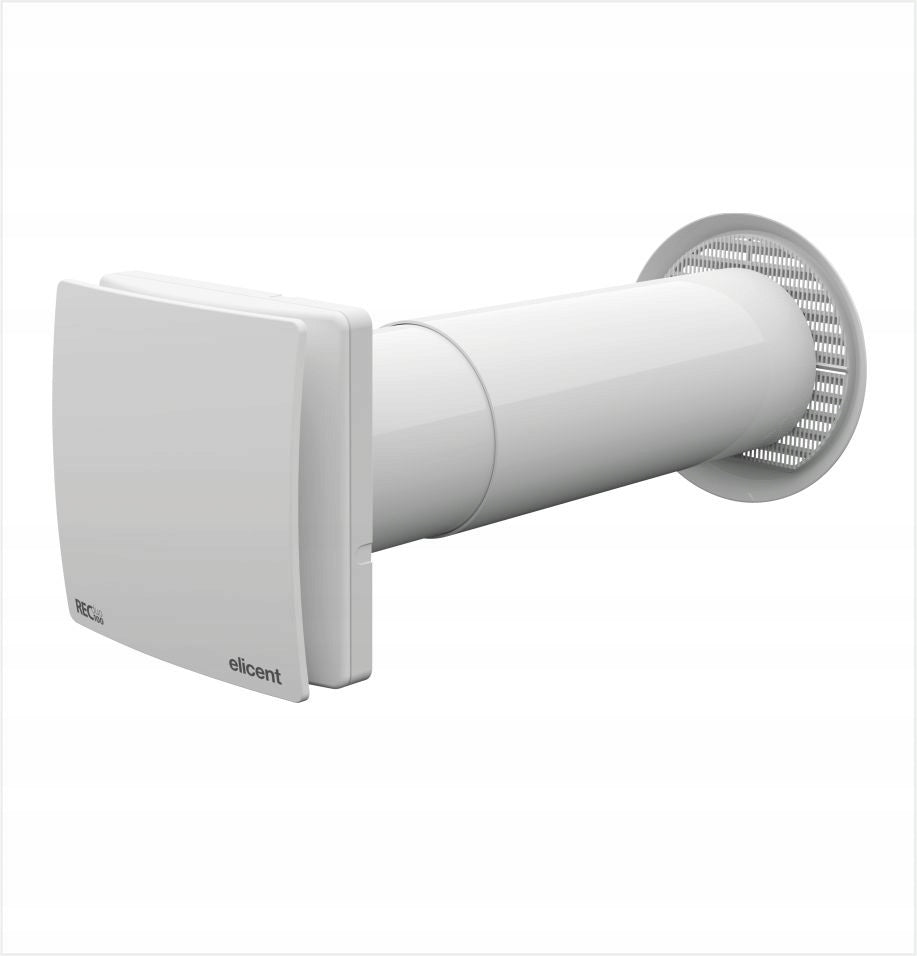

⚜ Construction of the device ⚜

1. Fan with brushless motor

2. Washable air purifying filters

3. Grille mounted from the inside

4. Matte white high quality plastic fan cover

5. Indicator diode

6. Adjustable telescopic channel for wall mounting

7. Ceramic heat exchanger

⚜ RECDUO ⚜

✅ Low cost compared to duct ventilation

✅ Provides oxygen-rich fresh air

✅ Hardens the spread of viruses and bacteria

✅ Removes excess moisture preventing i.a. mold

✅ Removes amount of CO2 and pollutants in the air

✅ Removes allergens and mites

✅ Reduces smoke and bad odors

✅ Minimizes heat loss

1. Air blown into the room 20°C

2. Ceramic recuperator, honeycomb heat exchanger

3. Air in the room 23°C

4. Air taken from outside the building 10°C

The device meets the requirements of for mechanical ventilation systems with heat recovery.

Possibility of financing up to 60% from the Clean air program.

More information in the GUIDE download below.

⚜ ASSEMBLY ⚜

✅ There is no need to distribute ventilation ducts throughout the building.

✅ The device is mounted on the external wall from the inside.

✅ All you need is one hole with a diameter of 10 cm and a power connection.

✅ Telescopic pipe allows you to adjust its length to the thickness of the wall.

✅ The special design of the ventilation grille allows it to be installed from the inside.

Why is it worth using decentralized mechanical ventilation with VANTUBO recuperation?

1. A person spends more than 90% of his life in closed rooms.
2. It breathes on average 22 thousand times a day, passing an average of 12 thousand liters of air through its lungs.
3. It must therefore be fresh and full of oxygen and not carbon dioxide and pollutants.
4. Meanwhile, indoor air is often up to five times more polluted than outdoor air.
5. Removing excess moisture eliminates the problem of condensation of water vapor.
6. Excessive moisture destroys the structure of the house and causes damage to its equipment.
7. Ventilation eliminates fungal and mold spores, which are dangerous to humans.

⚜ VANTUBO RECDUO BASE ( this offer ) ⚜

✅ Performance up to 40m3/h

✅ Heat recovery up to 90%

✅ 2 speeds fan

✅ Control via room light switch

✅ RLS controller control ( option )

⚜ VANTUBO RECDUO MHY ( another our offer ) ⚜

✅ Performance up to 40m3/h

✅ Heat recovery up to 90%

✅ 2 speeds fan

✅ Humidity sensor - hygrostat

✅ Control via room light switch

✅ RLS controller control ( option )

⚜ VANTUBO RECDUO PLUS (other our offer) ⚜

✅ Performance up to 40m3/h

✅ Heat recovery up to 90%

✅ Night mode

✅ 3 speeds fan

✅ Humidity sensor (hygrostat )

✅ Radio remote control
