Prekė: Kondensatorinė suvirinimo mašina STW-4, vinims, 230V. Kategorija: Sandarikliai.
- Gamintojas: IDEAL
- Modelis: STW-4
- Įtampa: 230 V
❇ Capacitor Welding❇ Synergistic/Manual❇ Mode For 3-10mm Pins and Nails
GZ. The STW-4 welding machine is designed for fast and precise welding of pins and pins/nails GZ by electric discharge method. Ideal for aluminum, steel, INOX, brass and insulation installation.
✅Capacitor welding: Instant welding time 4ms without deformation of the material.
✅Synergic mode: Automatic selection of voltage to the diameter and type of pin.
✅Voltage correction: Precise voltage regulation in synergistic mode.
✅Manual mode: Full range of individual voltage settings.
✅ Versatile Application: Welding pins 3-10mm for various metals.
✅Insulation installation: GZ nail electrode for fixing insulating wool.
✅Clean Process: No distortion even on painted, plastic or galvanized surfaces.
✅Efficient Cooling: The fan increases the efficiency of the device.
✅Easy Operation: Intuitive control panel.
✅Portable: Compact size and weight 14 kg.
The STW-4 welding machine is ideal for:
- Welding pins to aluminum.
- Welding pins for low carbon, stainless and galvanized sheets.
- Welding pins to brass.
- Installation of insulating wool to galvanized sheet using GZ nails.
- Work requiring fast and clean connection of elements.
- Applications in industry, workshops and services.

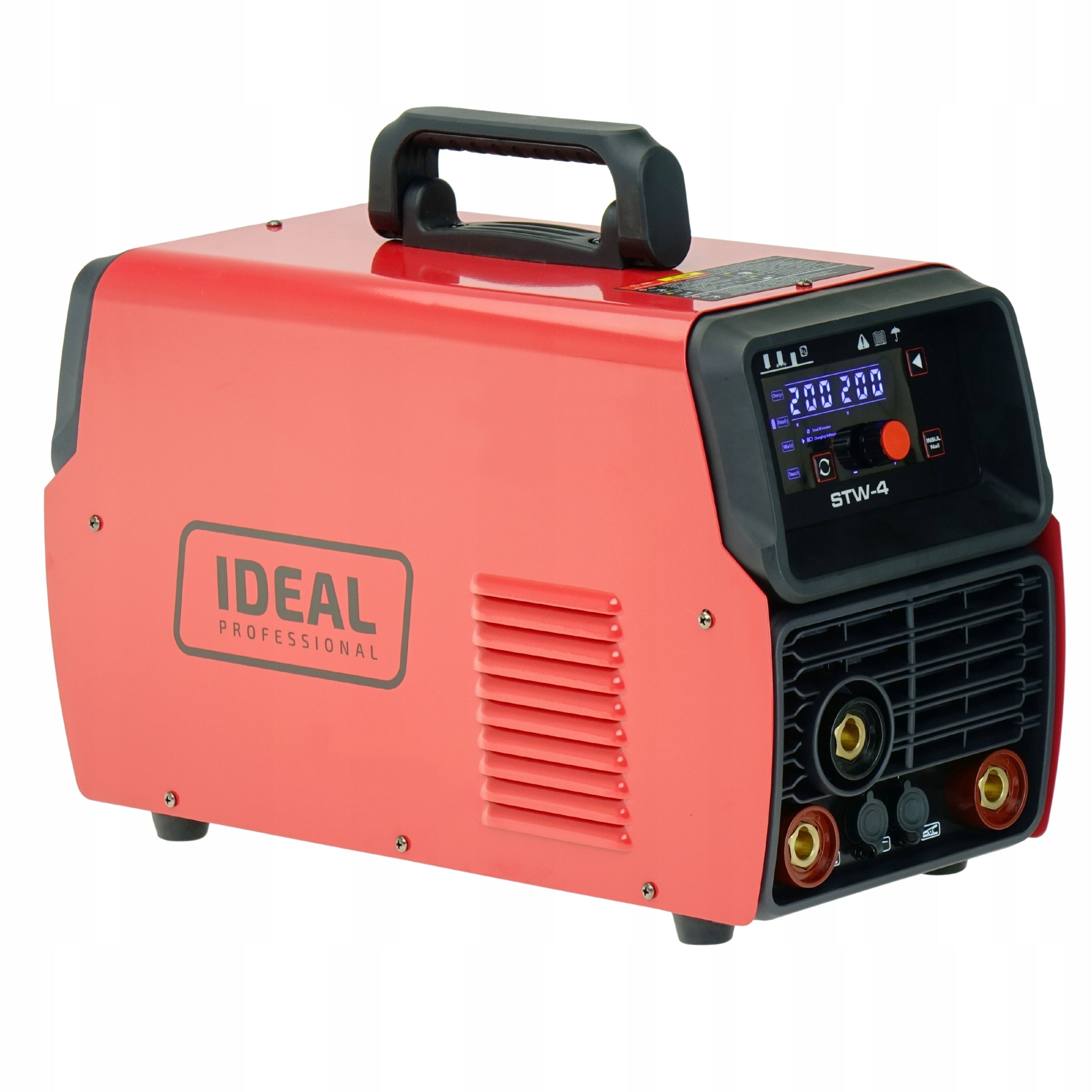

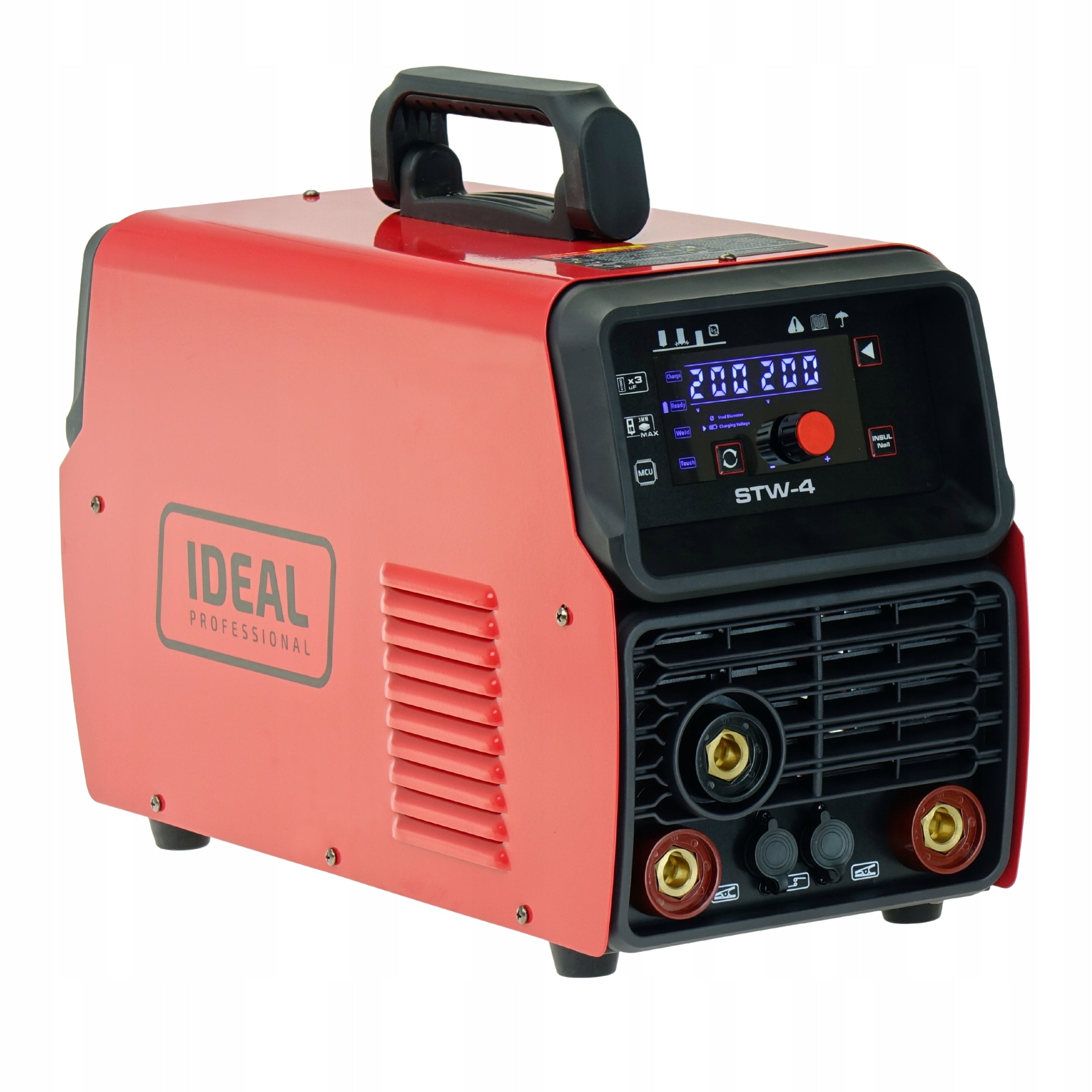

WELDING MACHINE OF PINS NAILS STW-4
- EAN: 5903991111050
- Symbol: STW-4
- Rated supply voltage: 230V; 50/60Hz (1-phase, with plug)
- Diameter of welded pins: 3 ÷ 10 mm
- Maximum length of mandrels (M3-6): 45 mm
- Maximum length of mandrels (M8-10): 20 mm
- Welding time: 4 ms
- Number of welds per minute: 15 to 30
- Degree of protection: IP21S
- Weight: 14 kg
- Device Dimensions (L x W x H): 490 x 215 x 340 mm
- Package Dimensions (L x W x H): 550 x 320 x 385 mm
- Power supply network protection: C16 A
- Operating Modes: Synergistic, Manual

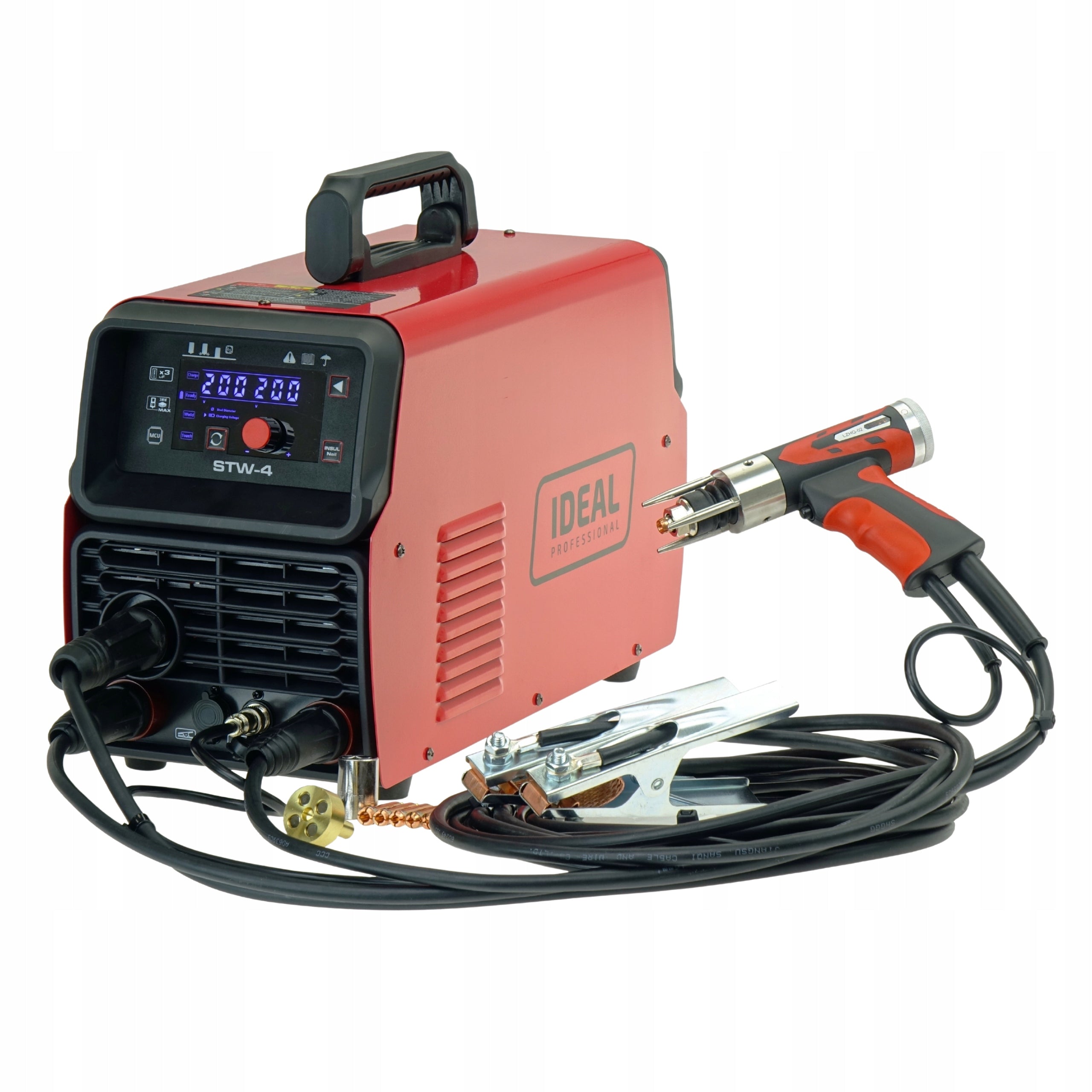

Includes:
- STW-4 stud welding machine
- Detachable mass cable
- Welding gun
- M4 electrodes
- M5 electrodes
- M6 electrodes
- M8 electrodes
- M9 electrodes
- M10 electrodes
- Electrode for nails GZ 35 mm
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | IDEAL |
| Parametry | Series | STW |
| Parametry | Maximum power | 100000 W |
| Parametry | Power supply | mains |
| Parametry | Supply voltage | 230 V |
| Parametry | Product weight with unit packaging | 16 kg |
| Parametry | Device weight | 14 kg |
| Parametry | Manufacturer code | STW-4 |
| Parametry | EAN (GTIN) | 5903991111050 |
| Parametry | Batteries included | no |
