Pristatymo terminas visoje Lietuvoje: 5-7 d.d.
Pristatymo kaina nurodytu adresu: 3 eur
Aprašymas
Trumpai apie prekę
Prekė: Kondensatorinė suvirinimo staklės Stamos Germany 1600J, M3-M8 varžtams ir kaiščiams, 230V. Kategorija: Sandarikliai.
- Gamintojas: Stamos
- Modelis: 4904968068484
- Įtampa: 230 V
Manufacturer name:S-STUD1600

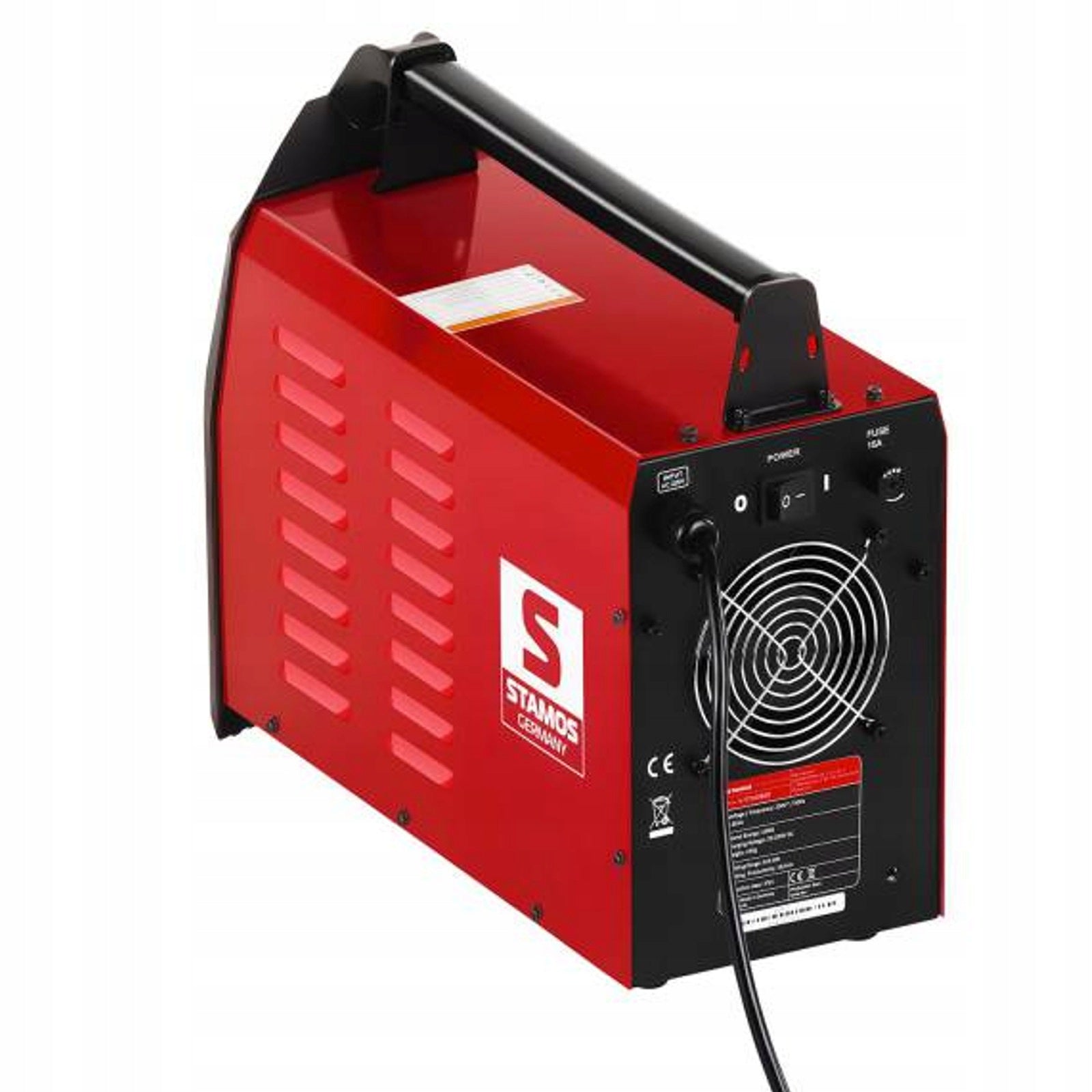

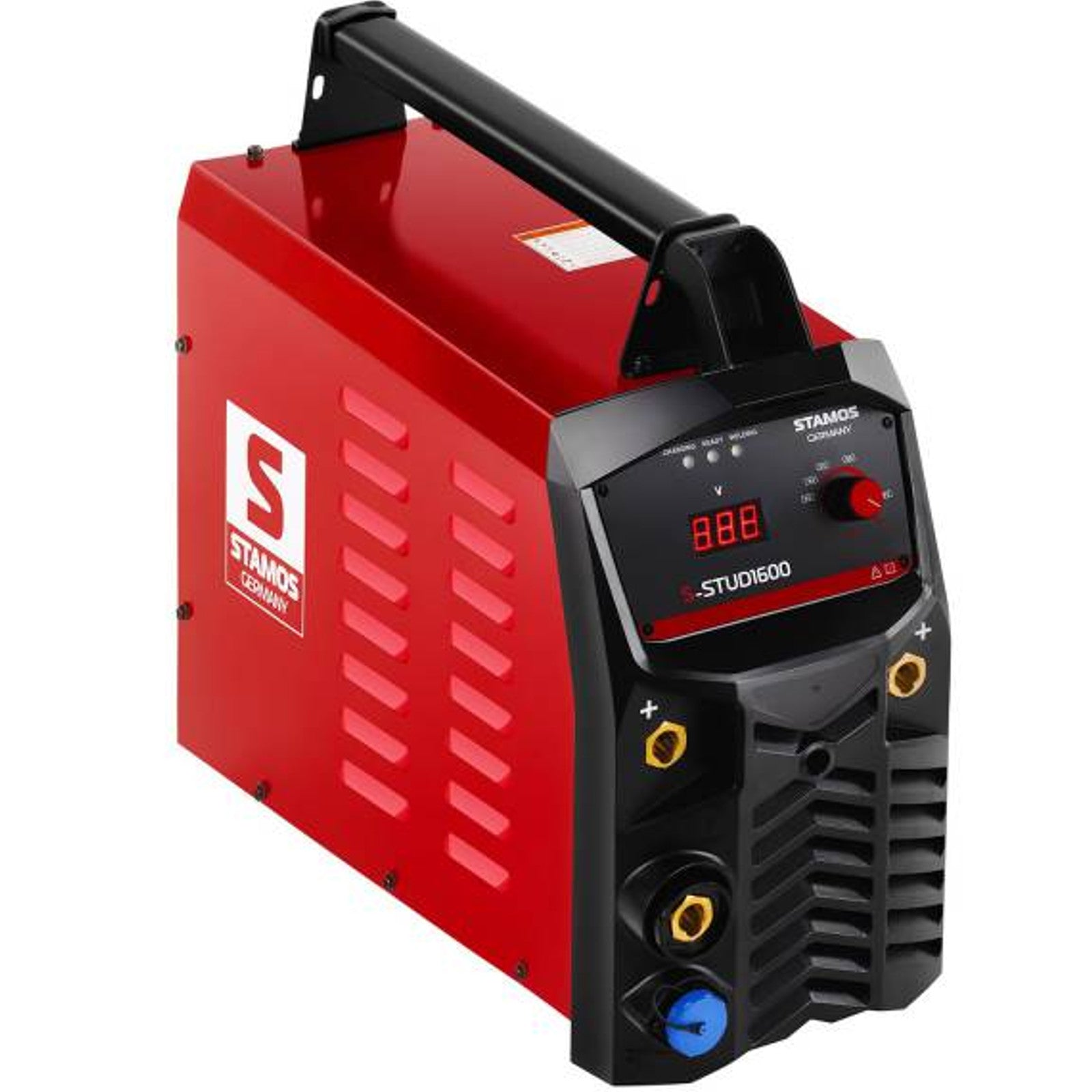

The capacitor welding machine from Stamos Germany enables efficient and fast welding of screws, pins, nails and studs to metal surfaces. The S-STUD1600 is suitable for work related to metalwork and assembly, e.g. sheets, insulation and fences. The model leaves high-quality welds.
The capacitor capacity of 72000 uF and energy of 1600 J provide the equipment with high efficiency. The machine can handle materials such as e.g. copper, aluminum, titanium, steel (also stainless) and brass. Pre-treatment or finishing is not necessary.
The M3, M4, M5, M6 and M8 pins fit into the Stamos Germany welding machine (max. length 40 mm). They are loaded with a three-pin pistol. The set includes handles to hold the pegs.
Features:
- Quick weld
- Durable welds
- Pressure adjustment
- Stepless voltage setting
- Steel and plastic housing
- Easy-to-read control panel
Technical parameters:
- - Model - S-STUD1600
- - Catalog No. - 2158
- - Article status - New
- - Housing material - Steel, plastic
- - Voltage - 230 V / 50 Hz
- - Welding voltage - 20 – 195 V
- - Rated power - 500 kVA
- Capacitor capacity - 72000 uF
- - Energy stored - 1600 J
- - Welding range - Ø 3 – 8 mm / M3 – M8
- - Max. length of studs - 40 mm
- - Welding capacity - 10 – 20 welds/min.
- - Length of welding gun cable - 4 m
- - Length of mass cable - 2 x 4 m
- - Length of power cord - 2,2 m
- - Dimensions (LxWxH) - 56 x 21 x 38 cm
- - Weight - 19 kg
- - Shipping dimensions (LxWxH) - 65 x 32 x 43 cm
- - Shipping weight - 26 kg

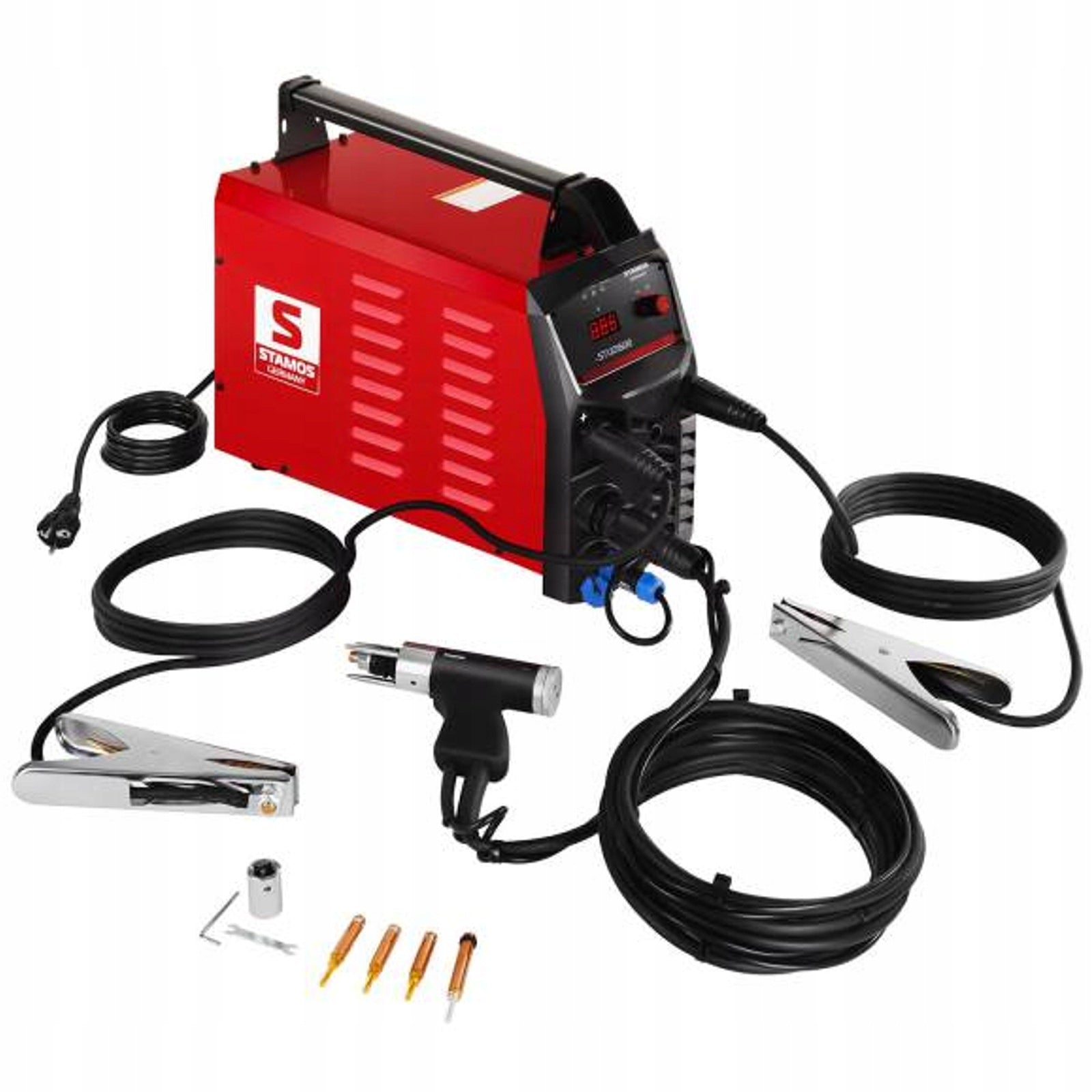

Included:
- Capacitor welding machine
- Welding gun with cable – 4 m
- Handles for M3, M4, M5, M6, M8 studs
- Mass cable with clamp – 2 pcs. after 4 m
- Mounting key
- Instruction PL
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Stamos |
| Parametry | Series | 4904968068484 |
| Parametry | Maximum power | 500 W |
| Parametry | Power supply | mains |
| Parametry | Supply voltage | 230 V |
| Parametry | Product weight with unit packaging | 35.36 kg |
| Parametry | Device weight | 19 kg |
| Parametry | Manufacturer code | 4904968068484 |
| Parametry | EAN (GTIN) | 4904968068484 |
| Parametry | Batteries included | no |
| Parametry | Certificates of conformity | CE |
