Kondensatorių suvirinimo aparatas 1600J 72000µF STAMOS S-STUD1600 10020158

Trumpai apie prekę

Prekė: Kondensatorių suvirinimo aparatas 1600J 72000µF STAMOS S-STUD1600 10020158. Kategorija: Sandarikliai.

• Gamintojas: Stamos
• Modelis: 10020158
• Įtampa: 230 V

✅ Brand Model: Stamos - S-STUD1600

✅ Catalog No.: 10020158

✅ CE Certificate / Certificate: Yes

➡ Technical data:

⭐ Dimensions (LxWxH): 56 x 21 x 38 cm

⭐ Frequency [Hz]: 50

⭐ Handle wrench: M3, M4, M5, M6, M8

⭐ Energy stored: 1600 J

⭐ Maximum stud length: 40 mm

⭐ Rated power [kVA]: 500

⭐ Voltage [V]: 230

⭐ Welding voltage [V]: 20 - 195

⭐ Capacitor capacity [µF]: 72000

⭐ Welding gun cable: 4 m

➡ Technical data:

⭐ Ground wire: 3 m

⭐ Weight: 19 kg

⭐ Shipping weight: 26 kg

⭐ Welding capacity [pcs. /min]: 10 - 20

⭐ Shipping dimensions (LxWxH): 61 x 38 x 46 cm

⭐ Welding range: Ø3 - 8 / M3 - M8

⭐ High efficiency: with capacitance of 72000 µF capacitor and storage energy of 1600 J

⭐ Fast welding progress: attaches up to 20 pins, threads or rivets per minute

⭐ Precise results: welding range from M3 to M8 (markings on voltage regulator)

⭐ Easy operation: LED display and rotary voltage control knob

⭐ Versatile use: for most metals (stainless steel, aluminum, copper, titanium), without the need for preparation

Connecting elements such as pegs,

is a real challenge in metalworking due to the heavy load. The S-STUD1600 capacitor welding machine can handle even hard metals thanks to its high capacitance of 72000 µF capacitor and storage energy of 1600 J. With CD ignition, you can quickly melt the tip of the pin and the material being processed. When pressed, the arc will go out, and both parts will be permanently connected to each other. This will allow you to heat up to 20 dowels per minute. You can use the machine for sheets from 0,5 mm thick.

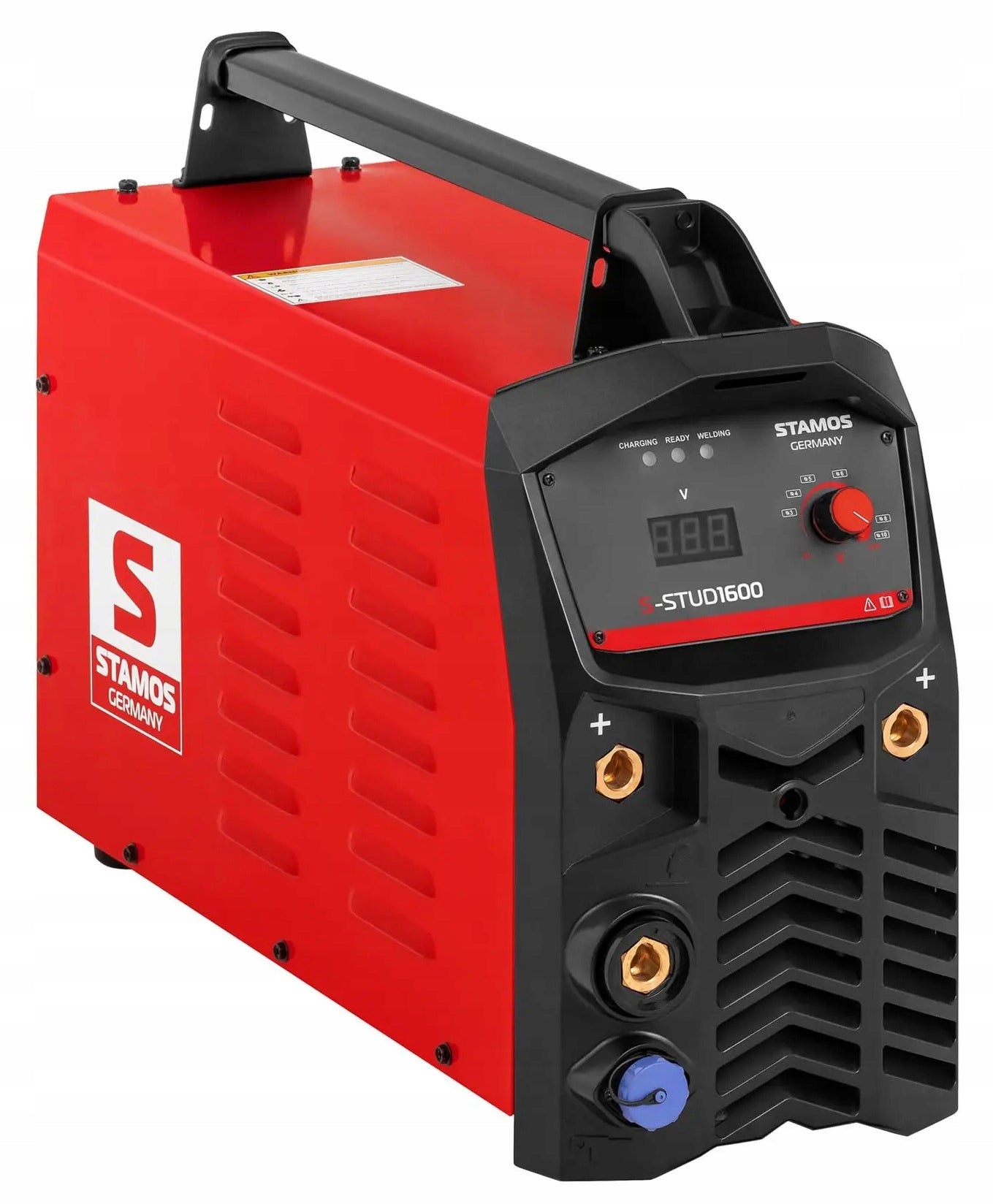

The stud welding machine is easy to use

and has a clear control panel. A large, modern LED screen is placed next to the voltage regulator 20 - 195 V. On it there are three status indicators (charging, ready to work, welding). The device is designed for threaded or cylindrical pins with a size from M3 to M10 and a maximum length of 40 mm. A separate handle is available for each size (except M7). On the welding gun, you can set the pressure smoothly. Three cylindrical pistol shanks will ensure precise, vertical positioning of the pins. The smooth-running regulator has markings with which you can optimally choose the voltage for different sizes of studs. Two ground wires will improve conductivity and increase short circuit protection.

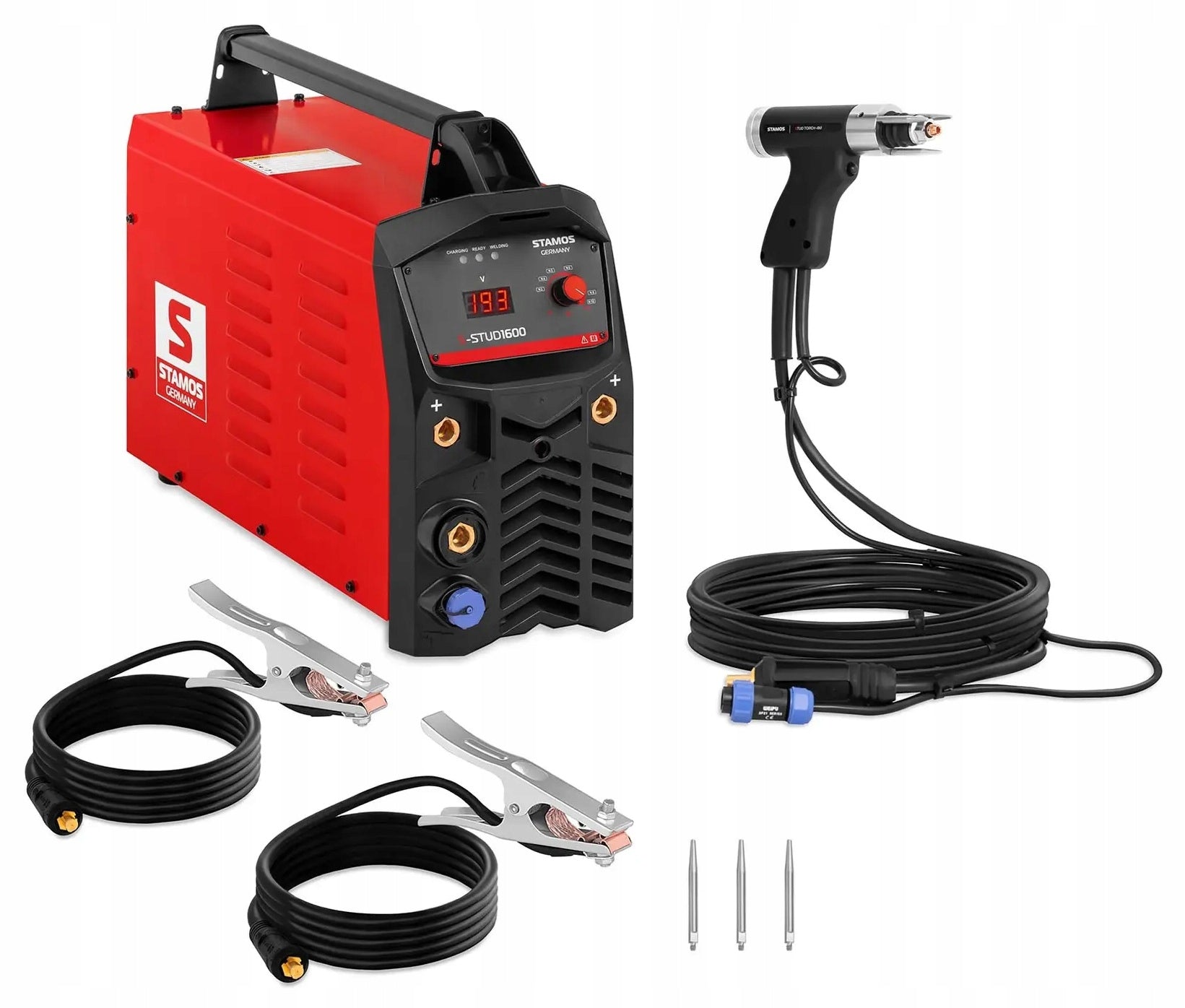

Scope of delivery:

⭐ Capacitor welding machine S-STUD1600

⭐ 2 ground wires with clamps (3 m)

⭐ Wrench for handle

⭐ Welding gun with cable (4 m)

⭐ Handles, M3, M4, M5, M6, M8

⭐ User Manual

⭐ Packaging

This product is also ideal as a gift.

Other photos below:

Specifications
