Kortelių skaitytuvas AXAGON CRE-SM3T, USB, 1,3 m laidu

Trumpai apie prekę

Prekė: Kortelių skaitytuvas AXAGON CRE-SM3T, USB, 1,3 m laidu. Kategorija: Tachografų skaitytuvai.

• Gamintojas: no brand
• Modelis: CRE-SM3T

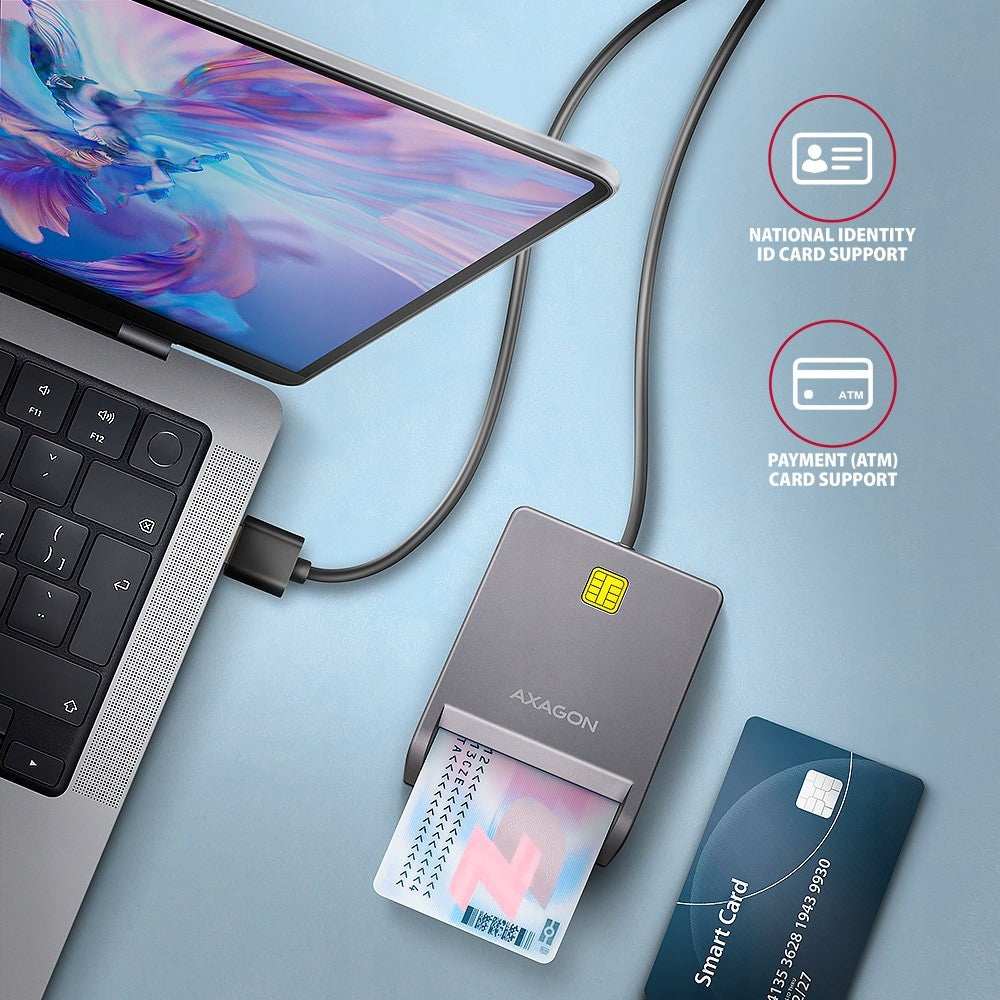

Compact desktop Smart card / ID card readerAXAGON CRE-SM3T FlatReaderwith USB 2.0 interface. It is particularly suitable as a identification card readerfor use with computers equipped with a USB input. The most popular USB-A connector provides connection to almost every new and older computer.

Thanks to thePlug&Play function, the reader is immediately ready to work, without the need to install drivers. To be able to continue working with the inserted card, simply install the appropriate application.

The reader is compatible with most national eID (electronic identification cards) applications.

The card reader supports all common formats of contact electronic cards, chip cards and other contact cards, including payment cards or contactelectronic identification cards*. Compatibility with all popular operating systems, such as Windows, Linux, macOSiAndroid, allows for wide application on computers and laptops, as well as smartphones and tablets.

The smart LED indicator lights up immediately after changing activity, after which it turns off and does not disturb the user with unnecessary light. Compact design, high-quality workmanship, non-slip pads and long cable ensure easy and trouble-free operation.

Input:

• USB 2.0 CCID protocol.
• Backwards compatible with USB 1.1.
• Connection via USB 2.0 type A male connector.
• To connect to a phone or tablet with a USB-C connector, we recommend reducing USB-C - > USB-A, e.g. AXAGON RUCM-AFAC. To connect to a phone with a micro USB connector, we recommend reducing OTG micro USB - > USB-A.

Card reader:

• 1 slot supports ATM/CAC/ID/IC/SIS cards.
• Supports ISO 7816, Class A, B and C (5V, 3V and 1.8V) compliant contact Smart cards.
• Supports ISO 7816, EMV 4.1 (EMV 2000 level 1) standards.
• Supports T=0 and T=1, I2C, SLE 4432/42 (S=10), SLE 4418/28 (S=9).
• Support for PC/SC 2.0 PC Smart Cards.
• Microsoft Smart Card for Windows support.
• Support I2C cards SLE4418, SLE4428, SLE4432, SLE4442, SLE4436, SLE5536, SLE6636, AT88SC1608, AT45D041.
• Compatible with Microsoft WHQL USB Smart Card Reader.
• Compliance with FIPS 201 standard.

Further properties:

• Compatible with Microsoft USB-CCID driver.
• Plug and Play support.
• Standby support, automatic standby.
• Powering the reader via USB bus (bus-power).
• The LED signals the connection of the computer's USB port (permanent illumination) and data transmission (flashing).
• The LED indicator lights up as soon as the activity changes, then turns off and does not interfere.
• Non-slip rubber pads to prevent spontaneous movement around the table.
• Dimensions 89 x 65 x 15 mm, cable length 1.3 m.
• Weight 56 g.

Supported operating systems:Windows 7 / 8.1 / 10 / 11 and later, macOS and Android.

To work with the Smart Card, it is necessary to install the appropriate application in the connected device.

*Note: The reader only supports cards with visible connectors on the surface. Cards without connectors work through an RFID system and are not supported by this reader.

Package includes:

• Smart USB card reader with 1.3 m cable,
• Multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / SK / SWE / TR / UA / BG / CN / ARA,

Packaged in a cardboard box with a hole for hanging.

• Interface: USB 2.0
• Supported Cards: ATM, CAC, IC, ID, SIS
• I/O Ports: 1 x Smart-Slot
• Supported Protocols and Standards: Supports contact Smart Cards compliant with ISO 7816, Class A, B, and C (5V, 3V, and 1.8V). Supports ISO 7816, EMV 4.1 (EMV 2000 Level 1) standards. Supports T=0 and T=1 protocols, I2C, SLE 4432/42 (S=10), SLE 4418/28 (S=9). PC/SC 2.0 Smart Card support. Microsoft Smart Card for Windows support. Supports I2C cards SLE4418, SLE4428, SLE4432, SLE4442, SLE4436, SLE5536, SLE6636, AT88SC1608, AT45D041. WHQL USB Smart Card Reader compliance. FIPS 201 standard compliance.
• Supported Operating Systems: Android, Linux, Windows, Mac OS, Windows 7, Windows Server 2012, Windows 8, Windows 8.1, Windows 10, Windows 10 Home, Windows 10 Pro, Windows Server 2016, Windows Server 2022, Windows Server 2019, Windows 11 Home, Windows 11, Windows 11 Pro
• Included Accessories: USB Smart Card Reader with permanently attached 1.3m cable. Multilingual Manual (CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / SK / SWE / TR / UA / BG / CN / ARA)
• Color: Black
• Dimensions: 89 x 65 x 15 mm
• Weight: 56 g
