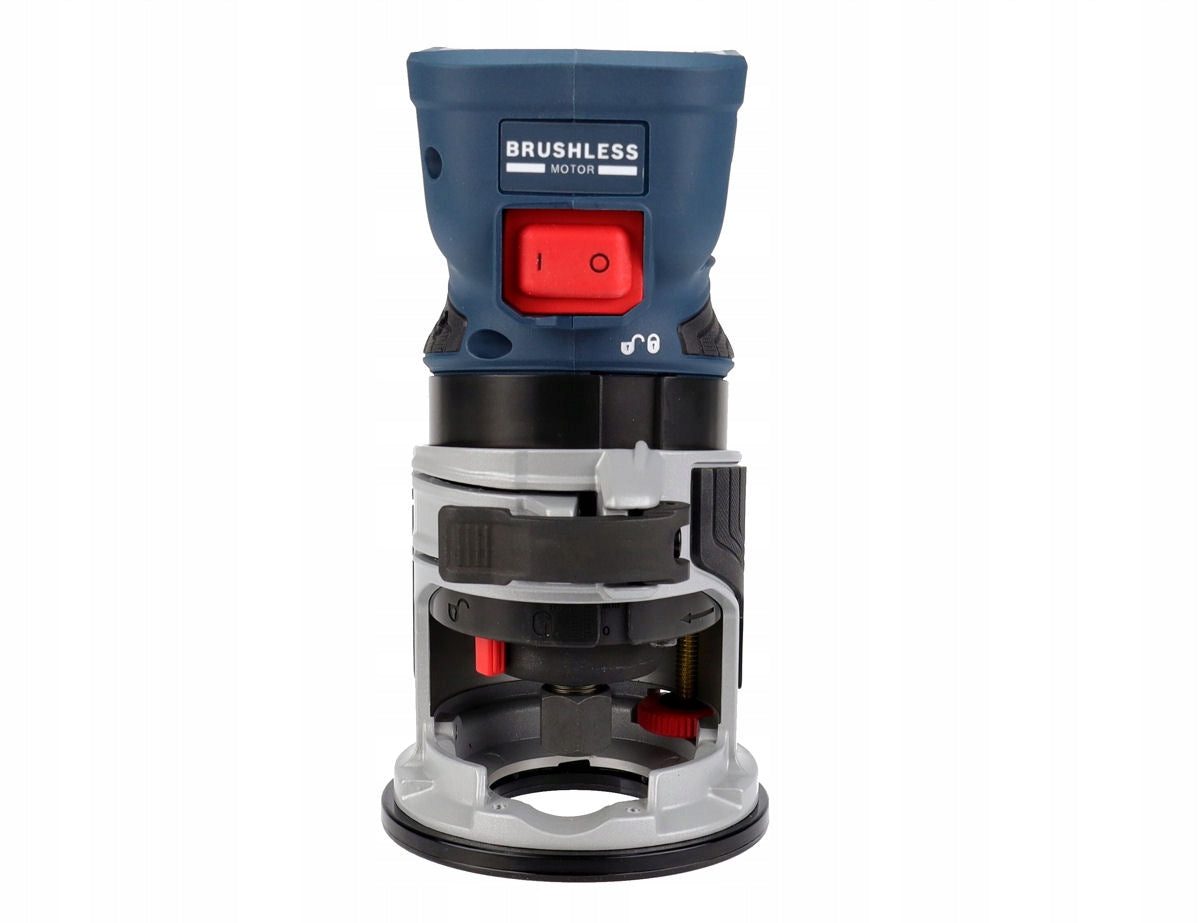

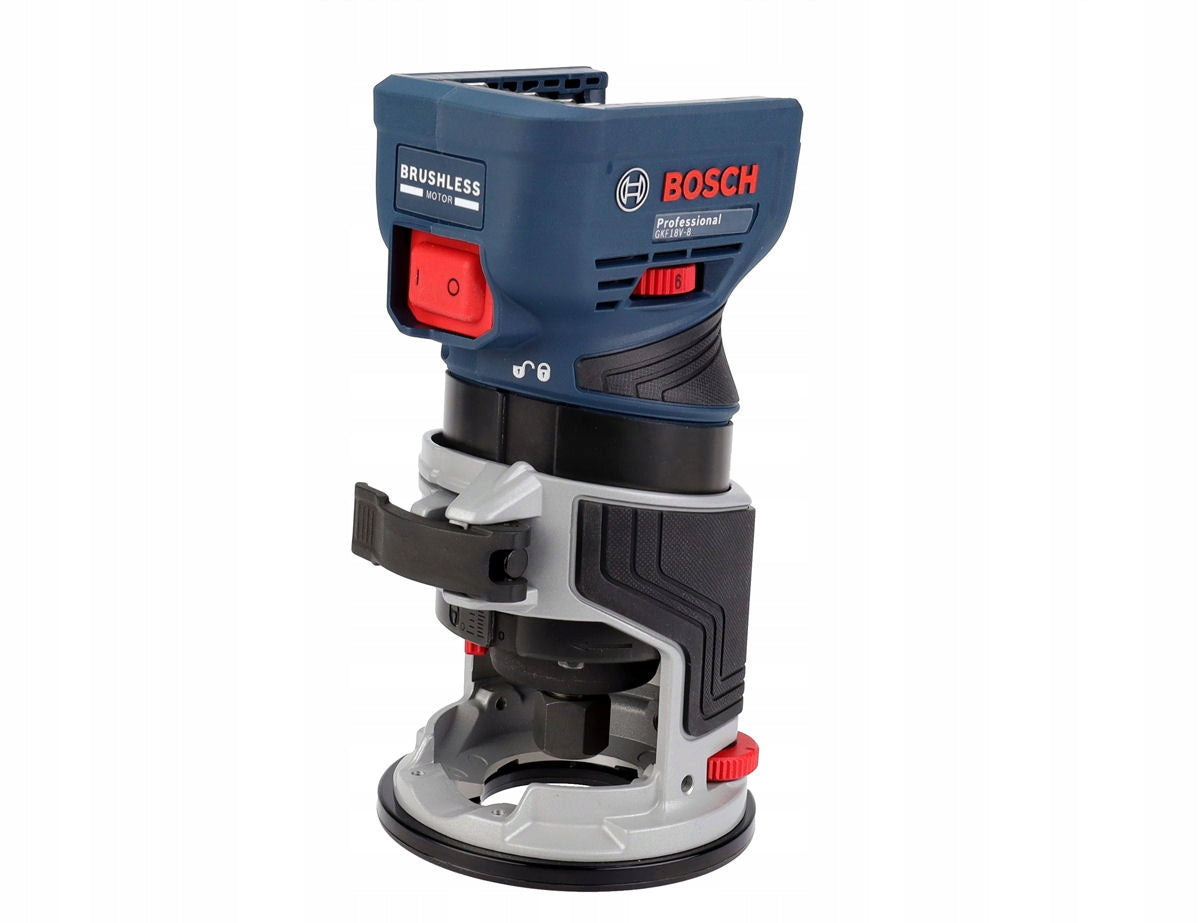

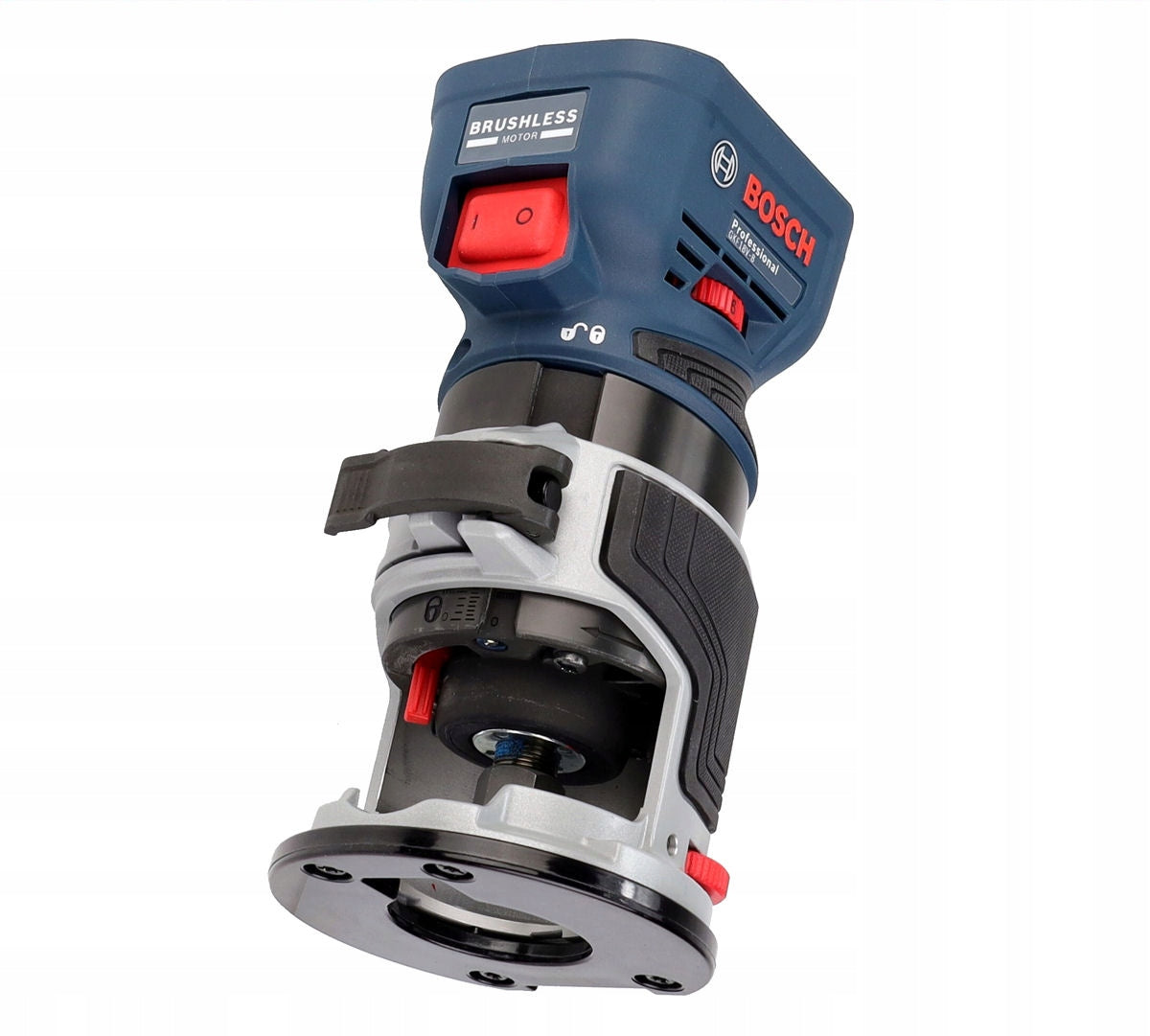

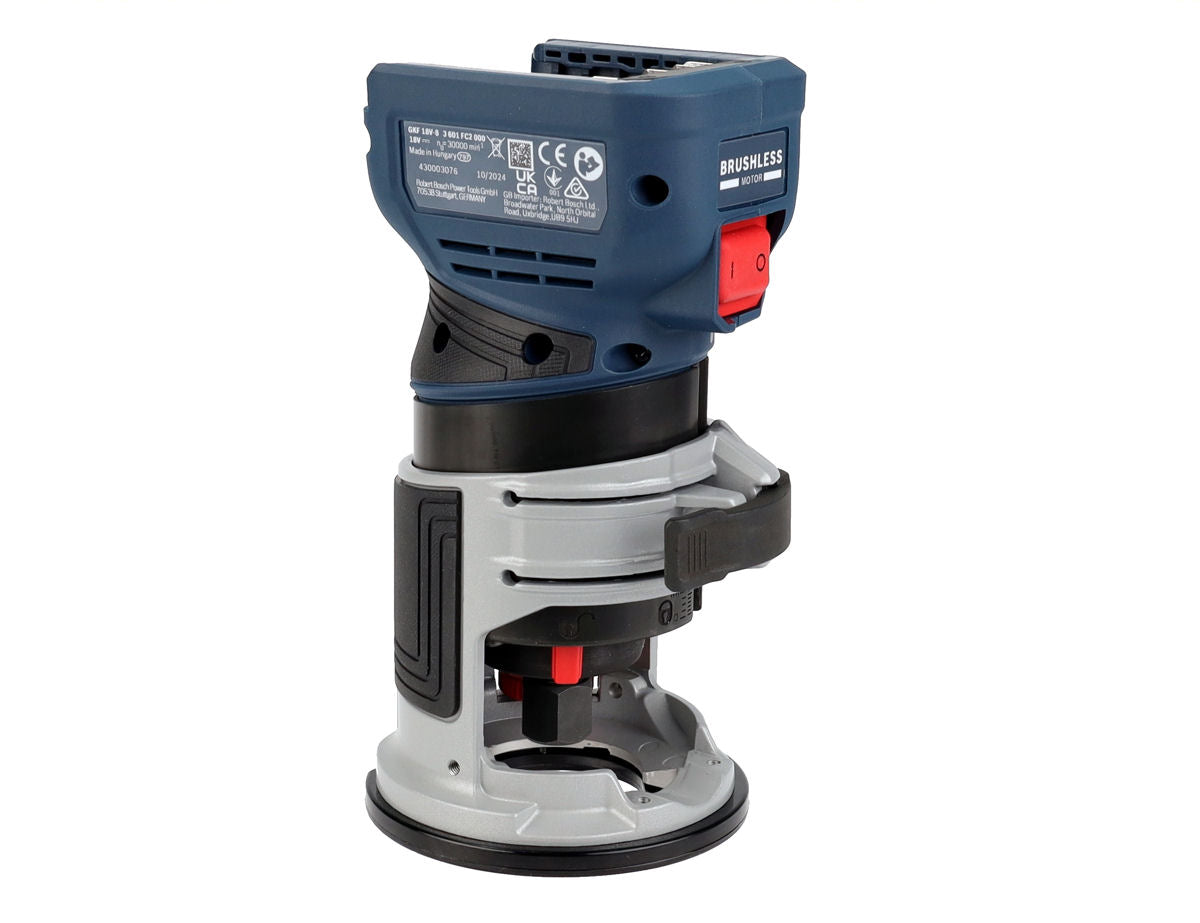

Krašto frezavimo staklės GKF 18V-8, 18V, be akumuliatoriaus, su L-BOXX ir aukštu veleno moduliu

Trumpai apie prekę

Prekė: Krašto frezavimo staklės GKF 18V-8, 18V, be akumuliatoriaus, su L-BOXX ir aukštu veleno moduliu. Kategorija: Frezavimo staklės.

• Gamintojas: Bosch
• Modelis: 06016C2003
• Įtampa: 18 V

The equipment of the offered edge milling machine includes:

• high-spindle module TE 600 BOSCH
• adapter for connecting a vacuum cleaner (edge milling)
• adapter for connecting a vacuum cleaner (edge milling with TE 600 module)
• adapter for connecting a vacuum cleaner (surface milling)
• adapter for connecting a vacuum cleaner (surface milling with TE 600 module)
• parallel chain
• chip guard
• nut with clamping sleeve 8mm
• Fork wrench 17 mm
• insert for tool and accessory
• L-BOXX 238 plastic case

Technical parameters:

• Battery Voltage: 18V Li-Ion
• Battery capacity: -
• Rotation speed: from 10.000 to 30.000 rpm
• Maximum body stroke: 34 mm
• Tool mounting system: 6 mm, 8 mm, 1/4"
• Dimensions: 168 x 101 x 95 mm
• Weight of the device: 1,1 kg
• Brushless motor BRUSHLESS
• Smooth adjustment of milling depth
• Constant Electronic
• Drop Control
• Soft Start
• Runway brake - Brake System
• LED lighting

GKF 18V-8 is one of the most popular milling machines from BOSCH designed for milling grooves, longitudinal holes, edges and profiles in wood, plastics and light building materials, as well as for copy milling, and thanks to the brushless motor, the milling machine easily copes with these and other tasks.

NEW!!!

BRUSHLESS MOTOR FROM BOSCH.

BOSCH cordless power tools equipped with brushless motors from the BRUSHLESS series are the latest generation of cordless tools that meet the highest requirements, are designed for heavy tasks and for work under heavy loads, and are very durable, reliable and durable.

Thanks to the combination of the BRUSHLESS motor and the PROCORE 18V BOSCH battery, the user receives 50% faster cutting speed and 30% longer run time on one battery charge cycle.

In addition, the milling machine has been equipped with the latest anti-overload systems – ECP electronic protection system and thermal energy management system

Electronic Cell Protection (ECP) system from BOSCH thanks to which the service life of the battery and motor has been extended several times, it protects the battery and motor from overloading and overheating and prevents deep discharge of the battery

The thermal energy management system from BOSCH is a system that regulates the operation of the device in the event of an overheating hazard. It ensures optimal heat dissipation, reduces the temperature of the battery and protects the cells from excessive heating during operation.

The BOSCH Electronic system – a function of gradually increasing the rotational speed enabling precise material processing, adjustment takes place in the speed range from 10.000 rpm to 30.000 rpm.

The BOSCH Constant Speed system – guarantees an even working pace regardless of the degree of load, the device automatically maintains the set rotational speed regardless of whether the soft or hard element is processed.

Conveniently located main switch allows for easy and quick operation of the tool.

The scale pressed in aluminium ensures good and durable readability and accuracy of setting the desired milling depth.

Built-in lighting (2 large LEDs), which perfectly illuminates the processing area and allows you to work in darkened or unlit places.

RESTART PROTECTION reboot lock is a system that prevents the milling machine from starting automatically, e.g. after a power outage. To continue working, turn the device off and back on. Therefore, there is no risk of injury due to unforeseen start-up of the device.

SOFT START soft start system increasing work safety and more than double the life of the device.

The BRAKE SYSTEM intelligent run-out brake ensures very efficient operation with maximum user protection. The brake stops the chain very quickly when the device is turned off and if the battery is discharged.

Drop Control - is an intelligent electronic system controlled by a microprocessor that turns off the device if it is dropped to the ground. Thanks to this, even in difficult working conditions, the user has full control over the device and is protected from the risk of injury, as well as reduces the risk of damage to the workpiece material.

The grip part covered with soft Softgrip material reduces the level of vibrations transmitted to the hands and increases grip confidence (the tool does not slip out of the hands).

The dust extraction function allows for quick installation of dust extraction, and at the same time cleaner working conditions.

Smooth adjustment of milling depth with the help of a knob and no clearance in the motor attachment guarantee precision of settings and repeatability of work.

Quick replacement of tools thanks to the spindle lock further increases the comfort of work.

Ergonomic design provides optimal control and ease of use.

Optimally placed air intakes with direct cooling system prevent overload (overheating) and extend the life of the device.

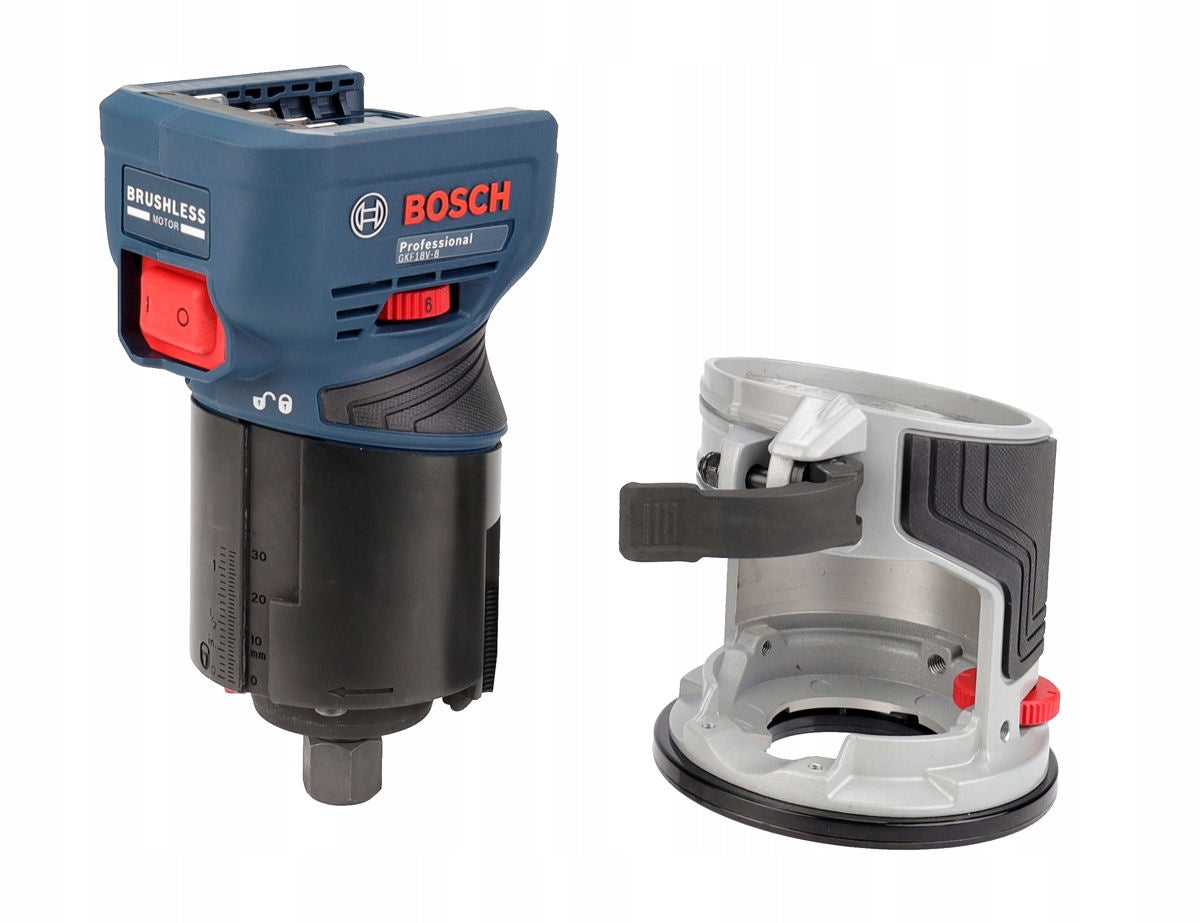

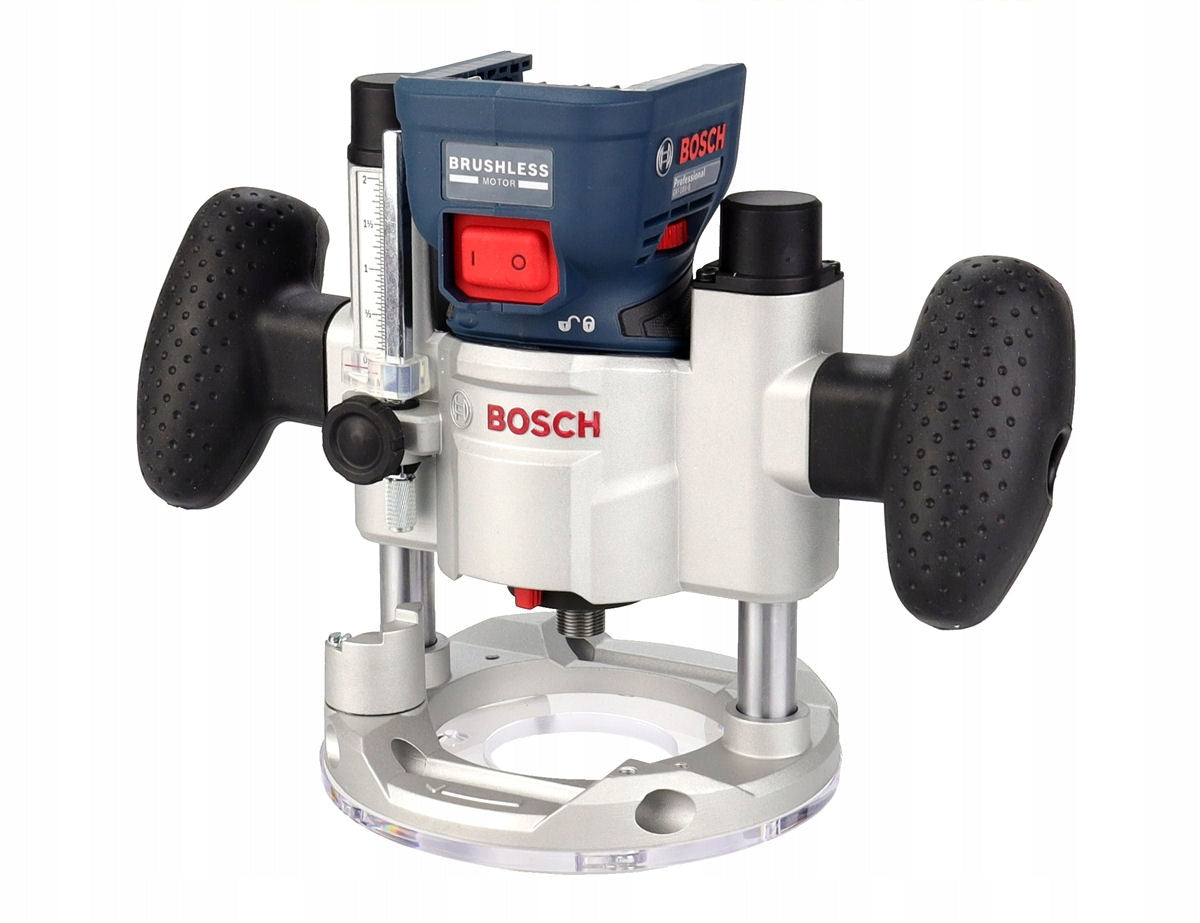

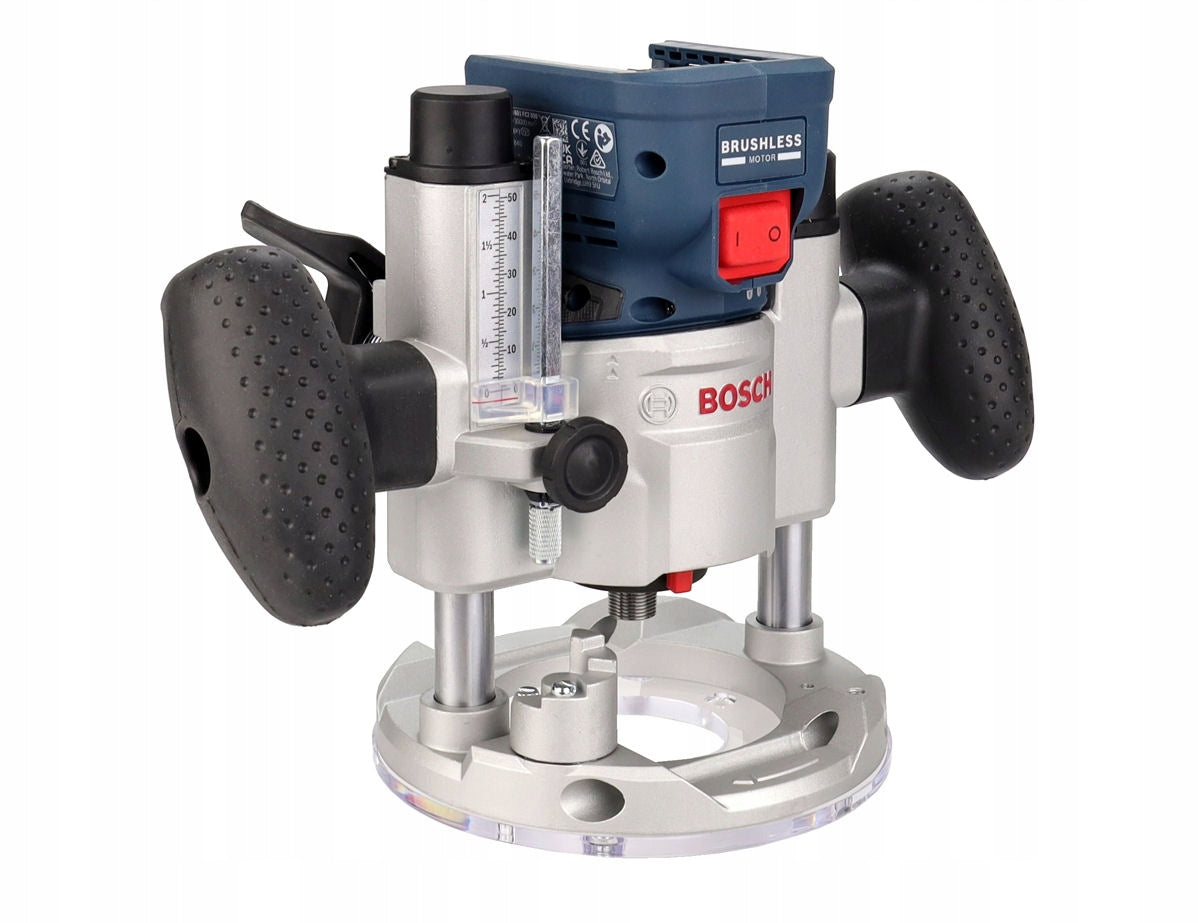

The module allows you to convert the GKF 18V-8 edge milling machine into a spindle milling machine, which significantly increases the range of milling applications.

Installation of the adapter is carried out quickly without the use of additional tools. It is enough to unlock the module with the protection that is located at the back of the module, then remove the edge milling module from the GKF 18V-8 milling machine and insert it into the spindle module.

Multi-stage adjustment of milling depth with bayonet stop thanks to multi-stage depth limiter, the user has the option to choose 1 of 7 predetermined milling depths.

Precise adjustment of the milling depth allows you to set the set milling depth with high accuracy, while guaranteeing a professional result.

The possibility of using copy inserts increases the scope of application of the device.

Double guide columns increase the precision of vertical milling machine guidance, and at the same time facilitate material processing at a given depth.

The main base cast from aluminum covered with a layer of plastic facilitates the guide of the milling machine on the processed material, and at the same time does not scratch the treated surface.

Ergonomic design provides optimal control and ease of use.

Anti-vibration handles covered with Softgrip material increase the comfort of work by preventing the tool from slipping out and reducing vibrations transmitted to the hands.

L-BOXX 238 BOSCH plastic suitcase with cartridge - this is the latest line of suitcases from BOSCH. Thanks to the special design of additional hooks, all suitcases from the L-BOXX line can be combined into one whole. This system allows you to transport and carry several tools at the same time, it is very practical and what is important safe because we can easily secure several tools at the same time.

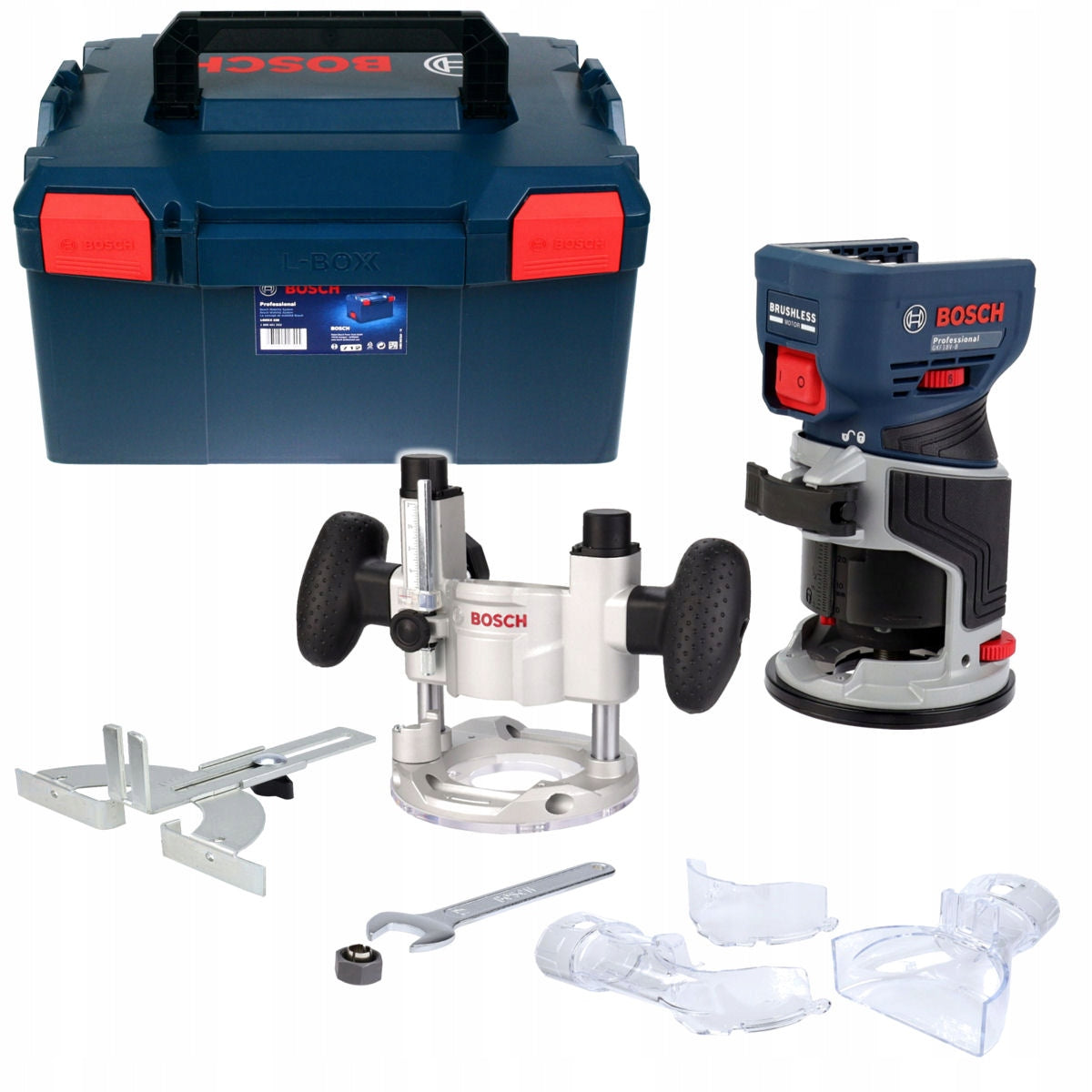

Delivery includes:

• Edge milling machine from BOSCH
• High-spindle module TE 600 BOSCH
• 4 adapters to connect the vacuum cleaner
• Parallel guide
• Anti-chip shield
• Nut with clamping sleeve 8mm
• Fork wrench 17 mm
• Cartridge for tool and accessory
• Plastic case L-BOXX 238
• Instruction manual in Polish
