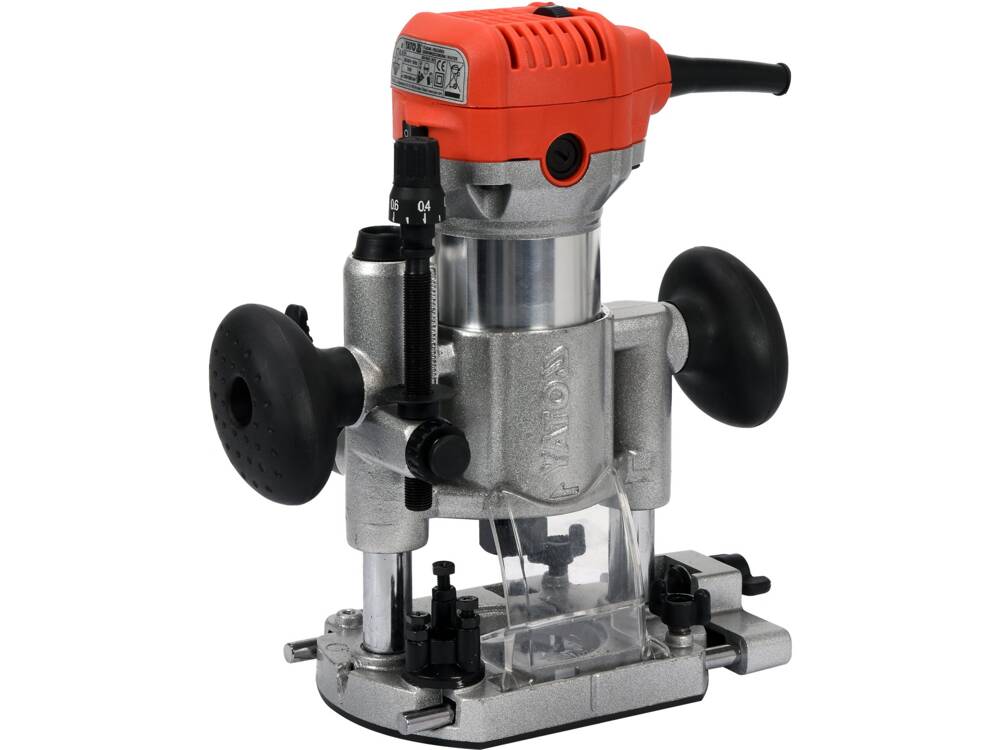

Kraštų frezavimo staklės YATO YT-82390, 710 W

Trumpai apie prekę

Prekė: Kraštų frezavimo staklės YATO YT-82390, 710 W. Kategorija: Frezavimo staklės.

• Gamintojas: Yato
• Modelis: YT-82390
• Įtampa: 230 V

710W edge milling machine for laminates + guide sled, for 6mm and 8mm cutters

The milling machine is used for processing wood and wood-based materials using end mills. Equipping the milling machine with guides facilitates milling in a straight line and after the arc.

Universal milling machine (trimmer) for chamfering the edges of boards and furniture boards (one-handed or both-handed), as well as milling outlets or embedding can hinges in furniture. The high power of 710W and the electronic system controlling the rotational speed of the roller are helpful for work in hard wood species or with cutters with a large cross-section.

The compact size allows for precise handling of the machine, while the included sled and edge guide and angle guide ensure comfort and safety.

Additional information:

• adjustable rotational speed is adjustable in a wide range: 13 000 - 33 000
• soft start system extends transmission life
• drive shaft support bearings are embedded in a metal housing that efficiently distributes heat and does not deform under the influence of temperature and vibration
• The included accessories are made of metal, which increases their lifespan and precision
• speed maintenance system at slow speed

Purpose of milling machine

The tool is used for woodworking using end mills guided from the top of the material on its surface. Wood-based materials can also be processed:

• MDF boards
• chipboard
• Plywood, etc.

Rotary speed setting

The milling machine allows smooth adjustment of rotational speed. The speed is set by the knob, the higher the visible number, the higher the rotation speed. The rotational speed should be selected depending on the type of material being processed and the diameter of the cutter. The smaller the diameter of the cutter and the harder the wood, the higher the rotation can be set.

Gentle start

The device has the so-called. “soft start” which means that it reaches the maximum or set rotational speed gradually speeding up. This protects the user from a sudden from the device, which can lead to a loss of control over the tool during its startup.

Working attachments

The milling machine is equipped with three working attachments:

• for straight milling
• for angular milling
• for plunge milling

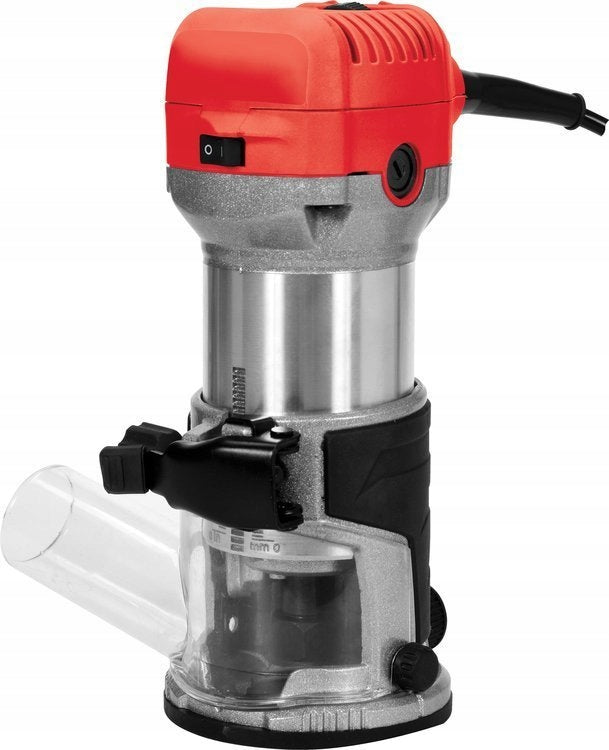

Simple milling

The straight milling attachment allows you to attach two guides. Guides for parallel milling and guide with roller. Both guides have adjustment knobs that allow you to set the operating parameters.

The attachment also allows the adapter to be mounted to an external dust extraction system during operation, e.g. by means of an industrial vacuum cleaner.

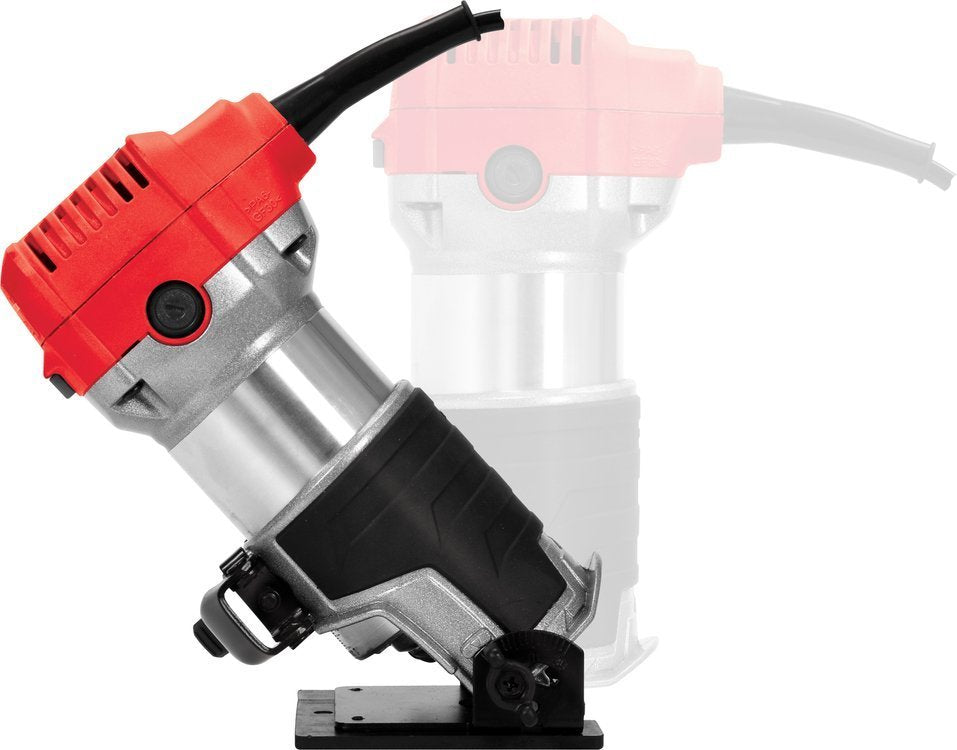

Angle milling

The milling angle is set when the knob is loosened. After setting the angle, tighten the knob so that the milling angle does not change automatically during operation. The scale placed at the knob makes it easy to set the milling angle.

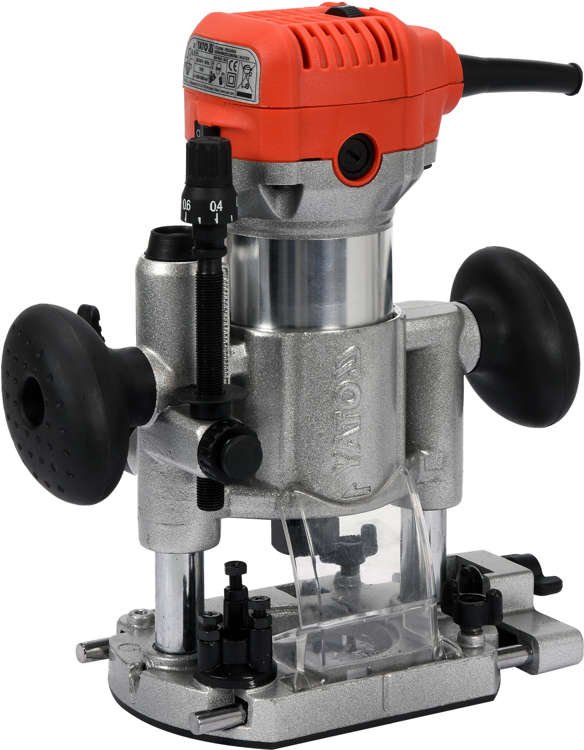

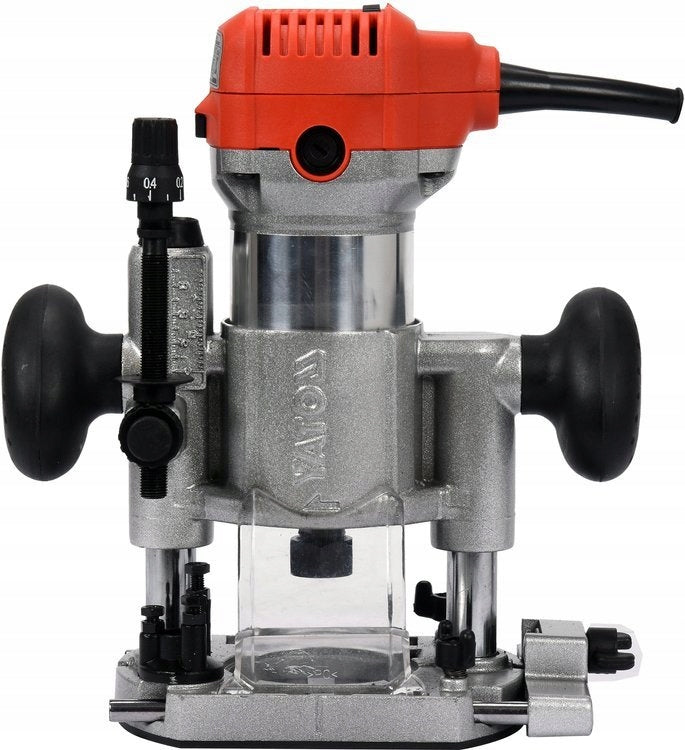

Depth milling

The attachment allows the installation of a guide for parallel milling. After unlocking the lever, it is possible to set the milling depth or cutter stroke. Setting the depth or range of motion is possible using a revolver switch located in the base of the attachment, as well as using a depth gauge located at the top of the attachment, the precision of settings is ensured by a micrometric knob located at the top of the depth gauge

Material bag for device and accessories included.

Contents of the set: milling machine, straight milling attachment, angle milling attachment, plunge milling attachment, parallel milling guide, dust extraction connection, bag

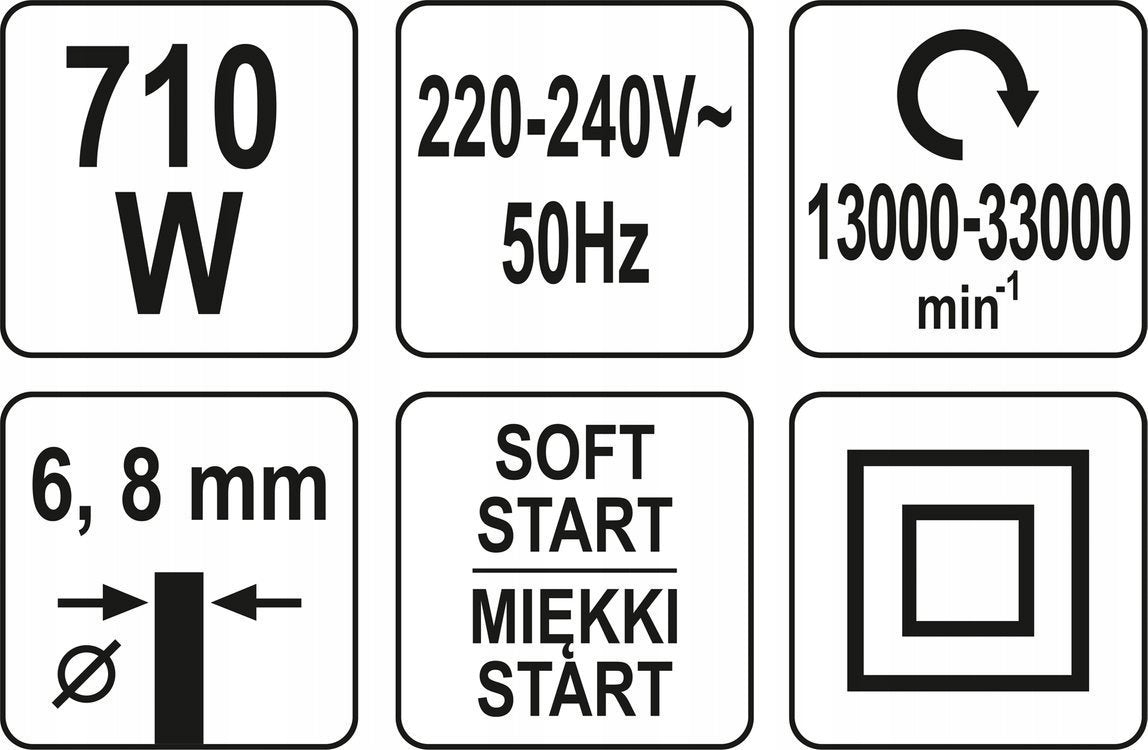

Rotation: 13000-33000 min⁻¹

Compatible with(s): YT-6801, YT-6803, YT-68002, YT-68005

Tool holder size: 6, 8 mm

Mass: 3 kg

Voltage: 220-240 V a.c.

Power: 710 W

Degree of protection: IPX0

Frequency: 50 Hz

Electrical insulation class: II

Acoustic pressure: 92.0 ± 3.0 dB(A)

Acoustic power: 102.0 ± 3.0 dB(A)

Angle of work: 45, 90 ˚

Electronically adjustable rotation speed: yes

Twisting: 2.388 ± 1.5 m/s²

Soft start: yes

Speed control: yes

Jump of the milling unit: 20 mm

YT-82390

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Yato
Parametry	Series	GRE
Parametry	Milling machine type	edge
Parametry	Power supply	mains
Parametry	Maximum power	710 W
Parametry	Supply voltage	230 V
Parametry	Maximum no-load speed	33000 RPM
Parametry	Pitch of the milling unit	20 mm
Parametry	Additional information	speed regulator
Parametry	Device weight	3 kg
Parametry	Product weight with unit packaging	0.1 kg
Parametry	Manufacturer code	YT-82390
Parametry	EAN (GTIN)	5906083072468
Parametry	Tool holder (mm)	6,8
