Kryptinė DVB-T UHF 6-69 antena LIBOX Yagi

Trumpai apie prekę

Prekė: Kryptinė DVB-T UHF 6-69 antena LIBOX Yagi. Kategorija: Antenos.

• Gamintojas: Libox
• Modelis: YAGA
• Spalva: silver

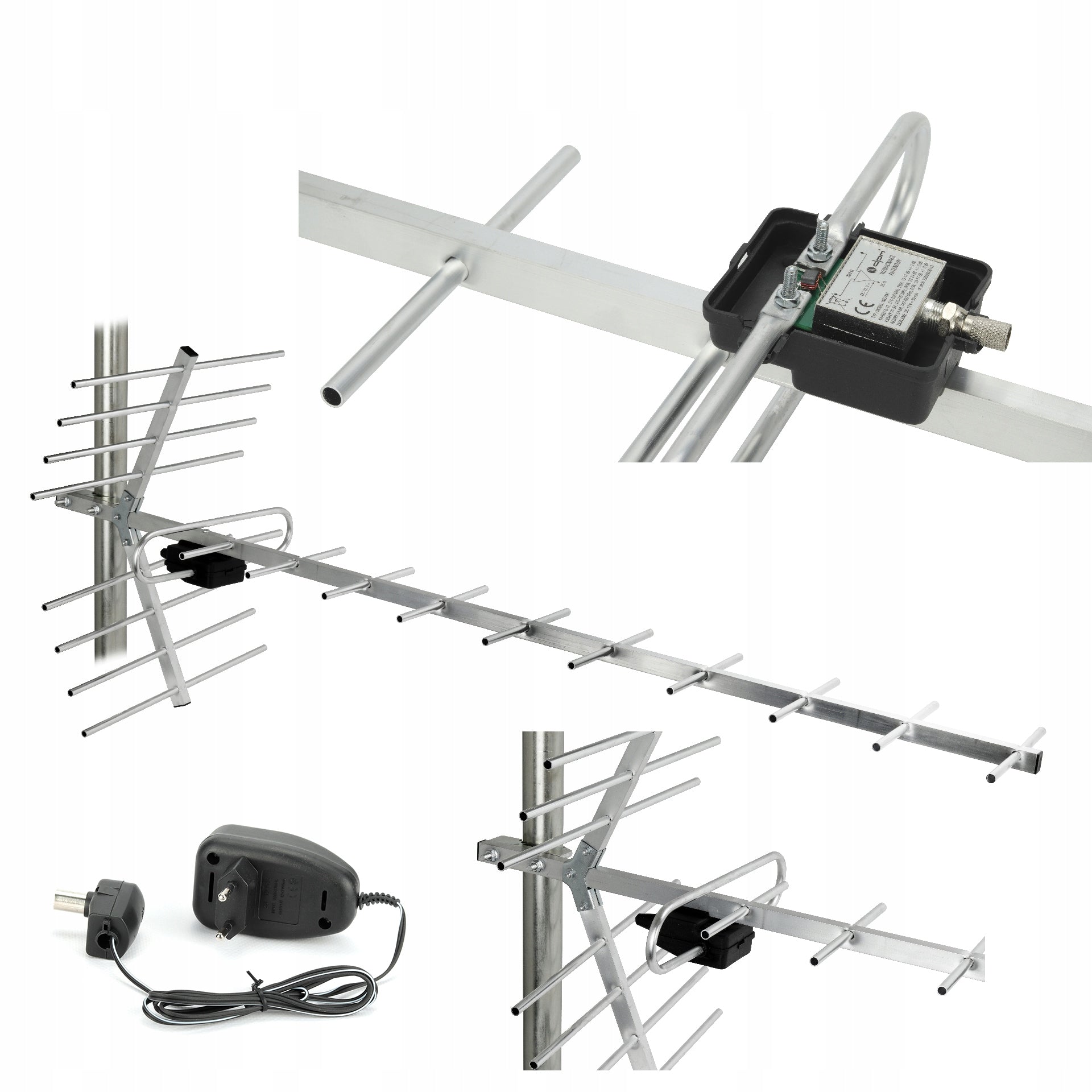

IDEAL SOLUTION FOR RECEIVING DVB-T DIGITAL TV

Everything you need in one set:

• antenna
• amplifier
• charger
• plug F
• cybant for fixing

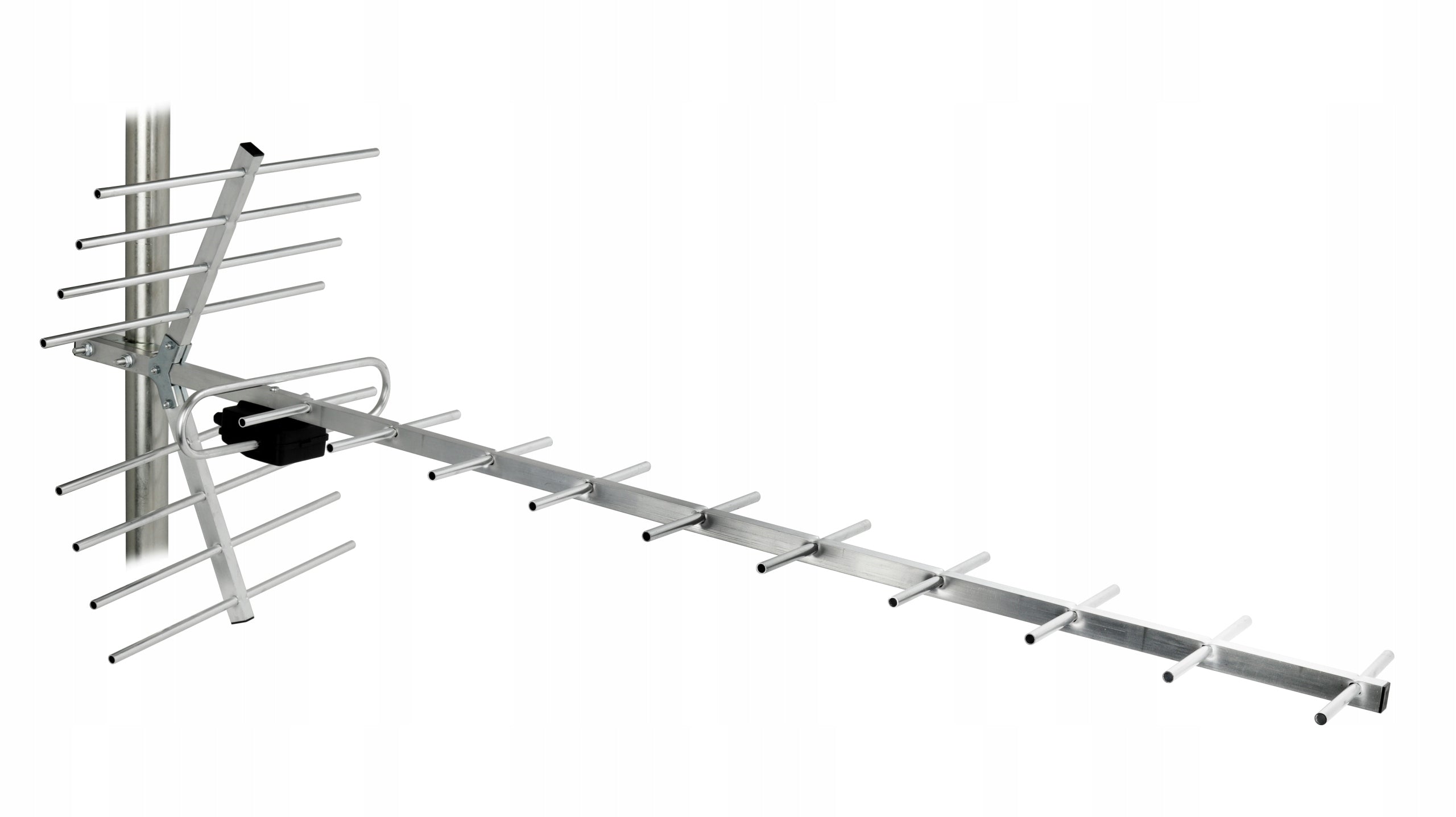

The LIBOX antenna, 19 elements of the YAGI type, is a product designed specifically for the reception of digital terrestrial television (DVB-T2).

It is a perfect solution for receiving TV at home.

The antenna can be used both with external decoders as well as with TVs equipped with DVB-T2 decoder supporting MPEG4 system. The set also includes a set of accessories, allowing it to be mounted on a handle or mast.

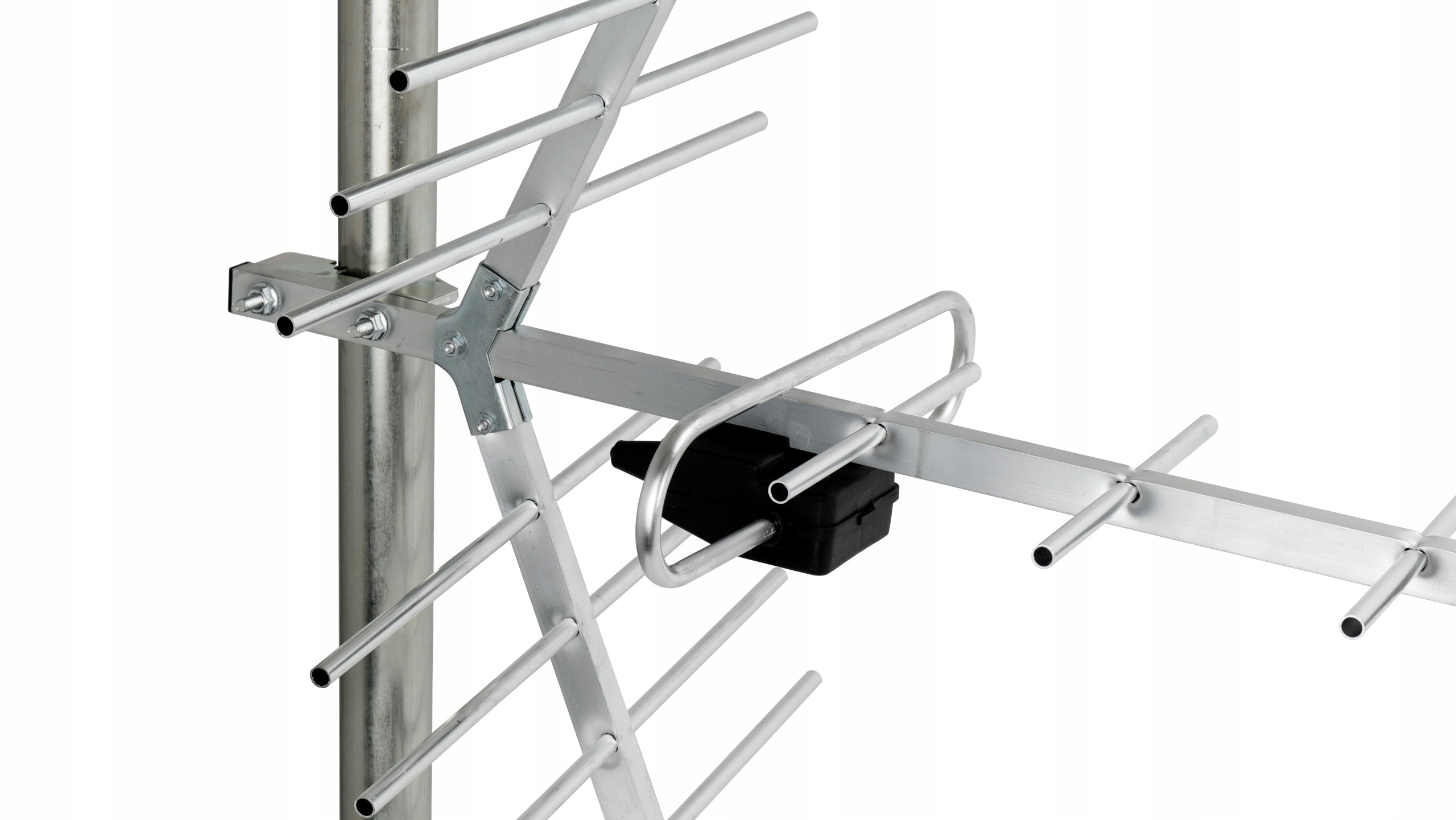

Thanks to the high gain of the antenna, it can be used at long distances from the transmitter, even 60km. The antenna is already partially assembled and mounting on the mast/handle is done with the included clamps and nuts.

The operating range of the antenna may change due to the terrain, etc. .

TECHNICAL DATA:

– Operating channels: 6 – 69 (174-862 MHz)

– gain with the amplifier WE24A1:

• channels 6-12, 174-230 MHz,15-17 dB, +/- 2dB
• channels 21-54, 470-742 MHz,22-24 dB, +/- 2dB
• channels 54-69, 742-862 MHz,24-17 dB, +/- 2dB

– horizontal and vertical polarization

– Output Impedance: 75 Ohms

– complete with power supply and amplifier

Antenna power supply with voltage separator, is used to power antenna amplifiers in DVB-T antennas.

The power supply is adapted for continuous operation.

After mounting the coaxial cable to the splitter and turning on the power supply to the mains socket, it can remain in the on state.

The correct operation of the power supply will be indicated by the illumination of the control diode on the housing.

Technical data:

• Supply voltage- AC 230~50Hz
• Output voltage - DC 12V 100mA
• Max load - 100mA
• Model: LBZ-01/21
