Kryptinė DVB-T2 antena MAXI 110 cm, vertikali poliarizacija, MUX-8, LTE filtras 420 MHz

Trumpai apie prekę

Prekė: Kryptinė DVB-T2 antena MAXI 110 cm, vertikali poliarizacija, MUX-8, LTE filtras 420 MHz. Kategorija: Antenos.

• Gamintojas: Davbol
• Modelis: TTV TURBO Combo V5 110cm z Filtr LTE420MHz Zas Reg

You have come to the right place - the antenna is the strongest antenna in our country for receiving alternative television.

Watch the video presentation

https://youtu.be/eMK12iaq7uI

The set allows you to receive multiplexes:

1. MUX-1 - TTV, Polo TV, Eska TV, HD Antenna, TV Trwam, TVP ABC, Focus TV, Stopklatka TV
2. MUX-2 - Polsat, Super Polsat, TVN, TVN7, TV Puls, TV Puls 2, TV4, TV6
3. MUX-3 - TVP 1 HD, TVP 2 HD, TVP Info HD, TVP 3, TVP Sport HD, TVP History
4. MUX-4 - Polsat Sport, Polsat Sport Extra, Eleven Sports 1, Eleven Sports 2, Polsat News, Events24, Eurosport 1, Eurosport 2, TVN Turbo, TVN Style, TVN24
5. MUX-6 – TVP Science, TVP Entertainment, TVP Dokument, TVP Polonia, TVP Woman, Alfa TVP, Belsat TV. During the Qatar World Cup, a 4K TVP channel was also available on multiplex 6.
6. MUX-8 only Vertical polarity - yes, with very high efficiency - TV Republic, Zoom TV, Metro, New TV, WP TV, CTV9 depending on what is available
7. DAB+
8. Radio FM

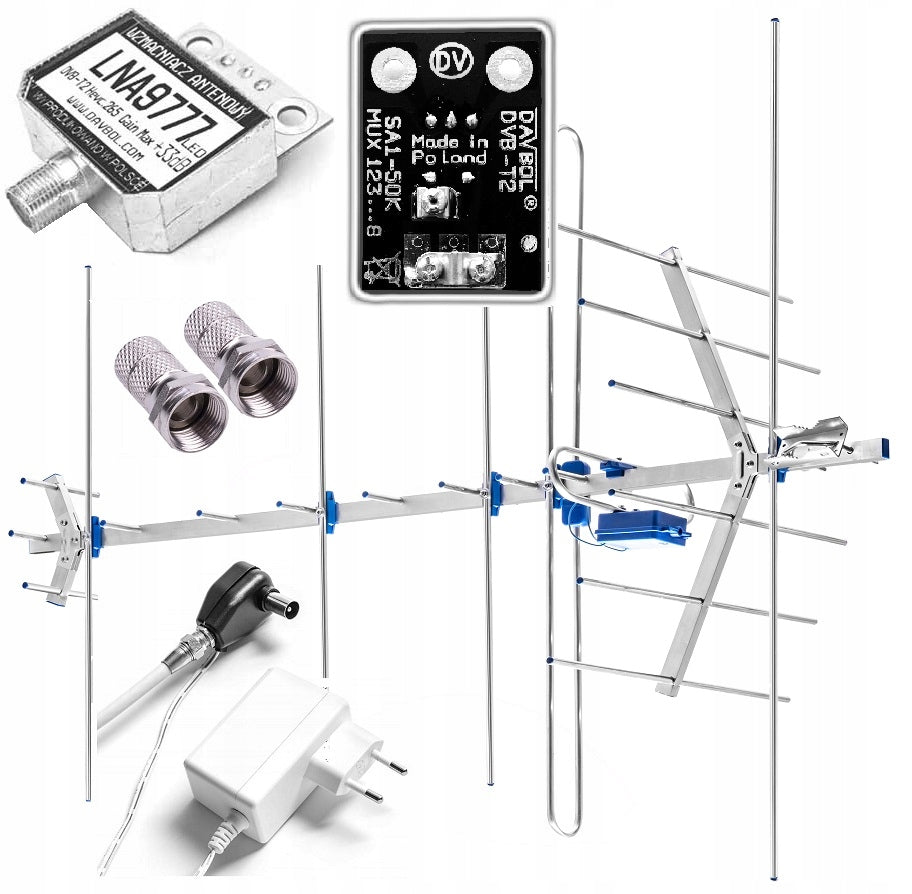

The set includes:

• TTV antenna Turbo V5 MAXI 110cm length
• LNA9777 LED DVB-T2 Antenna Amplifier with 420MHZ Filter
• Symmetrizer SA1-50 if you want to use the antenna passively
• Antenna power supply 12V lmpulse white with F socket with true signal level adjustment
• Vertical dipole MUX-8 for a dedicated frequency (6,7,8,9 or 12 K. to choose from, write in the comment on which transmitter the antenna should be decorated - if you do not write it yourself we will check by the zip code and decorate the antenna especially for you)
• Cybant - handle
• Plugs F x2 pcs
• User manual

Antenna Amplifier

Antenna amplifier with LTE filter 420 MHz

An antenna amplifier with LTE filter 420 MHz is used to amplify the TV signal received by the antenna. It has a built-in filter that cuts off interference from LTE and 5G cellular networks operating in the range of 420 - 450 MHz. Thanks to this, it provides a more stable and cleaner reception of DVB-T/T2 terrestrial TV channels.

Where is LTE 420MHz?

This is the frequency that is right in the middle of the TV band. Between the VHF and UHF bands, so if there is such a transmitter in your area, using any antenna amplifier without this filter you will have an "overdriven signal" too strong and TV reception will not be possible. This is manifested by the fact that the antenna with the amplifier works even worse than without the amplifier

12V antenna power supply with real power regulation. You can reduce the level of signal strength.

When to use an adjustable antenna power supply?

Only if the signal is too strong. Of course, you can use a passive board in the antenna as you have the SA1-50 Symmetrizer in this set, but it may also be that in this configuration the set will be too weak so you must have the Amplifier in the can. But if the version with the amplifier is a little too strong (exceed the upper limit of good reception), then you can lower the signal with such a potentiometer so that the signal strength is not at 100 or more percent. You set it to 90% and that's enough.

What is true signal regulation?

The real regulation is that by lowering the Signal Strength Level you do not affect the Signal Quality Level at all. Because normally when you spin the potentiometer on the power supply it drops and the signal strength and signal quality, and you absolutely can not lower the quality because you will lose the image.

TTV Turbo antenna V5 110cm

The most powerful Combo antenna on the Polish market can be distinguished by high efficiency, especially on the VHF band, where MUX 8 is broadcast. Thanks to its high efficiency on the VHF band, where MUX 8 is broadcast, and wide signal reception capabilities at different frequencies, the TTV Turbo V5 antenna can be successfully used in various regions. Such versatile use can make this antenna gain recognition in the industry and will be widely appreciated by users all over the world

Why the most powerful in Poland antenna?

The antenna is the most powerful of Combo antennas up to 110cm in size and which receive MUX 8 from vertical polarization

It is very strong because in the UHF range it has amplification up to 15dBμV passively

and on the VHF band (MUX8) the antenna has amplification up to 9dBμV passively

What do these 15dBμV and 9dBμV mean?

This means that you probably will not find a Combo antenna on the market with such a strong gain of such a small antenna.

Maximum parameters on the UHF band MUX1, 2, 3, ...6?

and this is the maximum you can get in the UHF band, i.e. on channels 21-50 (MUX 1 2 and 3) from the Turbo V5 TTV Antenna

Maximum parameters on the VHF MUX8 band vertical polarization?

On the VHF band, i.e. channels 6-12 (Programs with MUX8), the 5-element antenna in size up to 100cmm has 9db and that's also the TTV Turbo V5 antenna

Important read

The antenna receives MUX8 (where there is a TV Republic / wPolsce24 ) only in vertical polarization. If you have MUX-8 broadcast in Level, do not buy this antenna because it will not work.

Why is this antenna so powerful?

Because we have over 40 years of experience in designing antennas and antenna amplifiers. The TTV TURBO V5 antenna in combination with our LNA9777 amplifier gives the highest results. The whole looks like an ordinary construction like any other - but the effects of using this antenna exceed even the most expensive constructions. We produce antennas in very small quantities, all manual work, bending, crimping, drilling, twisting. This is not mass production as in factories in the Far East.

Will the antenna work for you?

If the signal comes, it probably does. You can never test the antenna on your roof and up to 14 days you can decide whether the antenna you had before was better or the new Davbol TV antenna. In 95% of cases, our antenna in this dimension will work - especially on MUX-8 with vertical polarization - more effectively than another antenna in this size.

Manufacturer code: AA-103W-A-2

EAN code: 5904624168267

Producer: Davbol TV

Version: 2025r

You want to watch Republic of TV and inPoland24

You've come to the right place - 40 years of antenna design is the result. This set here on Allegro. Of course, you can also watch basic TV on this air :-)

Watch the video presentation

https://youtu.be/eMK12iaq7uI

Here at this auction it is the same version is our normal version - Very Strong - only the antenna amplifier has an LTE filter at 420-450 MHz. It lowers this frequency by more than 30dB without affecting TV and radio reception. If there is no such transmitter in your area, we recommend buying the standard version - because it is much cheaper. i Here, too, in this auction there is a 12V antenna power supply with a potentiometer, which is used to lower the signal strength level. This is also an additional cost. .

What models we have available TTV antenna V5 Turbo on Allegro:

1. Price PLN 211 - Antenna 110cm long Very Strong (LNA9777 Amplifier + Passive Balun + 12V Power Supply)
2. Price PLN 250 - Antenna 110cm long Very Strong only the Amplifier has an additional LTE 420 MHz Filter and the Power Supply has True Power Regulation)
3. Price PLN 265 - Antenna 135cm length This gives +10% more dB on the UHF band, the Amplifier has an additional 420 MHz LTE Filter and the Power Supply has True Power Regulation)

The version with LTE Filter 420MHz is probably not needed and an antenna with a length of 135cm. If there is a 420MHz or 450MHz LTE transmitter in your area or you live at the end of the range or you have some terrain obstacles and so far you have had problems with good reception, then we suggest buying the strongest version.

If you live in heavily forested areas or between blocks, the Grid Antenna will most likely be a better solution than a directional antenna.

Specifications
